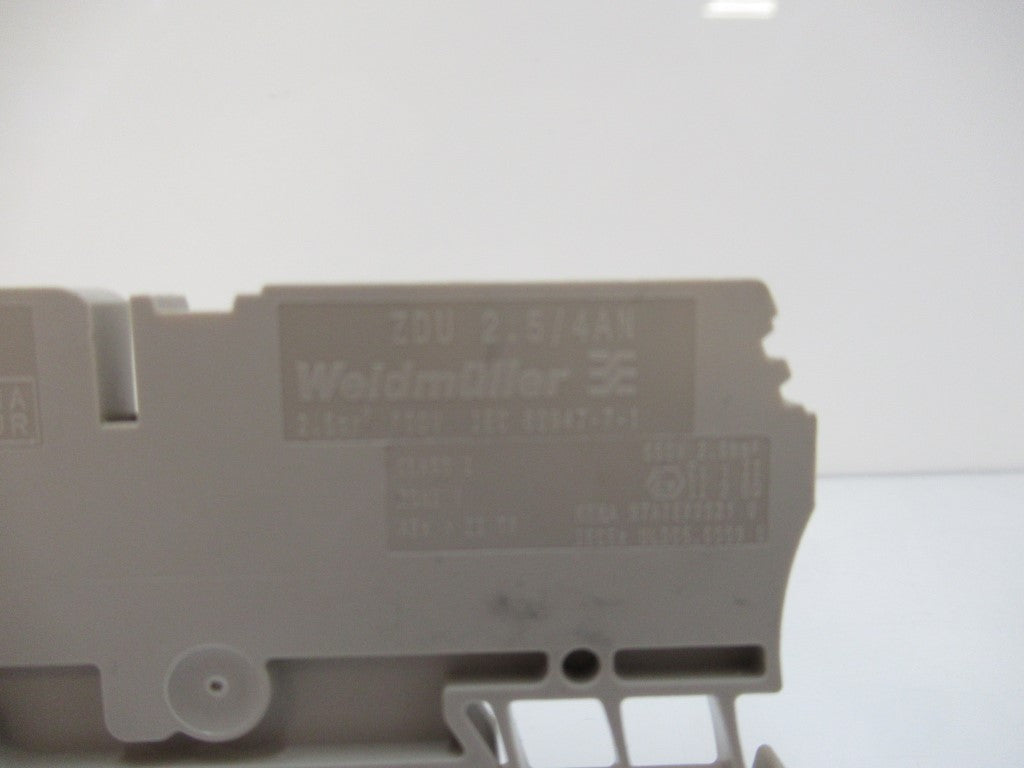

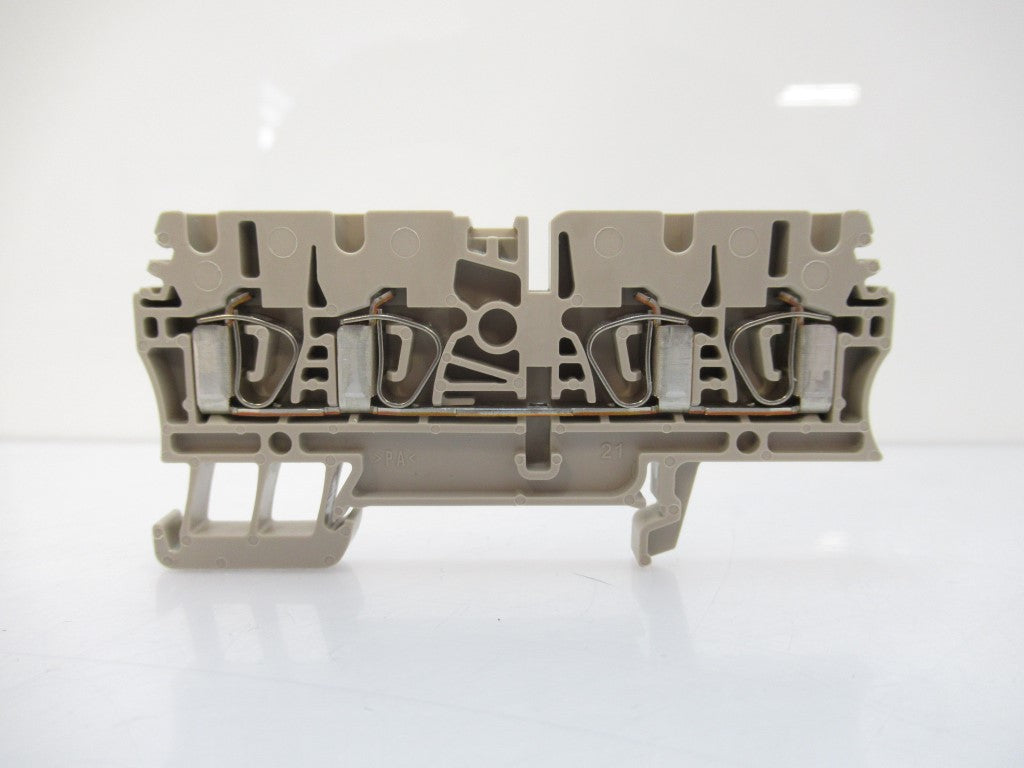

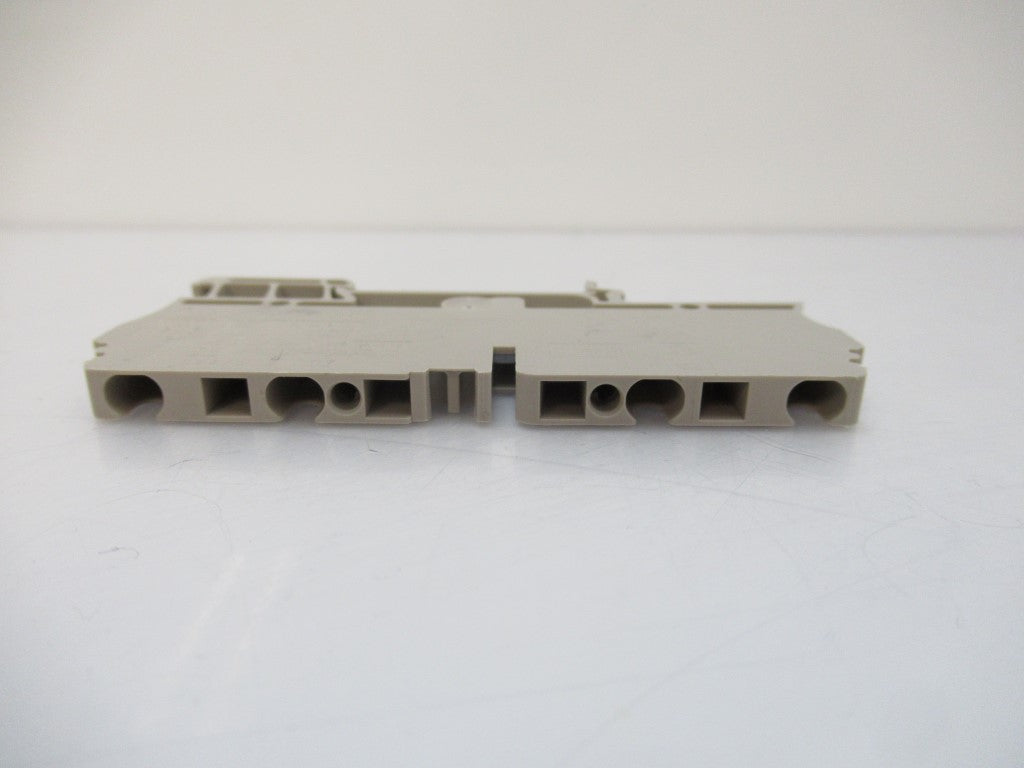

ZDU 2.5/4AN Weidmuller Feed-Through Terminal, Tension-Clamp Connection
by Weidmuller
$1.13 USD
FACTORY SUPPLY BRAND NEW
SKU TER-0107-E
Only 14 left!
ZDU 2.5/4AN ZDU254AN 1608570000
Weidmuller
Feed-through terminal, Tension-clamp connection, 2.5 mm², 800 V, 24 A, dark beige
Sold By Unit New
Dimensions And Weights
| Depth | 38.5 mm |
| Depth (inches) | 1.516 inch |
| Depth including DIN rail | 39.5 mm |
| Height | 79.5 mm |
| Height (inches) | 3.13 inch |
| Net weight | 11.59 g |
| Width | 5.1 mm |
| Width (inches) | 0.201 inch |
Temperatures
| Storage temperature | -25 °C...55 °C |
| Operating temperature range | For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity |
| Continuous operating temp., min. | -50 °C |
| Continuous operating temp., max. |
120 °C |
System Specifications
| Version | Tension-clamp connection, for plug-in cross-connector, One end without connector |
| End cover plate required | Yes |
| Number of levels | 1 |
| Number of clamping points per level | 4 |
| Number of potentials per tier | 1 |
| Levels cross-connected internally | No |
| PE connection | No |
| Rail | TS 35 |
Technical Data
| Explosion-tested version | Yes |
| Installation advice | Busbar |
| Number of similar terminals | 1 |
| Open sides | right |
| Type of mounting | Snap-on |
