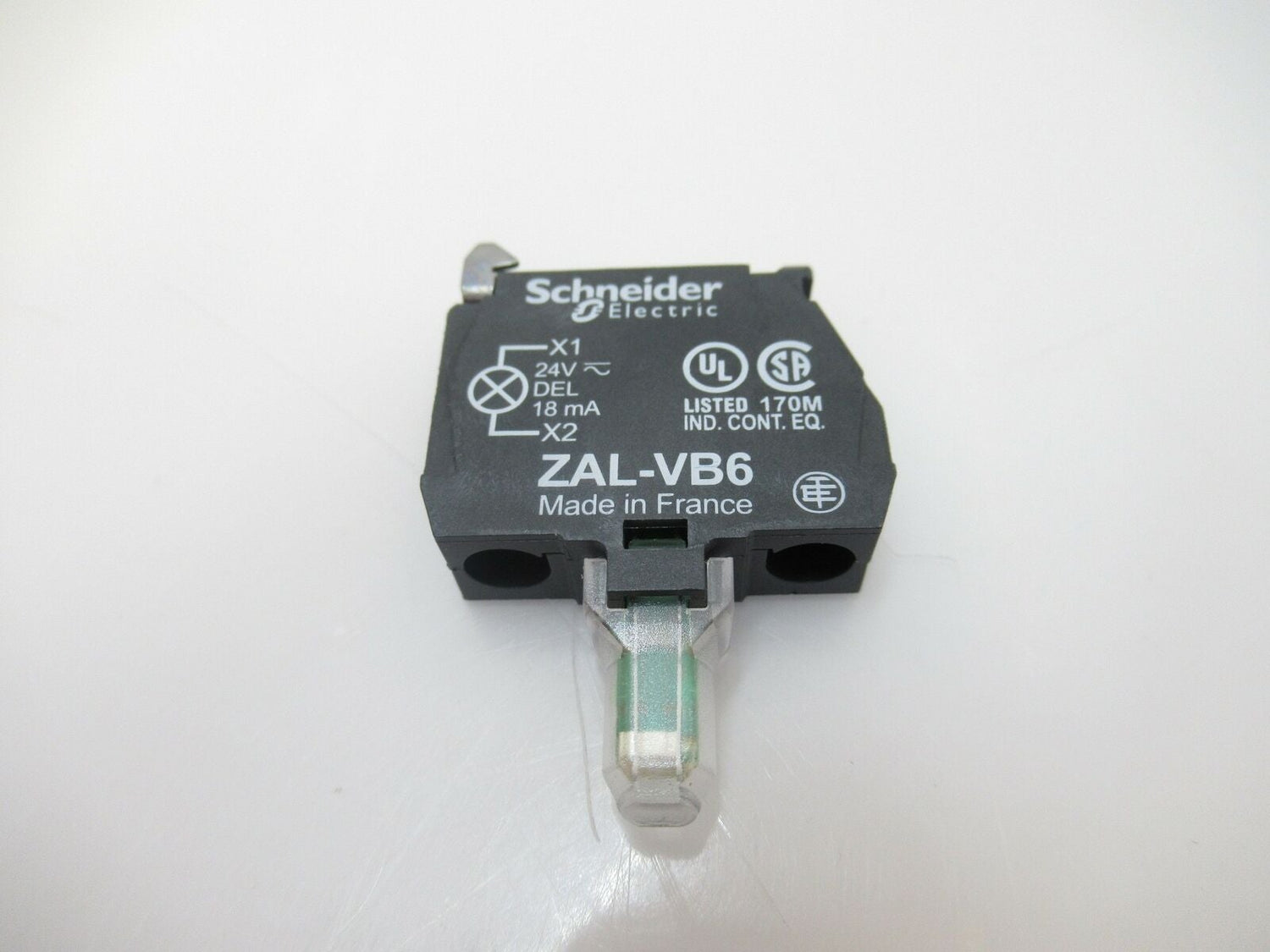

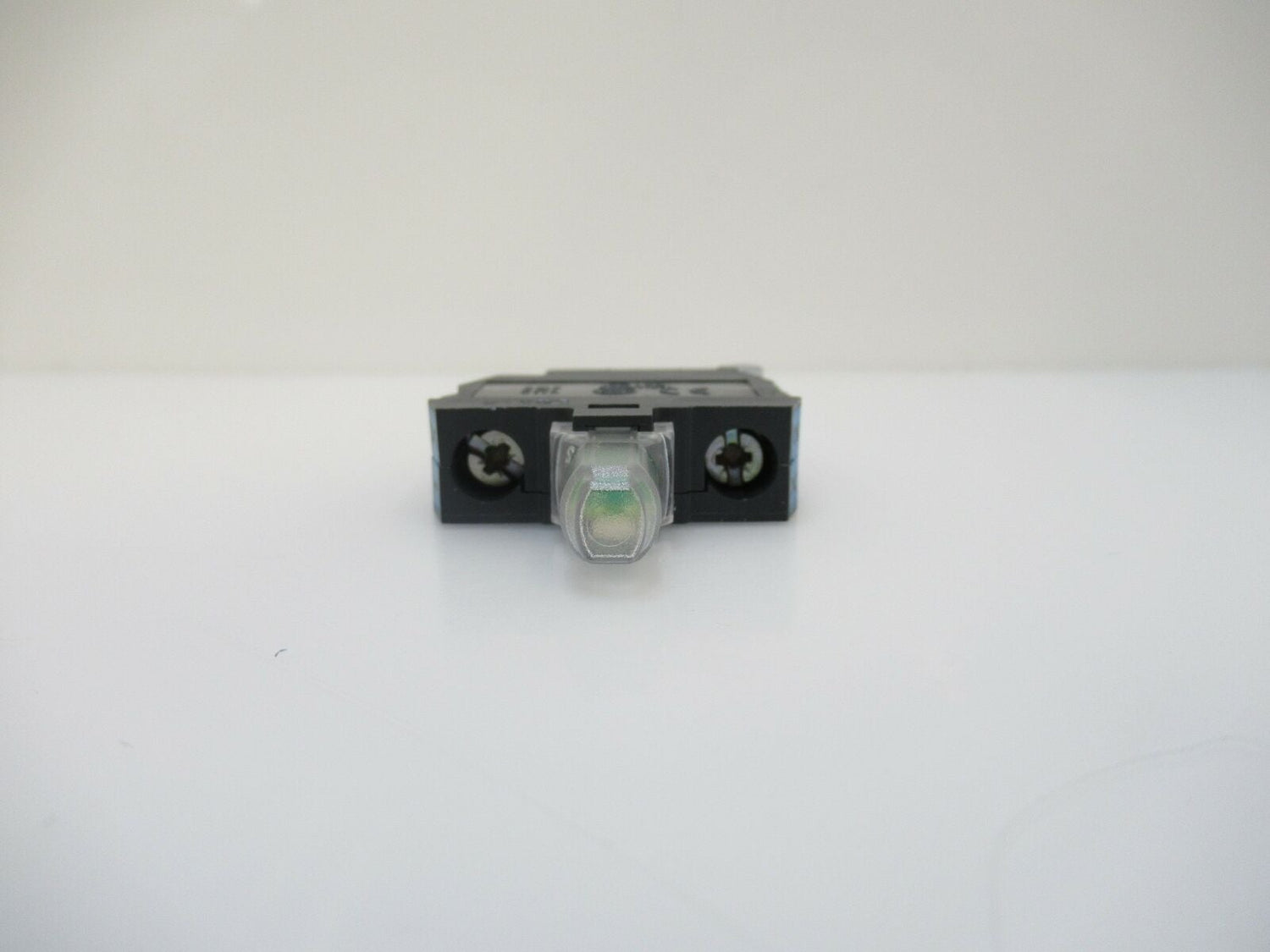

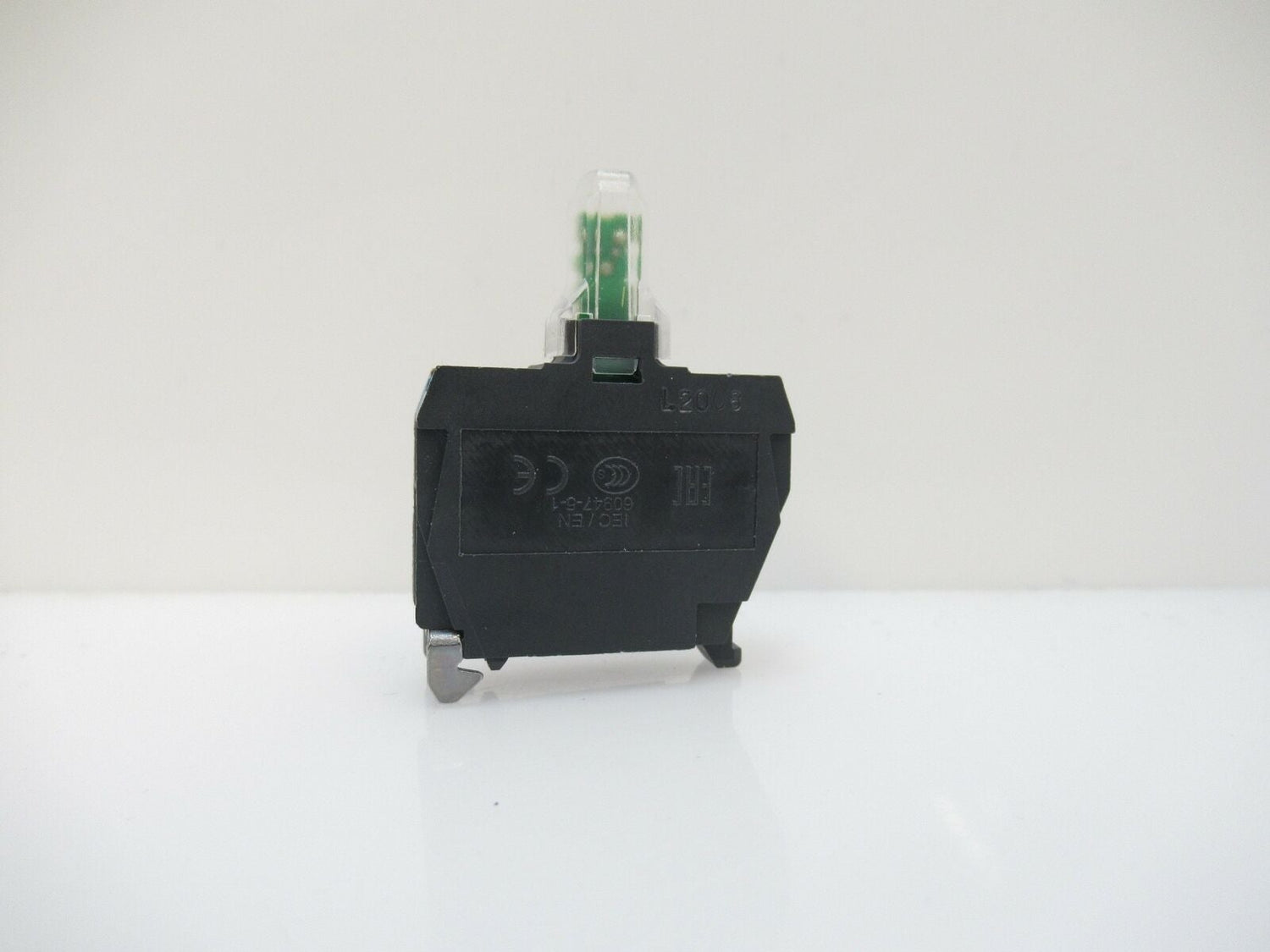

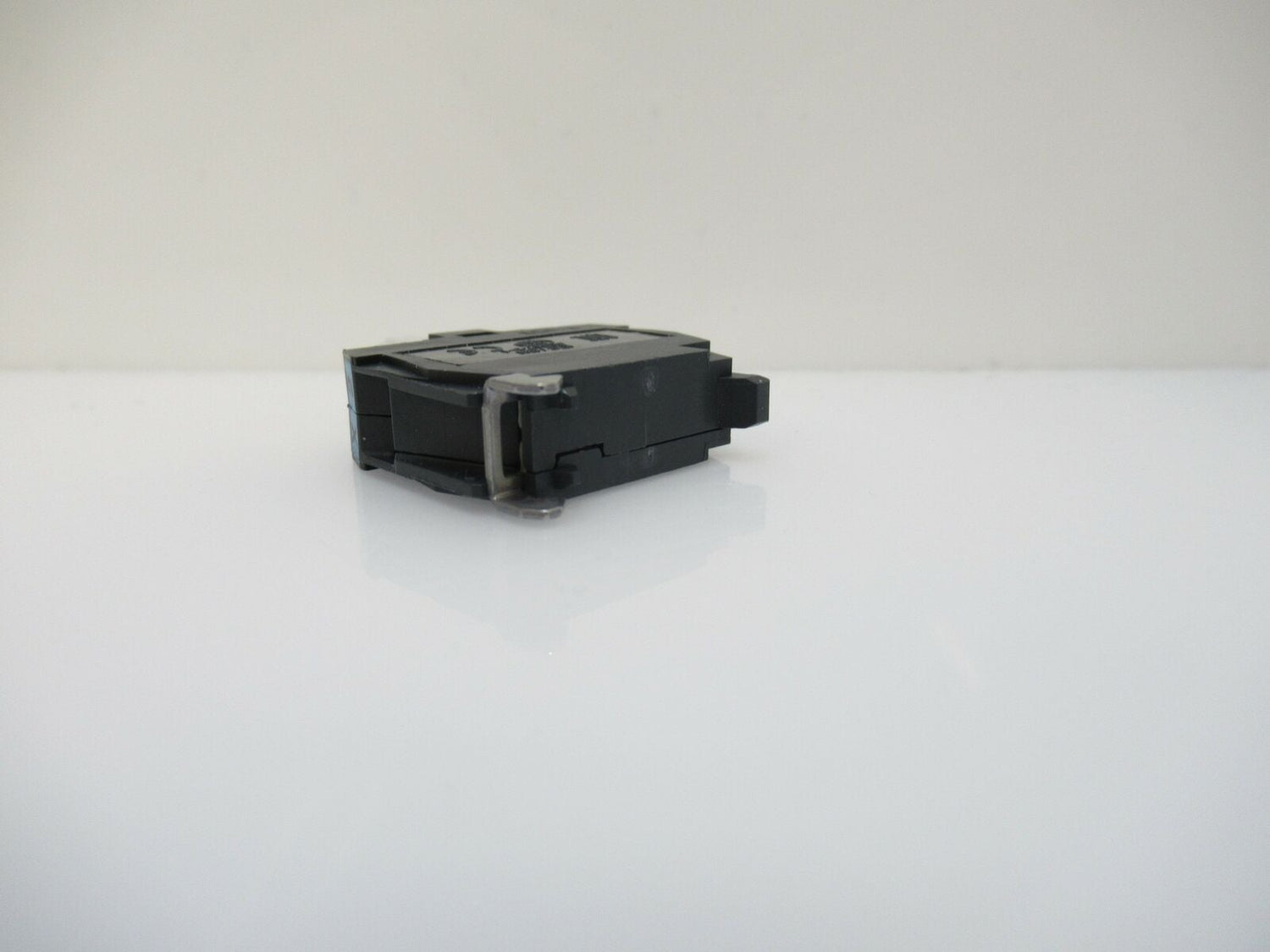

ZAL-VB6 Schneider Electric Terminal Block With Blue Led Light

$15.23 USD
FACTORY SUPPLY BRAND NEW
SKU PIL-0097-E
UPC: 13389110115144
Only 6 left!
-
+

This product is in shipment and will be arriving shortly. Enter your email below to be notified of its arrival.

ZAL-VB6 ZALVB6

Schneider Electric

Light Block For Head Ø22, Blue, Integral LED, Mounting In Back Of Enclosure, Screw Clamp Terminal, 24V AC/DC

Sold By Unit New

Main
range of product
Harmony XAL

product or component type
Light block

device short name
ZALV

product destination
For XB5 Ø 22 mm control and signalling units

mounting of block
Rear mounting

sale per indivisible quantity
5

light source colour
Blue

[Us] rated supply voltage
24 V AC/DC

Complementary
assembly style
For customer assembly

net weight
0.015 kg

connections - terminals
Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1
Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to EN/IEC 60947-1

tightening torque
0.8…1.2 N.m conforming to EN 60947-1

shape of screw head
Cross compatible with Philips no 1 screwdriver
Cross compatible with pozidriv No 1 screwdriver
Slotted compatible with flat Ø 4 mm screwdriver
Slotted compatible with flat Ø 5.5 mm screwdriver

[Ui] rated insulation voltage
250 V (pollution degree 3) conforming to EN/IEC 60947-1

[Uimp] rated impulse withstand voltage
EN/IEC 60947-1 4 kV

signalling type
Steady

light source
Integrated and protected LED

supply voltage limits
19.2…30 V DC
21.6…26.4 V AC

current consumption
18 mA

service life
100000 h at rated voltage and 25 °C

surge withstand
1 kV conforming to IEC 61000-5-1

light block supply
Direct

bulb base
Integral LED

electrical composition code
MR1
PR1
