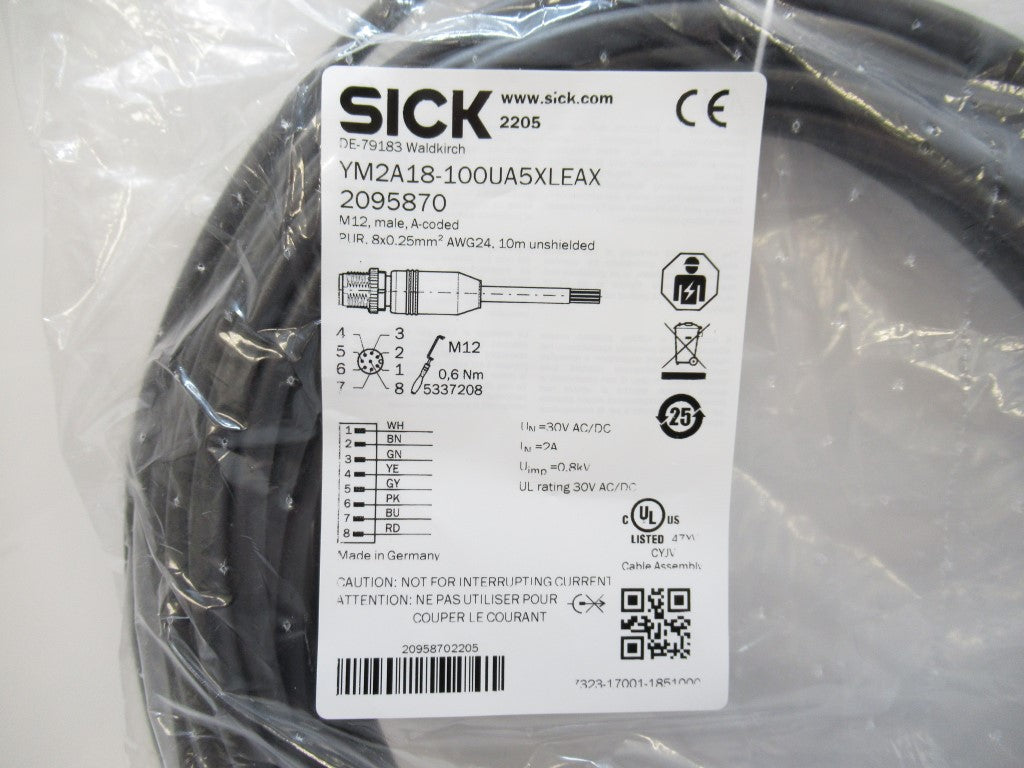

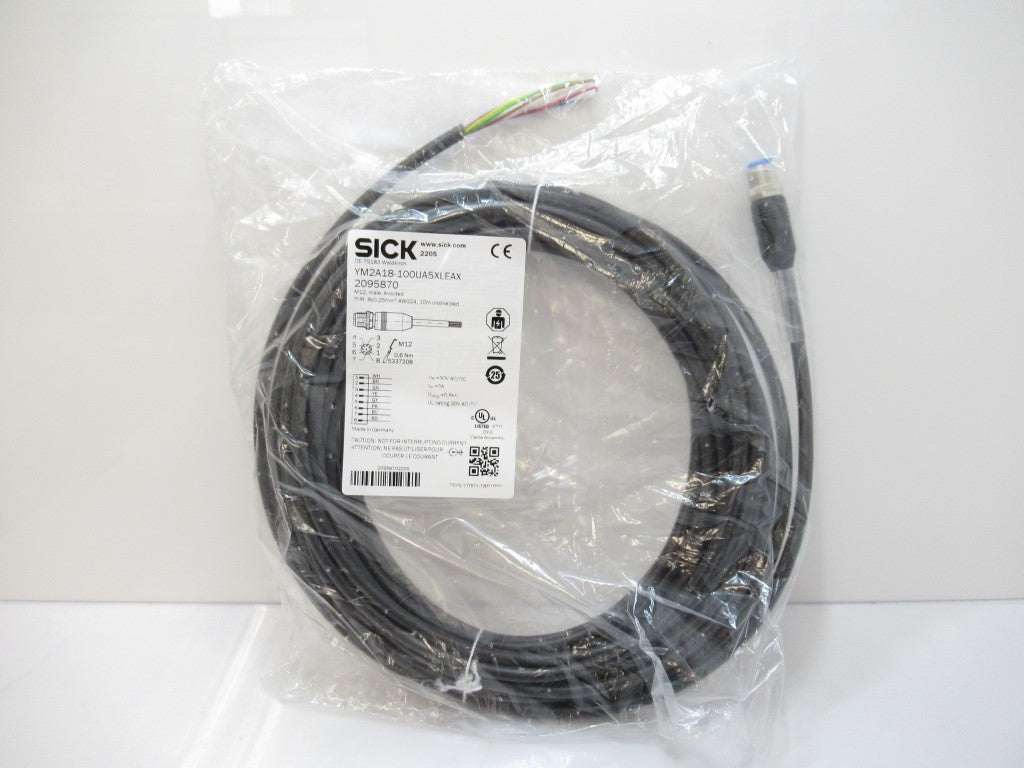

YM2A18-100UA5XLEAX Sick, Cable, M12, Male, A-Coded, AWG24

by SICK
$68.29 USD
FACTORY SUPPLY BRAND NEW
SKU SAF-0463-E
UPC: DOES NOT APPLY
Only 1 left!
-
+

This product is in shipment and will be arriving shortly. Enter your email below to be notified of its arrival.

Product Information

YM2A18100UA5XLEAX

Accessory group Plug connectors and cables
Accessory family Connecting cables

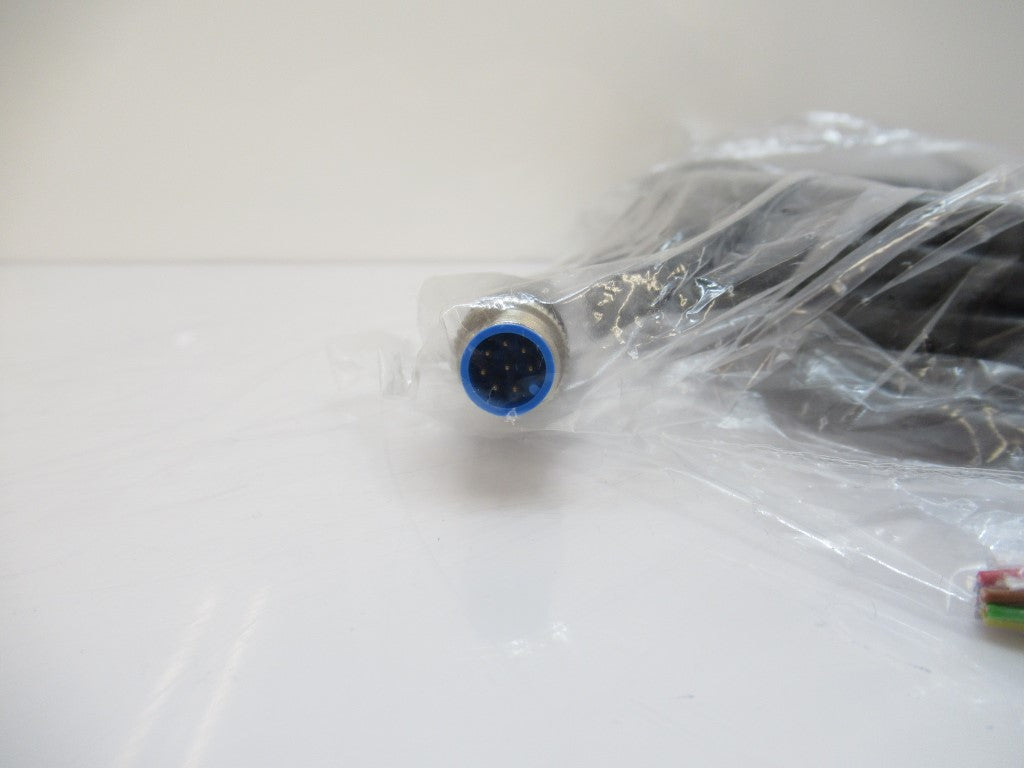

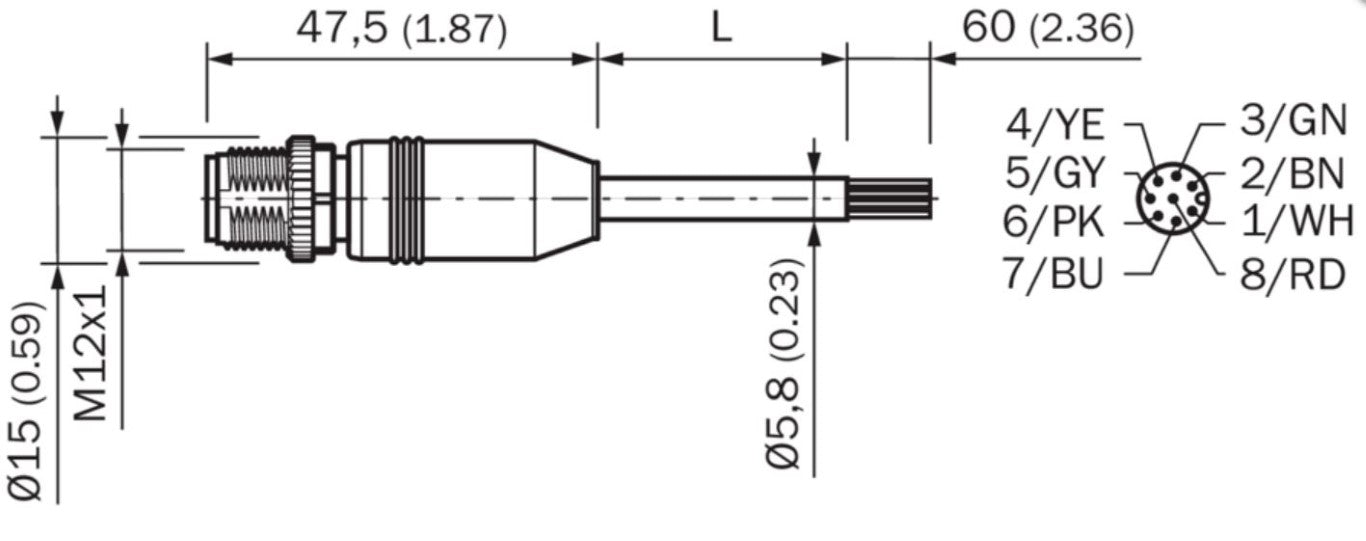

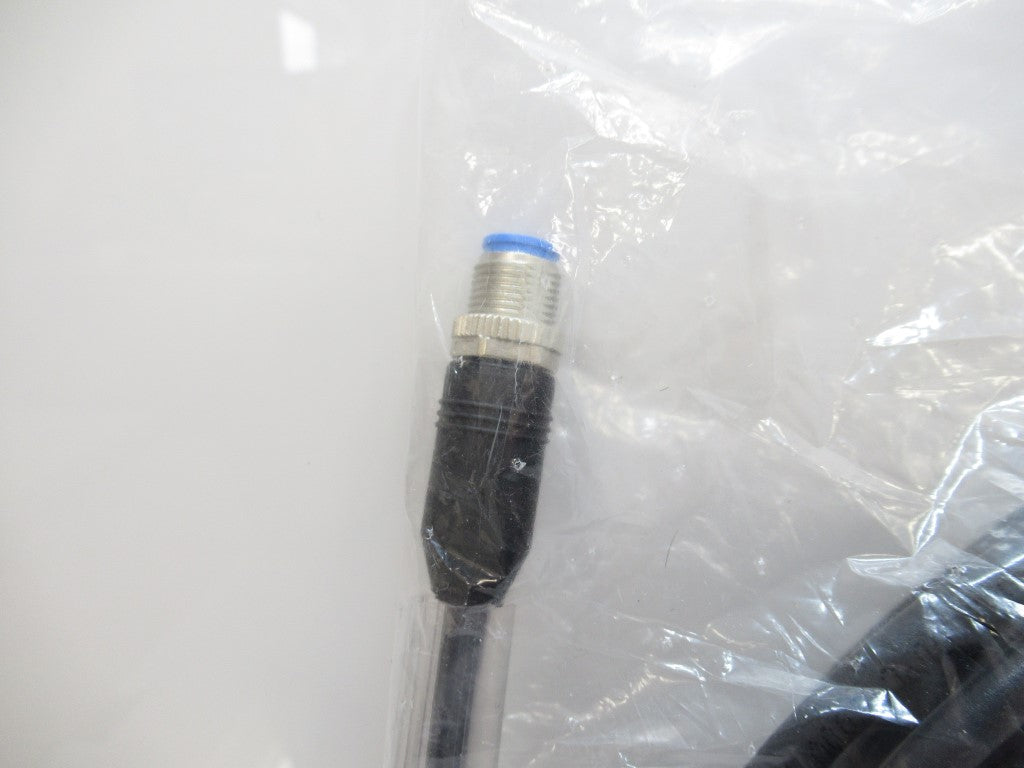

Connection type head A Male connector, M12, 8-pin, straight, A-coded

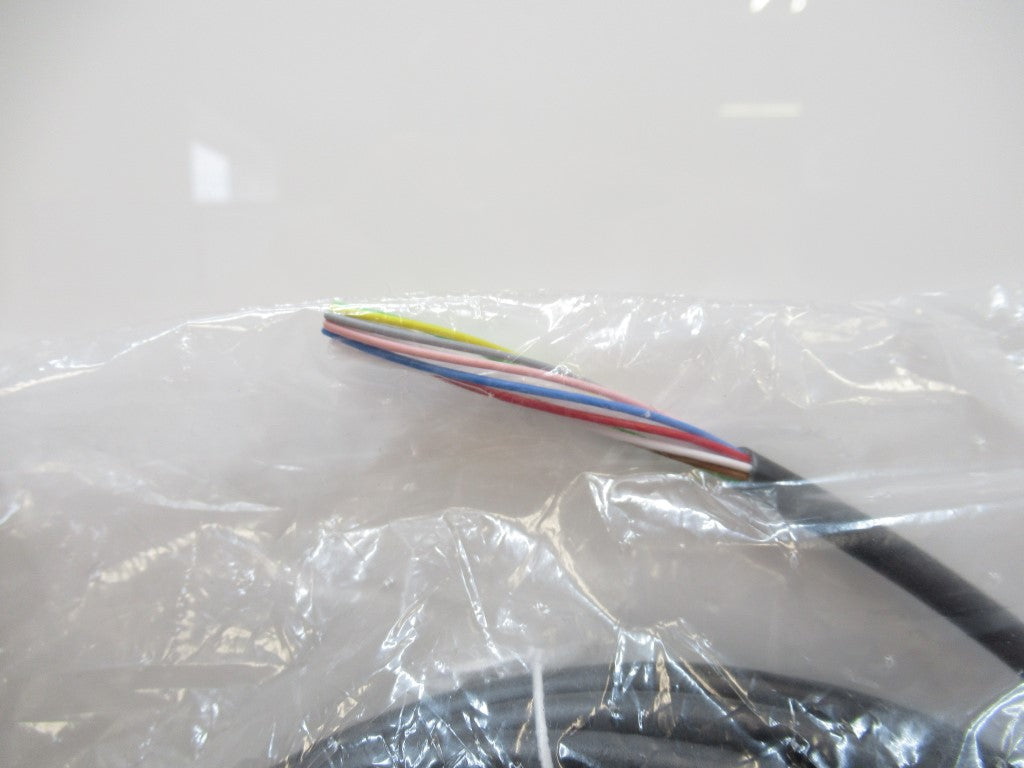

Connection type head B Flying leads
Locking plug connector Screw connection
Connector material TPU
Connector color Black
Locking nut material Zinc die-cast, nickel-plated
Tightening torque 0.6 Nm
Width across flats 13
Cable 10 m, 8-wire, PUR, halogen-free
Jacket material PUR, halogen-free
Jacket color Black
Cable diameter 5.8 mm
Conductor cross-section 0.25 mm²
Shielding Unshielded
Bending radius
Flexible use > 10 x cable diameter
Stationary position > 5 x cable diameter
Drag chain operation > 10 x cable diameter
Bending cycles 10,000,000
Nominal voltage, cable 300 V AC
Test voltage, cable 2,500 V AC
Reference voltage

30 V AC

30 V DC
Rated impulse voltage 0.8 kV
Current loading 2 A
Traversing speed 3 m/s
Traveling distance 10 m
Acceleration ≤ 10 m/s²
Signal type Sensor/actuator cable
