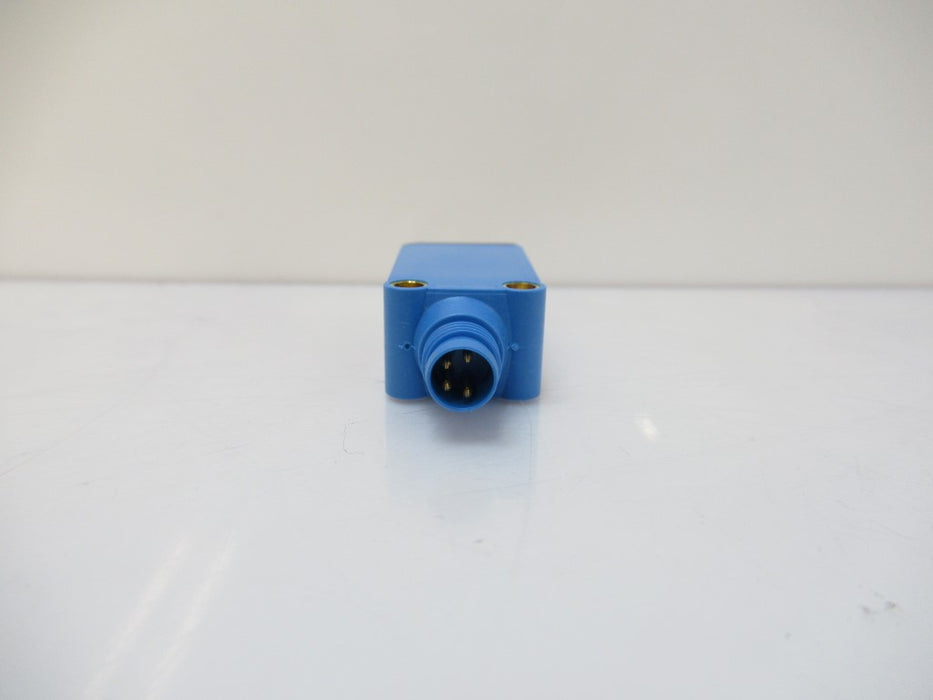

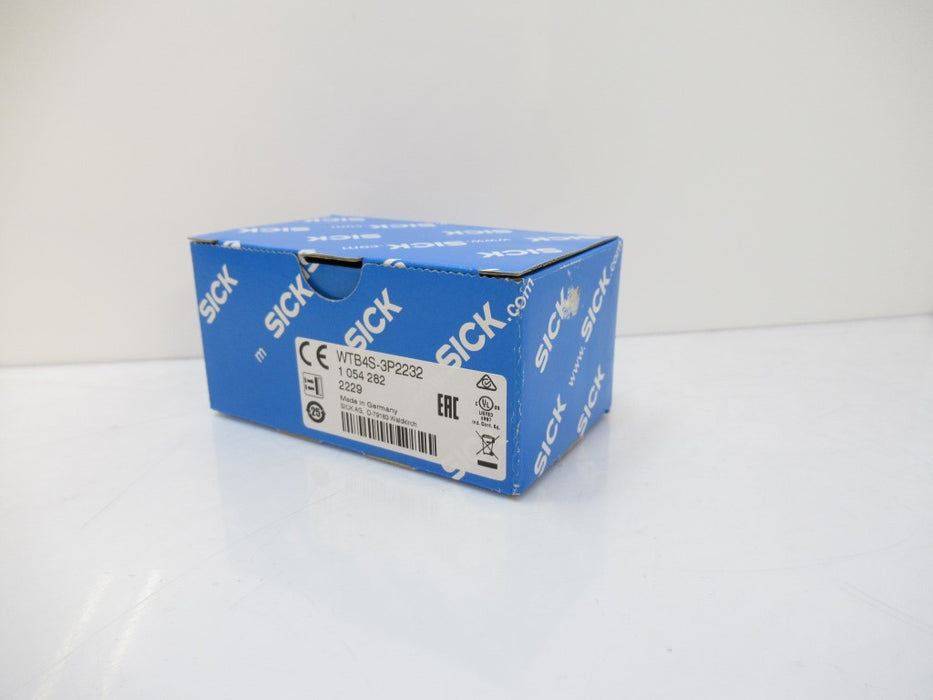

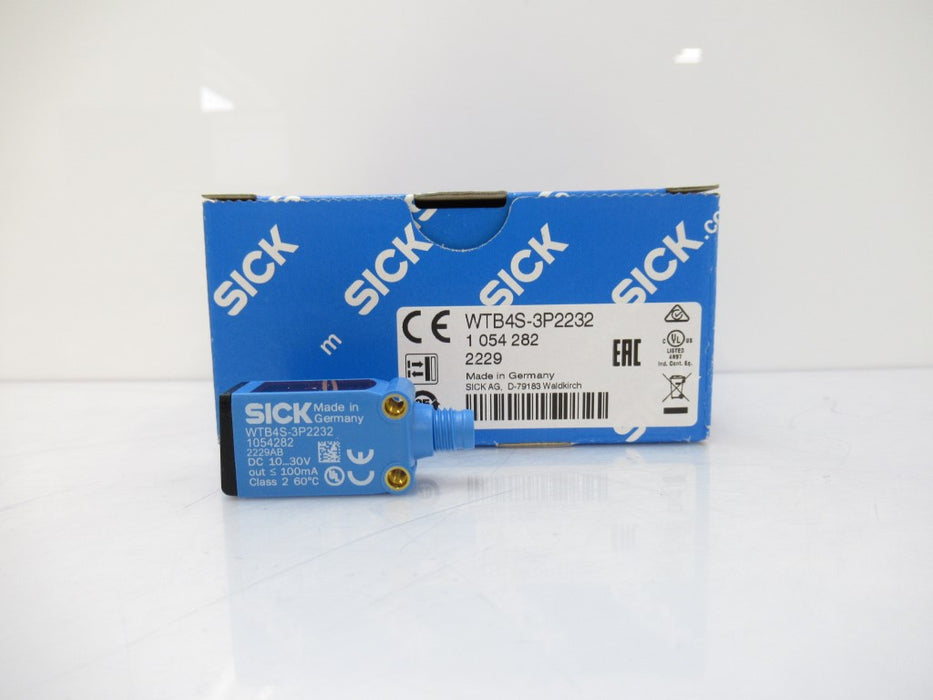

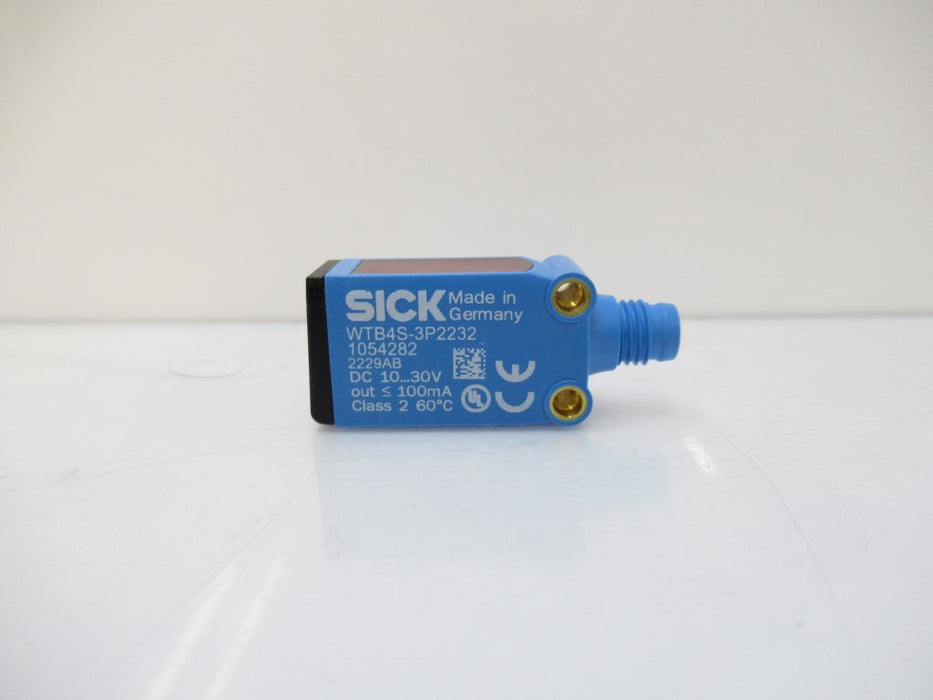

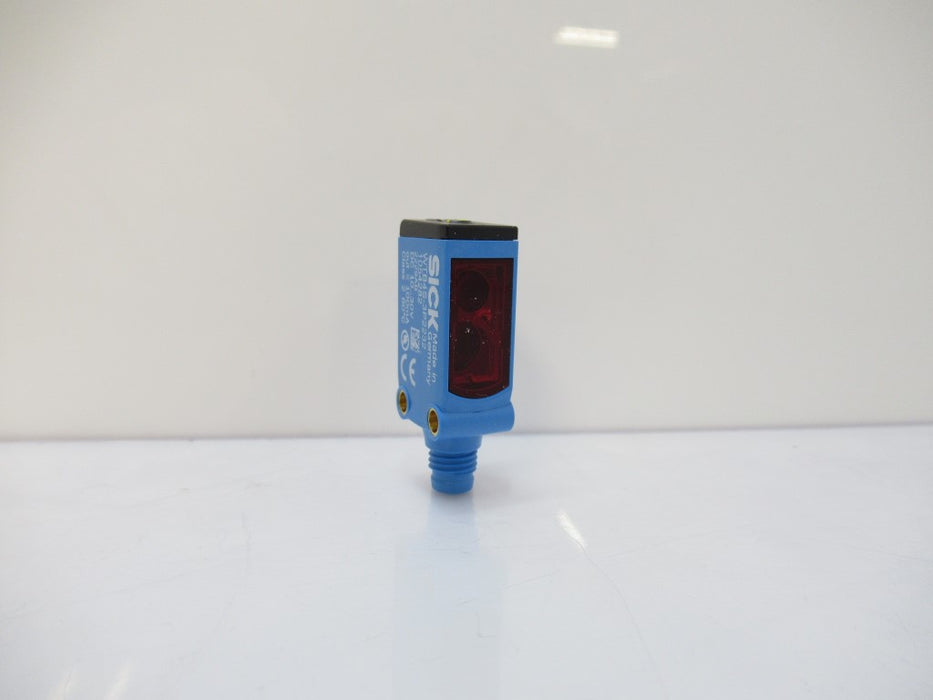

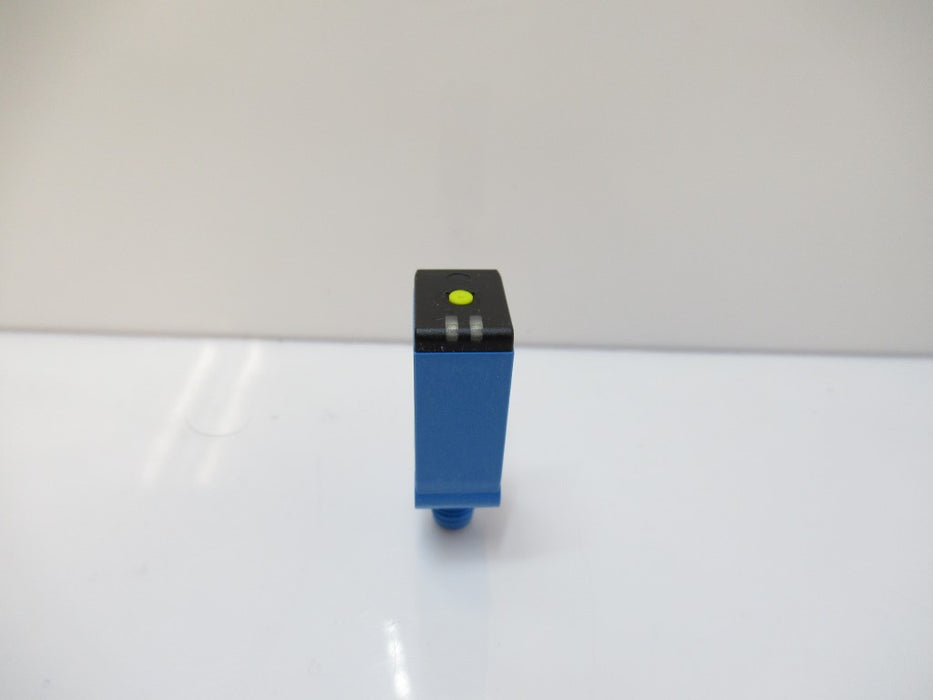

WTB4S-3P2232 Sick WTB4S3P2232 Photoelectric Sensor, Proximity

by SICK
$265.00 USD
FACTORY SUPPLY BRAND NEW
SKU SEN-1767-E
UPC: DOES NOT APPLY
Only 1 left!
-
+

This product is in shipment and will be arriving shortly. Enter your email below to be notified of its arrival.

Product Information

WTB4S3P2232

Alternate Mfr Part
Number
1054282
Body Style
Rectangular
Configuration
Miniature
Connection Type
M8 4-Pin
Dimensions
12.2mm x 41.8mm x 17.3mm
Housing Material
ABSplastic
IP Rating
IP66; IP67
Light Source
Red (650nm)
Measurement Range
10-120 mm
Output
PNP
Power Dissipation
≤ 20 mA (without load)
Sensing Mode
Background Suppression
Sensing Range
10 mm ... 120 mm (Object with 90 % reflectance (referred to standard white, DIN 5033))
Series
WTB4 Series
Supply Voltage
10-30 VDC
Switching Frequency
1,000 Hz (with light/dark ratio 1:1)
Type
Reflective Sensors
Wave Length
650 nm
Weight
30 g
