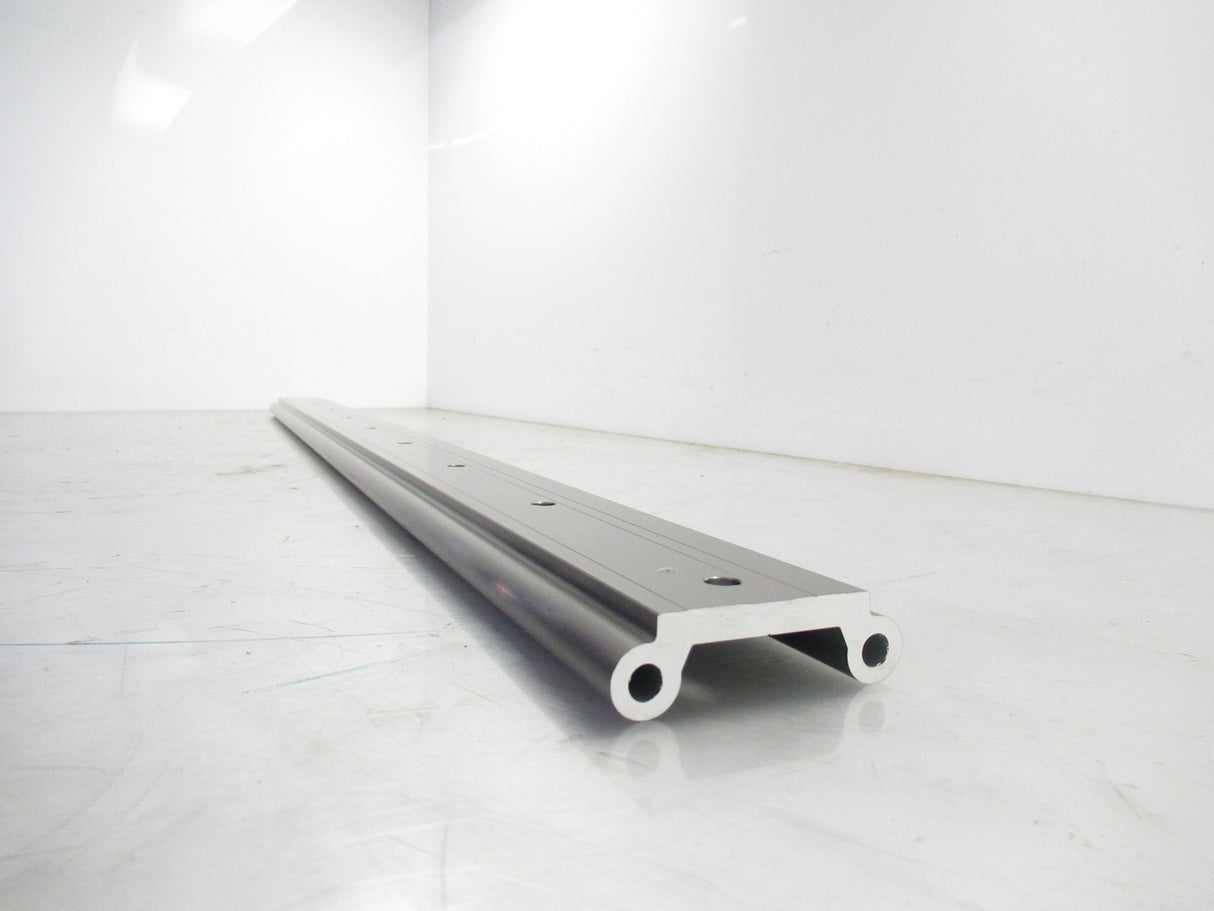

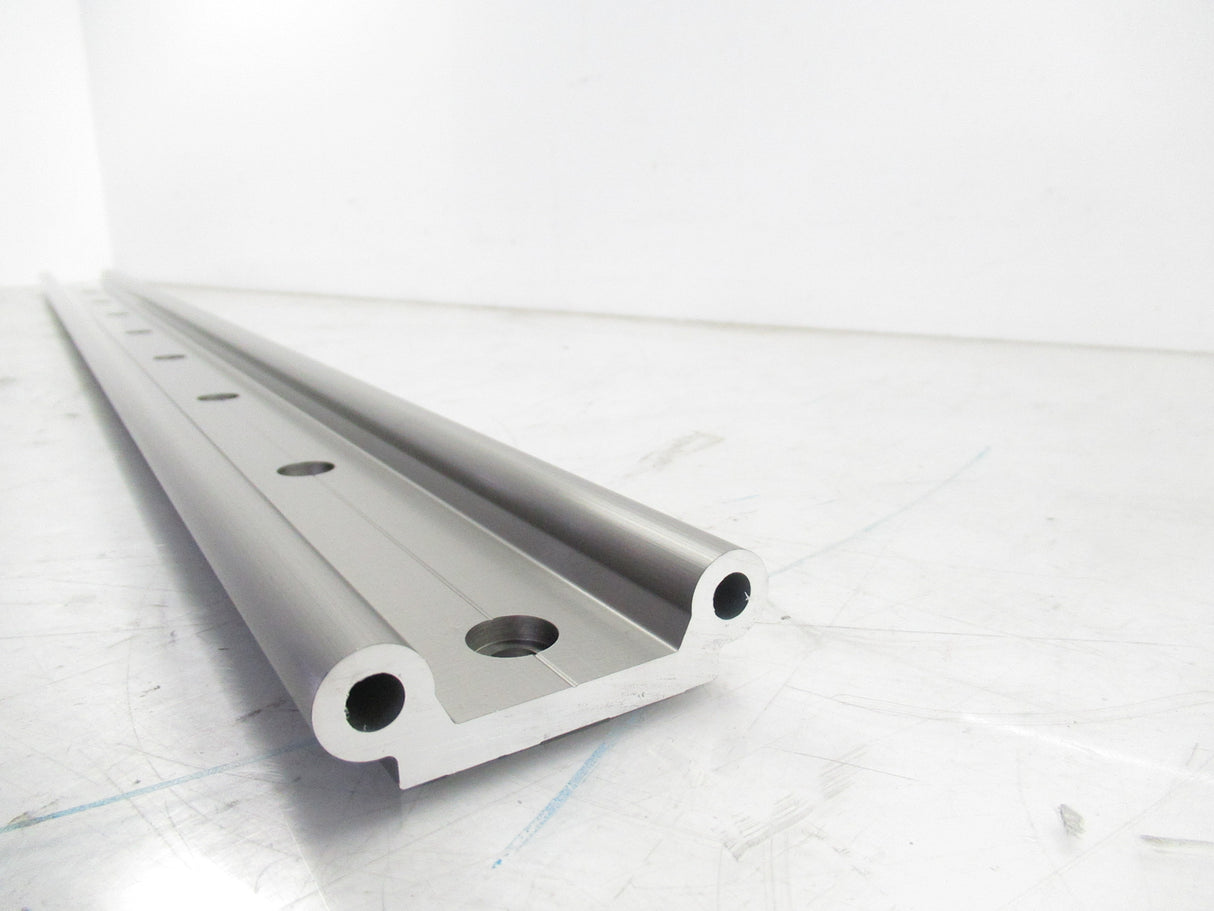

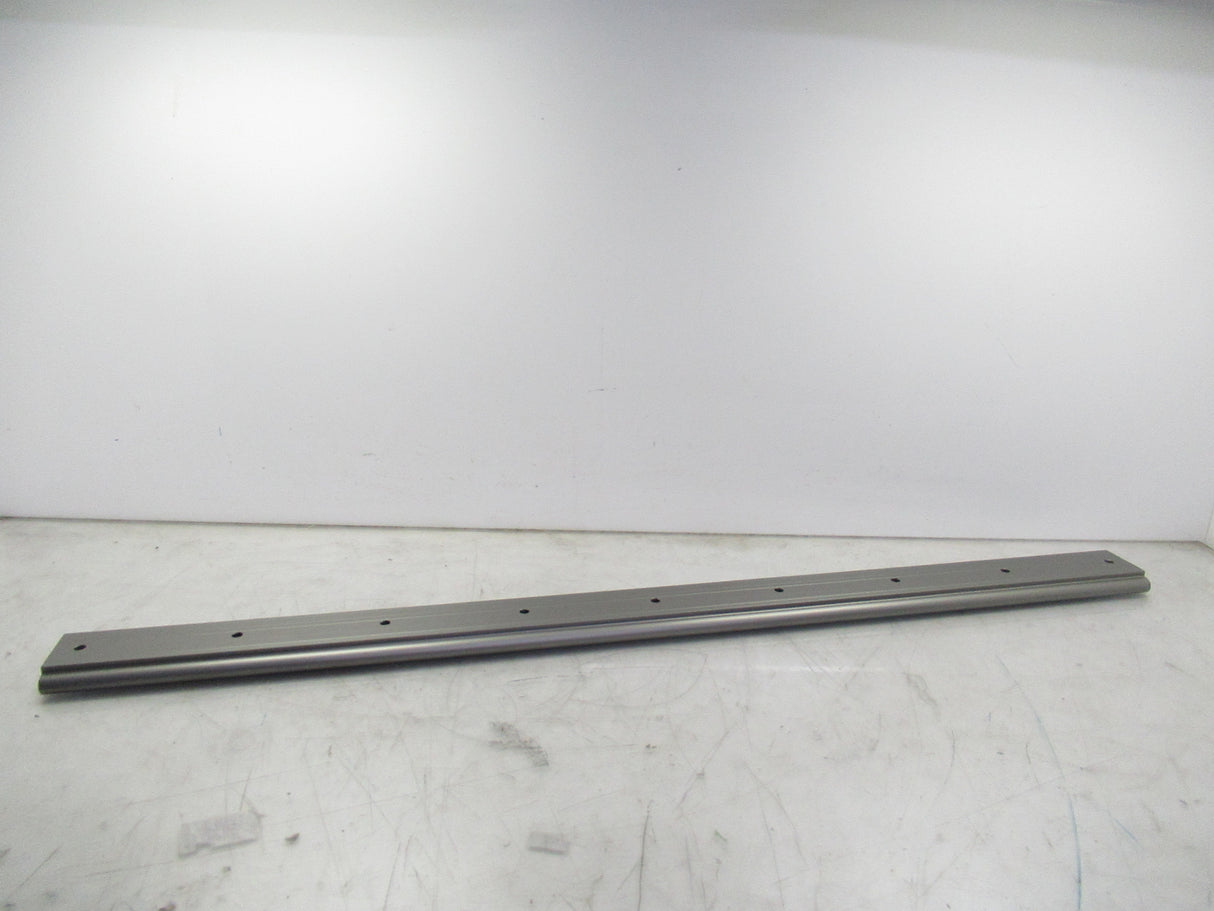

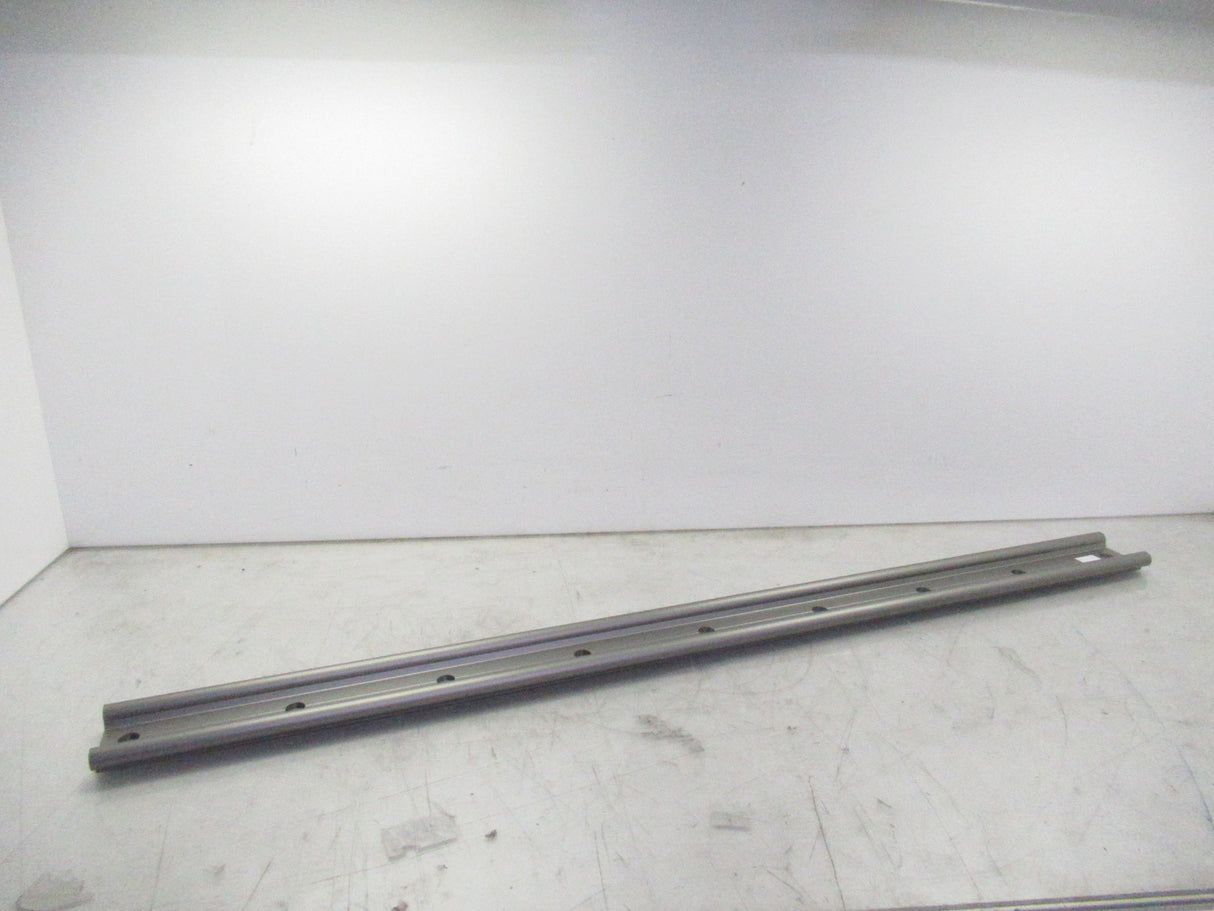

WS-16-60-1000 WS16601000 Igus Drylin W Double Rail WS

WS-16-60-1000 Igus Drylin W Double Rail WS

SKU RAIL-0030-E

$181.25 USD - $181.25 USD

$181.25 USD

$181.25 USD - $181.25 USD

$181.25 USD

Availability:

Only 1 left!

Standard shipping

Estimated delivery time, 7-10 days

Specifications

Description

Product Information

WS16601000
Design: Double Rail
Material: Aluminum, Hard Anodized
Rail Profile: Round

For dimensions see the photo

Dimensions

H	27.0 mm
da	16.0 mm
Inner diameter di	8.0 mm
a	54.0 mm
b	58.0 mm
h	7.5 mm
h1	3.50 mm
h2	14.00 mm
G1	43.0 mm
G2	29.0 mm
A1	25.0 mm
Q1	32.0 mm
Q2	28.0 mm
C4	120 mm
C5/C6 (min.)	20.0 mm
C5/C6 (max.)	79.5 mm
K1 for screw DIN 912	M8

Production and installation tolerances

H-Tolerance	±0.25 mm
da-Tolerance	-0.1 mm
a-Tolerance	-0.5 mm

General properties

Installation size	16-60
Rail profile	Round
Design	Double Rail
Material	Aluminum, hard anodized
Holes	bores arranged in one row

Mechanical Properties

Iy	367,600 mm⁴
Iz	26,100 mm⁴
Wby	9,900 mm³
Wbz	1,900 mm³
