WJ200UM01-20-AL WJ200UM0120AL Igus Drylin W Pillow Block Sold By Unit, New

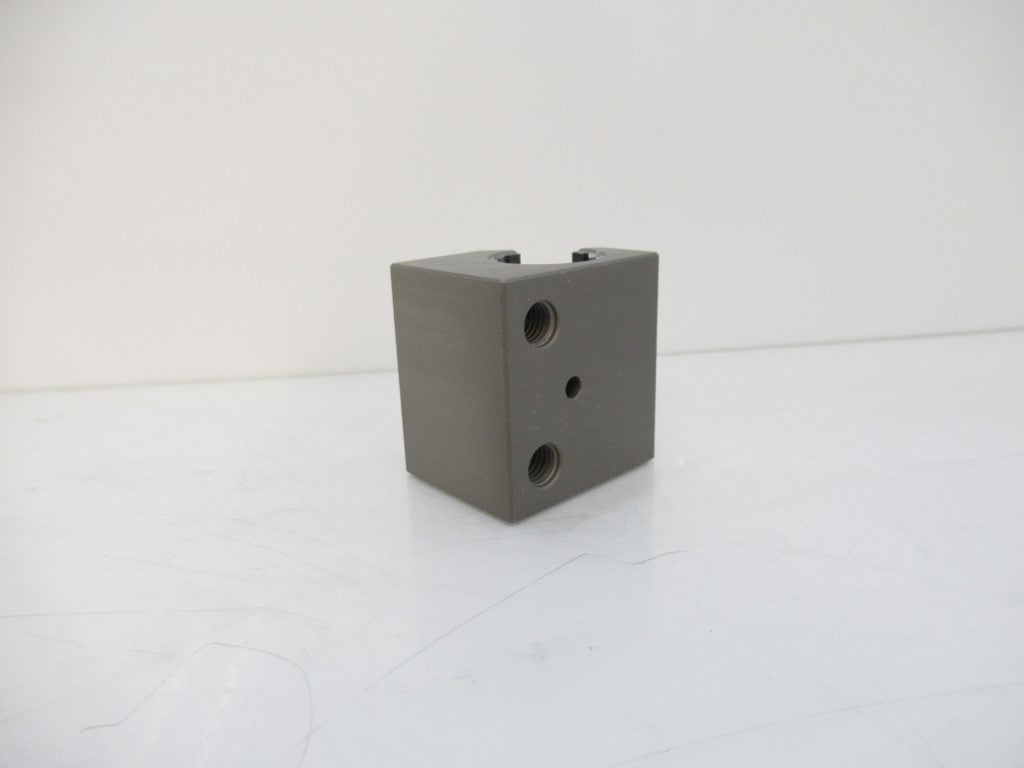

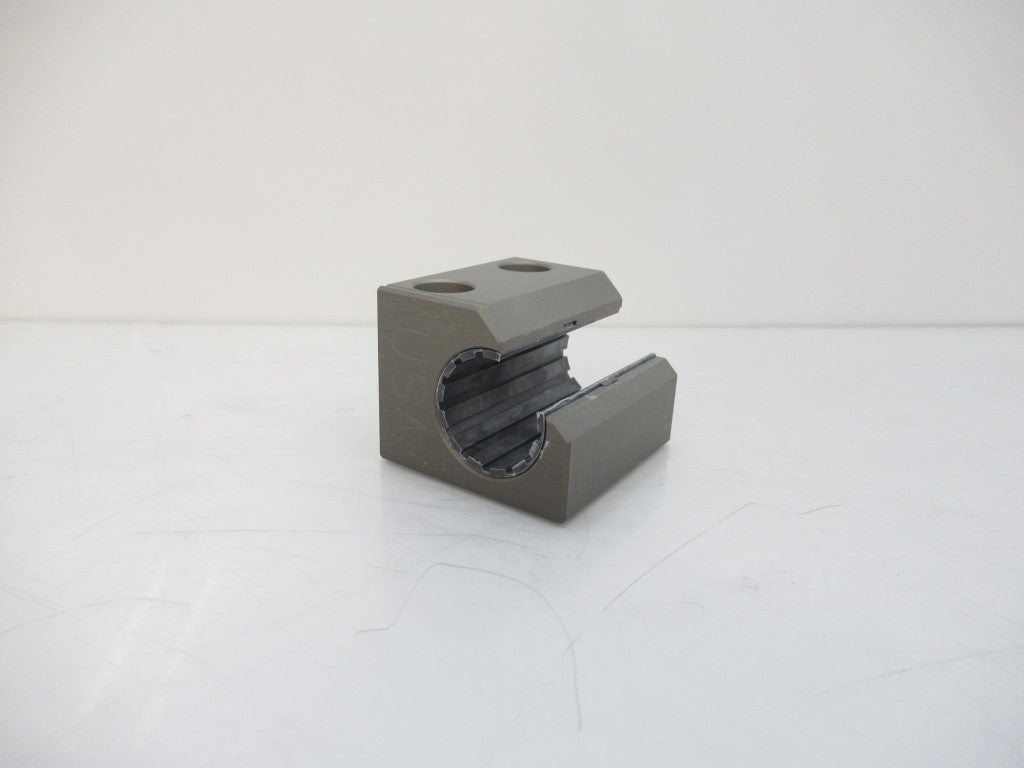

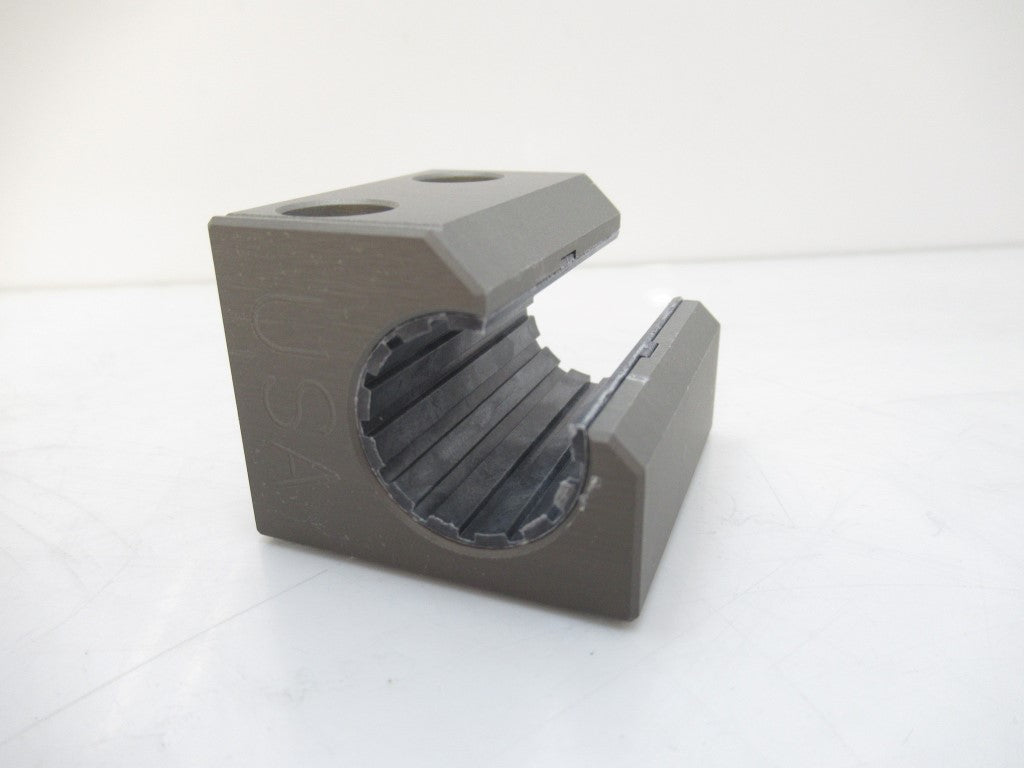

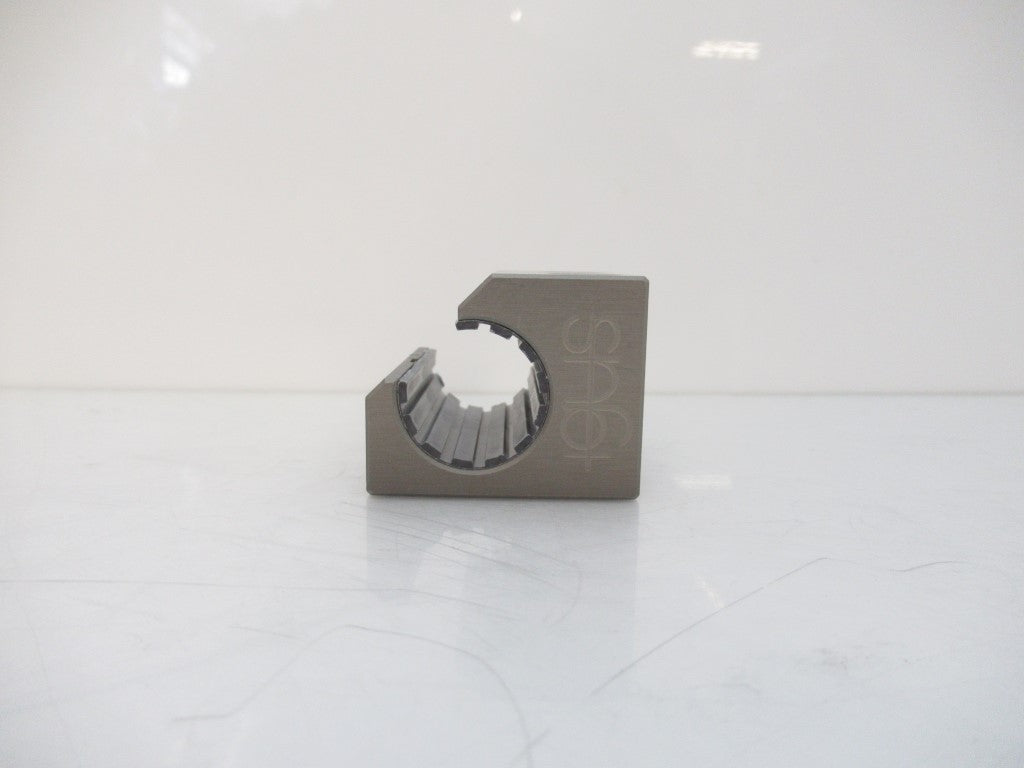

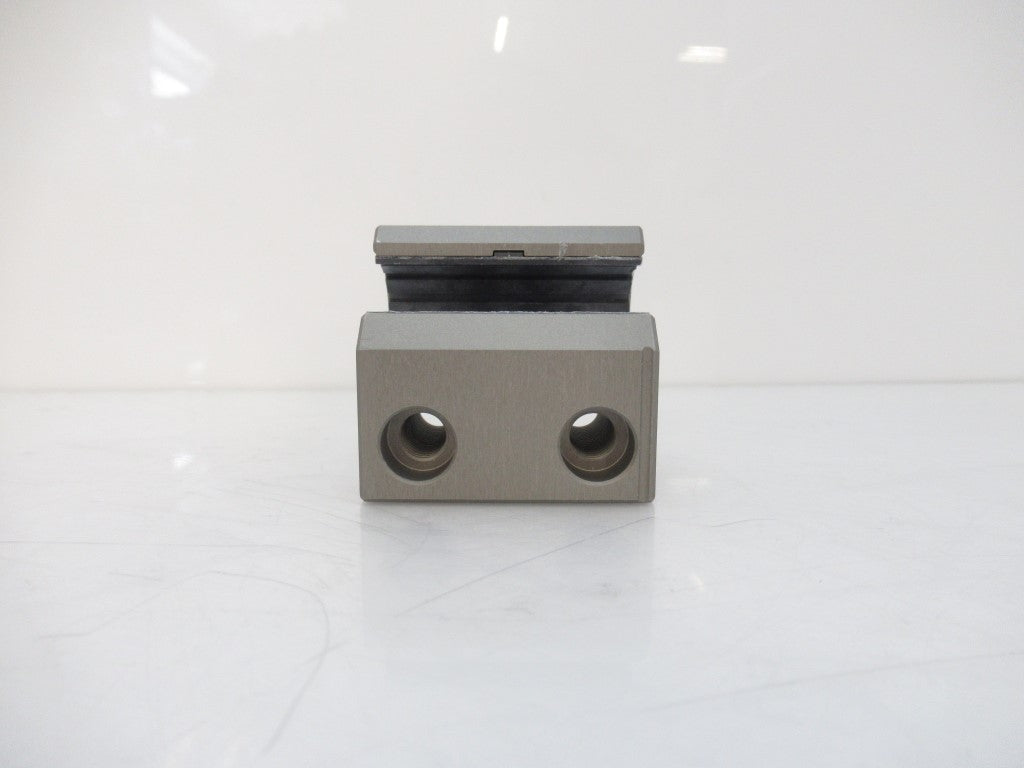

WJ200UM01-20-AL Igus Drylin W Pillow Block

SKU BEA-1183-E
$31.03 USD - $31.03 USD
$31.03 USD
$31.03 USD - $31.03 USD
$31.03 USD
Availability:
Only 2 left!

Standard shipping

Estimated delivery time, 7-10 days

Specifications
Request a quote

WJ200UM01-20-AL WJ200UM0120AL

Igus

Drylin W Pillow Block Size 20

Sold By Unit, New

Dimensions (See Picture)

  • Floating Bearing: None
  • A3: 9.0 mm
  • B: 43 mm
  • C1: 45 mm
  • C3: 27 mm
  • K2: M8
  • K3: M6

Description

  • Installation Size: 20
  • Design: Round
  • Material: Aluminum
  • Material Sliding Element: Iglide J200
  • Static Load Capacity Coy: 719 lbs (3,200 N)
  • Static Load Capacity Coz+: 719 lbs (3,200 N)
  • Static Load Capacity Coz-: 112 lbs (500 N)
