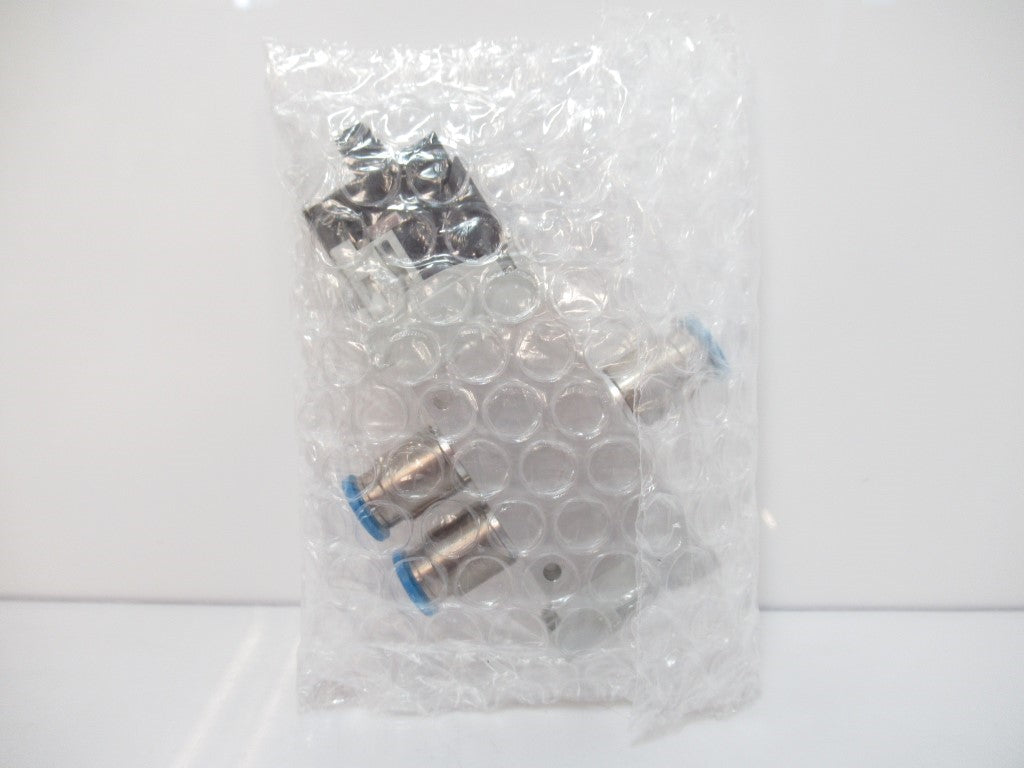

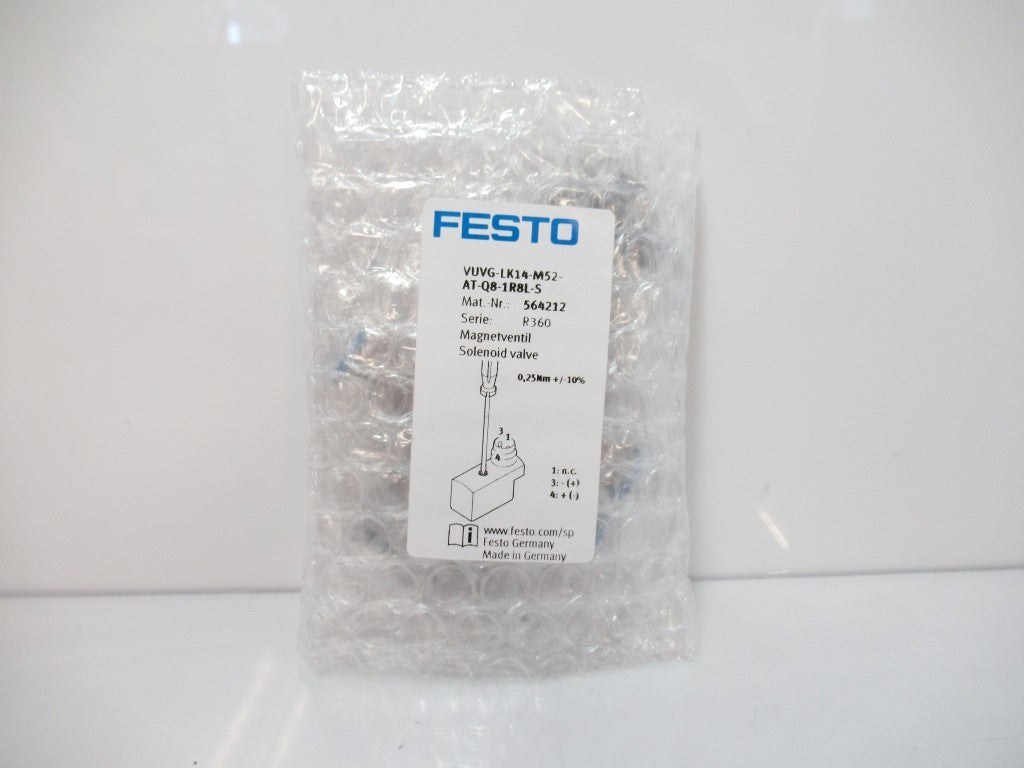

564212 VUVG-LK14-M52-AT-Q8-1R8L-S Festo Solenoid Valve

by VUVG
Sold out
$105.41 USD
FACTORY SUPPLY BRAND NEW
SKU VAL-1347-E
UPC: DOES NOT APPLY
Only 0 left!
-
+

This product is in shipment and will be arriving shortly. Enter your email below to be notified of its arrival.

564212 VUVG-LK14-M52-AT-Q8-1R8L-S VUVGLK14M52ATQ81R8LS

Festo

Solenoid Valve VUVG

(New In Bag Sealed)

Description

  • Valve Function: 2x3/2 Closed, Monostable; 2x3/2 Open, Monostable; 2x3/2 Open/Closed, Monostable; 5/2 Bistable; 5/2 Monostable; 5/3
    Pressurized; 5/3 Exhausted; 5/3 Closed
  • Type Of Actuation: Electrical
  • Valve Size: 10 mm 14 mm 18 mm
  • Standard Nominal Flow Rate: 90 ... 1,380 L/min
  • Operating Pressure MPa: -0.09 ... 1 MPa
  • Operating Pressure: -0.9 ... 10 bar
  • Design Structure: Piston Slide
  • Type Of Reset: Mechanical Spring; Air Spring
  • Authorization: RCM Mark; c Ul Us - Recognized (Ol)
  • Ce Mark (See Declaration Of Conformity): To Eu Directive For Emc To Eu Directive Low-voltage Devices In Accordance With Eu RoHS Directive
  • Protection Class: IP40; IP65; With Plug Socket
  • Exhaust-Air Function: Throttleable
  • Sealing Principle: Soft
  • Assembly Position: Any
  • Manual Override: Detenting; Pushing; Covered
  • Type Of Piloting: Piloted
  • Pilot Air Supply: External; Internal
  • Overlap: Positive Overlap; Indefinite Overlap
  • Duty Cycle: 100 %
  • Permissible Voltage Fluctuation: +/- 10 %
  • Operating Medium: Compressed Air In Accordance With ISO8573-1:2010 [7:4:4]
  • Note On Operating And Pilot Medium: Lubricated Operation Possible (Subsequently Required For Further Operation)
  • Restriction Ambient And Medium Temperature: -5 - 50 °C Without Holding Current Reduction
  • Corrosion Resistance Classification CRC: 2 - Moderate Corrosion Stress
  • Medium Temperature: -5 ... 60 °C
  • Ambient Temperature: -5 ... 60 °C
  • Electrical Connection: Via Electrical Connection Plate
  • Mounting Type: On Manifold Rail With Through Hole Optional
  • Materials Note: Contains PWIS Substances: Conforms To RoHs
  • Material Seals: HNBR; NBR
  • Material Housing: Wrought Aluminium Alloy
