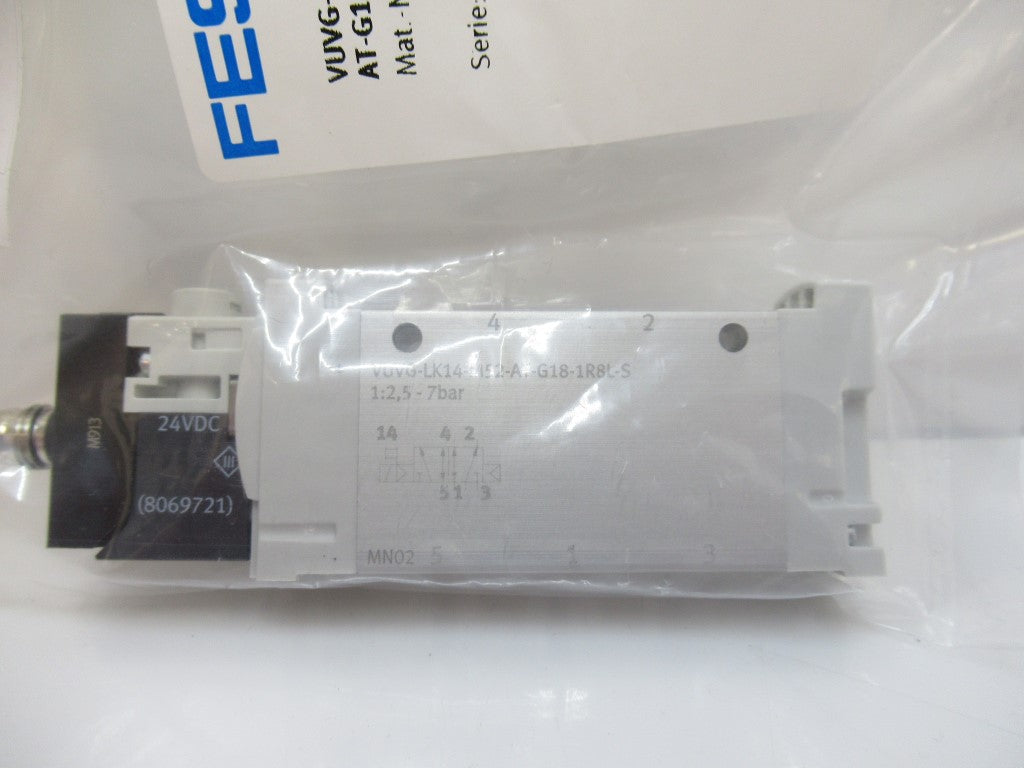

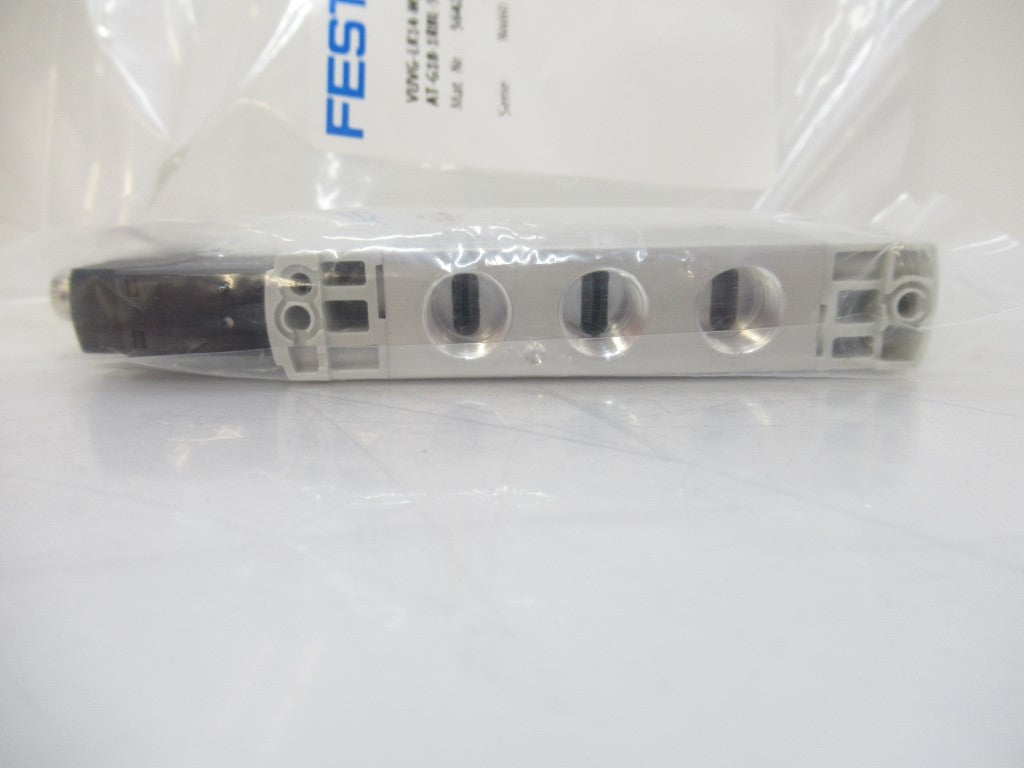

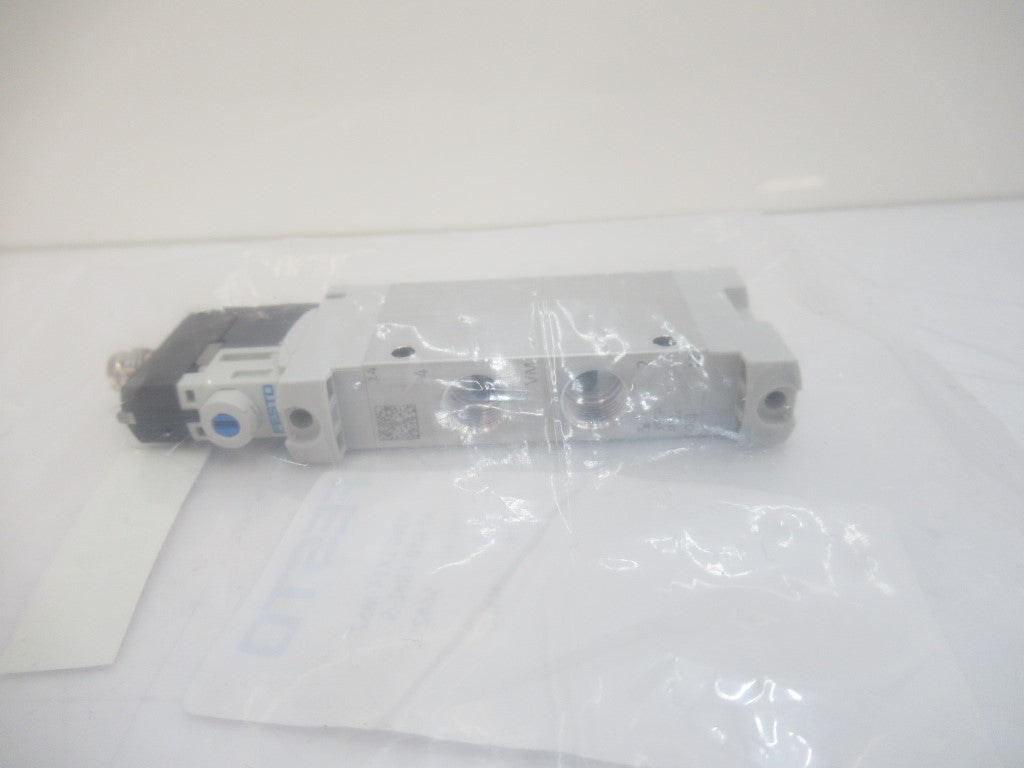

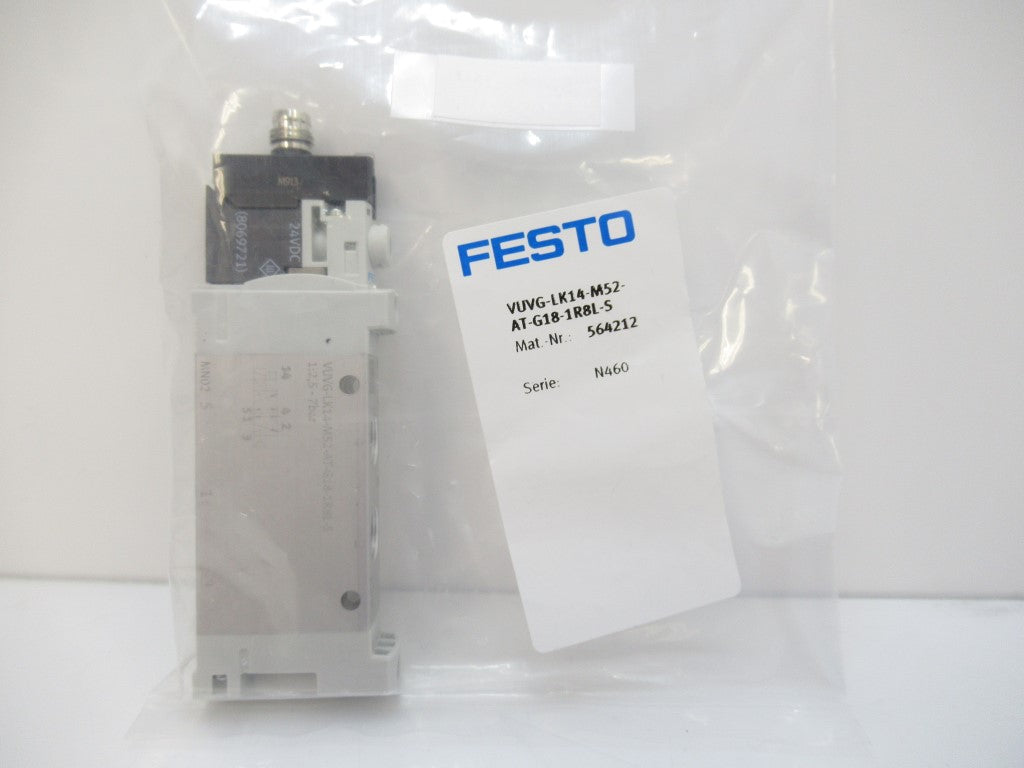

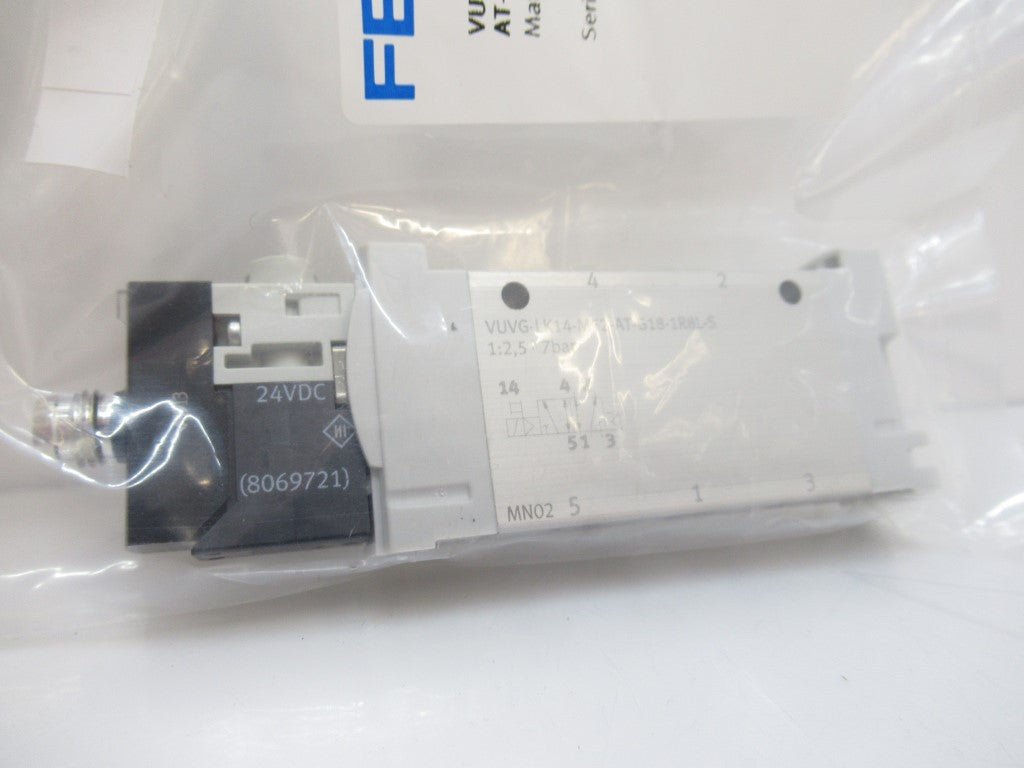

VUVG-LK14-M52-AT-G18-1R8L-S 564212 Festo Solenoid Valve

VUVG-LK14-M52-AT-G18-1R8L-S VUVGLK14M52ATG181R8LS 564212

Festo

Solenoid Valve

(New In Bag Sealed)

Description

• Valve Function: 5/2 Monostable
• Type Of Actuation: Electrical
• Valve Size: 14 mm
• Standard Nominal Flow Rate: 660 L/min
• Operating Pressure MPA: 0.25 ... 0.7 MPA
• Operating Pressure: 2.5 ... 7 bar
• Design Structure: Piston Slide
• Type Of Reset: Air Spring
• Protection Class: IP65
• Exhaust-Air Function: Throttleable
• Sealing Principle: Soft
• Assembly Position: Any
• Manual Override: Detenting; Pushing
• Type Of Piloting: Piloted
• Pilot Air Supply: Internal
• Flow Direction: Non-Reversible
• Overlap: Positive Overlap
• Signal Status Display: Led
• Max. Switching Frequency: 2 Hz
• Switching Time Off: 24 MS
• Switching Time On: 14 MS
• Duty Cycle: 100 %
• Max. Positive Test Pulse With Logic 0: 1,600 ΜS
• Max. Negative Test Pulse With Logic 1: 3,000 ΜS
• Characteristic Coil Data: 24 V DC: 0.8 W
• Permissible Voltage Fluctuation: +/- 10 %
• Operating Medium: Compressed Air In Accordance With ISO8573-1:2010 [7:4:4]
• Note On Operating And Pilot Medium: Lubricated Operation Possible (Subsequently Required For Further Operation)
• Vibration Resistance: Transport Application Test At Severity Level 1 In Accordance With Fn 942017-4 And En 60068-2-6
• Shock Resistance: Shock Test With Severity Level 1 In Accordance With FN 942017-5 And En 60068-2-27
• Corrosion Resistance Classification CRC: 2 - Moderate Corrosion Stress
• Medium Temperature: -5 ... 50 °C
• Pilot Medium: Compressed Air In Accordance With ISO8573-1:2010 [7:4:4]
• Ambient Temperature: -5 ... 50 °C
• Product Weight: 0,143 LB

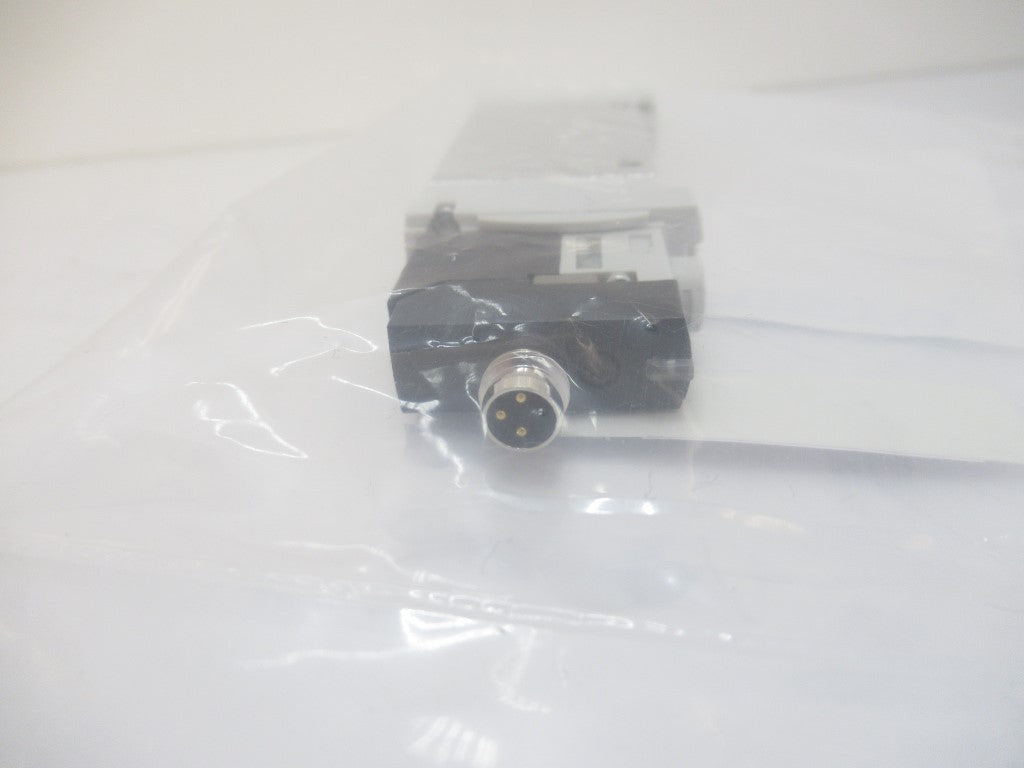

• Electrical Connection: 3-Pin M8x1, A-Coded To En 61076-2-104 Plug
• Mounting Type: On Manifold Rail With Through Hole
• Pneumatic Connection, Port 2: G1/8
• Pneumatic Connection, Port 4: G1/8
• Materials Note: Contains PWIS Substances; Conforms To RoHs
• Material Seals: HNBR; NBR
• Material Housing: Wrought Aluminium Alloy
