Festo  |  SKU: VAC-0144-E  |  Barcode: DOES NOT APPLY

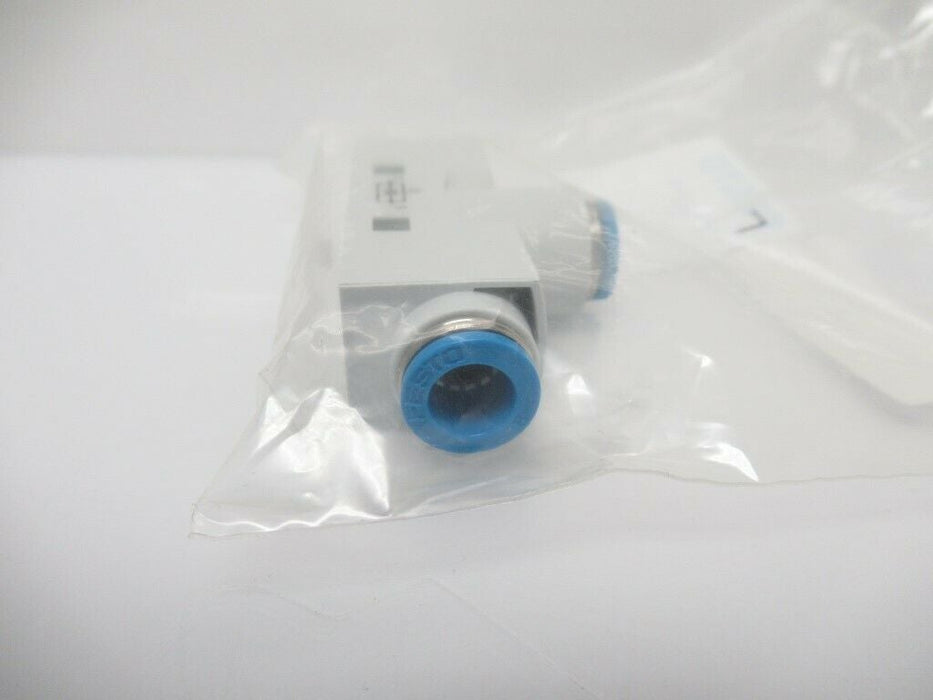

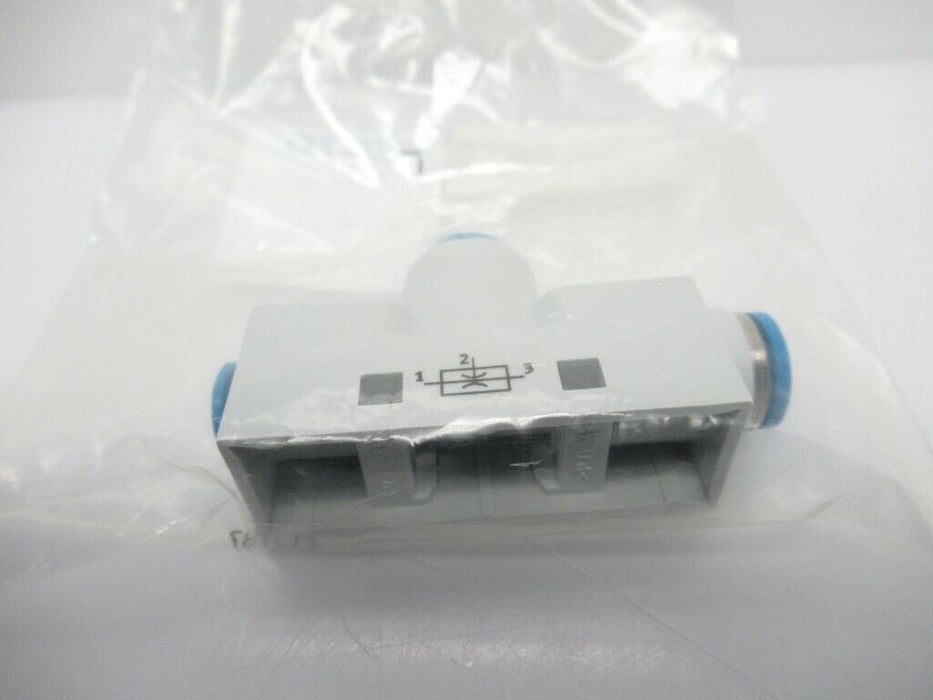

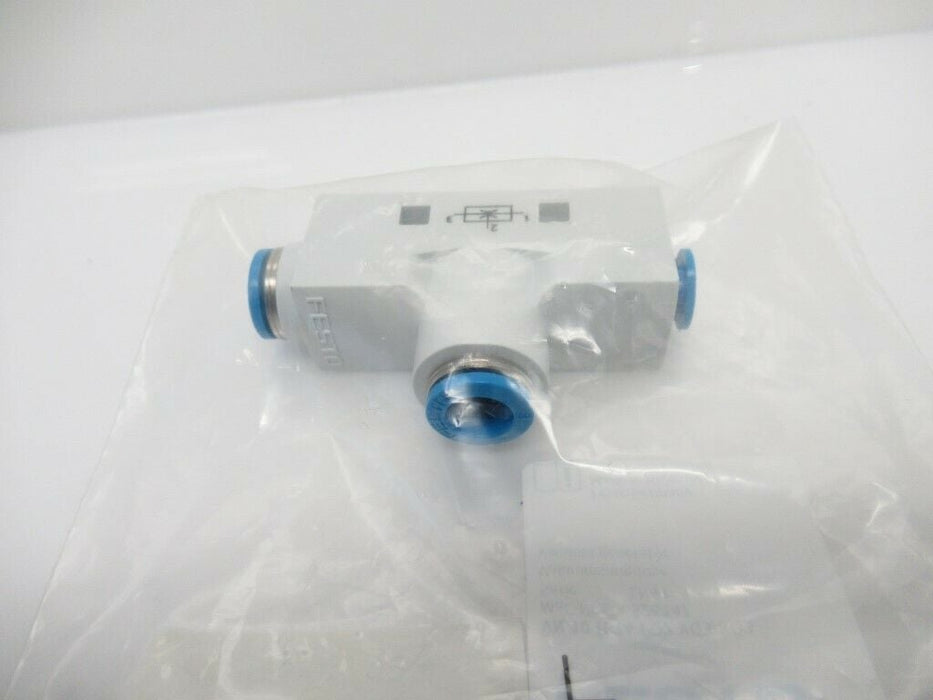

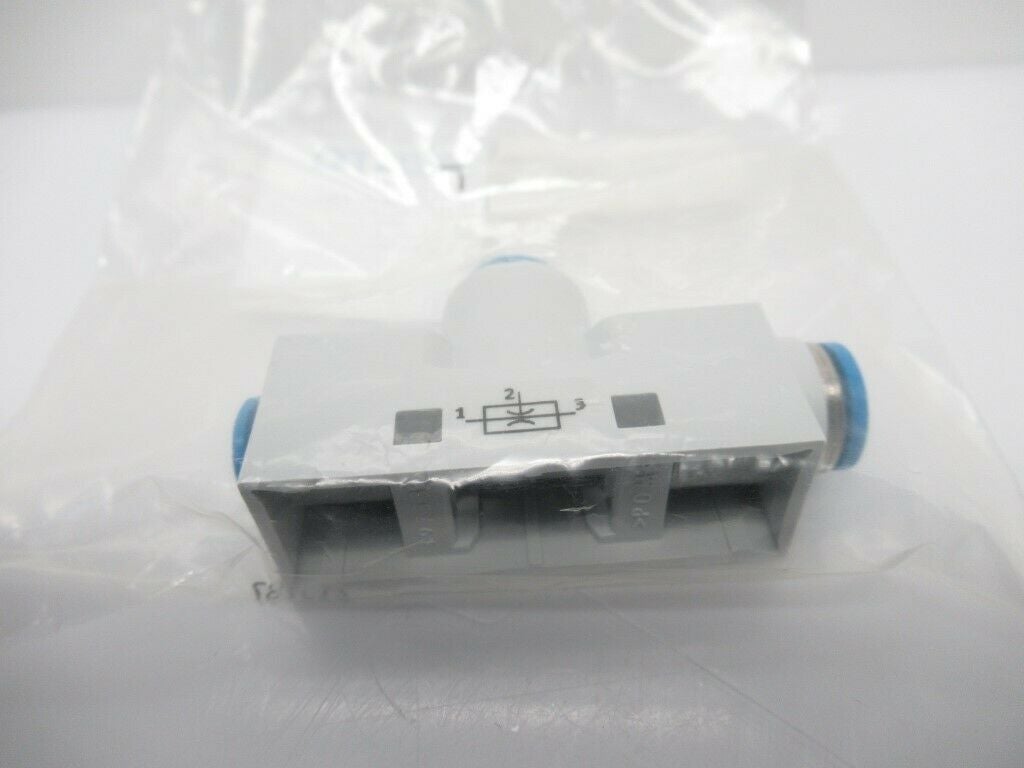

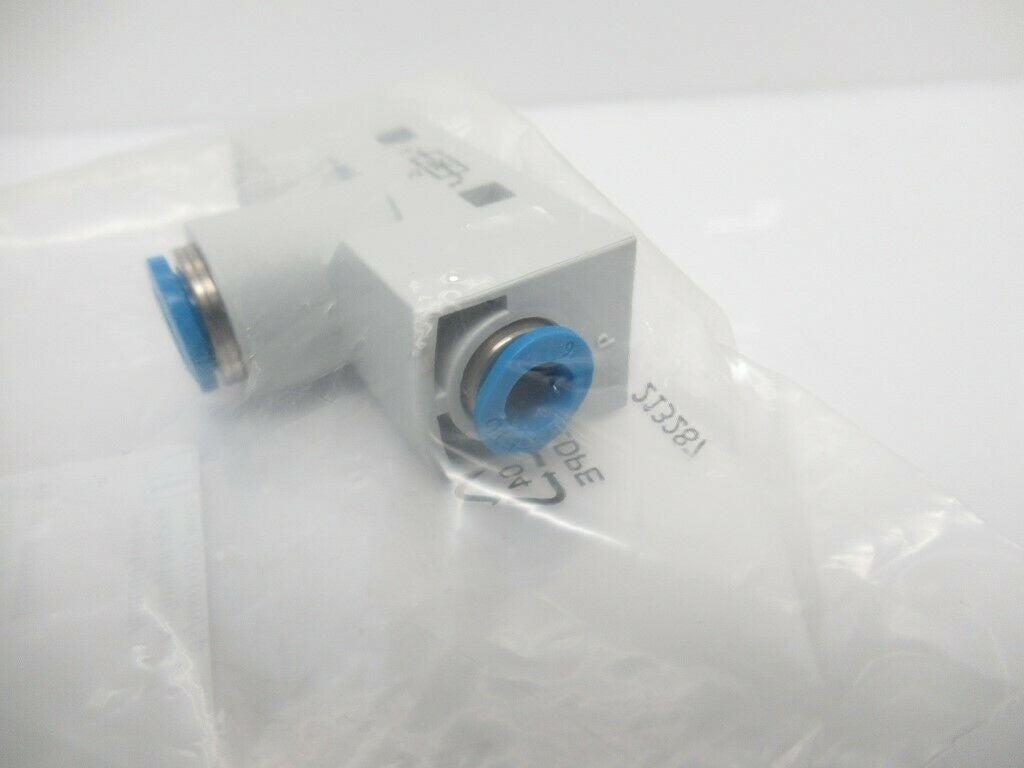

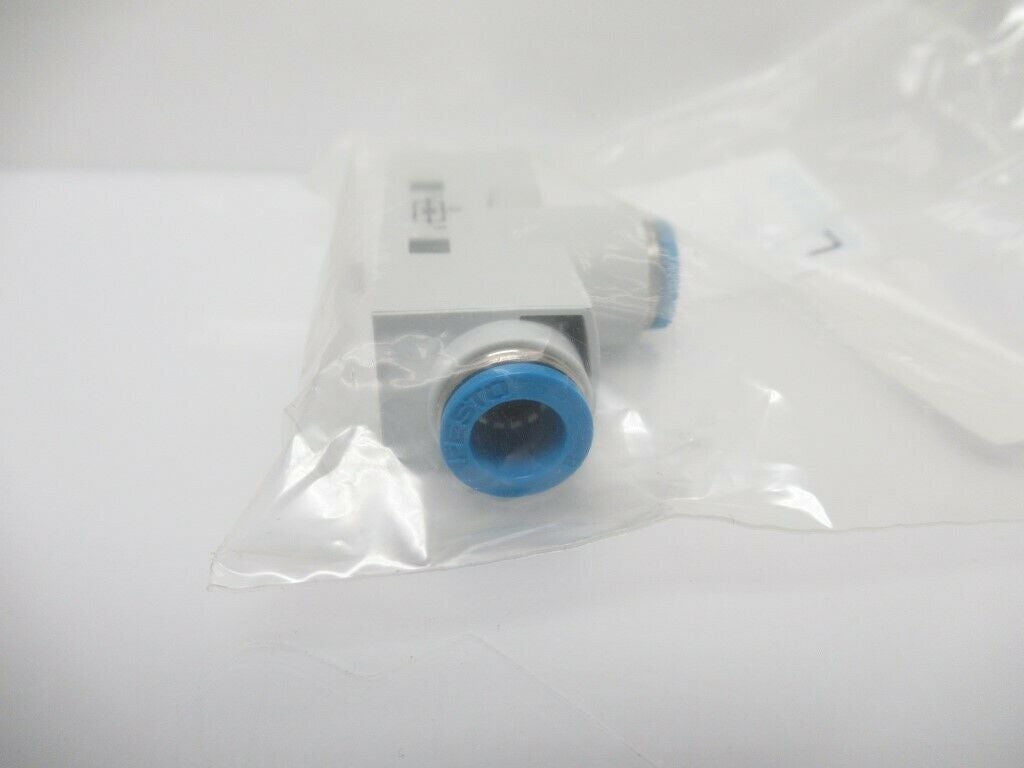

526147 VN-10-H-T4-PQ2-VQ3-RQ3 Festo Vacuum Generator

$39.45 USD
Shipping calculated at checkout.

As a Canadian company, any product manufactured in China and imported into the United States will be subject to a 30% tariff.

🚚 We Ship Worldwide! Get your order delivered anywhere.

Delivery And Shipping

Both Standard and Express shipping options are available at checkout.

Tariffs And Fees

Items made in China and imported in the United States will be hit with a 30% fee upon arrival. Extra Fees Might Apply.

Items made in Canada and imported in the United States will be hit with a 25% fee upon arrival. Extra Fees Might Apply.

Items lacking a specified Country of Origin will be classified as originating from China by customs, resulting in a 30% import tax upon delivery in the U.S. Extra Fees Might Apply.

Subscribe to our newsletter

Sign up for exclusive offers.

Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.

Country Of Origin:

526147 VN-10-H-T4-PQ2-VQ3-RQ3 VN10HT4PQ2VQ3RQ3

Festo

Vacuum Generator

(New In Bag)

Description

  • Nominal Width Of Laval Nozzle: 0.95 mm
  • Width Dimension: 18 mm
  • Type Code: VN
  • Mounting Position: Any
  • Ejector Characteristics: High Vacuum: Standard
  • Design: T-Shape
  • Operating Pressure: 1 bar ... 8 bar
  • Operating Pressure For Max. Vacuum: 4.5 bar
  • Max. Vacuum: 89 %
  • Nominal Operating Pressure: 6 bar
  • Max. Suction Rate With Respect To Atmosphere: 25 L/min
  • Air Supply Time At Nominal Operating Pressure: 1.1 S
  • Operating Medium: Compressed Air As Per ISO 8573-1:2010 [7:4:4]
  • Information On Operating And Pilot Media: Operation With Oil Lubrication Not Possible
  • Corrosion Resistance Class (CRC): 1 - Low Corrosion Stress
  • Temperature Of Medium: 0 °c ... 60 °C
  • Ambient Temperature: 0 °c ... 60 °C
  • Max. Tightening Torque: 0.5 mm
  • Product Weight: 27 G
  • Type Of Mounting: With Through-Hole; With Accessories
  • Pneumatic Connection 1: QS-6
  • Pneumatic Connection 3: QS-8
  • Vacuum Connection: QS-8
  • Note On Materials: Free Of Copper And PTFE; Rohs-Compliant
