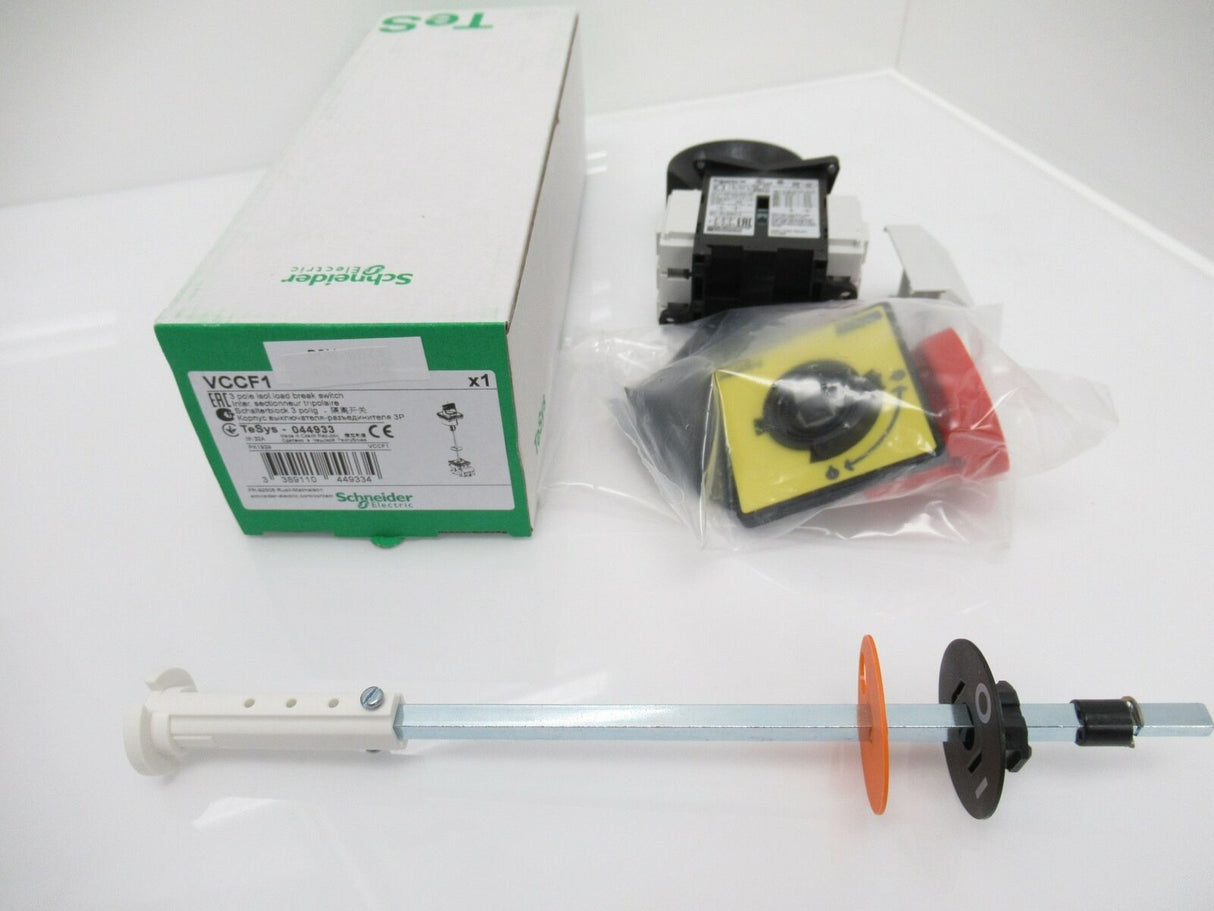

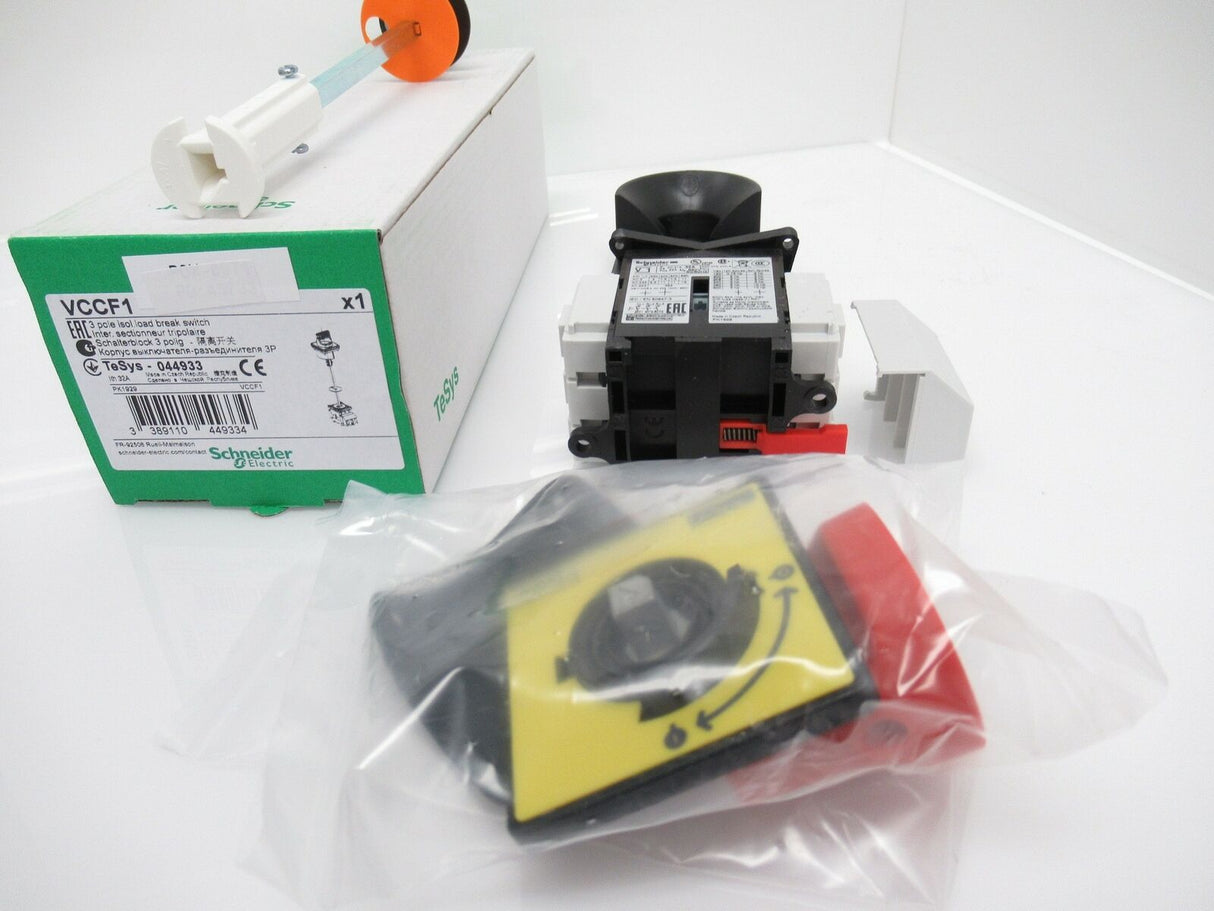

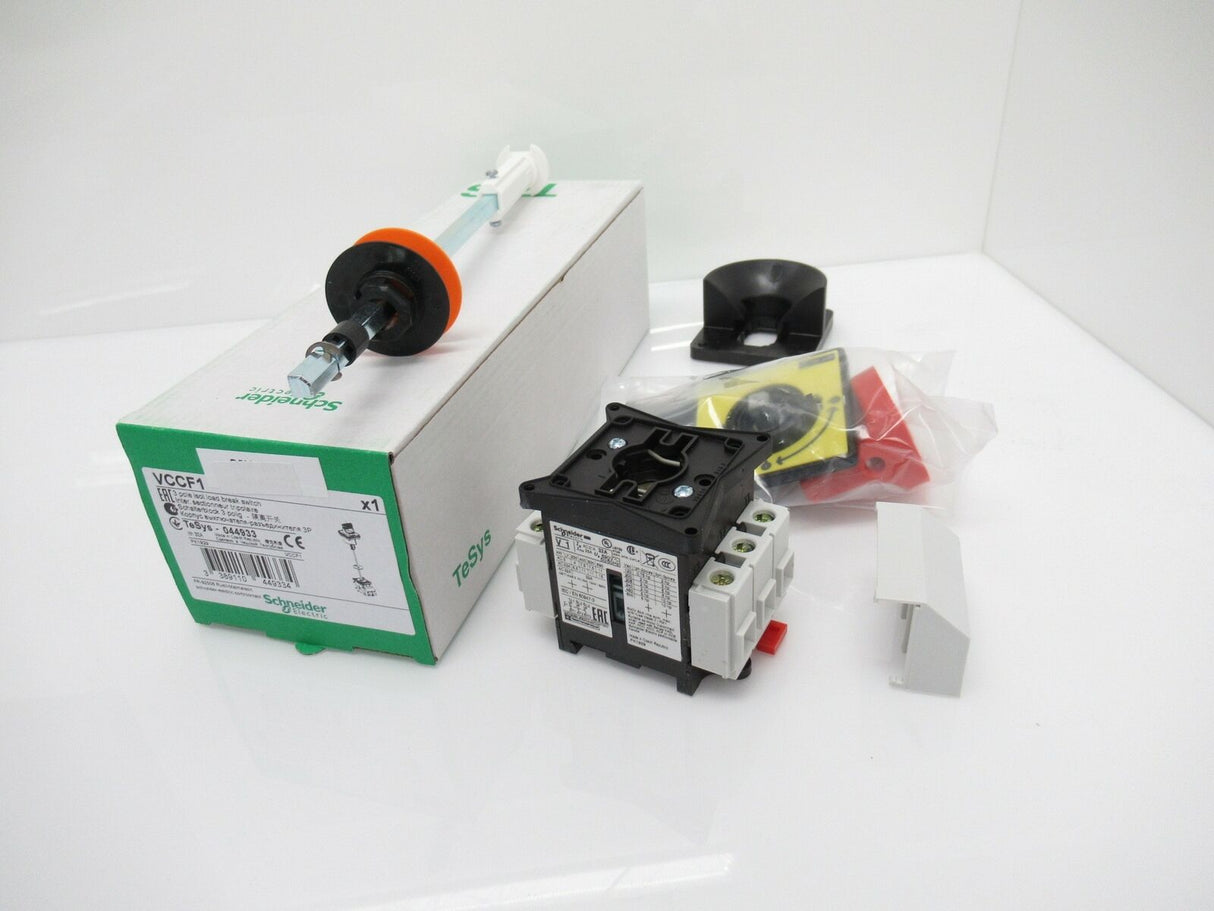

Schneider Electric VCCF1 Main Disconnect Switch, 32A
| Range | TeSys |
|---|---|
| Product Name | TeSys VARIO |
| Device Short Name | VCCF |
| Product Type | Emergency stop switch disconnector |
| Device Composition | Shaft extension Switch Handle |
|---|---|
| Mounting Support | Handle door Switch symmetrical rail Switch plate |
| Mounting Method | By 4 screws handle By clips switch By screws switch |
| Performance Level | High performance |
| Number of Poles | 3P |
| Contact Type and Composition | 3 NO |
| [Ue] IEC Rated Operational Voltage | 690 V AC 50/60 Hz |
| IEC Rated Operational Power in W | 11 kW 500 V AC-23A) 15 kW 690 V AC-23A) 7.5 kW 500 V AC-3) 7.5 kW 690 V AC-3) 1.5 kW 230...240 V AC-3) 5.5 kW 230...240 V AC-23A) 11 kW 400...415 V AC-23A) 7.5 kW 400...415 V AC-3) |
| [Ie] Rated Operational Current | 21.8 A AC-23 Ue: 400 V |
| [Ith] Conventional Free Air Thermal Current | 32 A |
| [Ithe] Conventional Enclosed Thermal Current | 25 A |
| Making Capacity ( I Rms) | 320 A 400 V AC-21A 320 A 400 V AC-22A 320 A 400 V AC-23A |
| Breaking Capacity | 250 A 400 V AC-21A) 250 A 400 V AC-22A) 250 A 400 V AC-23A) |
| Rated Conditional Short Circuit Current | 10 kA 400 V 35 A aM 10 kA 400 V 35 A gG |
| [Icm] Rated Short Circuit Making Capacity | 1 kA 400 V at Ipeak |
| [Icw] Rated Short Time Withstand Current | 384 A 400 V 1 s |
| [Uimp] Rated Impulse Withstand Voltage | 8 kV |
| Suitability for Isolation | Yes |
| Network Type | DC AC |
| Intermittent Duty Class | 30 |
| Control Type | Rotary handle |
| Rotary Handle Mounting Style | Extended |
| Handle Color | Red |
| Handle Front Plate Color | Yellow |
| Rotary Handle Padlocking | 1 to 3 padlocks 0.16…0.31 in (4…8 mm) |
| Marking | 0 - 1 |
| Mechanical Durability | 100000 cycles |
| Electrical Durability | 100000 cycles AC-21 30000 cycles DC-1...5 |
| IEC Terminal Connection | Power circuit screw clamp terminals 0.02 in² (10 mm²) solid Power circuit screw clamp terminals 0.01 in² (6 mm²) flexible - with cable end |
| Tightening Torque | Power circuit 18.59 lbf.in (2.1 N.m) screw clamp terminals |
