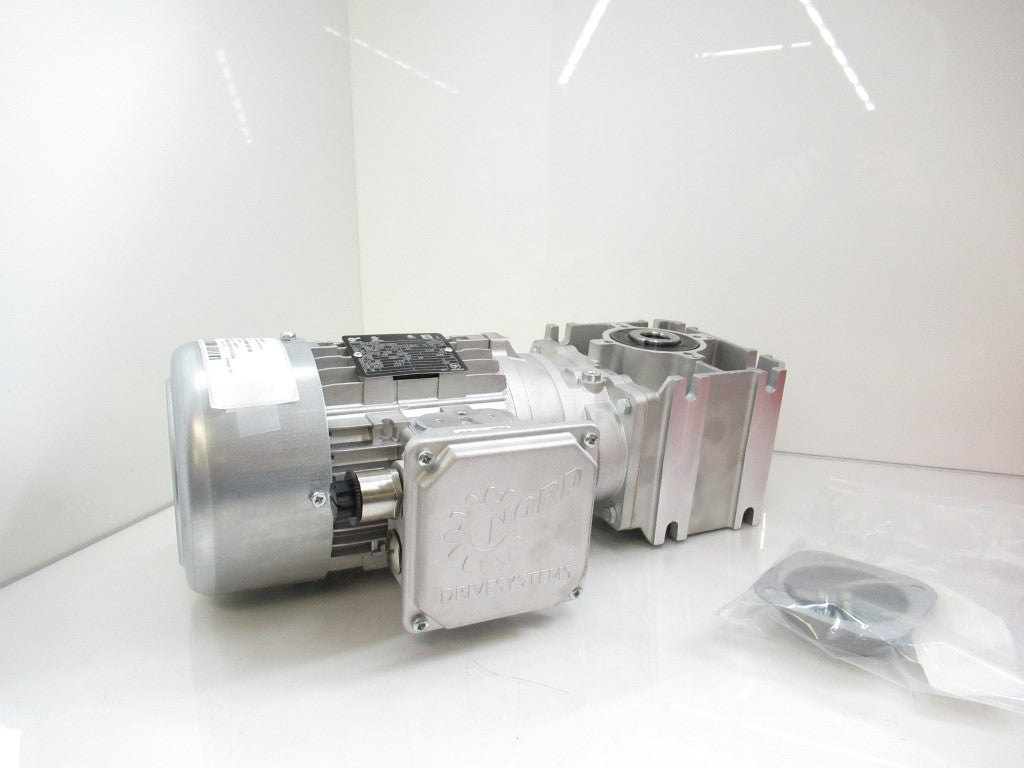

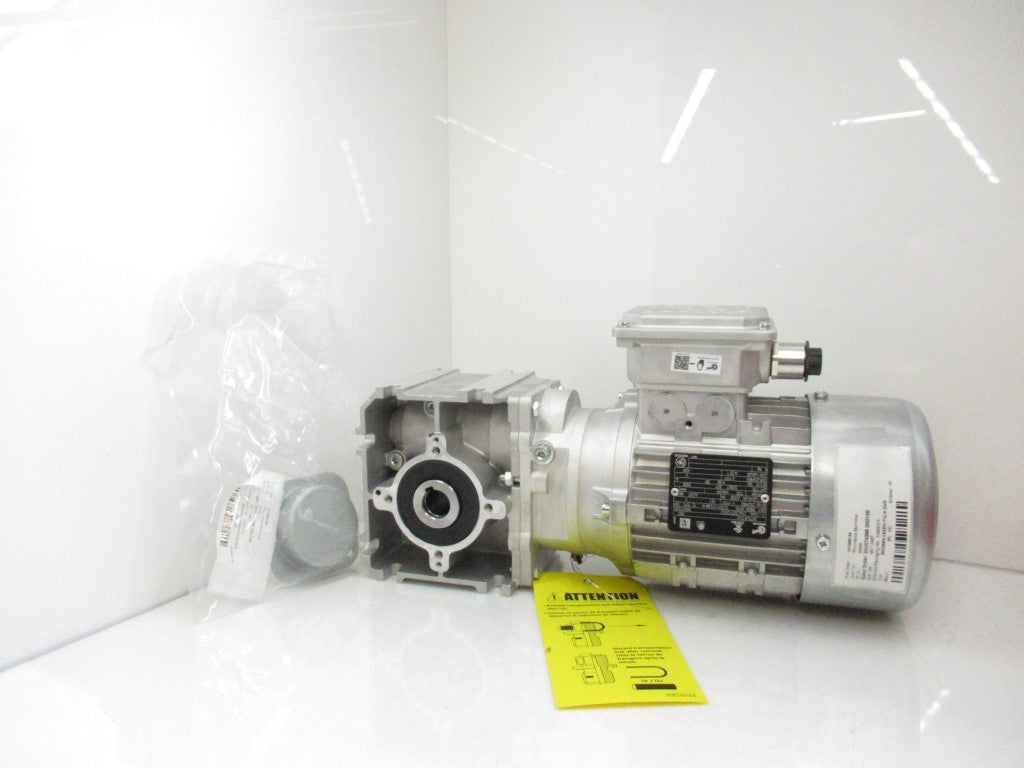

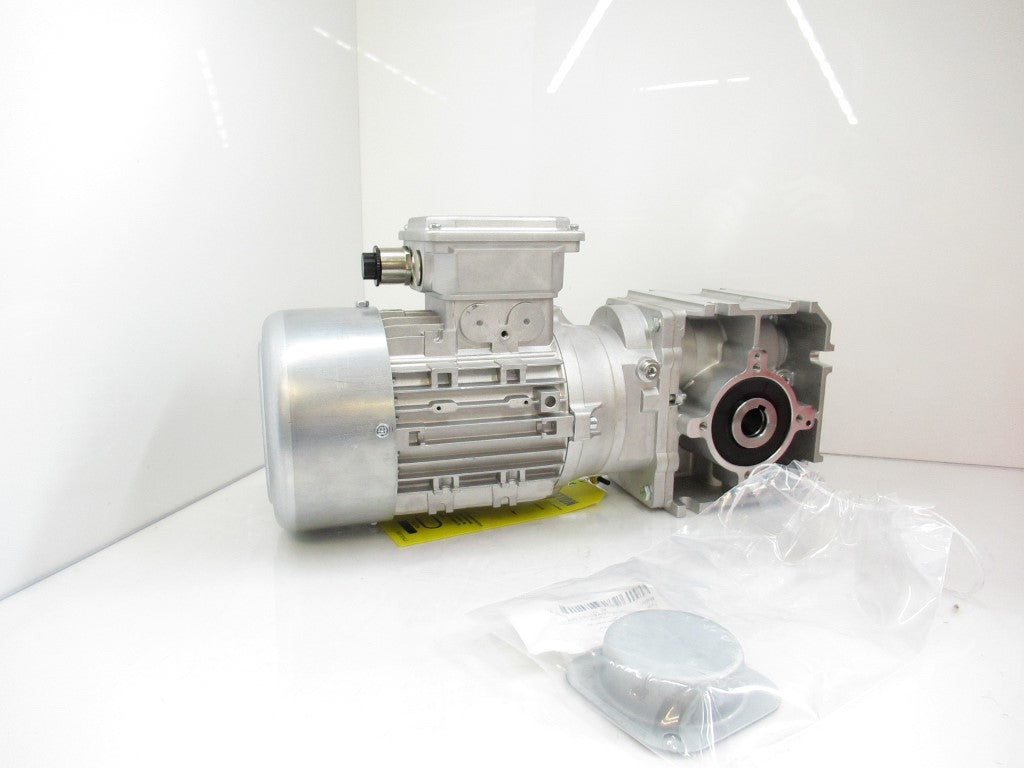

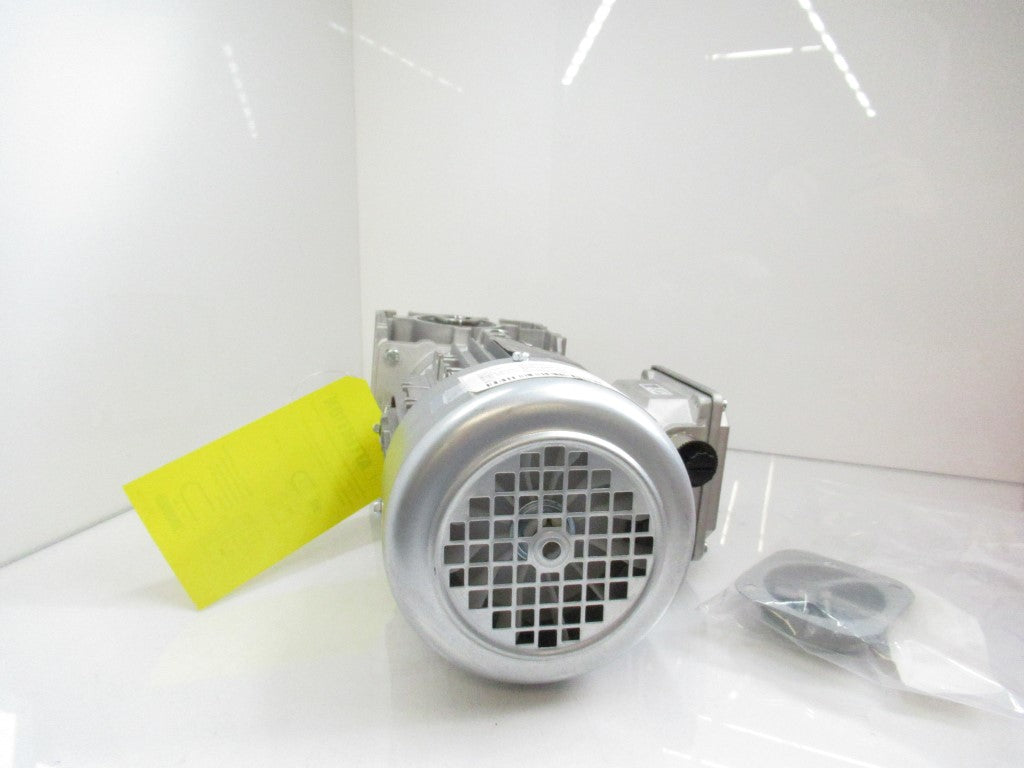

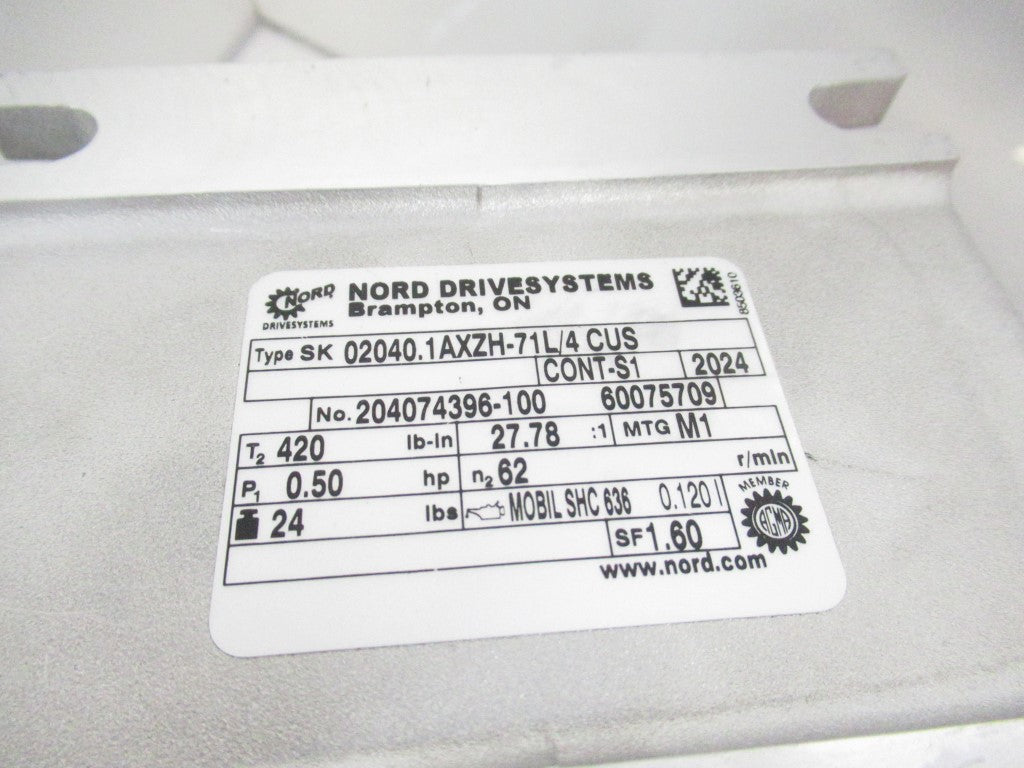

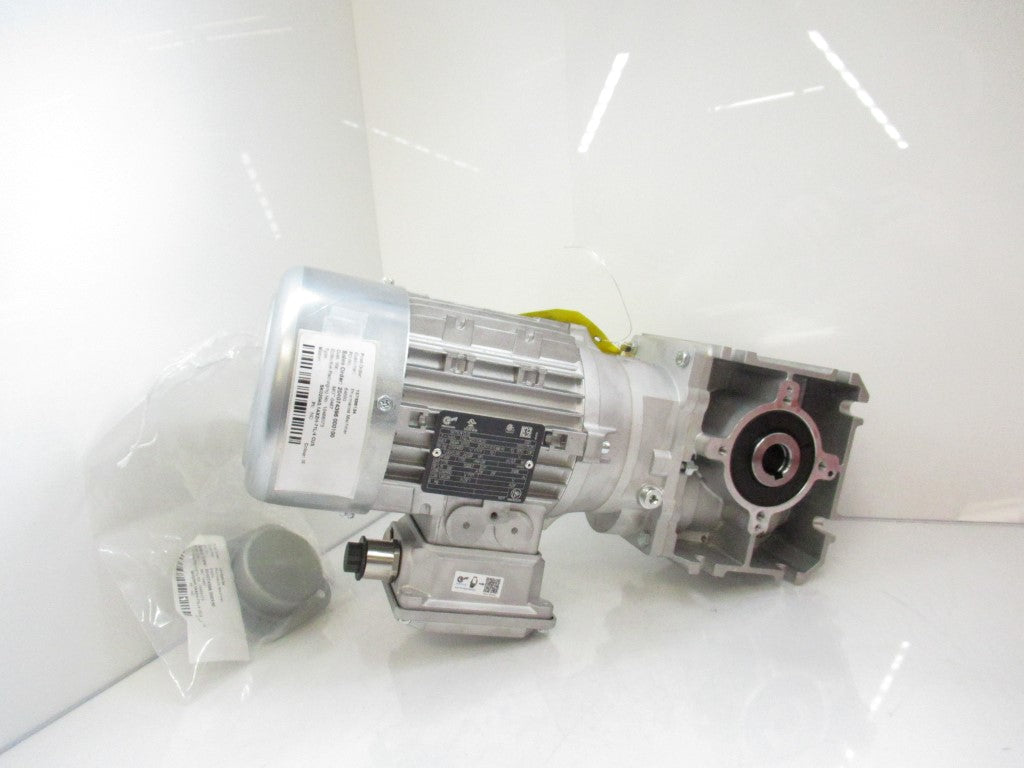

SK 02040.1AXZH-71L/4 CUS SK71L/4 CUS Nord Gearmotor 0.5 hp Ratio 27.78

Product Information

SK020401AXZH71L4 CUSSK71L/4CUS

• Product Name: Gearmotor
• Engine Type: CUS
• Motor Speed: 1,720 1 / min
• Engine Speed: 1,720 rpm
• Reduction Ratio: 27.78 :1
• Output Speed: 62,000 rpm
• Service Factor: 1.60
• Output torque M2 (lb-po): 420.00
• Max Torque output (lb-po): 664.00
• Power (kW): 0.370

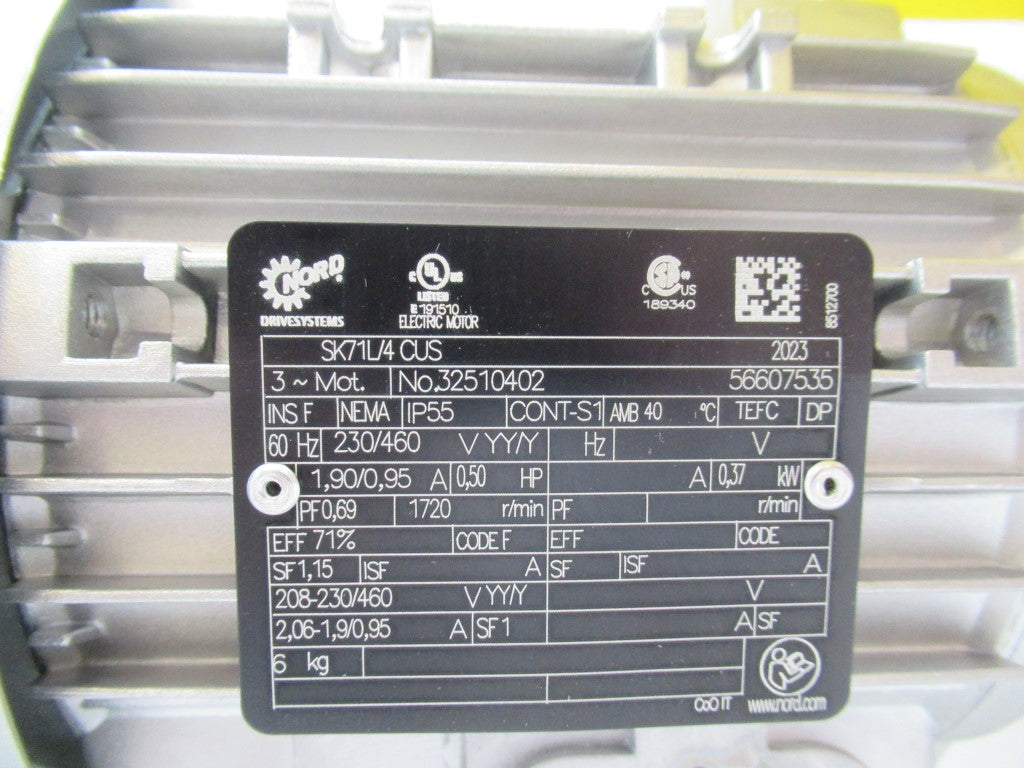

• Power (HP): 0.500
• Voltage (V): 230/460
• Frequency (Hz): 60
• Operating Mode: S1
• Motor Protection Type: IP55
• Insulation Class: F
• Nominal Current 1 (AMP): 1.90
• Nominal Current 2 (AMP): 0.95
• Cosine 1: 0.69
• Motor Ambient Temperature: 40°C
• Mounting Position: M1

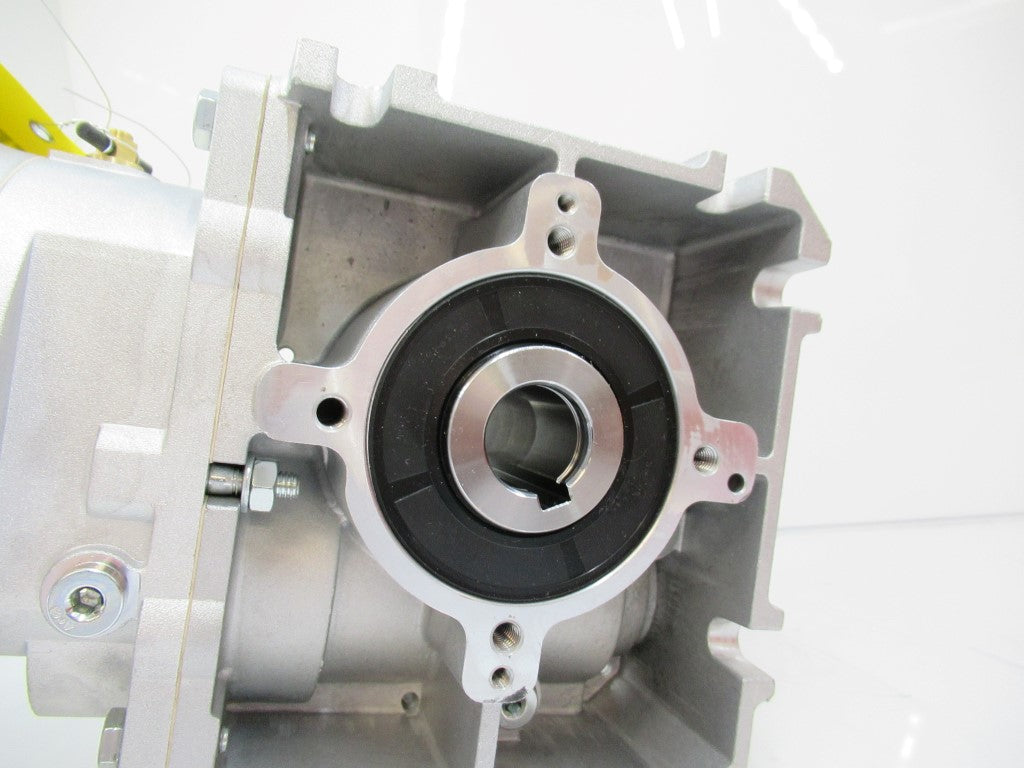

• Housing Type (gearbox): Hollow Shaft, B14 Flange, Footed
• Shaft Dimension (mm / in): 20H7
• Event: Vent Valve

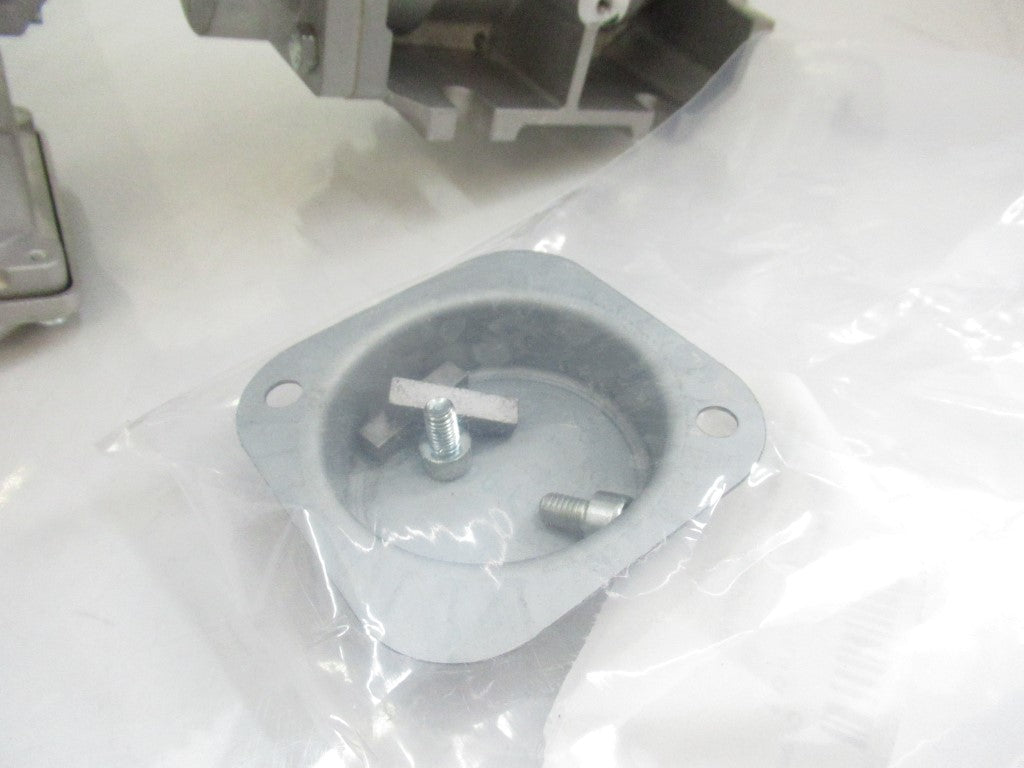

• Protective cover H: Cover
• Position Of The Hollow Shaft Cover: Cover Supplied Unassembled
• Connection Mode: Star
• Terminal Box Position: 4 / II
