RP01/M RP01M Thorlabs Ø2" Manual Rotation Stage, Metric

$144.94 USD

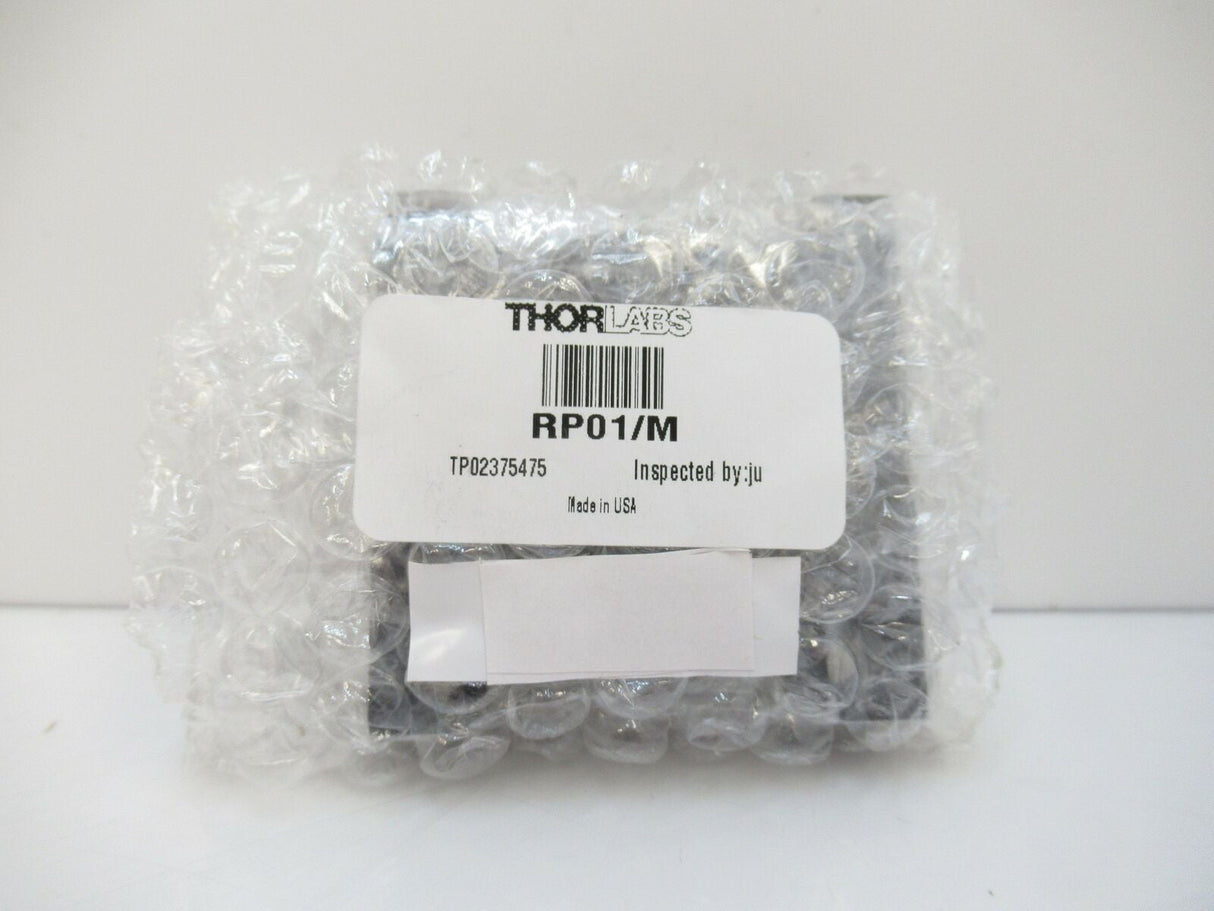

FACTORY SUPPLY BRAND NEW
SKU FAB01217-E
UPC: RP01/M
Only 2 left!
-
+

This product is in shipment and will be arriving shortly. Enter your email below to be notified of its arrival.

RP01/M RP01M

Thorlabs

 Ø2" Manual Rotation Stage, Metric

Features

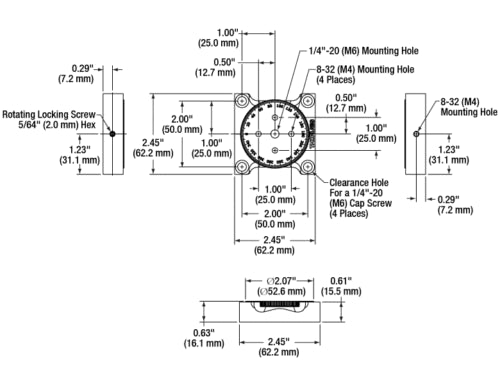

Rotating Platform Size: Ø2.07" (52.8 mm)
Component Mounting Taps: Four 8-32 (M4) One 1/4"-20 (M6)
Side Tap For Post Mounting: Yes: 8-32 (M4)
Stage Height: 0.63" (16.1 mm)
Stage Dimensions: 2.45" x 2.45" (62.2 x 62.2 mm)

Continuous 360° Rotation

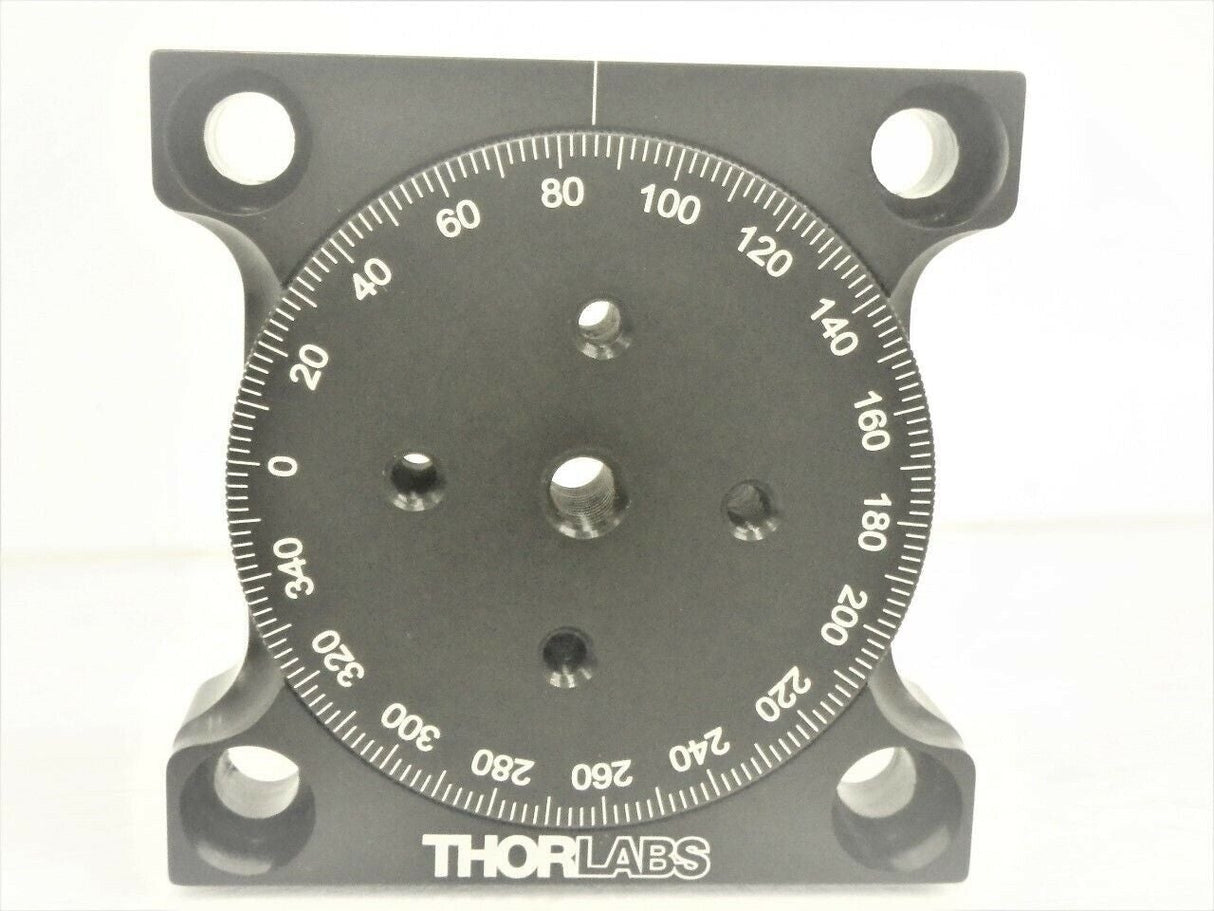

Laser-Engraved Graduation Marks
Ø1", Ø1.4", Ø2", or Ø4.3" Mounting Platform

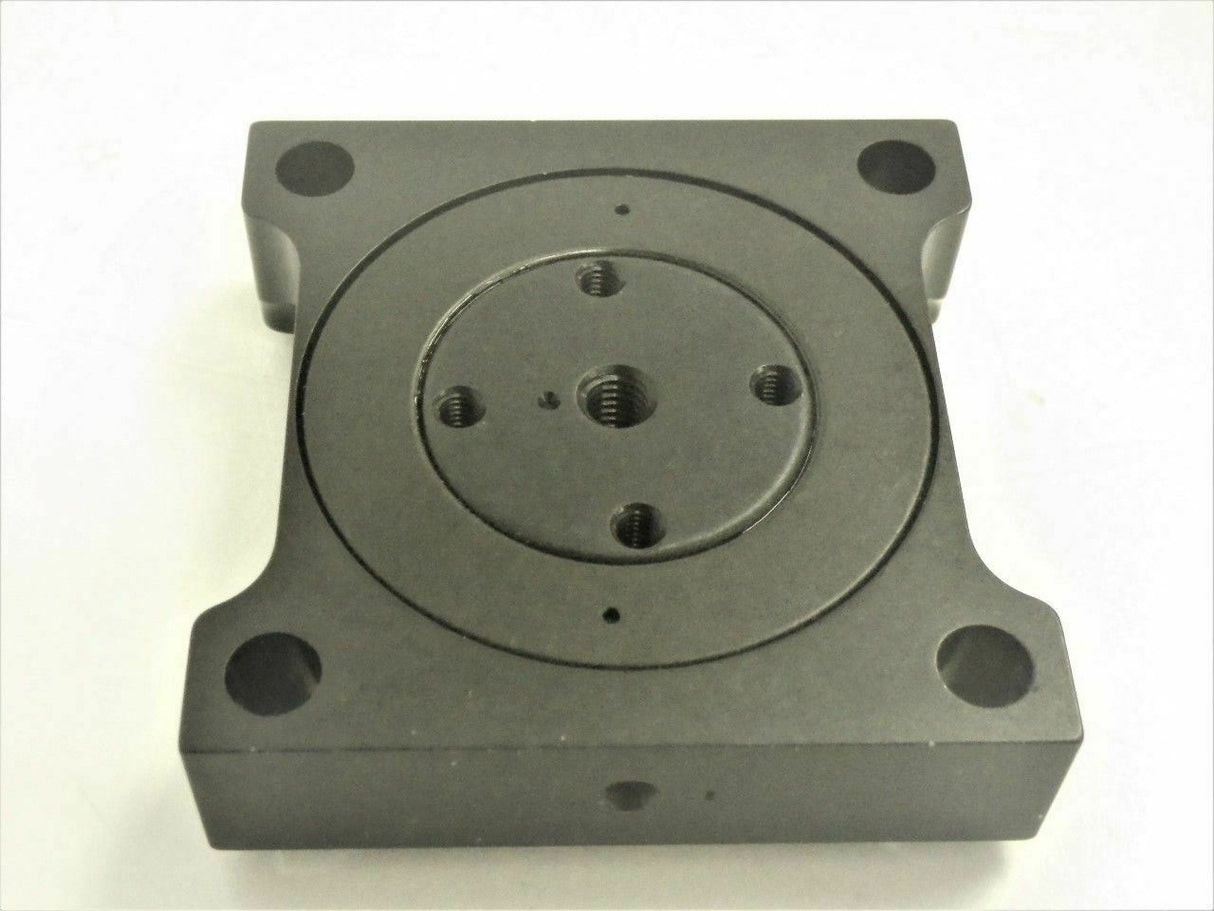

1/4" (M6) or #4 (M3) Counterbores for Breadboard Mounting
Lockable via Side-Located Setscrew

Thorlabs' Manual Rotation Stages are cost effective platforms for an optomechanical component requiring smooth, backlash-free rotation. Each stage offers 360º of continuous rotation with a Ø1", Ø1.4", Ø2", or Ø4.3" mounting platform and utilizes needle roller thrust bearings for higher load capacities. An engraved angular scale along the edge of each stage's rotating platform allows the user to set the angular orientation of the stage. Rotation of the platform can be locked by tightening the side-located setscrew. Four corner-located counterbored holes are spaced for direct fastening to an optical table or breadboard.
