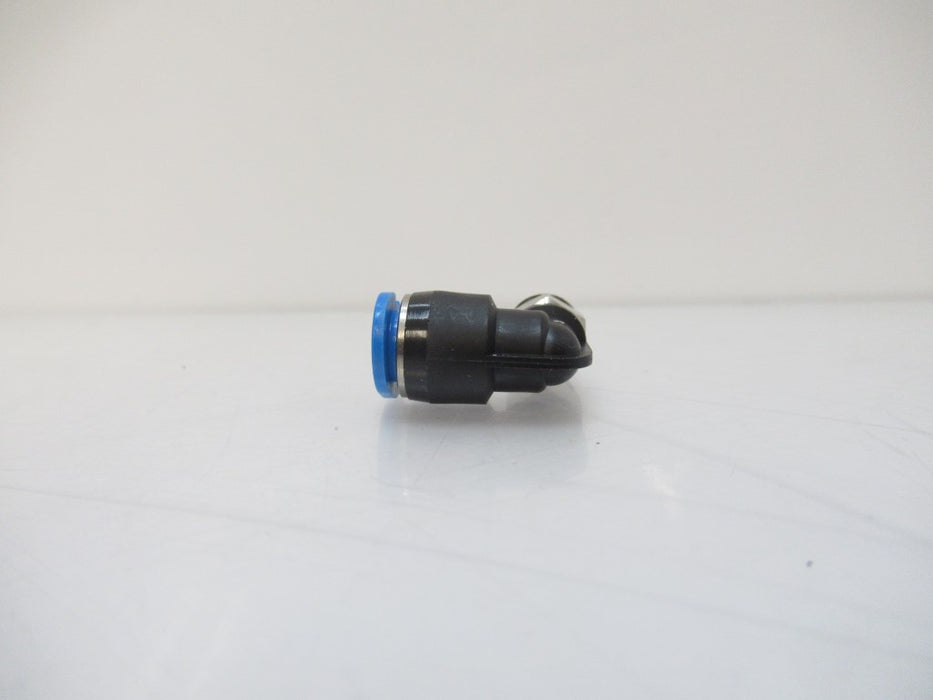

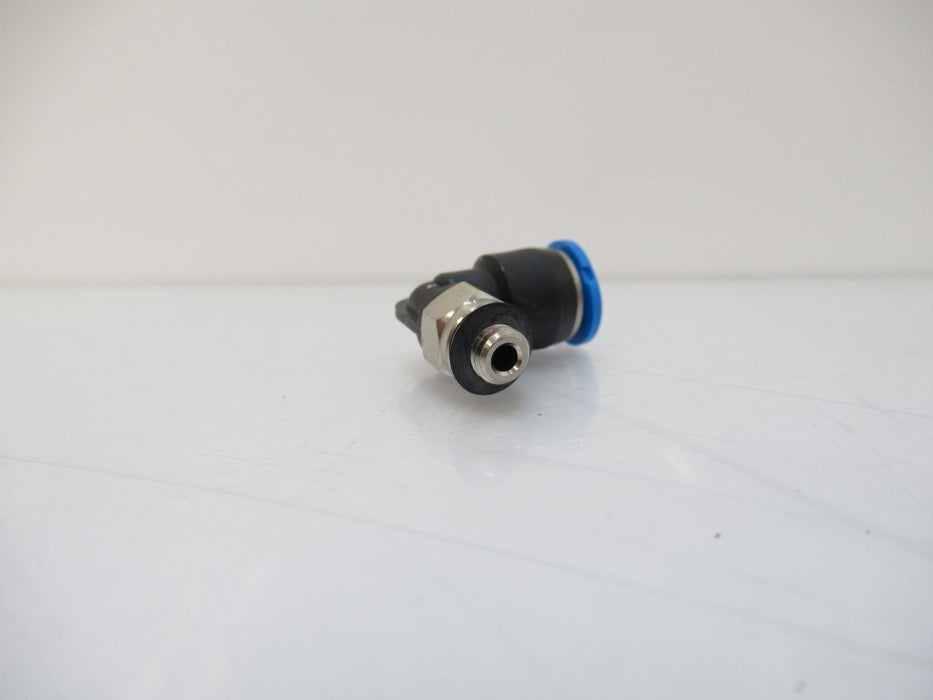

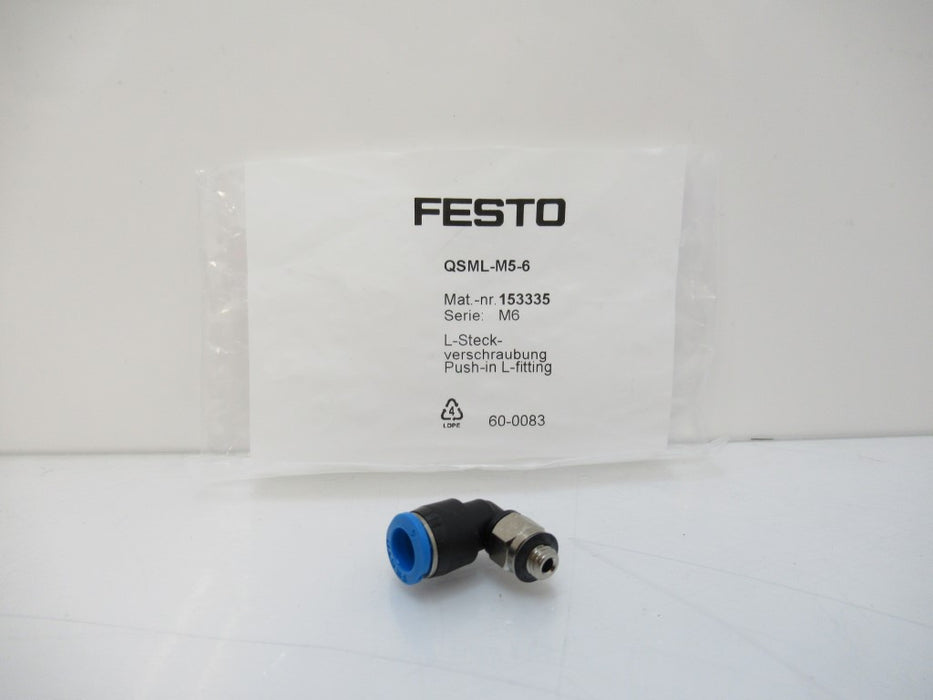

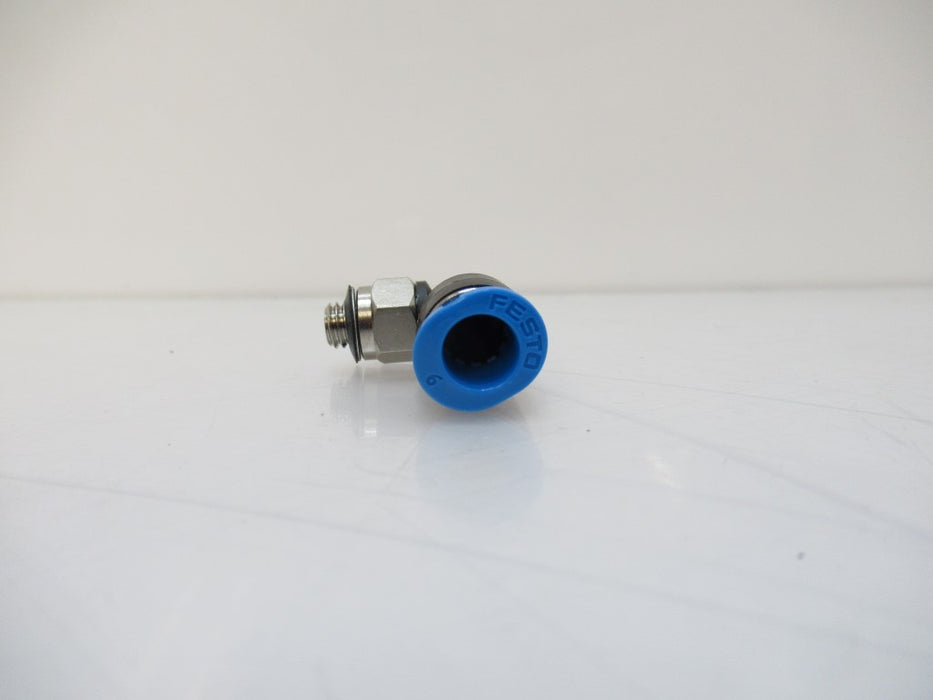

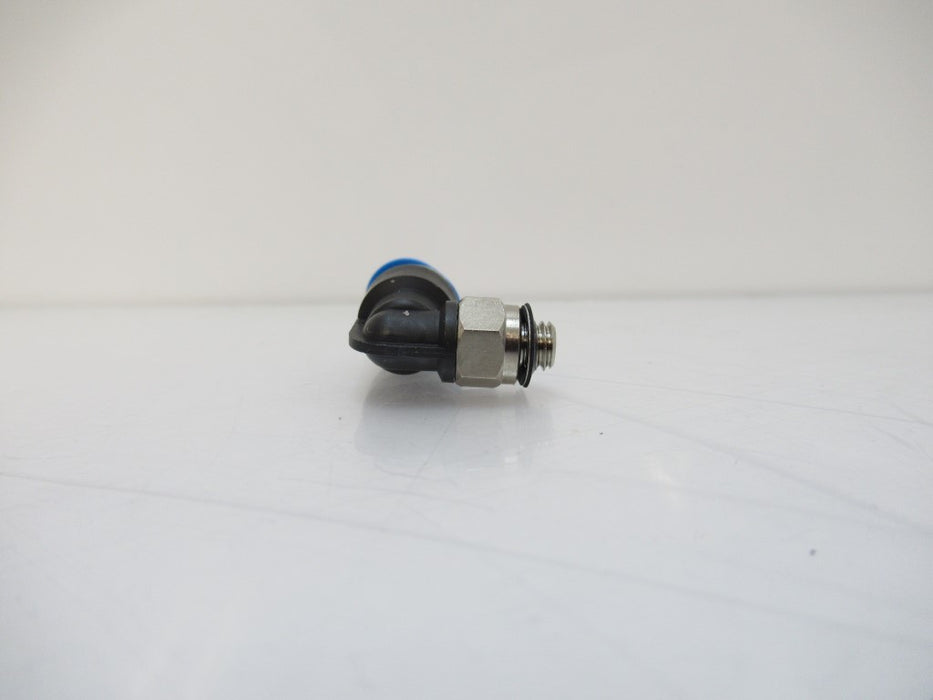

Festo QSML-M5-6 153335 Push-In L-Fitting, Sold By Unit

Product Information

Sold By Unit

• QSMLM56
• Size: Mini
• Nominal Size: 2.1 mm
• Type Of Seal On Screw-in Stud: Sealing Ring
• Assembly Position: Any
• Container Size: 10
• Design Structure: Push/Pull Principle
• Operating Pressure Complete Temperature Range: -0.95 ... 6 Bar
• Temperature Dependent Operating Pressure: -0.95 ... 14 Bar
• Maritime Classification: See Certificate
• Operating Medium: Compressed Air In Accordance With ISO8573-1:2010 [7:-:-]
• Note On Operating And Pilot Medium: Lubricated Operation Possible
• Corrosion Resistance Classification CRC: 1 - Low Corrosion Stress
• Ambient Temperature: -10 ... 80 °c
• Nominal Tightening Torque: 1.33 mm
• Tolerance For Nominal Tightening Torque: ± 20 %
• Product Weight: 4.1 G
• Pneumatic Connection, Port 1: Male Thread M5
• Pneumatic Connection, Port 2: For Tubing Outside Diameter 6 mm
• Colour Of Release Ring: Blue
• Materials Note: Conforms To Rohs
• Material Housing: PBT
• Material Release Ring: POM
• Material Of Tubing Seal: NBR
• Material Of Tube Retaining Claw: High Alloy Steel, Non-Corrosive
