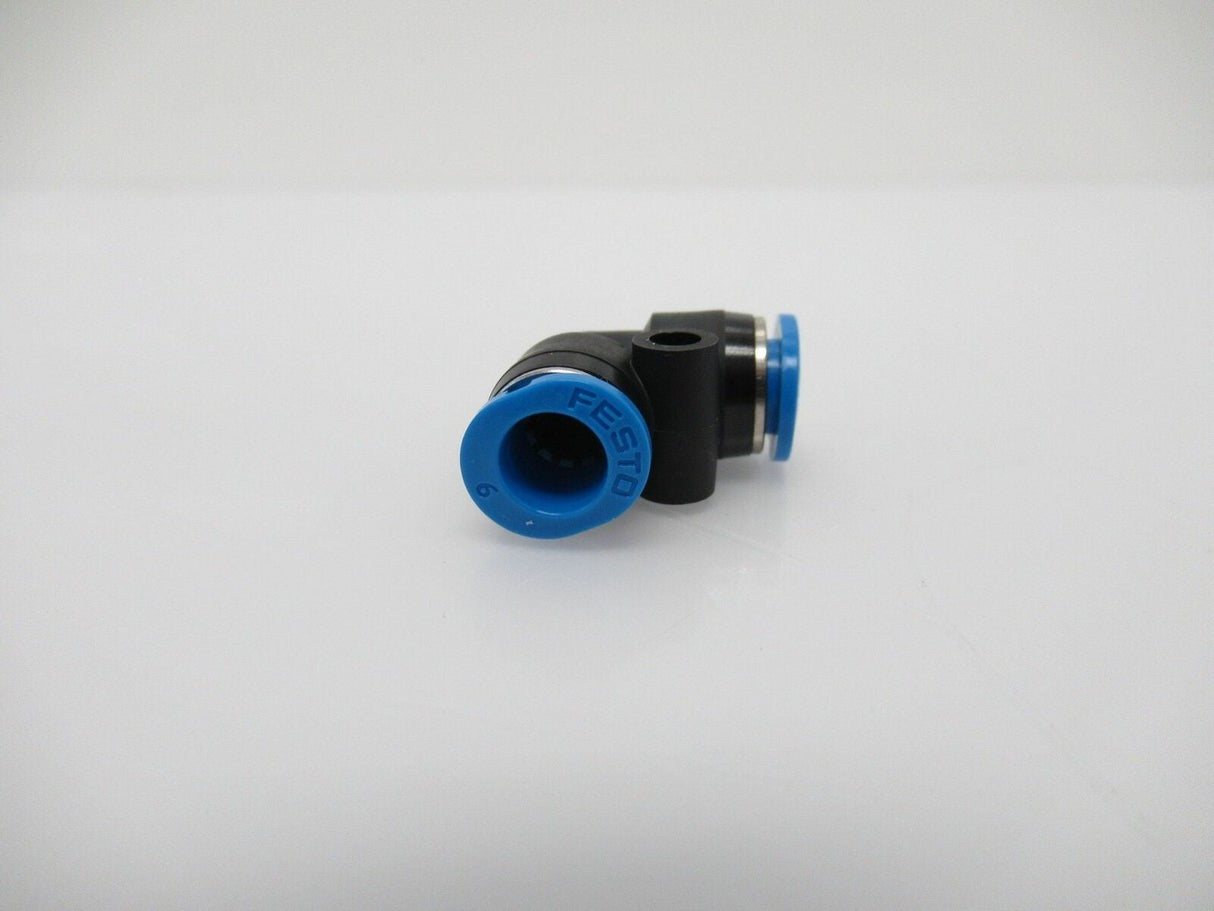

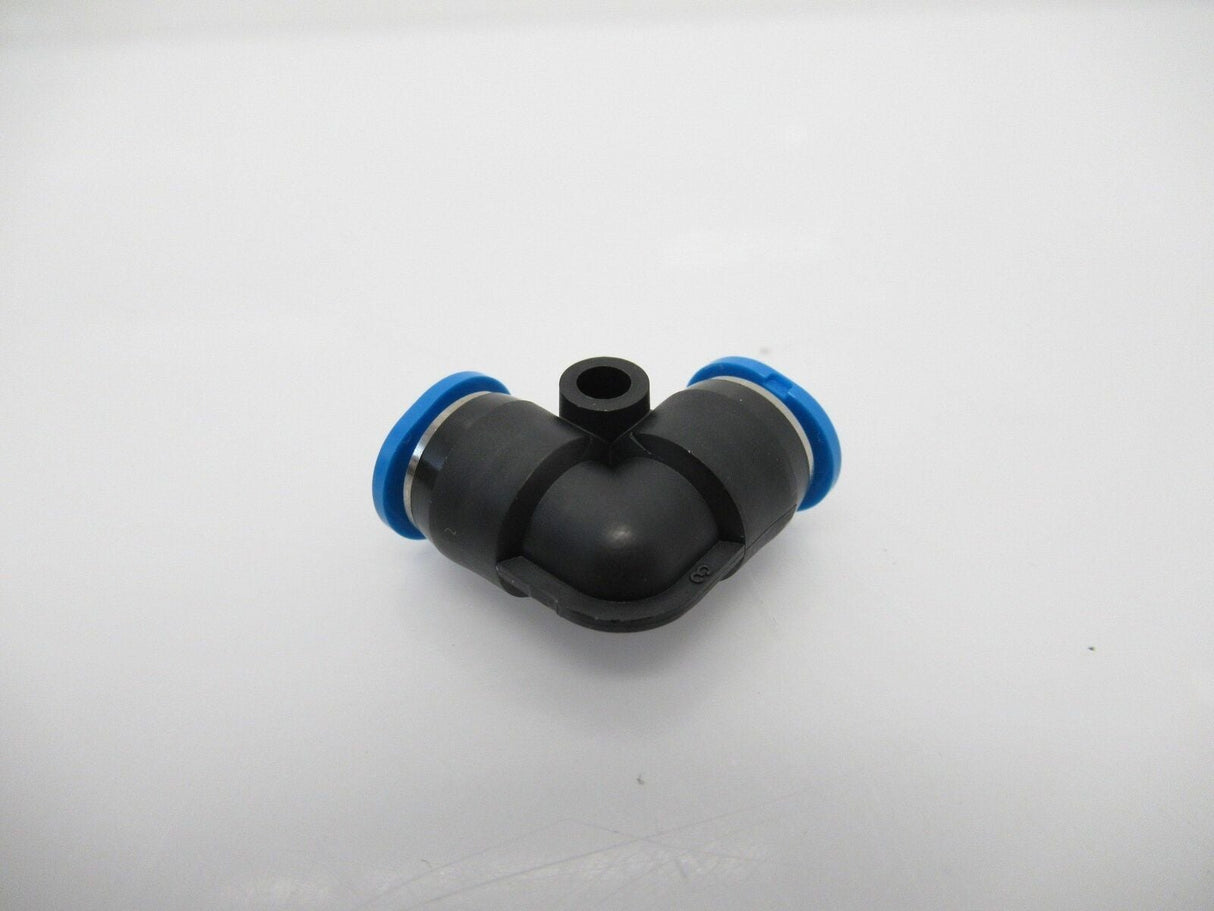

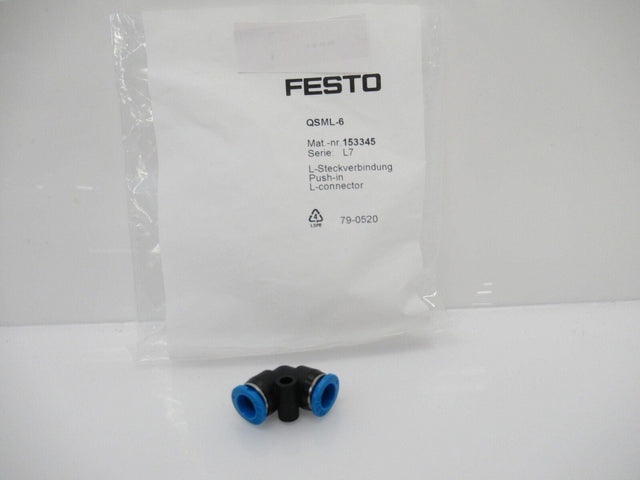

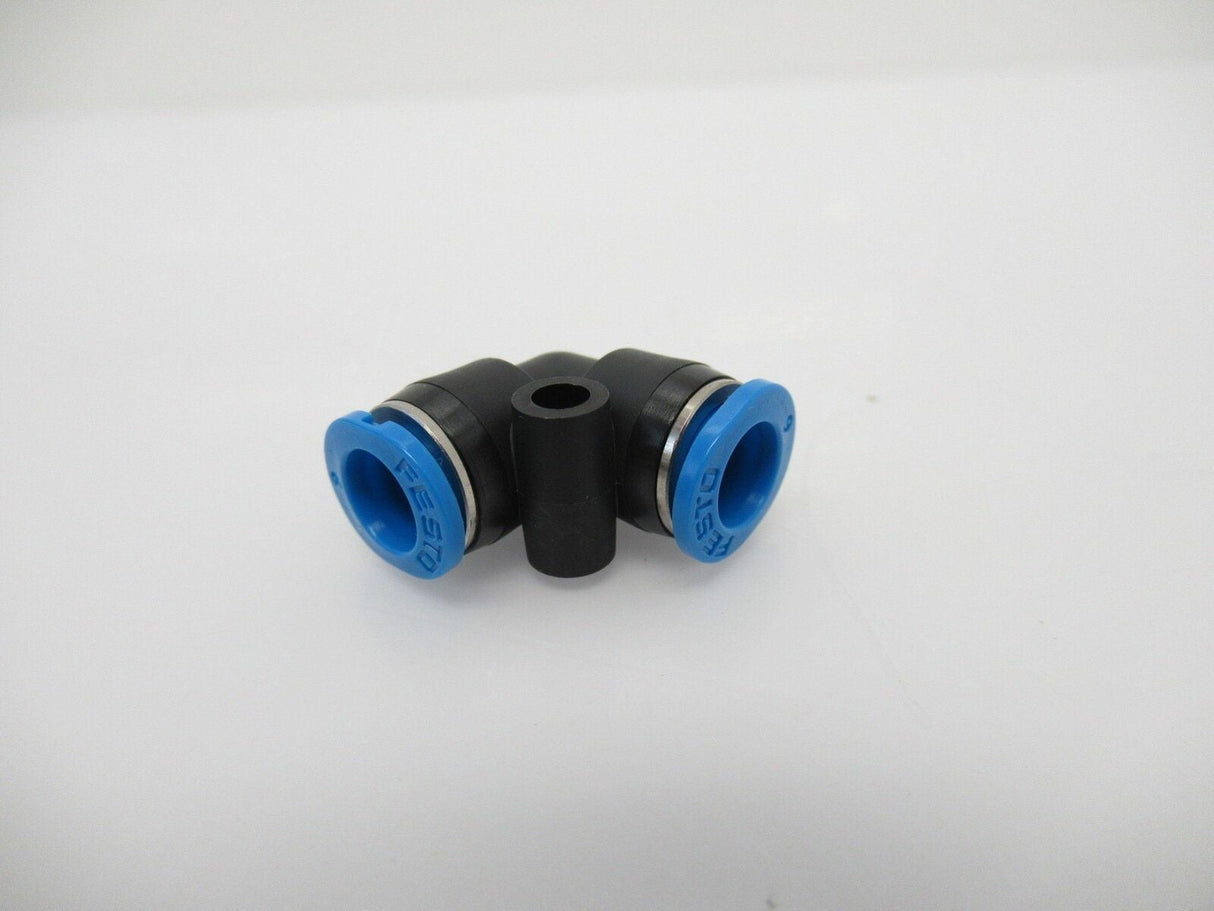

153345 QSML-6 Festo Push-In L-Connector

153345 QSML-6 QSML6

Festo

Push-In L-Connector

(Sold By Unit, New No Box)

Description

• Size: Mini
• Nominal Size: 3.4 mm
• Assembly Position: Any
• Container Size: 10
• Design Structure: Push/Pull Principle
• Operating Pressure Complete Temperature Range: -0.95 ... 6 bar
• Temperature-Dependent Operating Pressure: -0.95 ... 14 bar
• Maritime Classification: See Certificate
• Operating Medium: Compressed Air In Accordance With ISO8573-1:2010 [7:-:-]
• Note On Operating And Pilot Medium: Lubricated Operation Possible
• Corrosion Resistance Classification CRC: 1 - Low Corrosion Stress
• Ambient Temperature: -10 ... 80 °C
• Product Weight: 4 g
• Pneumatic Connection, Port 1: For Tubing Outside Diameter 6 mm
• Pneumatic Connection, Port 2: For Tubing Outside Diameter 6 mm
• Colour Of Release Ring: Blue
• Materials Note: Conforms To RoHS
• Material Housing: PBT
• Material Release Ring: POM
• Material Of Tubing Seal: NBR
• Material Of Tube Retaining Claw: High Alloy Steel, Non-Corrosive
