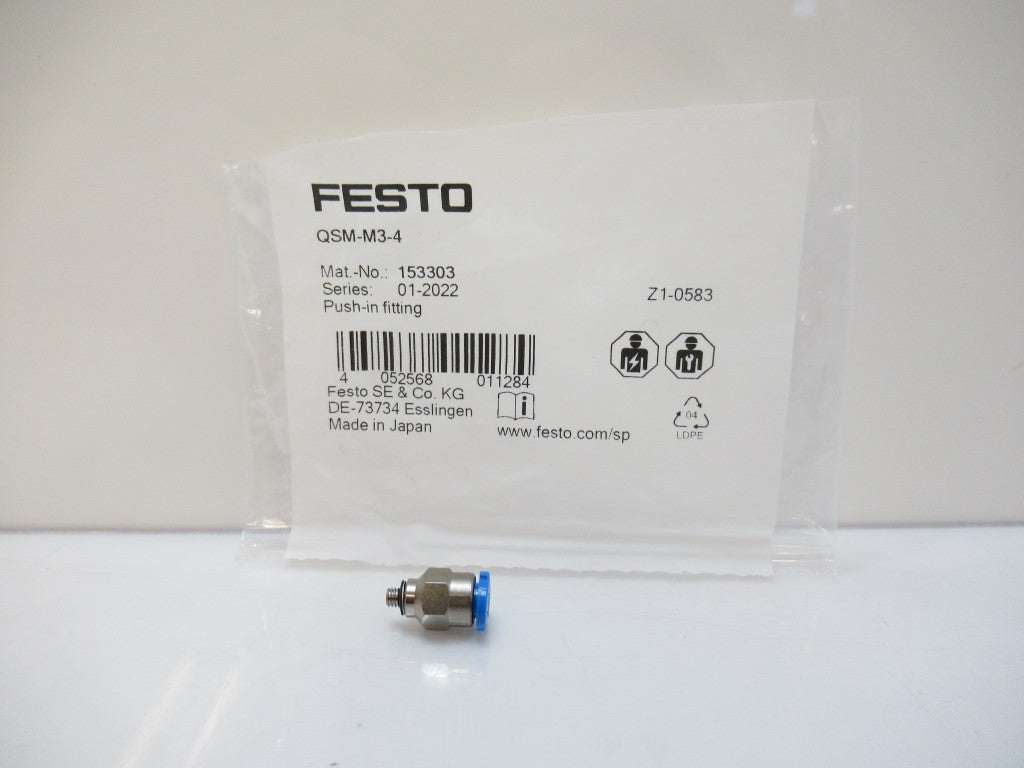

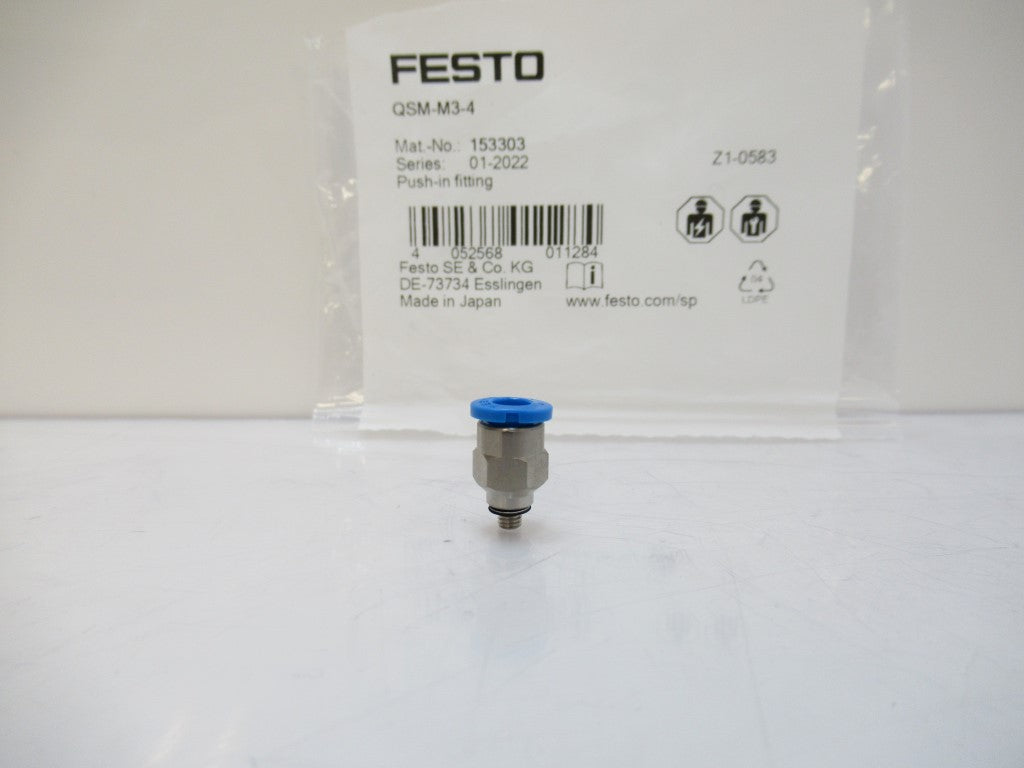

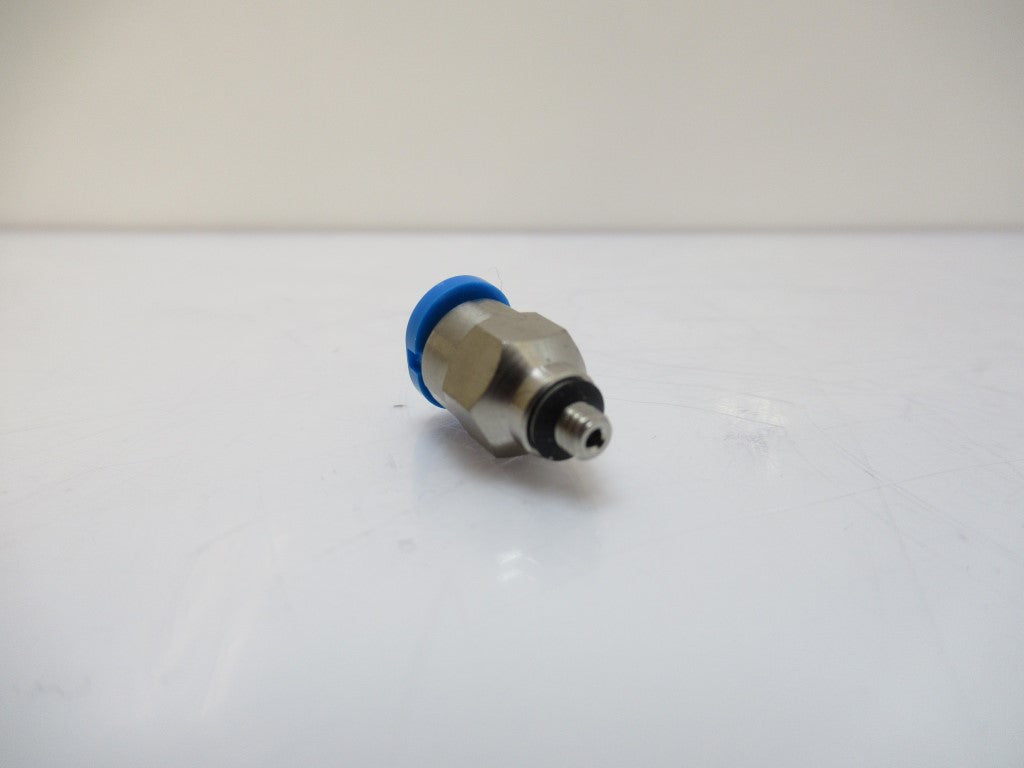

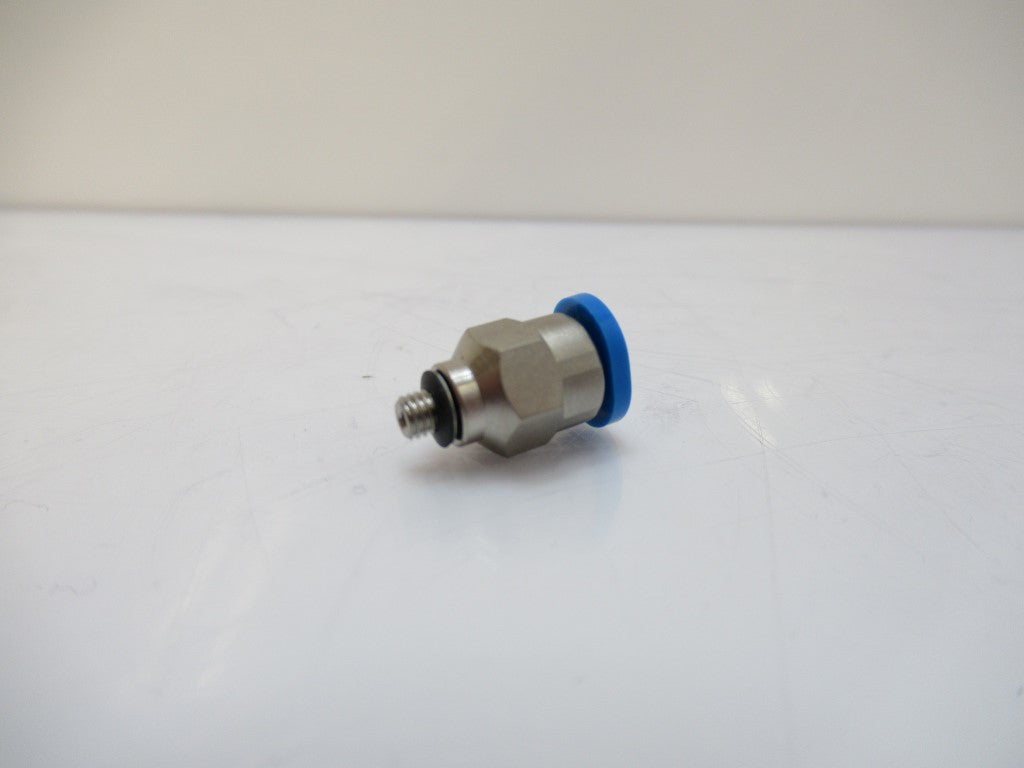

QSM-M3-4 153303 Festo Push-In Fitting Male Thread

Product Information

Sold By Unit

QSMM34

• Size: Mini
• Nominal width: 1.1 mm
• Type of seal on screwed trunnion: Sealing ring
• Mounting position: Any
• Structural design: Push-Pull principle
• Operating pressure for the entire temperature range: -0.95 bar ... 6 bar
• Temperature-dependent operating pressure:-0.95 bar ... 14 bar
• Maritime classification: See certificate
• Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-]
• Information on operating and pilot media: Operation with oil lubrication possible
• Corrosion resistance class (CRC): 1 - Low corrosion stress
• LABS (PWIS) conformity: VDMA24364-B1/B2-L
• Ambient temperature: -10 °C ... 80 °C
• Nominal tightening torque: 0.48 Nm
• Tolerance for nominal tightening torque: ± 55%
• Pneumatic connection 1: External thread M3
• Pneumatic connection 2: For pneumatic tubing outside diameter 4 mm
• Releasing ring color: Blue
• Note on materials: RoHS-Compliant
• Housing material: Steel, Nickel-Plated
• Releasing ring material: POM
• Material of tubing seal: NBR
• Material of tube retaining claw: High-Alloy stainless steel
