152586 Festo Plastic Tubing PUN-6X1-SI Diameter 6mm Outside/4mm Inside

by FESTO
Sold out
$89.93 USD
FACTORY SUPPLY BRAND NEW
SKU BOY-0010-E
UPC: DOES NOT APPL
Only 0 left!
-
+

This product is in shipment and will be arriving shortly. Enter your email below to be notified of its arrival.

152586 PUN-6X1-SI PUN6X1SI

Festo

Plastic Tubing

Standard O.D tubing, for QS plug connectors, CN, and CK polyurethane fittings.

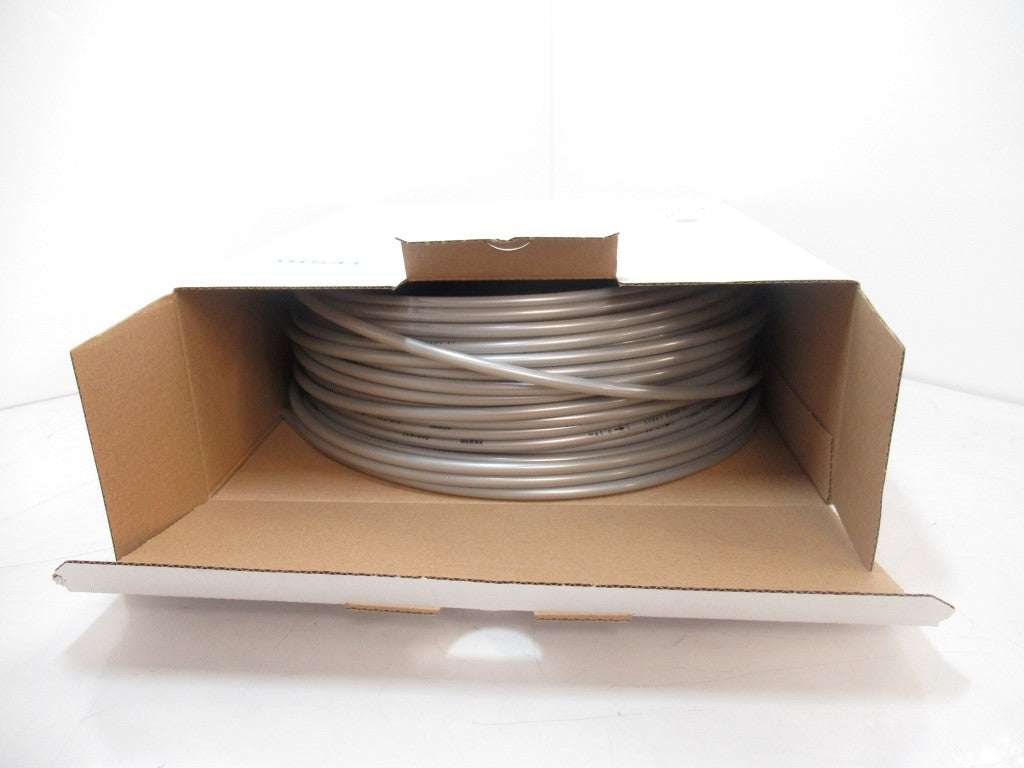

(Sold By Box Of 50 Meters)

Description

  • Outside Diameter: 6 mm
  • Bending Radius Relevant For Flow Rate: 26.5 mm
  • Inside Diameter: 4 mm
  • Min. Bending Radius: 16 mm
  • Tubing Characteristics: Suitable For Energy Chains In Applications With High Cycle Rates
  • Tubing Test Conditions: Suitable For Energy Chains: > 5 Millions Cycles To FN 942021
  • Temperature-Dependent Operating Pressure: -0.95 ... 10 bar
  • Authorization: TUV
  • Operating Medium: Compressed Air In Accordance With ISO8573-1:2010 [7:-:-]
  • Material Fire Test: UL94 HB
  • Ambient Temperature: -35 ... 60 °c
  • Product Weight According To Length: 0.0192 Kg/m
  • Pneumatic Connection: For Push-In Connector Outside Diameter 6 mm, For Barbed Connector Internal Diameter 4 mm With Nut' For Barbed Connector Internal Diameter 4 mm
  • Colour: Silver
  • Shore Hardness: D 52 +/-3
  • Materials Note: Free Of Copper And PTFE, Conforms To RoHs
  • Material Tubing: TPE-U(PU)
