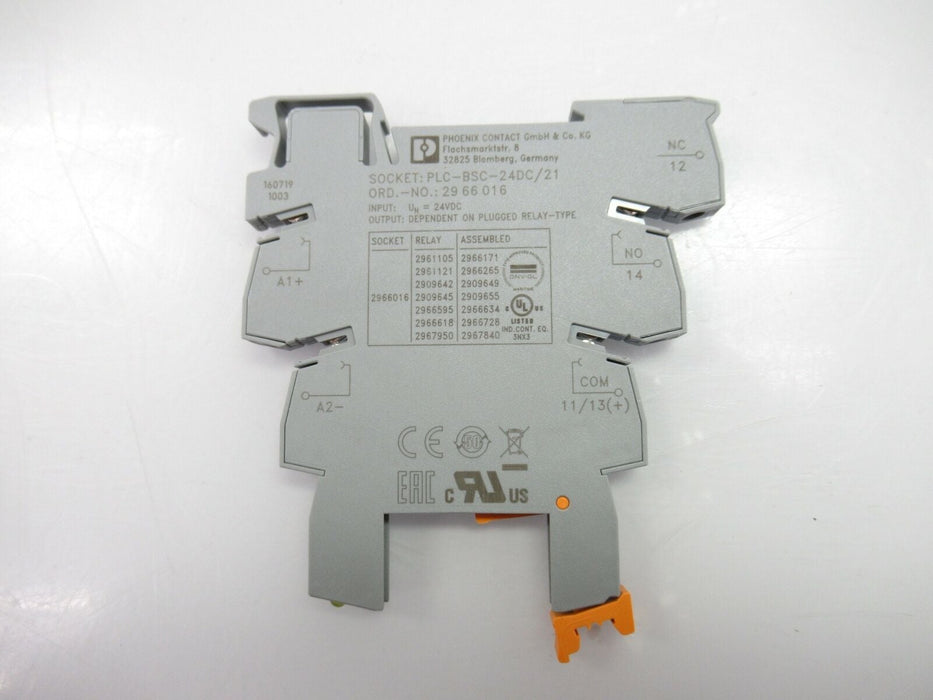

PLC-BSC-24DC/21 2966016 Phoenix Contact Relay/Opto Coupler Base (New)
$4.90 USD
FACTORY SUPPLY BRAND NEW
SKU TER-0043-E
Only 552 left!
Sold By Unit New
PLC-BSC-24DC/21 PLCBSC24DC21 2966016
Phoenix Contact
Relay/Opto Coupler Base
6.2 mm PLC basic terminal block with screw connection, without relays or solid-state relay, for mounting on DIN rail NS 35/7,5, 1 PDT, input voltage 24 V DC
Dimensions
| Width | 6.2 mm |
|---|---|
| Height | 80 mm |
| Depth | 94 mm |
Ambient conditions
| Ambient temperature (operation) | -40 °C ... 60 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Input data
| Nominal input voltage UN | 24 V DC |
|---|---|
| Status display | LED |
| Protective circuit | Damping diode, polarity protection diode |
| Damping diode |
General
| Protective circuit | Damping diode, polarity protection diode |
|---|---|
| Operating mode | 100% operating factor |
| Color | gray |
| Flammability rating according to UL 94 | V0 (Housing) |
| Mounting position | any |
| Assembly instructions | In rows with zero spacing |
Connection data
| Connection name | Input side |
|---|---|
| Connection method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Conductor cross section solid | 0.14 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.14 mm² ... 2.5 mm² |
| 0.2 mm² ... 2.5 mm² (Single ferrule) | |
| 2x 0.5 mm² ... 1.5 mm² (TWIN ferrule) | |
| Conductor cross section AWG | 26 ... 14 |
