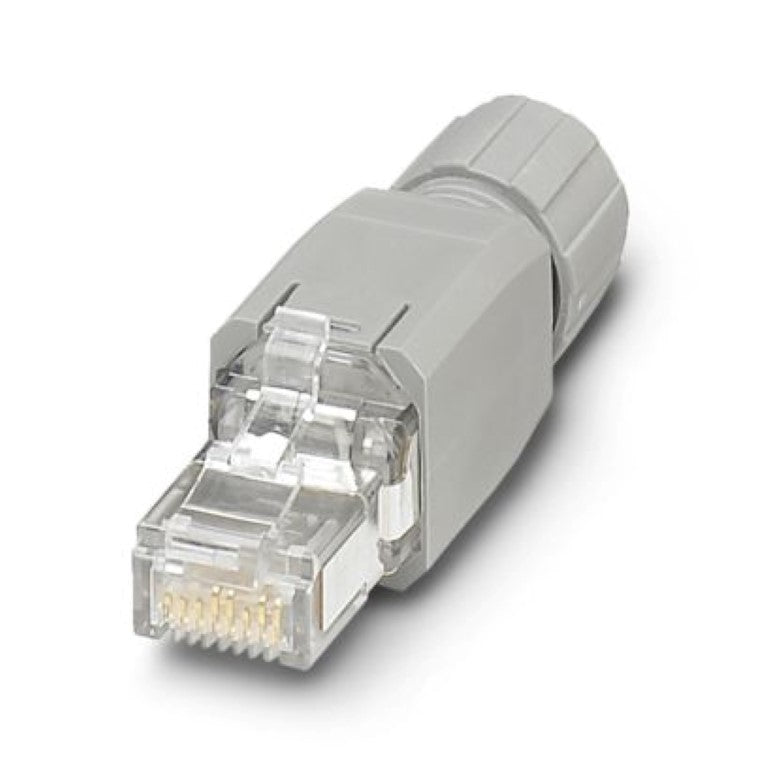

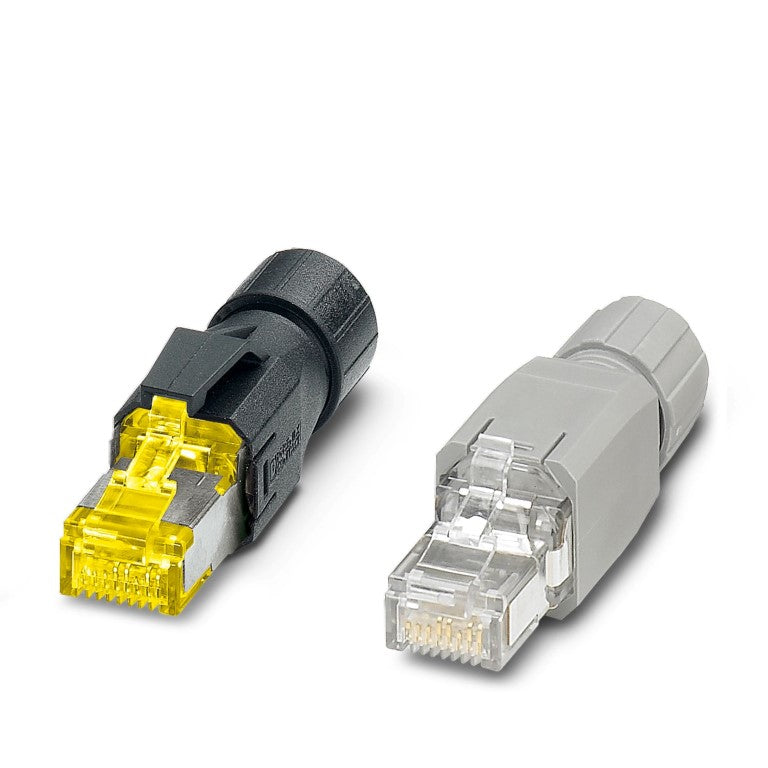

Phoenix Contact VS-08-RJ45-5-Q/IP20 1656725 Connector

SKU BRE-2509-E
Original price $18.66 USD - Original price $18.66 USD
Original price
$18.66 USD
$18.66 USD - $18.66 USD
Current price $18.66 USD
Availability:
0 in stock, ready to be shipped

Delivery Option

Ups Express next day air or standard shipping is available at the checkout !

Specifications
Request a quote

Industrial Automation Parts is Not Authorized Distributor of this product. Manufacturer's Warranty & Support DO NOT apply. Our IAP warranty of 3 month is applicable.

Product Properties:

  • Type: RJ45
  • Sensor Type: Ethernet
  • Number of Positions: 8
  • Connection Profile: RJ45
  • Number of Cable Outlets: 1
  • Shielded: Yes
  • Cable Outlet: Straight

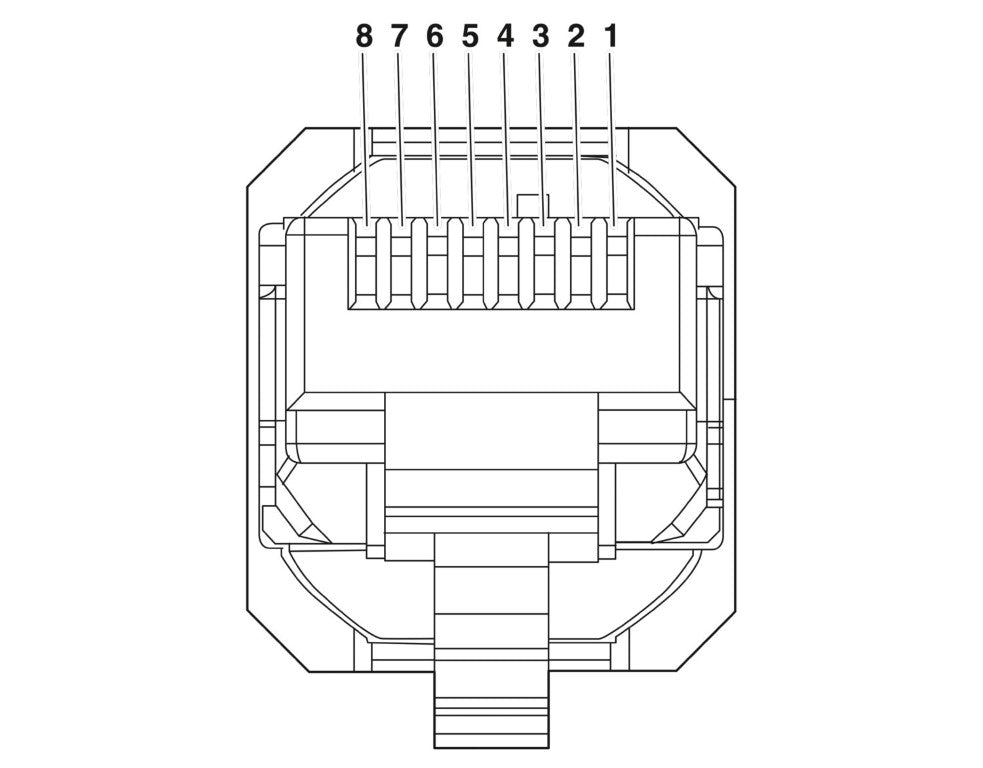

  • Positions/Contacts: 8P8C

Insulation Characteristics:

  • Overvoltage Category: I
  • Degree of Pollution: 2

Electrical Properties:

  • Rated Voltage (III/3): 72 V (DC)
  • Rated Current: 1.75 A
  • Contact Resistance (Contact): < 20 mΩ
  • Contact Resistance (Shield): < 100 mΩ
  • Frequency Range: Up to 100 MHz
  • Insulation Resistance: > 500 MΩ
  • Nominal Voltage (UN): 48 V
  • Nominal Current (IN): 1.75 A
  • Contact Resistance per Contact Pair: < 20 Ω
  • Contact Resistance (Wire – IDC): > 10 mΩ
  • Contact Resistance (Litz Wires – IDC): 0.005 Ω
  • Transmission Medium: Copper
  • Transmission Characteristics (Category): CAT5
  • Transmission Speed: 1 Gbps
  • Power Transmission: PoE++

Connection Technology:

  • Connection Method: Insulation Displacement Connection
  • Connection Cross Section (AWG): 26 ... 23 (Solid), 26 ... 23 (Flexible)
  • Conductor Cross Section: 0.14 mm² ... 0.25 mm² (Solid), 0.14 mm² ... 0.25 mm² (Flexible)
  • Connection in Accordance with Standard: IEC 60603-7-1
  • Cable Outlet Angle: 180°

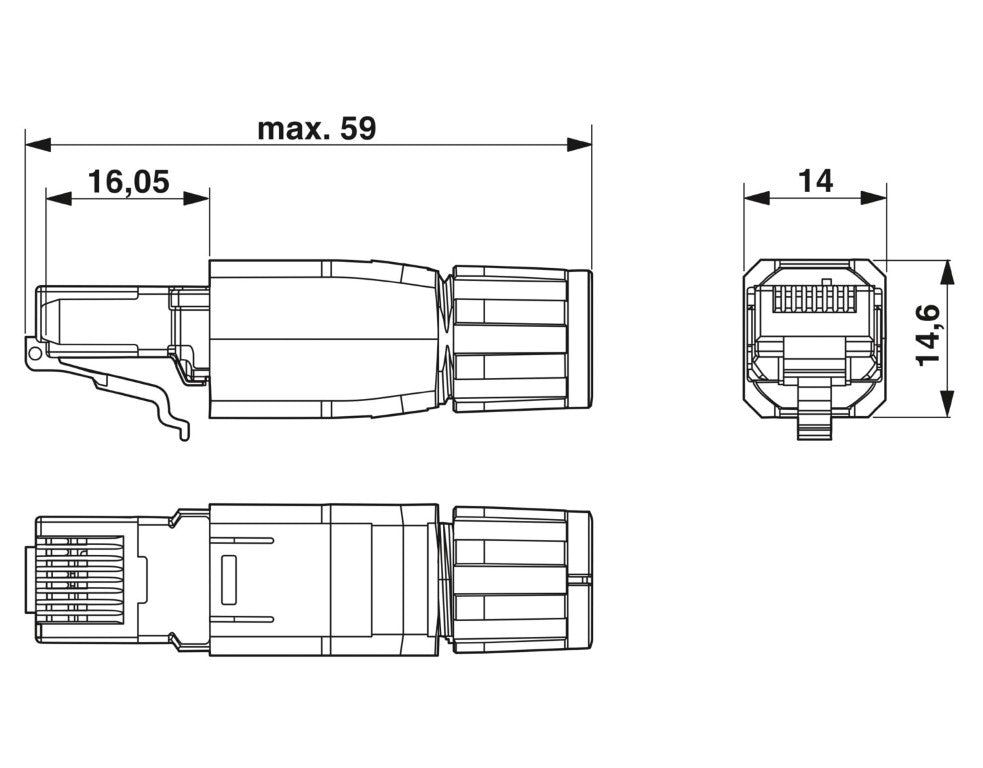

Dimensions:

  • Width: 14 mm
  • Height: 14.6 mm
  • Length: 56 mm

Material Specifications:

  • Color: Traffic Grey A RAL 7042
  • Material: Plastic
  • Flammability Rating According to UL 94: V0
  • Housing Material: Plastic
  • Contact Material: CuSn
  • Contact Surface Material: Au/Ni
  • Contact Carrier Material: PC
  • Locking Latch Material: PC
  • Material for Screw Connection: PA
  • Contact Carrier Color: Transparent

Cable/Line:

  • External Cable Diameter: 4.5 mm ... 8 mm
  • Wire Diameter Including Insulation: 1.6 mm
  • Cable Cross Section: 0.14 mm²
  • Test Voltage Core/Core: 1000 V
  • Test Voltage Core/Shield: 1500.00 V
  • Halogen-Free: No

Mechanical Data:

  • Insertion/Withdrawal Cycles: ≥ 1000
  • Insertion Force per Signal Contact: < 20.00 N
  • Extraction Force per Signal Contact: < 20 N

Test Specification:

  • Type of Test: Vibration Test
  • Specification: IEC 60068-2-6
  • Frequency: 10-500 Hz
  • Sweep Speed: 1 Octave/min
  • Amplitude: 0.35 mm
  • Acceleration: 50.00 m/s²
  • Test Duration: 20.00 s

Ambient Conditions:

  • Degree of Protection: IP20
  • Ambient Temperature (Operation): -20 °C ... 70 °C

Mounting:

  • Mounting Type: For Field Assembly
