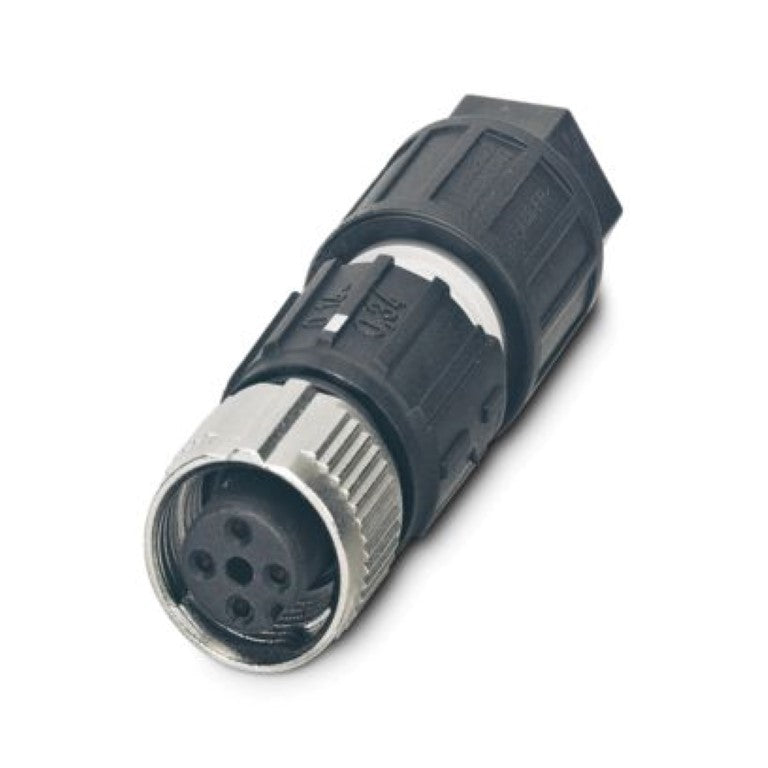

Phoenix Contact SACC-FS-4QO-0,34-M SCO 1521588 Connector

SKU WIR-1986-E
Original price $10.66 USD - Original price $10.66 USD
Original price
$10.66 USD
$10.66 USD - $10.66 USD
Current price $10.66 USD
Availability:
0 in stock, ready to be shipped

Delivery Option

Ups Express next day air or standard shipping is available at the checkout !

Specifications
Request a quote

Industrial Automation Parts is Not Authorized Distributor of this product. Manufacturer's Warranty & Support DO NOT apply. Our IAP warranty of 3 month is applicable.

Product Properties:

  • Sensor Type: Universal
  • Number of Positions: 4
  • Number of Cable Outlets: 1
  • Shielding: None
  • Coding: A
  • Cable Outlet: Straight

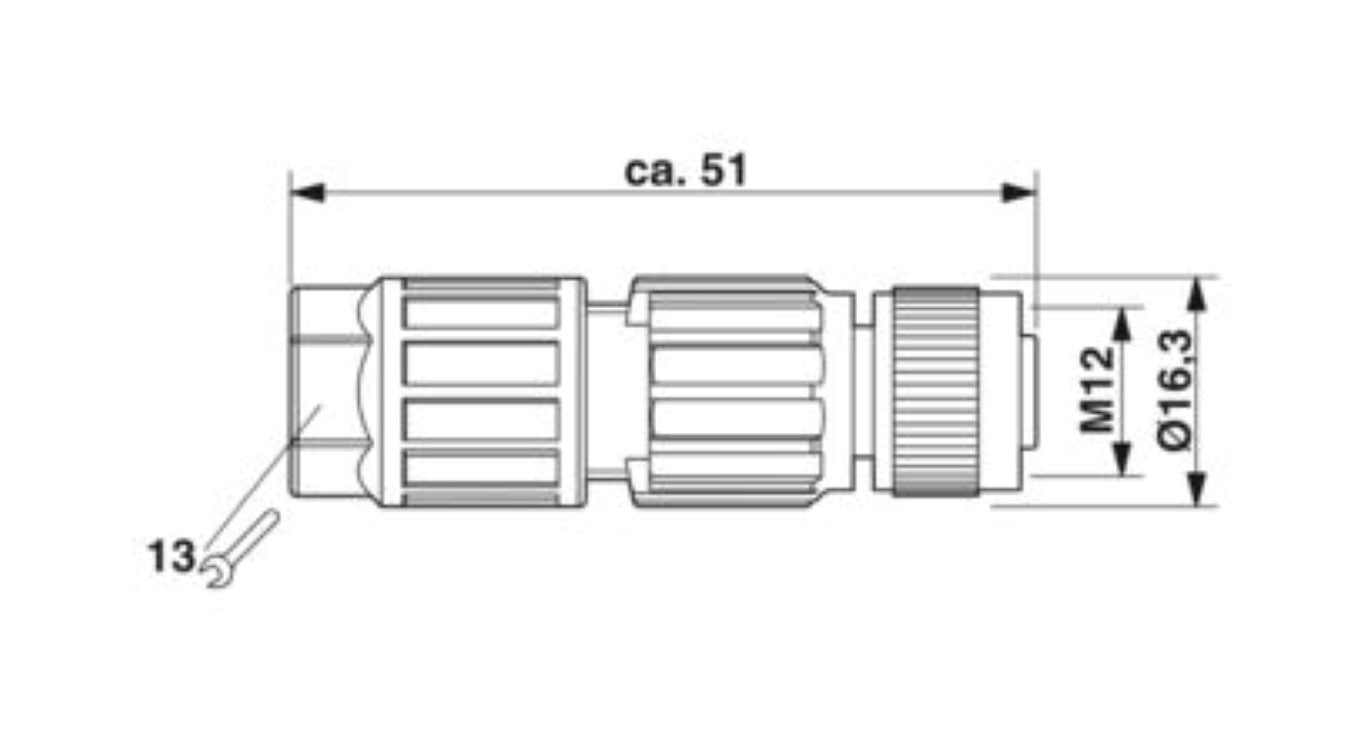

Dimensions:

  • Length: 51 mm
  • Wrench Size, Union Nut: 13 mm
  • External Dimensions:
    • Outside Diameter: 3.5 mm to 6 mm
  • Housing Diameter: 16.3 mm

Material Specifications:

  • Flammability Rating (UL 94): V0
  • Seal Material: NBR
  • Material of Grip Body: PA 6
  • Contact Material: CuSn
  • Contact Surface Material: Ni/Au
  • Contact Carrier Material: TPU
  • Material for Screw Connection: Zinc die-cast, nickel-plated
  • Wire Insulation Material: PVC / PE / PP / Rubber

Insulation Characteristics:

  • Overvoltage Category: III
  • Degree of Pollution: 3

Conductor Connection:

  • Connection Method: Insulation displacement connection
  • Connection Cross Section:
    • Metric: 0.14 mm² to 0.34 mm²
    • AWG: 26 to 22
  • Tightening Torque:
    • M12 Knurl: 0.4 Nm
    • Pressure Nut: 1.2 Nm

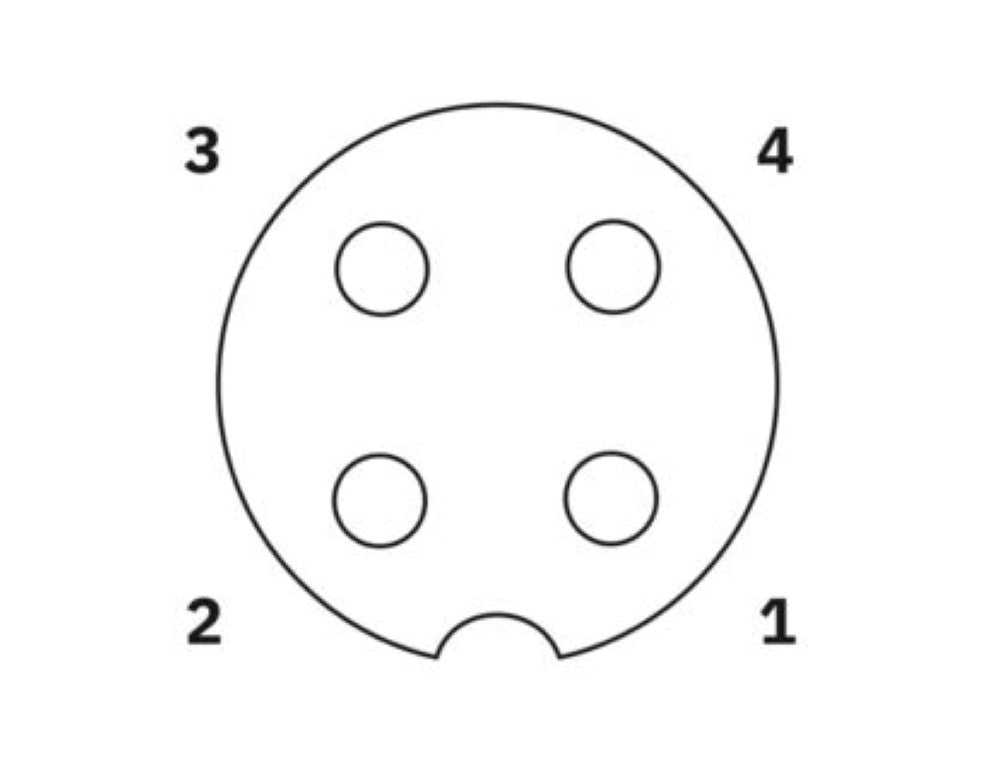

Pin Assignment:

  • 1 = BN
  • 2 = WH
  • 3 = BU
  • 4 = BK

Electrical Properties:

  • Rated Surge Voltage: 2.5 kV
  • Contact Resistance: ≤ 5 mΩ
  • Insulation Resistance: ≥ 100 MΩ
  • Nominal Voltage (UN): 125 V AC / 125 V DC
  • Nominal Current (IN): 4 A

Mechanical Data:

  • Insertion/Withdrawal Cycles: ≥ 100

Connection 1:

  • Head Design: Socket
  • Head Cable Outlet: Straight
  • Head Thread Type: M12
  • Head Locking Type: SPEEDCON
  • Coding: A

Cable/Line:

  • Signal Type/Category: Universal
  • External Cable Diameter: 3.5 mm to 6 mm

Ambient Conditions:

  • Degree of Protection: IP65, IP67
  • Ambient Temperature (Operation): -25 °C to 80 °C (Plug / Socket)
  • Ambient Temperature (Assembly): -5 °C to 50 °C (During Assembly)

Standards and Regulations:

  • Standard Designation: M12 Connector
  • Standards/Specifications: According to IEC 61076-2-101

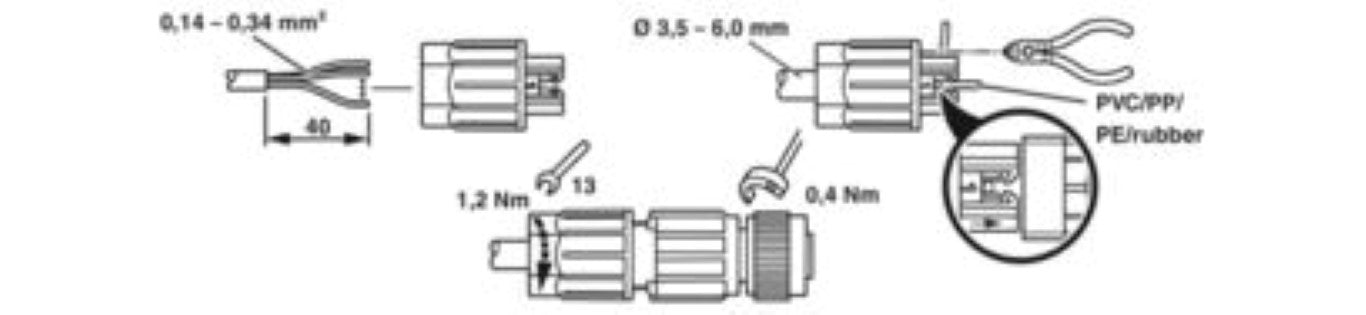

Assembly Instructions:

  • Note: Observe permissible bending radii when laying conductors to avoid jeopardizing the degree of protection. Alleviate mechanical loads upstream of the connector, for example, by using cable ties. AWG 20 conductor cross-section available upon request.
