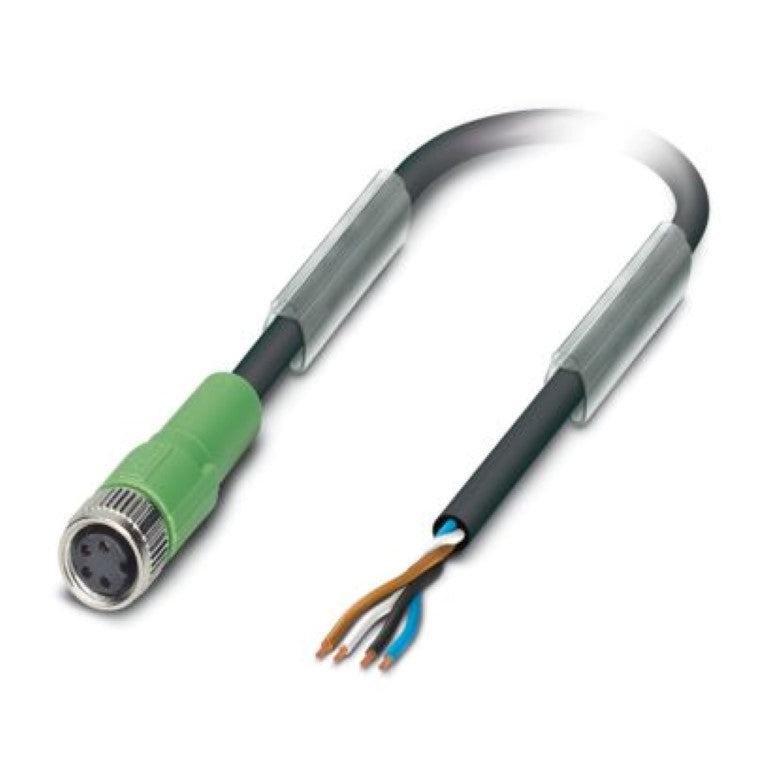

Phoenix Contact SAC-4P-10,0-PVC/M 8FS 1401062 Sensor/Actuator Cable

Description:

Application: Standard
Number of Positions: 4
No. of Cable Outlets: 1
Shielded: No
Coding: A

Insulation Characteristics:

• Overvoltage Category: II
• Degree of Pollution: 3

Material Specifications:

• Flammability Rating (UL 94): HB
• Seal Material: NBR
• Material of Grip Body: TPU (Hardly inflammable, self-extinguishing)
• Contact Material: CuSn
• Contact Surface Material: Ni/Au
• Contact Carrier Material: TPU GF
• Material for Screw Connection: Zinc die-cast, nickel-plated

Electrical Properties:

• Insulation Resistance: ≥ 100 MΩ
• Nominal Voltage (AC): 48 V
• Nominal Voltage (DC): 60 V
• Nominal Current: 4 A

Mechanical Data:

• Insertion/Withdrawal Cycles: ≥ 100

Signaling:

• Status Display: No

Connection 1:

• Type: Free Cable End

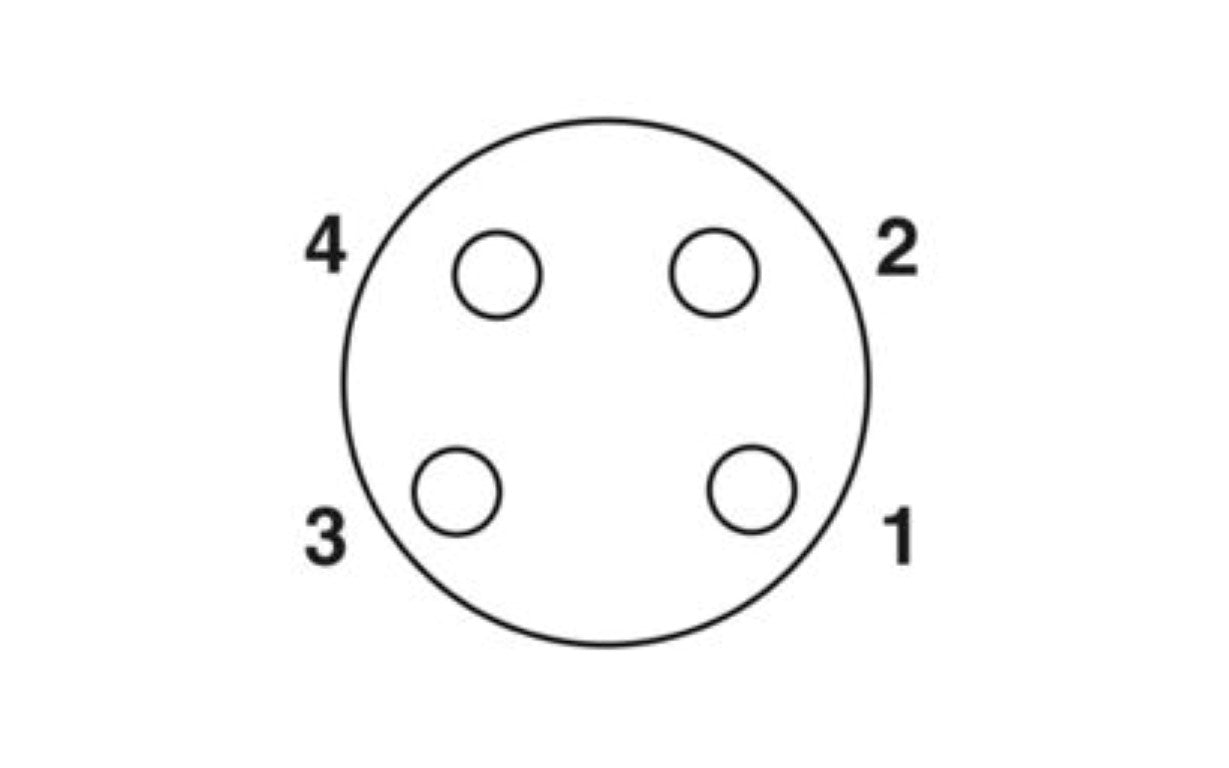

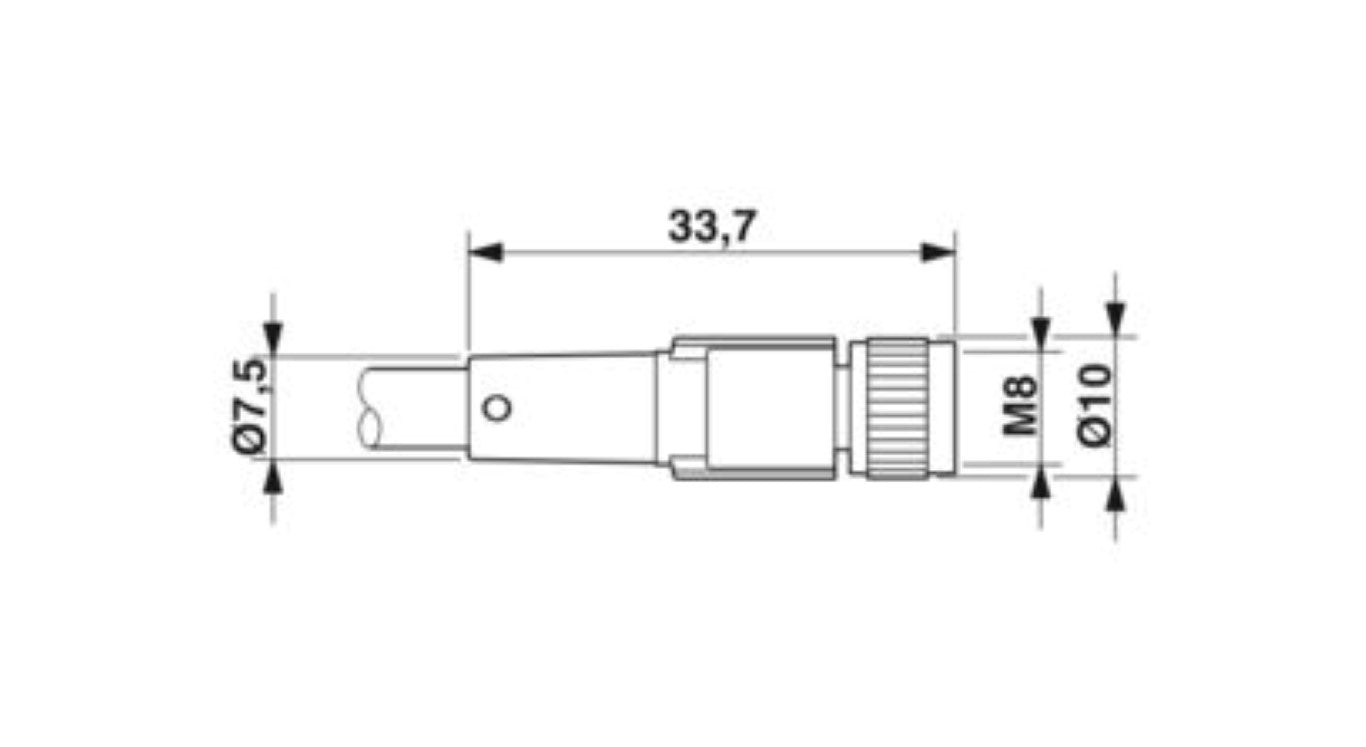

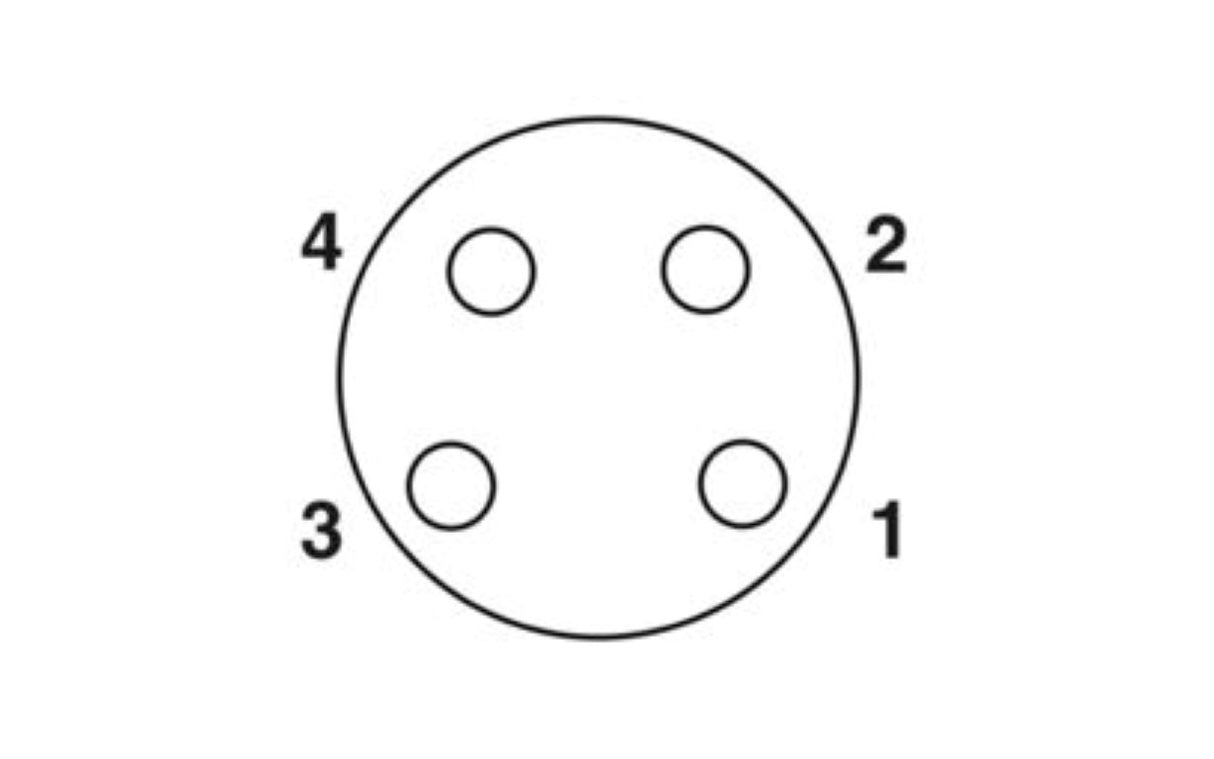

Connection 2:

• Type: Socket straight M8
• Number of Positions: 4
• Coding Type: A

Cable/Line:

• Cable Length: 10 m
• Cable Weight: 33 kg/km
• UL AWM Style: 2464 / 1729 (80°C/300 V)
• Shielded: No
• Cable Type: PVC black [PVC]
• Conductor Structure Signal Line: 14x 0.15 mm
• AWG Signal Line: 24
• Conductor Cross Section: 4x 0.25 mm² (Signal line)
• Wire Diameter incl. Insulation: 1.17 mm ±0.05 mm
• External Cable Diameter: 4.40 mm ±0.15 mm
• Outer Sheath Material: PVC
• External Sheath Color: Black RAL 9005
• Conductor Material: Bare Cu litz wires
• Material Wire Insulation: PVC

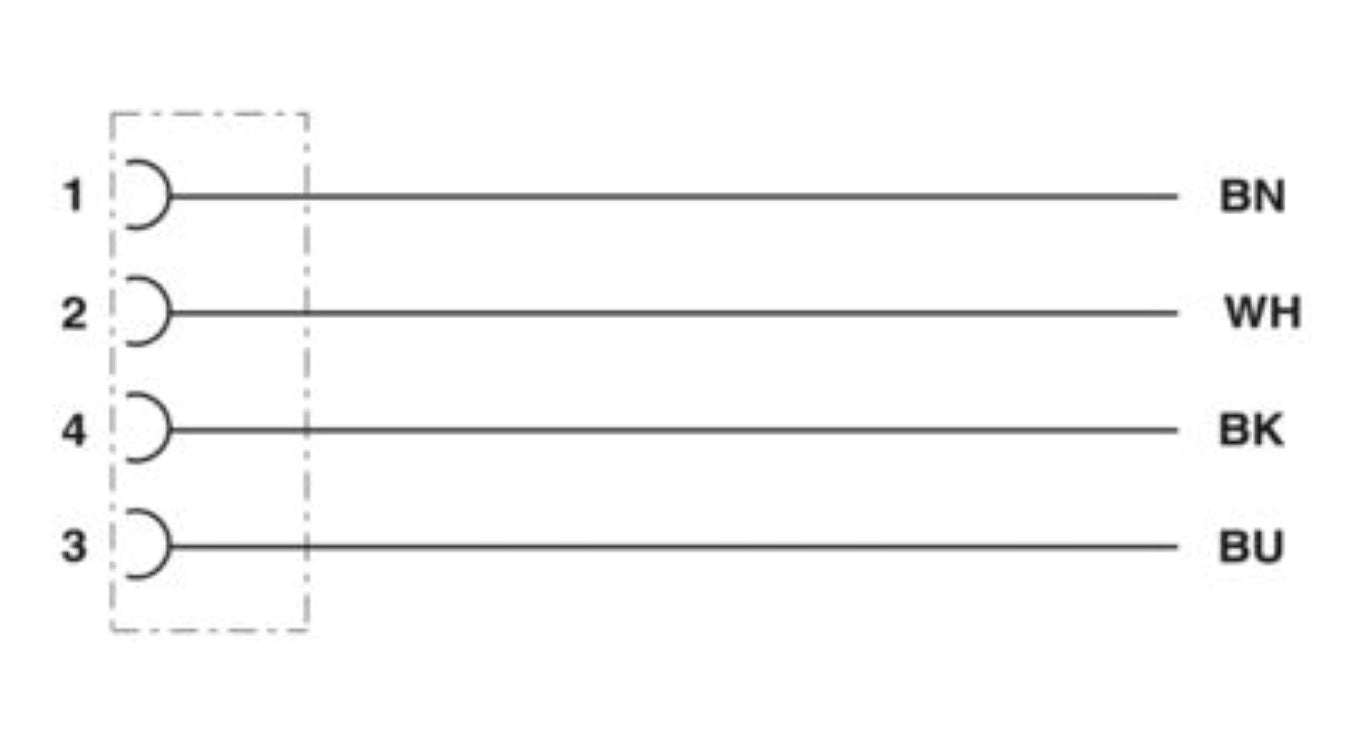

• Single Wire Color: Brown, White, Blue, Black
• Thickness, Insulation (Core): ≥ 0.23 mm
• Thickness, Insulation (Outer Cable Sheath): ≥ 0.76 mm
• Overall Twist: 4 wires, twisted
• Max. Conductor Resistance: Max. 79 Ω/km (at 20 °C)
• Insulation Resistance: ≥ 100 MΩ*km (at 20 °C)
• Nominal Voltage, Cable: ≤ 300 V
• Test Voltage: ≥ 3000 V
• Minimum Bending Radius, Fixed Installation: 5 x D
• Smallest Bending Radius, Fixed Installation: 22 mm
• Flame Resistance: As per UL-Style 2464
• Resistance to Oil: EN 60811-2-1

Ambient Conditions:

• Degree of Protection: IP65, IP67, IP68
• Ambient Temperature (Operation), Cable (Fixed Installation): -25 °C ... 80 °C
• Ambient Temperature (Operation), Cable (Flexible Installation): -10 °C ... 80 °C
• Ambient Temperature (Operation), Plug/Socket: -25 °C ... 90 °C

M8:

• Standard Designation: M8 Connector
• Standards/Specifications: IEC 61076-2-104
