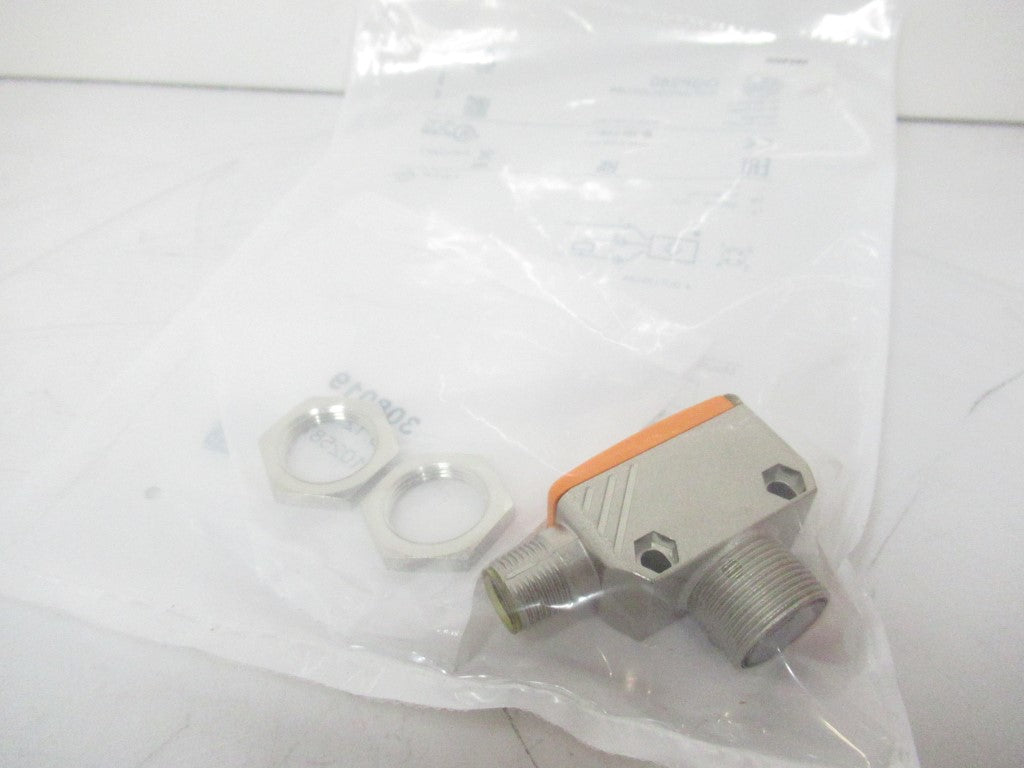

OGP280 Ifm Electronic Rectangular Retro-Reflective Sensor

$52.74 USD
FACTORY SUPPLY BRAND NEW
SKU SEN-0282-E
UPC: 4021179246910
Only 1 left!
-
+

This product is in shipment and will be arriving shortly. Enter your email below to be notified of its arrival.

OGP280  OGP-DPKG/US/CUBE OGPDPKGUSCUBE

Ifm Electronic

Retro-Reflective Sensor

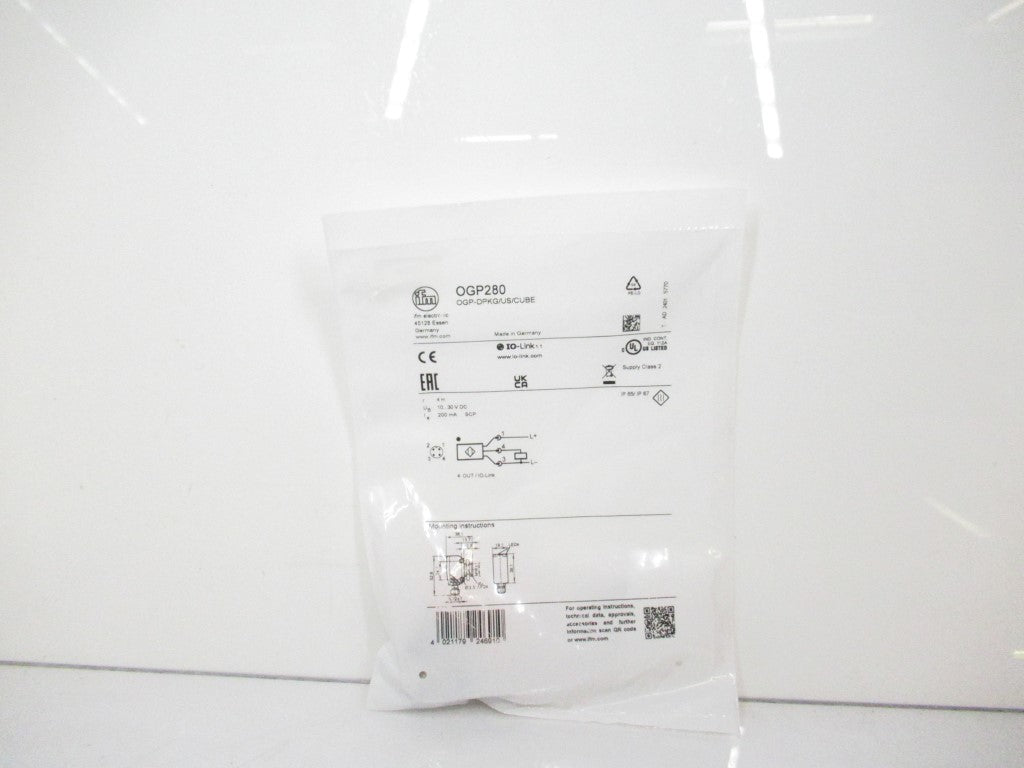

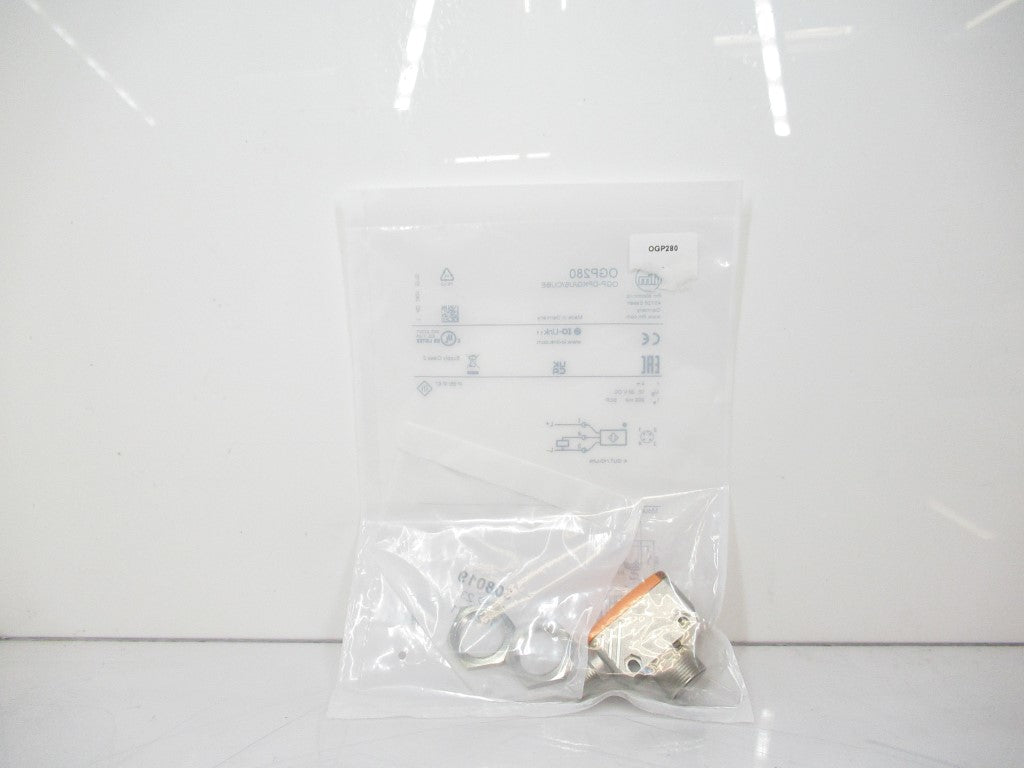

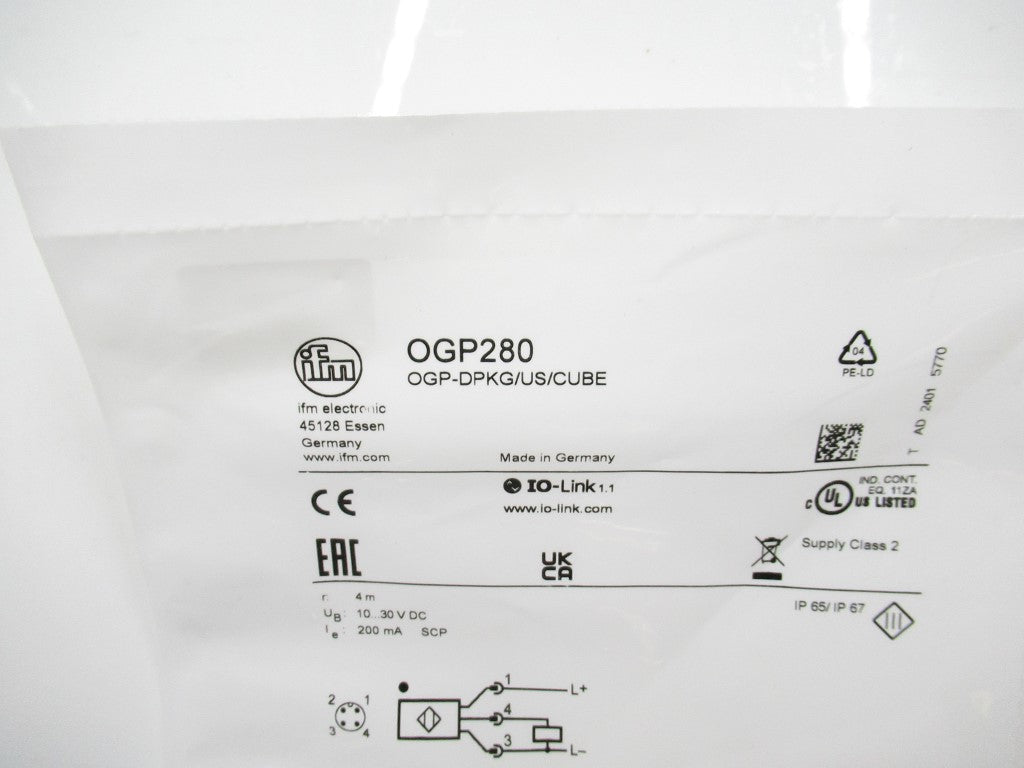

New In Bag Sealed

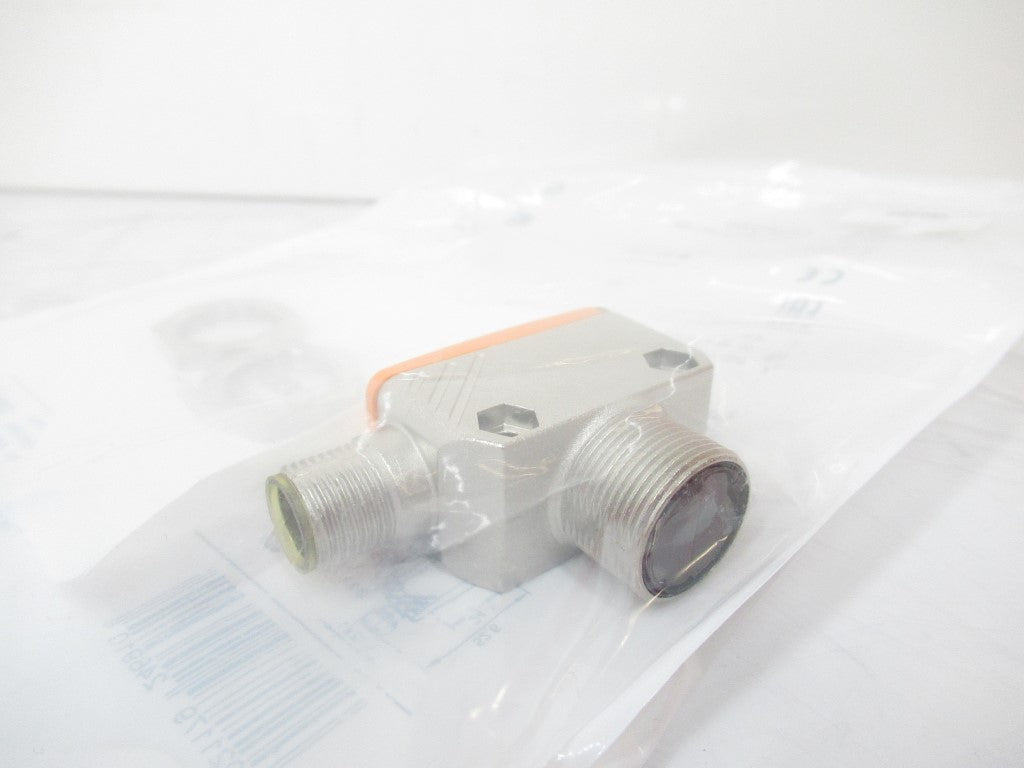

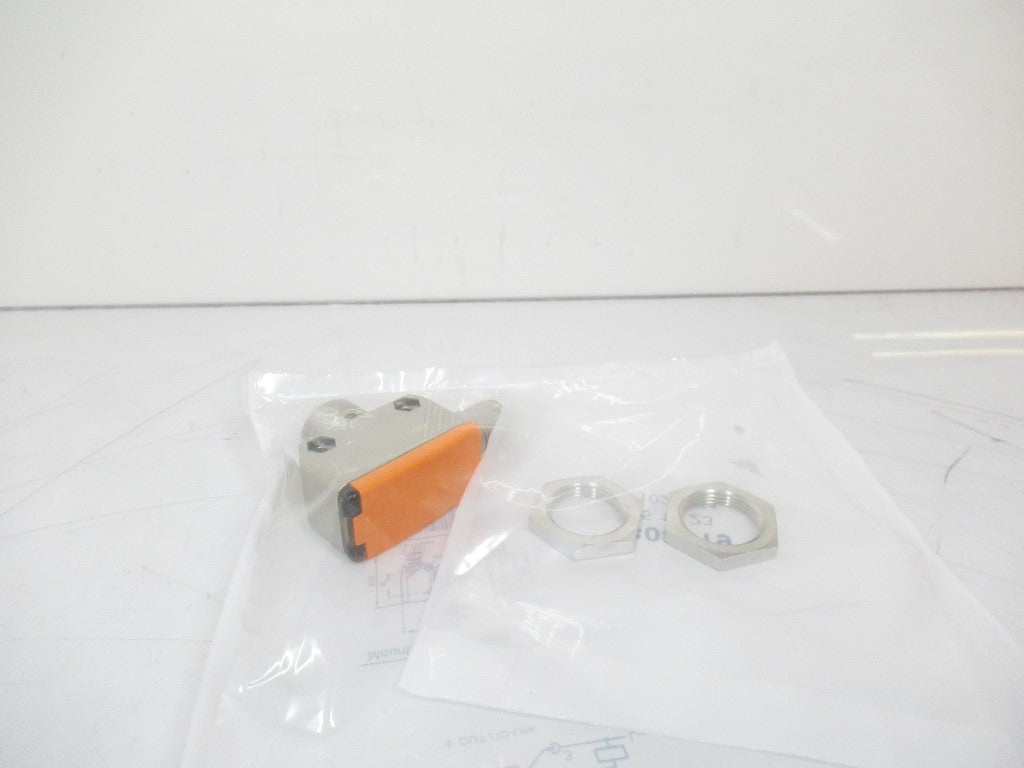

  • Robust Rectangular Metal Housing With M18 Thread On The Side
  • Particularly Space-Saving Design For Use Where Space Is Restricted
  • Very Long Range
  • Ready For Operation Immediately Thanks To Fixed Setting
  • Clearly Visible Leds For Indicating Operation And Switching Status

Description

  • Communication Interface: IO-Link
  • Type Of Light: Red Light
  • Connection: Connector: 1 x M12
  • Special Feature: Polarisation Filter
  • Operating Voltage [V]: 10...30 DC; ("Supply Class 2" To cULus)
  • Rated Insulation Voltage [V]: 32
  • Current Consumption [mA]: 21
  • Protection Class: III
  • Reverse Polarity Protection: Yes
  • Max. Power-On Delay Time [ms]: 300
  • WaveLength [nm]: 662
  • Remarks: Operating Voltage "Supply Class 2" According To cULus
  • Display: Witching Status: 1 x LED, Yellow; Operation; 1 x LED, Green
  • Weight [g]: 58.5 (0,13 lb)
  • Housing: Rectangular
  • Dimensions [mm]: M18 x 1
  • Thread Designation: M18 x 1
  • Materials: Diecast Zinc; PEI
  • Lens Material: PMMA
