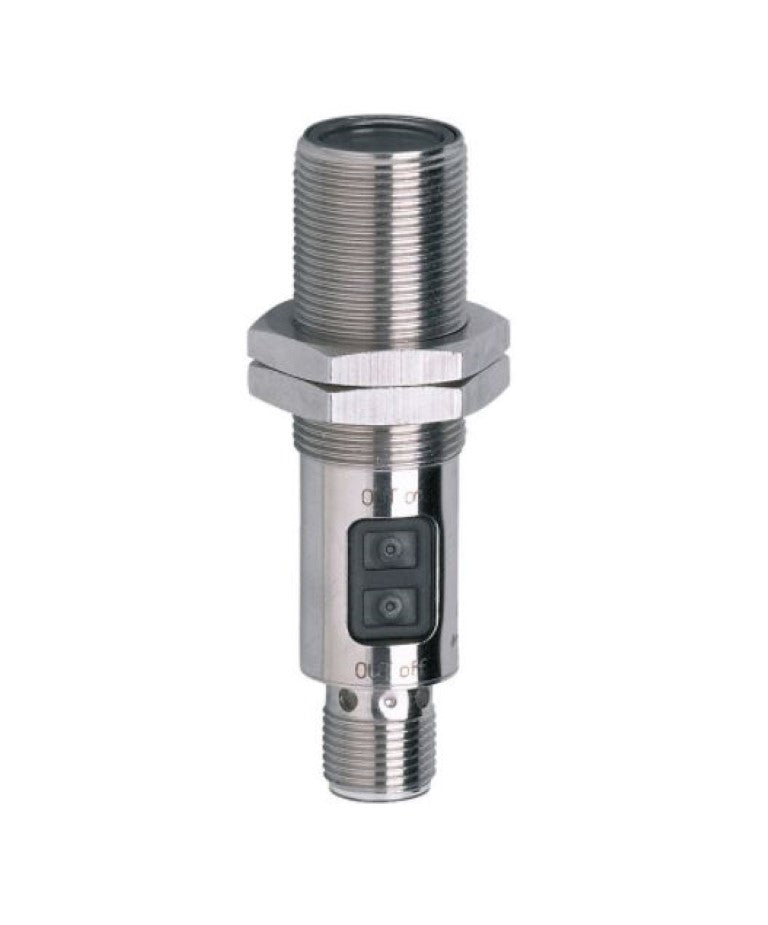

OGH502 Ifm Electronic OGH-FNKG/US100 Diffuse Reflection Sensor

SKU SEN-1780-E
Original price $121.39 USD - Original price $121.39 USD
Original price
$121.39 USD
$121.39 USD - $121.39 USD
Current price $121.39 USD
Availability:
Only 1 left!

Delivery Option

Ups Express next day air or standard shipping is available at the checkout !

Request a quote

Industrial Automation Parts is Not Authorized Distributor of this product. Manufacturer's Warranty & Support DO NOT apply. Our IAP warranty of 3 month is applicable.

OGH502 OGH-FNKG/US100 OGHFNKGUS100

Ifm Electronic

Diffuse Reflection Sensor With Background Suppression

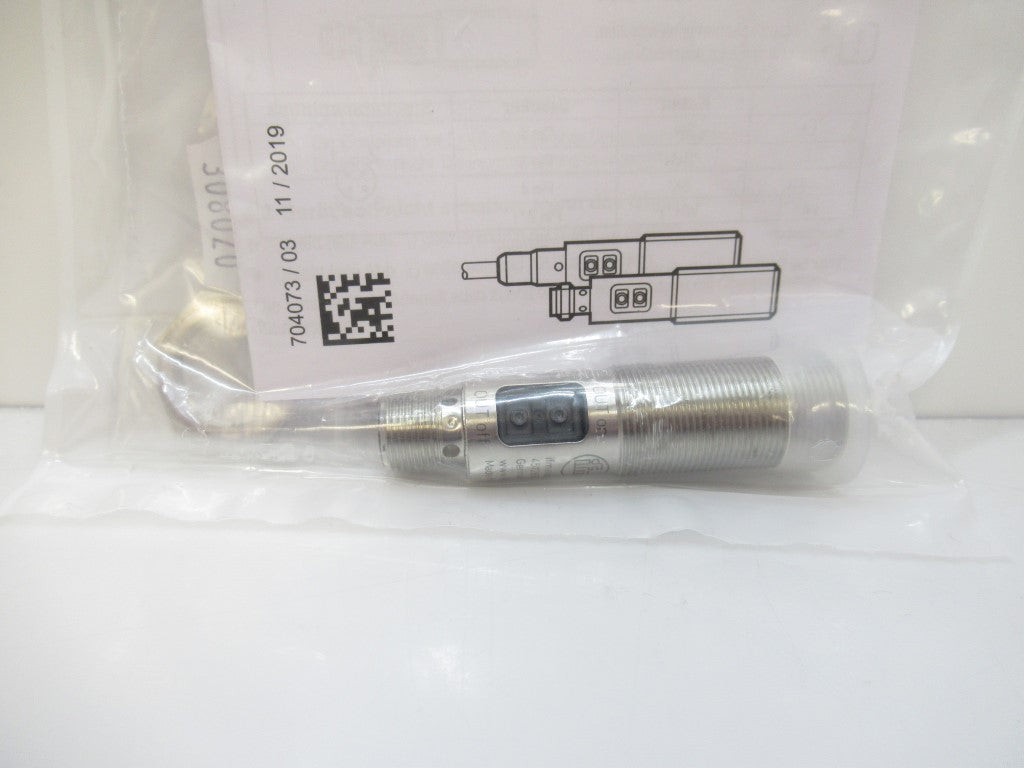

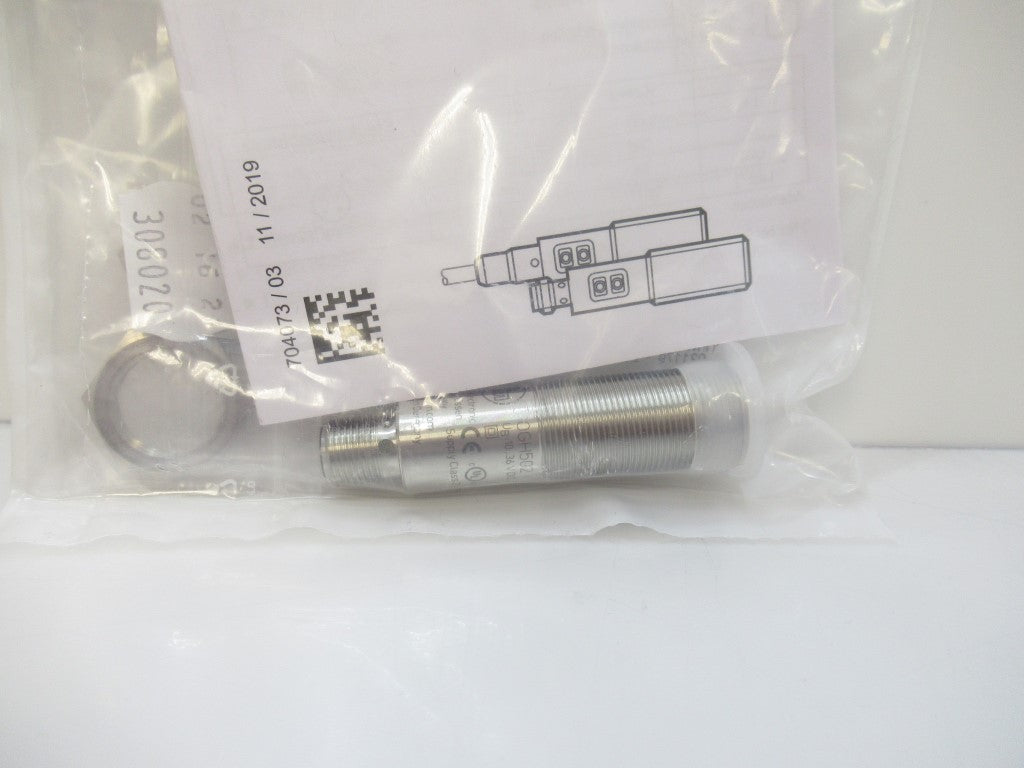

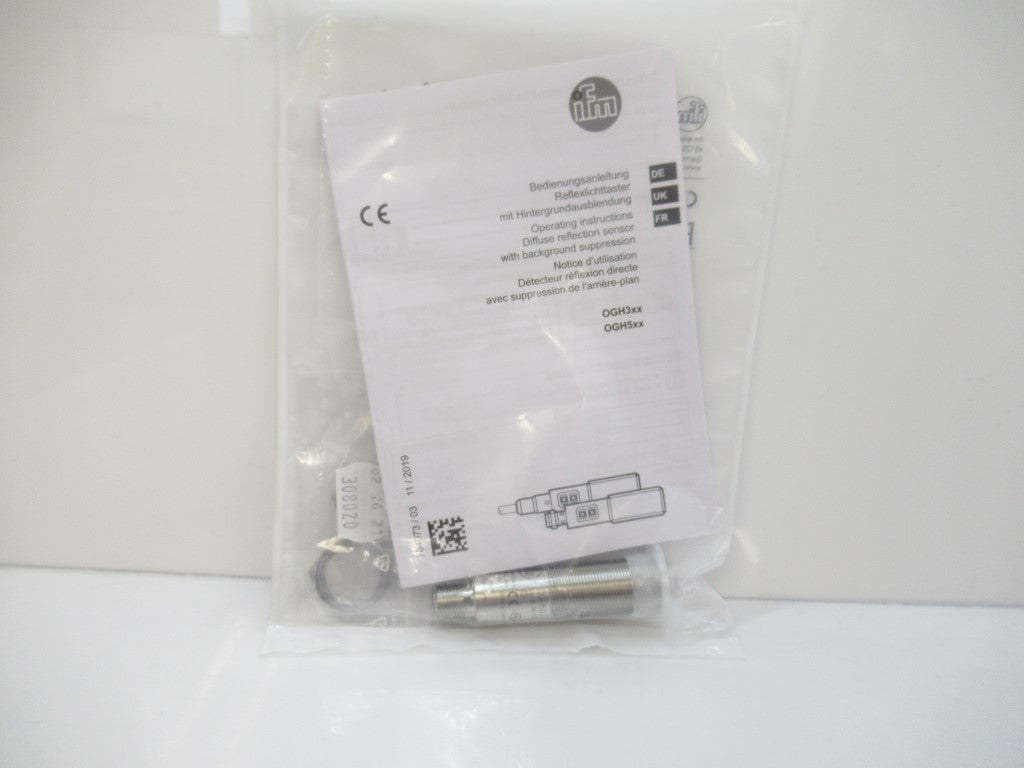

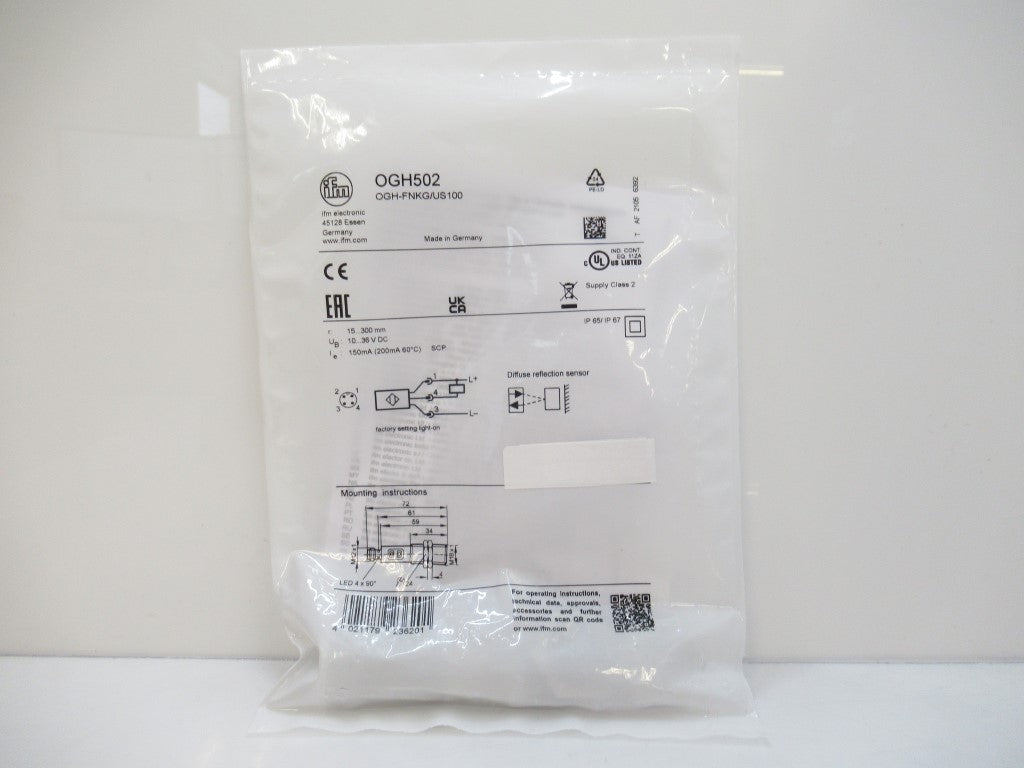

(New In Bag)

  • Robust Stainless Steel Housing For Use In Harsh Industrial Environments
  • Precise Background Suppression
  • Intuitive Setting Of The Sensitivity Via Pushbutton
  • Programmable Light-On/Dark-On Mode
  • Wide Range Of Fixing Components For Quick And Easy Mounting

Description

Product characteristics

  • Type of light: red light
  • Housing: threaded type
  • Dimensions [mm]: M18 x 1 / L = 72

Application

  • Special feature: Background suppression
  • Function principle: Diffuse reflection sensor

Detection zone

  • Range [mm]: 15...300; (white paper 200 x 200 mm 90% remission)
  • Factory setting: light-on mode
  • Range adjustable: yes
  • Max. light spot diameter [mm]: 25
  • Light spot dimensions refer to: at maximum range
  • Background suppression available: yes

Electrical data

  • Operating voltage [V]: 10...36 DC
  • Current consumption [mA]: 25
  • Protection class: II
  • Reverse polarity protection: yes
  • Type of light: red light
  • Wave length [nm]: 624

Outputs

  • Electrical design: NPN
  • Output function: light-on/dark-on mode; (programmable)
  • Max. voltage drop switching output DC [V]: 2.5
  • Permanent current rating of switching output DC [mA]: 150; (200 (...60 °C))
  • Switching frequency DC [Hz]: 1000
  • Short-circuit protection: yes
  • Type of short-circuit protection: pulsed
  • Overload protection: yes

Electrical connection

  • Connection: Connector: 1 x M12

Accessories

  • Items supplied: lock nuts: 2 x

Mechanical data

  • Weight [g]: 61.7 (0,136 lb)
  • Housing: threaded type
  • Dimensions [mm]: M18 x 1 / L = 72
  • Thread designation: M18 x 1
  • Materials: stainless steel (1.4404 / 316L); PA; LCP; EPDM; TPU
  • Lens material: PMMA
