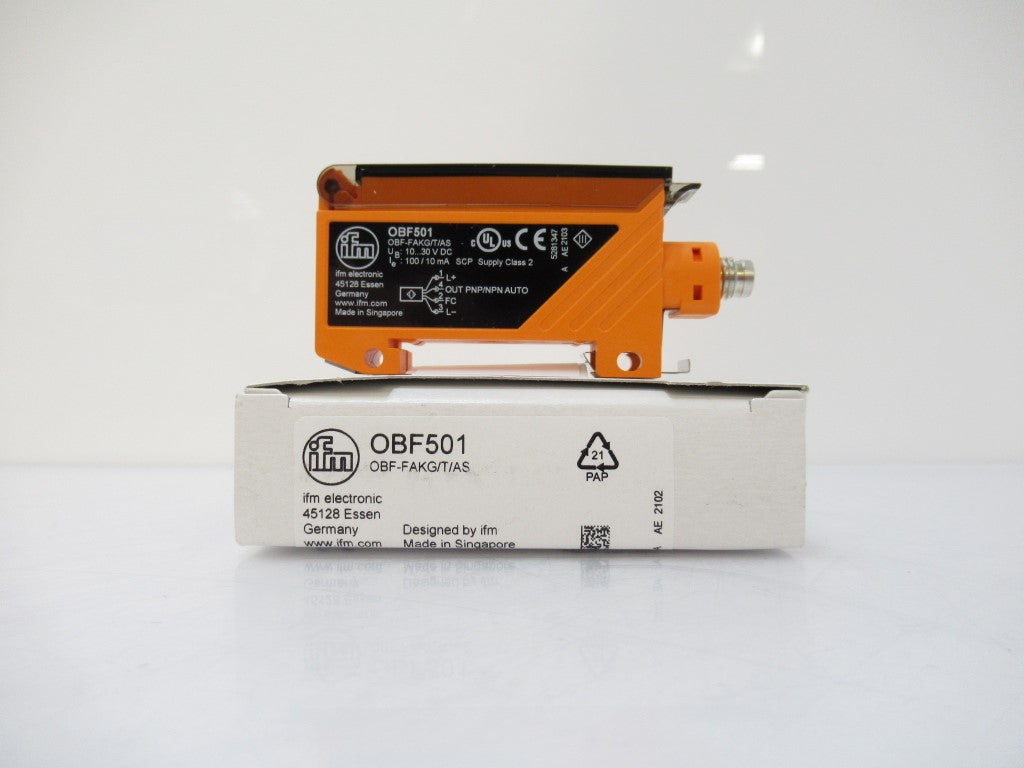

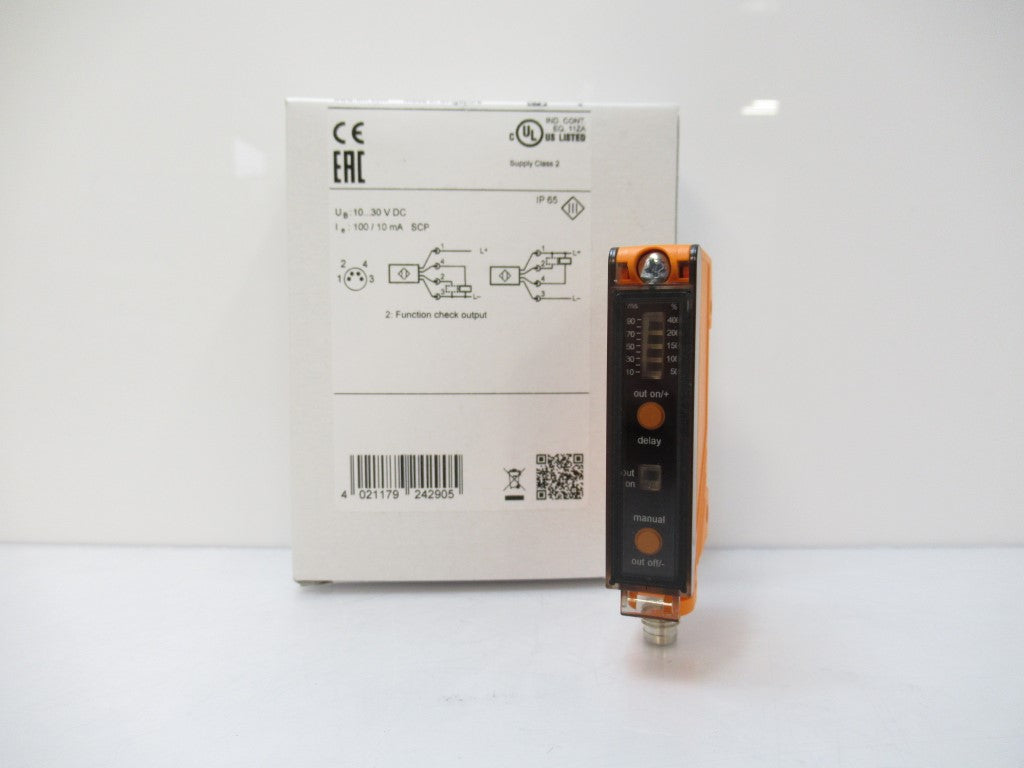

OBF501 OBF-FAKG/T/AS Ifm Electronic Sensor Photoelectric (New In Box)

OBF501 OBF-FAKG/T/AS OBFFAKGTAS

Ifm Electronic

Sensor Photoelectric, Fiber-Optic Amplifier

(New In Box)

• Easy Adjustment Of Sensitivity And Pulse Stretching Via Pushbutton

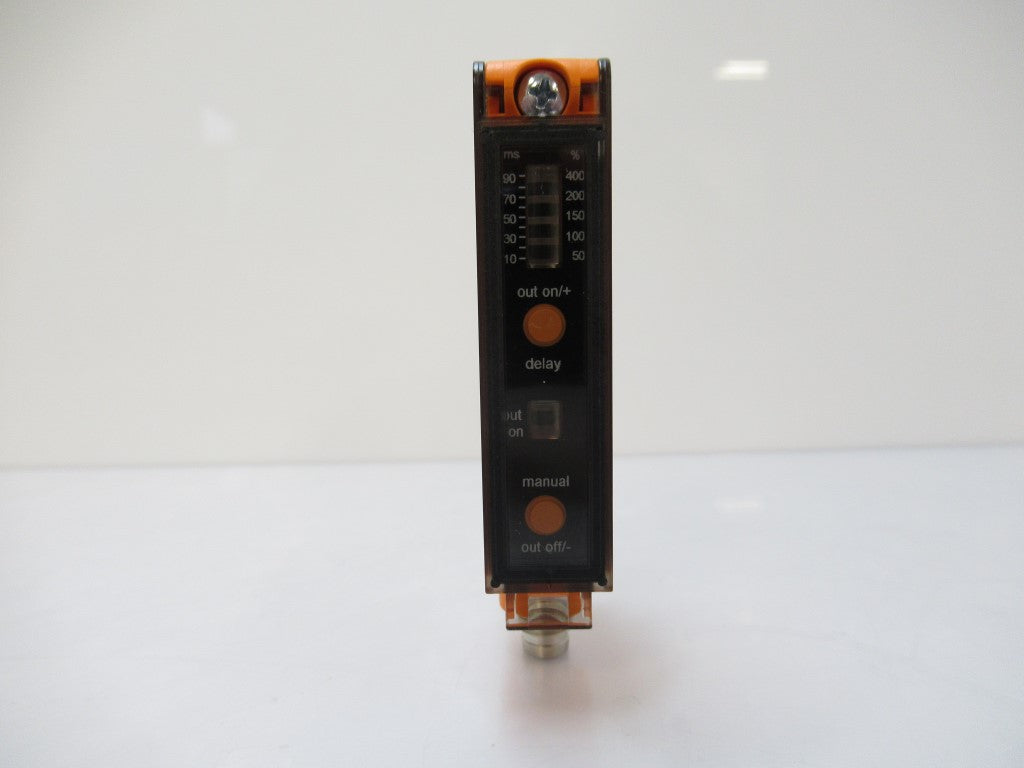

• Led Display To Check Operation, Switching Status, And Function
• For Use As Diffuse Reflection Sensor Or Through-Beam Sensor
• High Switching Frequency For Fast Processes
• Operation With Inexpensive Acrylic Fibre Optics

Description

• Type Of Light: Red Light

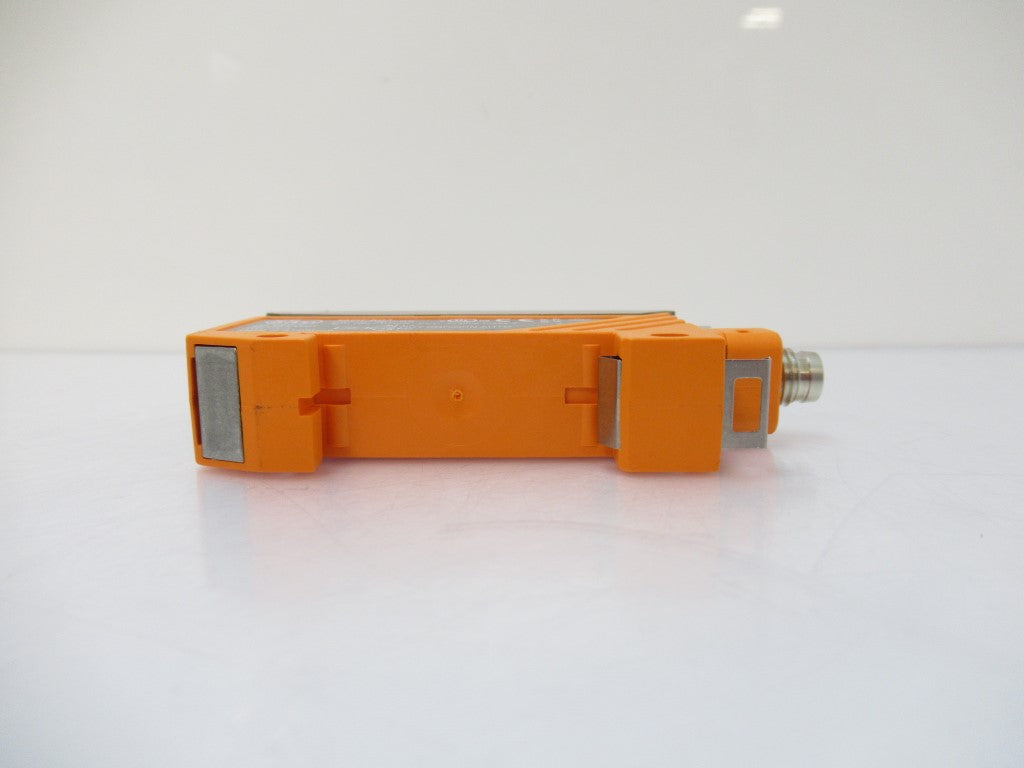

• Housing: Rectangular
• Dimensions [mm]: 36 X 15 X 60
• Special Feature: Function Check Output

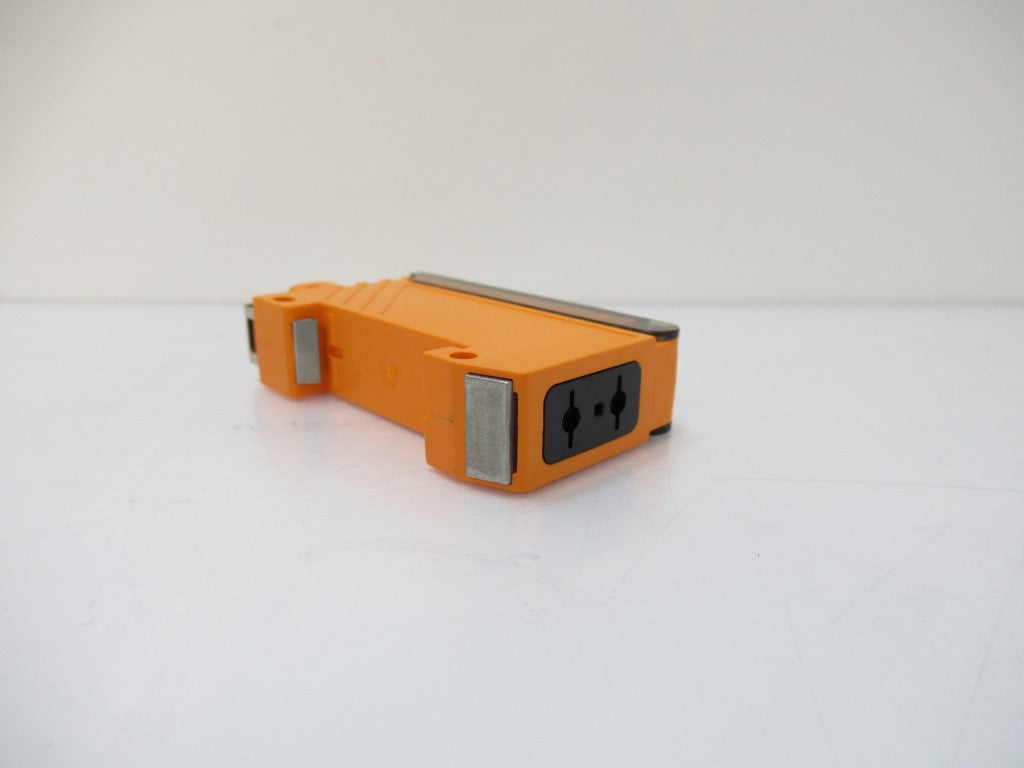

• Design: Fibre-Optic Amplifiers For Acrylic Fibre Optics

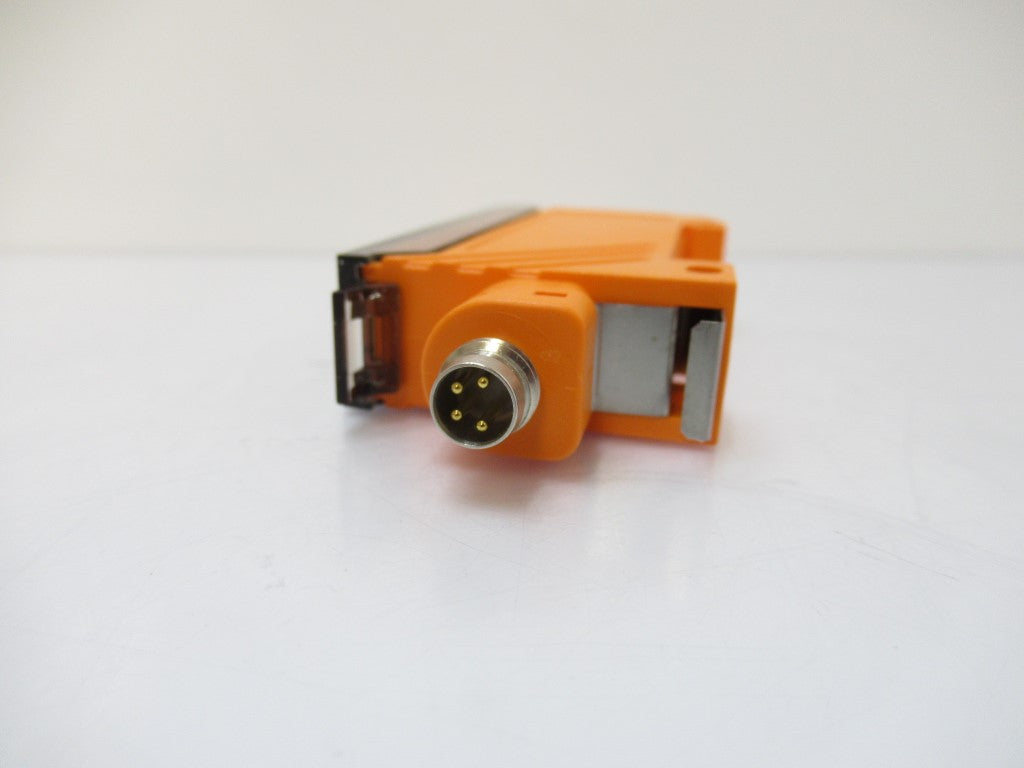

• Connection: Connector: 1 X M8
• Operating Voltage [V]: 10...30 DC
• Current Consumption [mA]: < 50
• Protection Class: III
• Reverse Polarity Protection: Yes
• Type Of Light: Red Light
• WaveLength [nm]: 630
• Electrical Design: PNP/NPN; (Automatic Load Detection PNP/NPN)
• Output Function: Light-On/Dark-On Mode; (Programmable)
• Max. Voltage Drop Switching Output DC [V]: 2.5
• Function Check Output: Yes
• Max. Voltage Drop Of Function Check Output [V]: 2.5
• Max. Current Load For Function Check Output [mA]: 10
• Permanent Current Rating Of Switching Output DC [mA]: 100
• Switching Frequency DC [Hz]: 3000
• Short-Circuit Protection: Yes
• Type Of Short-Circuit Protection: Pulsed
• Overload Protection: Yes
• Time Function [S]: 0.001...0.09
