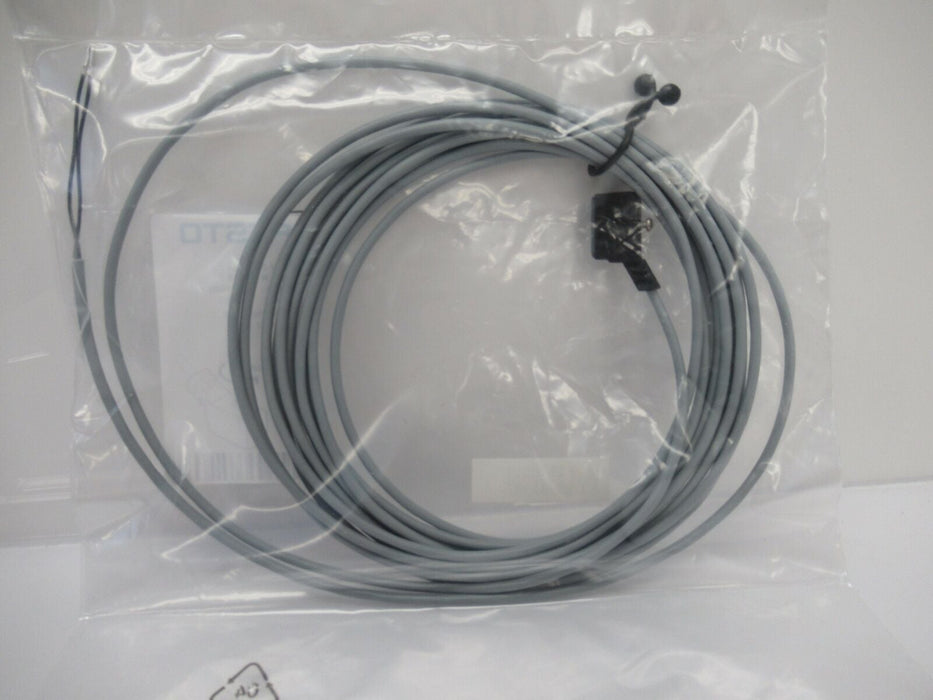

8047680 NEBV-Z4WA2L-R-E-5-N-LE2-S1 Festo Connecting Cable 2.9 mm (New In Bag)

SKU FIT-0516-E
Sold out
Original price $23.83 USD - Original price $23.83 USD
Original price
$23.83 USD
$23.83 USD - $23.83 USD
Current price $23.83 USD
Availability:
Out of stock
Pre Order

Delivery Option

Ups Express next day air or standard shipping is available at the checkout !

Specifications
Request a quote
by Festo

Industrial Automation Parts is Not Authorized Distributor of this product. Manufacturer's Warranty & Support DO NOT apply. Our IAP warranty of 3 month is applicable.

8047680 NEBV-Z4WA2L-R-E-5-N-LE2-S1 NEBVZ4WA2LRE5NLE2S1

Festo

Connecting Cable 2.9 mm

(New In Bag)

Description

  • Type Code: NEBV
  • Signal Status Display: Led Yellow
  • Additional Functions: Holding Current Reduction; Protective Circuit
  • Cable Designation: Without Label Holder
  • Contact Durability: 50
  • Product Weight: 90 G
  • Electrical Connection 1, Function: Field Device End

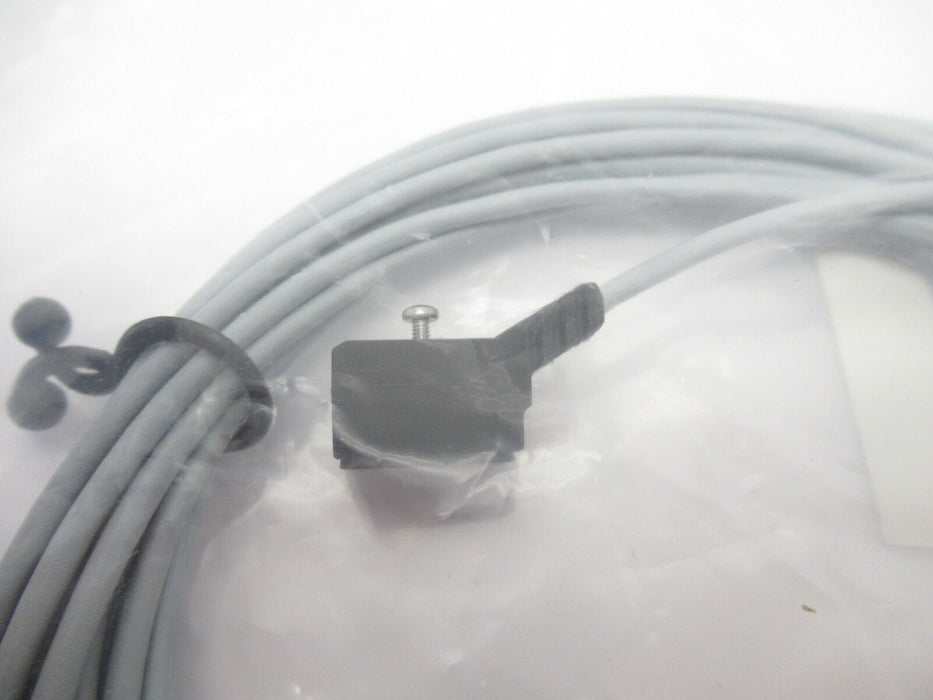

  • Electrical Connection 1, Design: Rectangular
  • Electrical Connection 1, Connection Type: Socket

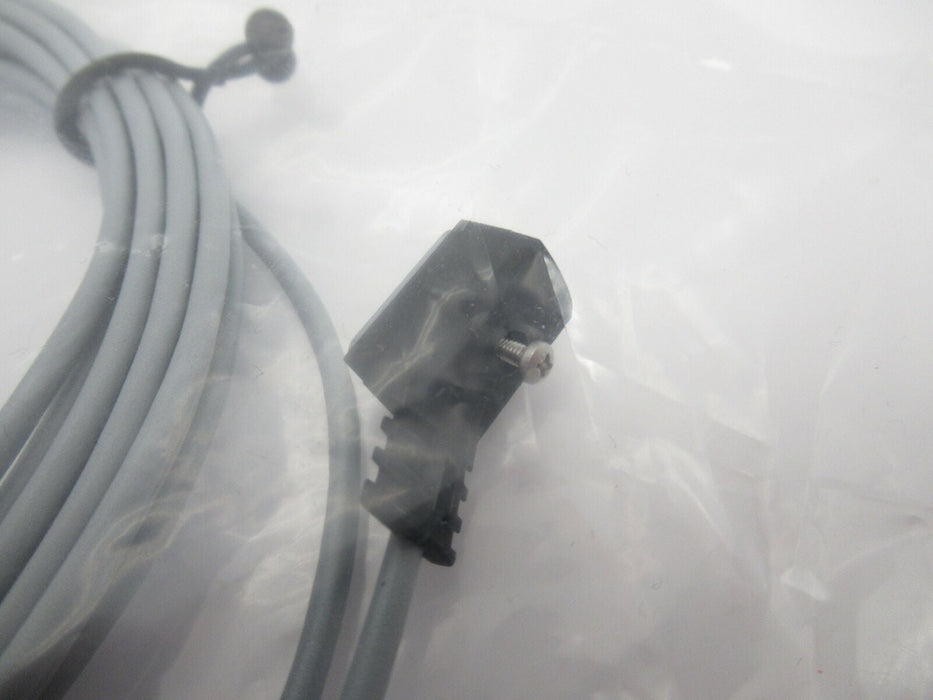

  • Electrical Connection 1, Cable Outlet: Angled
  • Electrical Connection 1, Connection Technology: Connection Diagram ZC, Metric Screw
  • Electrical Connection 1, Number Of Pins/wires: 2
  • Electrical Connection 1, Occupied Pins/wires: 2
  • Electrical Connection 1, Type Of Mounting: On Air Solenoid Valve With M2 Central Screw
  • Electrical Connection For Input 1, Connection Pattern: 00995625
  • Electrical Connection 2, Function: Control Side
  • Electrical Connection 2, Connection Type: Cable

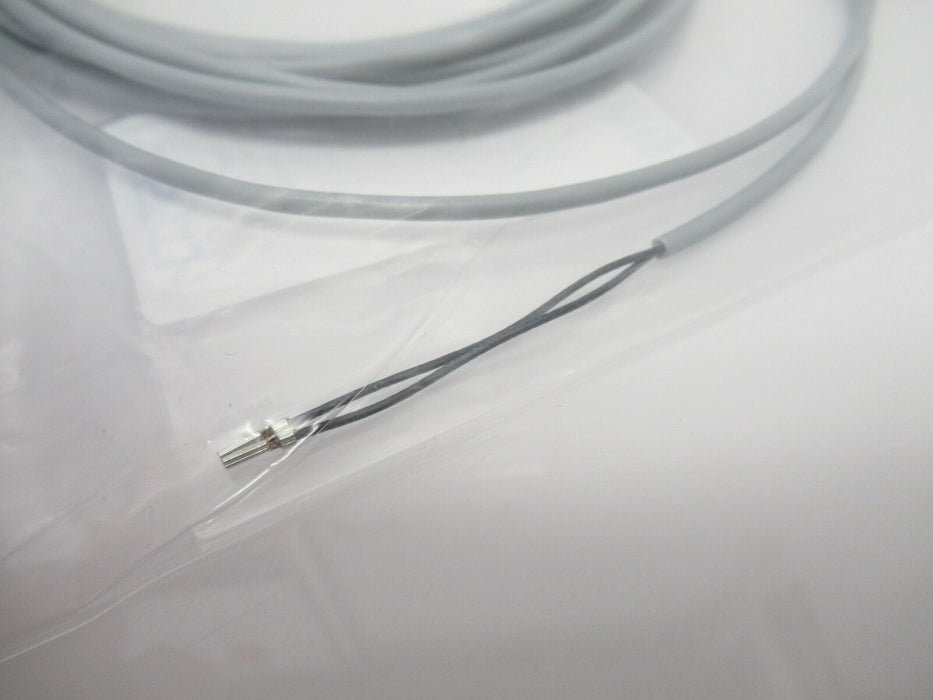

  • Electrical Connection 2, Connection Technology: Open End
  • Electrical Connection 2, Number Of Pins/wires: 2
  • Electrical Connection 2, Occupied Pins/wires: 2
  • DC Operating Voltage Range: 20.4 V ... 26.4 V
  • Nominal Operating Voltage DC: 24 V
  • Surge Resistance: 2.4 kV
  • Reverse Polarity Protection: Bipolar
  • Protective Earth Connection: Not Available
  • Cable Length: 5 m
  • Cable Characteristic: Suitable For Energy Chains
  • Connector Cable Test Conditions: Test Conditions On Request
  • Bending Radius, Flexible Cable Installation: ≥ 29 mm
  • Cable Diameter: 2.9 mm
  • Cable Diameter Tolerance: ± 0.1 mm
  • Cable Design: 2 X 0.14 mm²
  • Nominal Conductor Cross Section: 0.14 mm²
  • Degree Of Protection: IP65
  • Note On Degree Of Protection: In Mounted State
  • Ambient Temperature: -10 °C ... 50 °C
  • CE Marking (See Declaration Of Conformity): As Per EU EMC Directive; As PER EU RoHS Directive
  • Note On Materials: RoHS-Compliant
  • Contamination Level: 3
  • Corrosion Resistance Class (CRC): 3 - High Corrosion Stress
  • Material Of Cable Sheath: TPE-U(PUR)
  • Color Cable Sheath: Gray
  • Housing Material: TPE-U(PU)
  • Housing Colour: Black
  • Material Of Screws: Stainless Steel
  • Material Of Pin Contacts: Copper Alloy, Tin-Plated
  • Insulating Sheath Material: PP
