Navilock 89488 Multiband Gnss Gsm Umts Lte Sma 28 Dbi / 5 Dbi 2 X 2...
Country Of Origin: China
• GPS:
Frequency range:
GPS: L1, 1.57542 GHz
Antenna gain: 5 dBi
VSWR: 1.5
Impedance: 50 Ohm
Polarisation: RHCP
• LNA GPS:
Frequency range:
GPS: L1, 1.57542 GHz
Gain: 28 dBi
Voltage: 2.2 - 5.0 V
Current: 5 - 15 mA
VSWR: 2.0
Impedance: 50 Ohm
• GSM UMTS:
Frequency range:
0.824 - 0.960 GHz
1.710 - 2.170 GHz
GSM / UMTS / ZigBee / Z-Wave
Antenna gain: 2 - 3 dBi
Impedance: 50 Ohm
Polarisation: linear
VSWR: 2.5
• Operating temperature: -40 °C ~ 85 °C
• Housing material: ABS
• Protection class: IP67

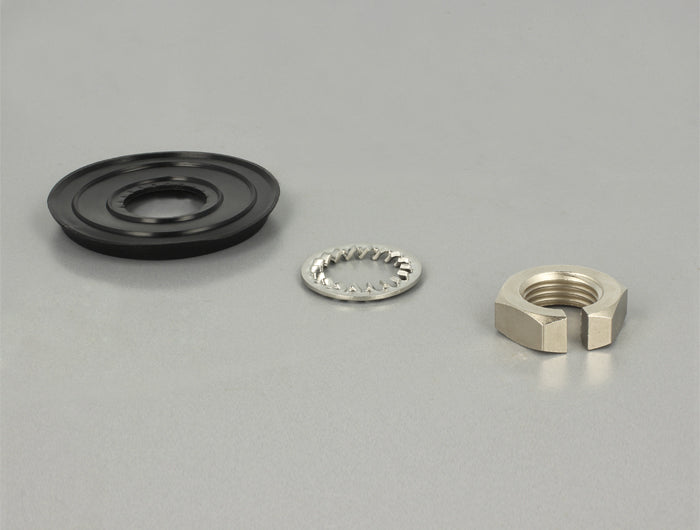

• Screw assembly:
Hole diameter: 20 mm
• Colour: black
• Dimension (ØxH): ca. 68 x 54.5 mm
• Cable category: coaxial
• Cable type: RG-174
• Cable colour: black
• Cable attenuation:
1.5 dBi @ 1.5 GHz per meter
• Cable diameter: ca. 2.7 mm
• Cable length incl. connectors: ca. 2 m
-
