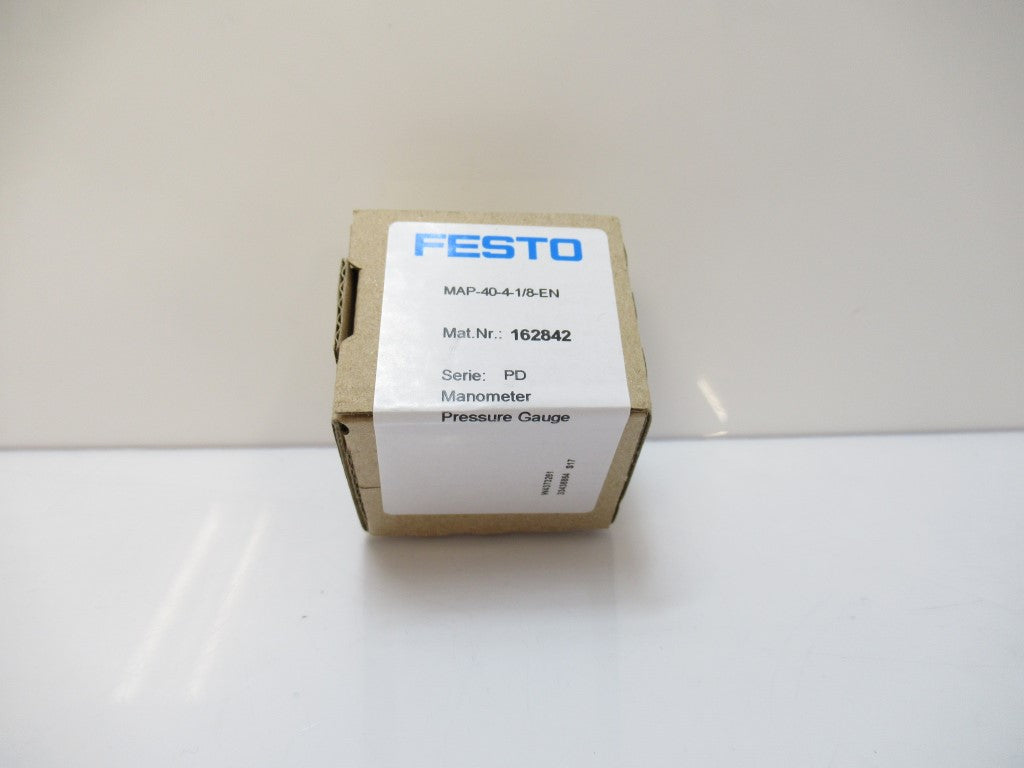

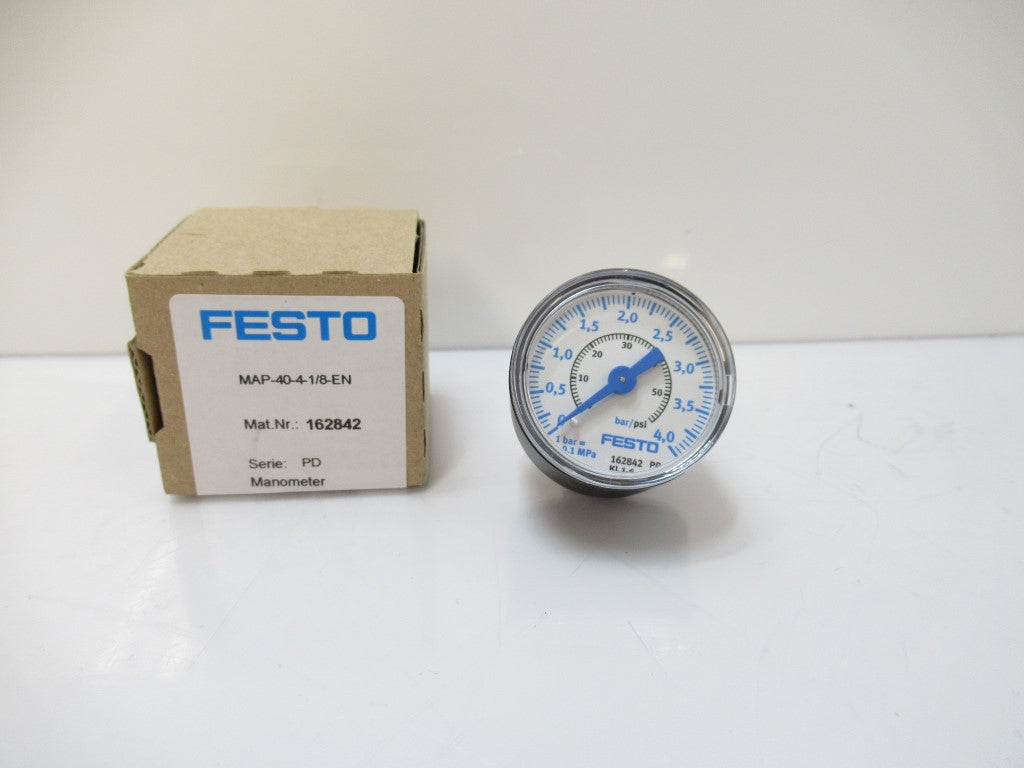

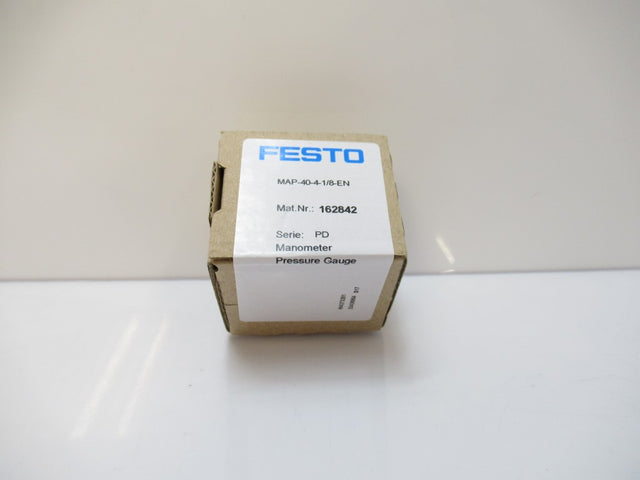

MAP-40-4-1/8-EN 162842 Festo Precision Pressure Gauge

Product Information

MAP40418EN

• Display range: 0 bar ... 4 bar
• Display range: 1 psi ... 58 psi
• Symbol: 00991463
• Conforms to standard: EN 837-1
• Pressure gauge nominal size: 40
• Explosion prevention and protection: Observe the information on the certificate; Zone 1 (ATEX); Zone 2 (ATEX); Zone 21 (ATEX); Zone 22 (ATEX)
• Structural design: Bourdon tube pressure gauge
• Type of mounting: Line installation
• Operating medium: Inert gas Neutral liquids
• Operating pressure: 0 MPa ... 0.4 MPa
• Operating pressure: 0 bar ... 4 bar
• Operating pressure: 0 psi ... 58 psi
• Intermittent load factor: 0.66
• Measurement accuracy class: 1.6
• Degree of protection: IP43
• Temperature of medium: -20 °C ... 60 °C
• Ambient temperature: -20 °C ... 60 °C
• LABS (PWIS) conformity: VDMA24364-B1/B2-L
• Note on materials: RoHS-compliant

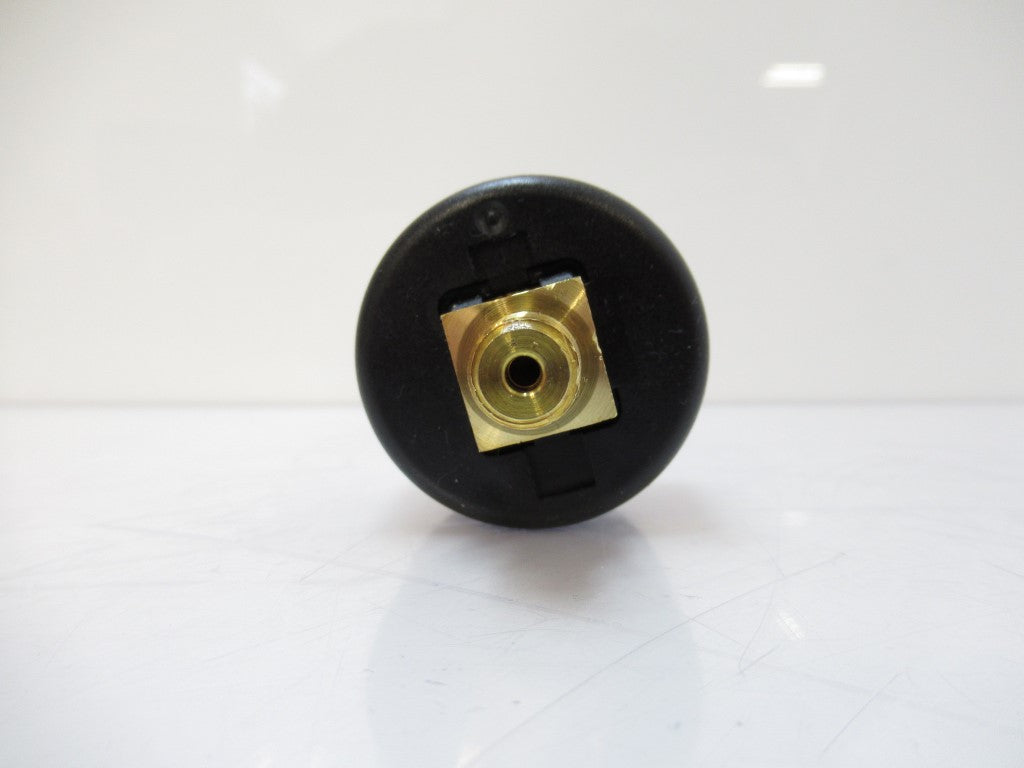

• Connection position: Centered on rear side

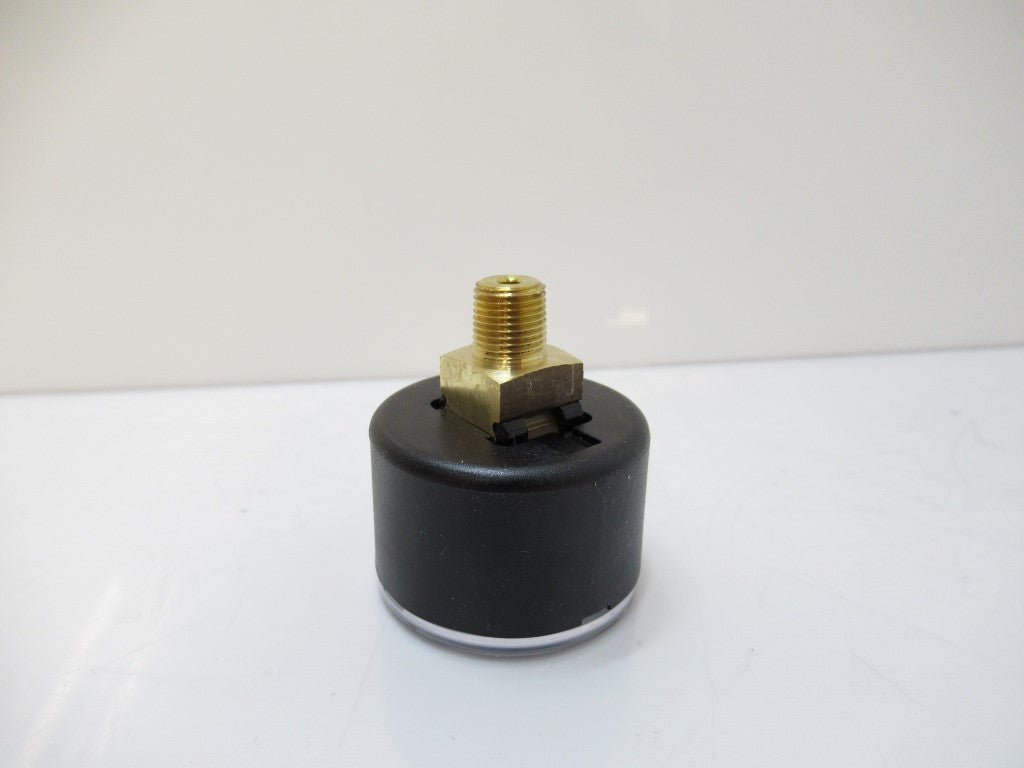

• Pneumatic connection: R1/8
• Materials in contact with the media: Brass
• Material of screwed trunnion: Brass
• Housing material: PBT
• Inspection window material: PS
• Housing colour: Black
• Product weight: 60 g
• Information on operating and pilot media: No acetylene; No oxygen

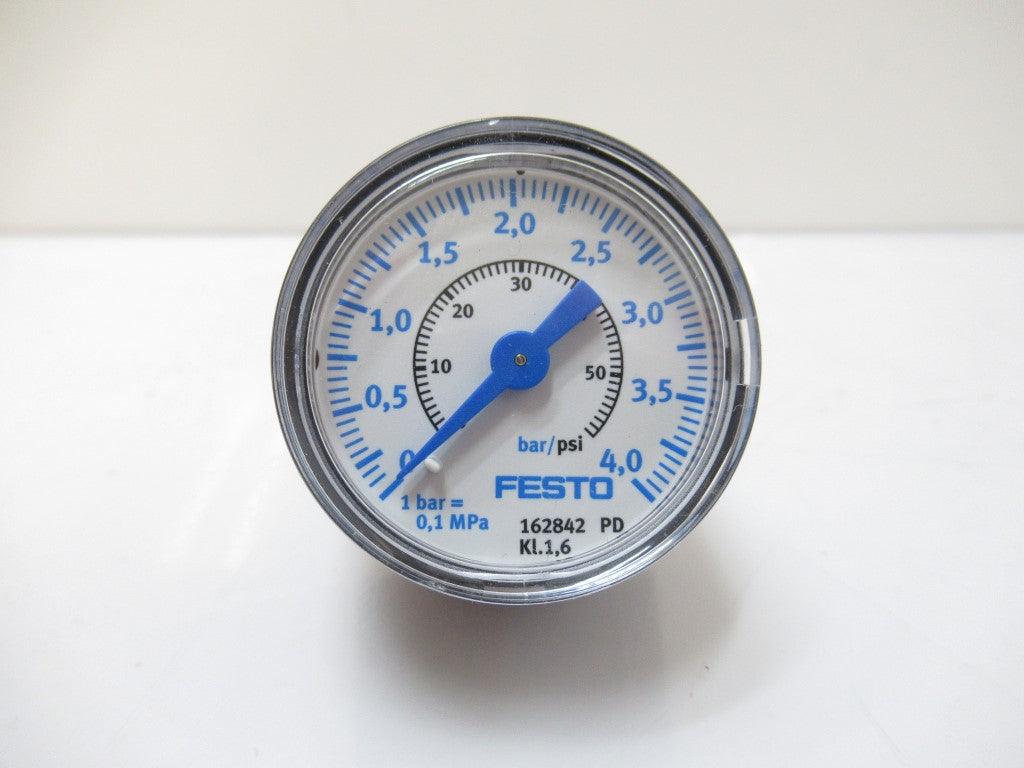

• Scale: Double scale; bar (außen); psi (internal)
