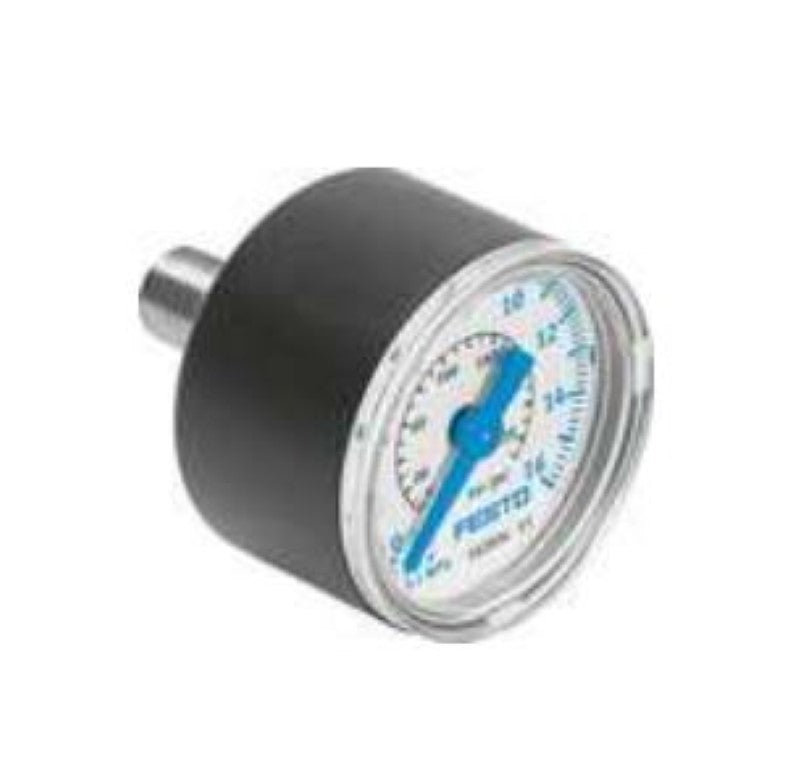

529046 MA-40-16-1/8-EN Festo Pressure Gauge

by FESTO
$17.40 USD
FACTORY SUPPLY BRAND NEW
SKU GAU-0027-E
UPC: DOES NOT APPLY
Only 2 left!
-
+

This product is in shipment and will be arriving shortly. Enter your email below to be notified of its arrival.

529046 MA-40-16-1/8-EN MA401618EN

Festo

Pressure Gauge

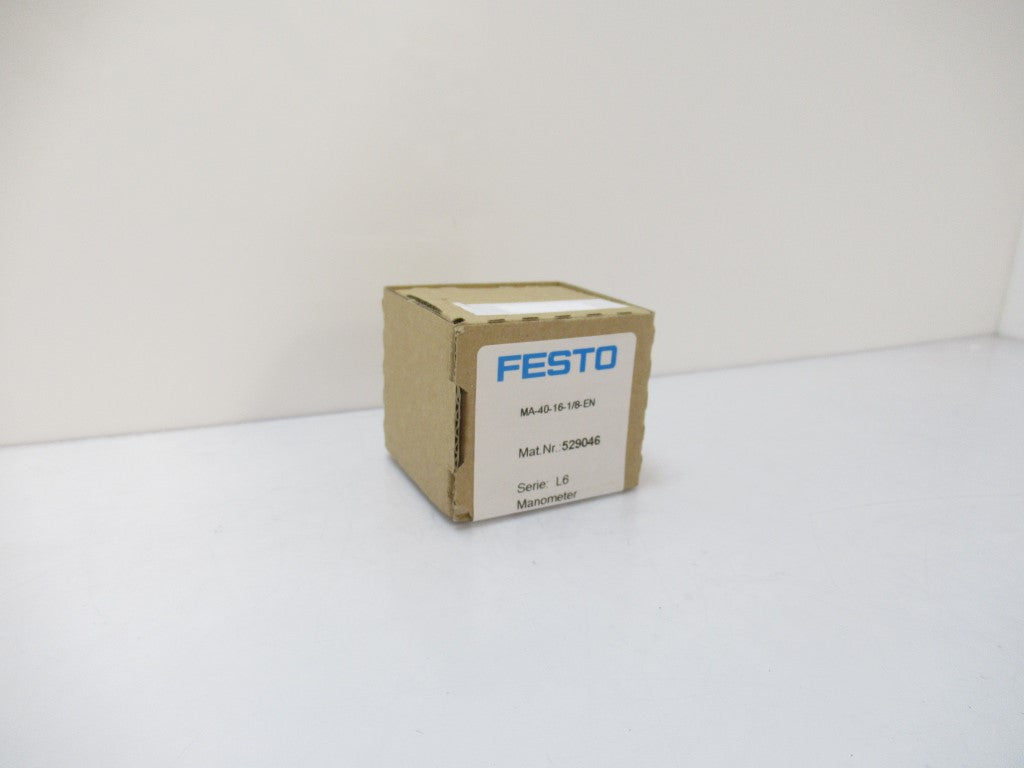

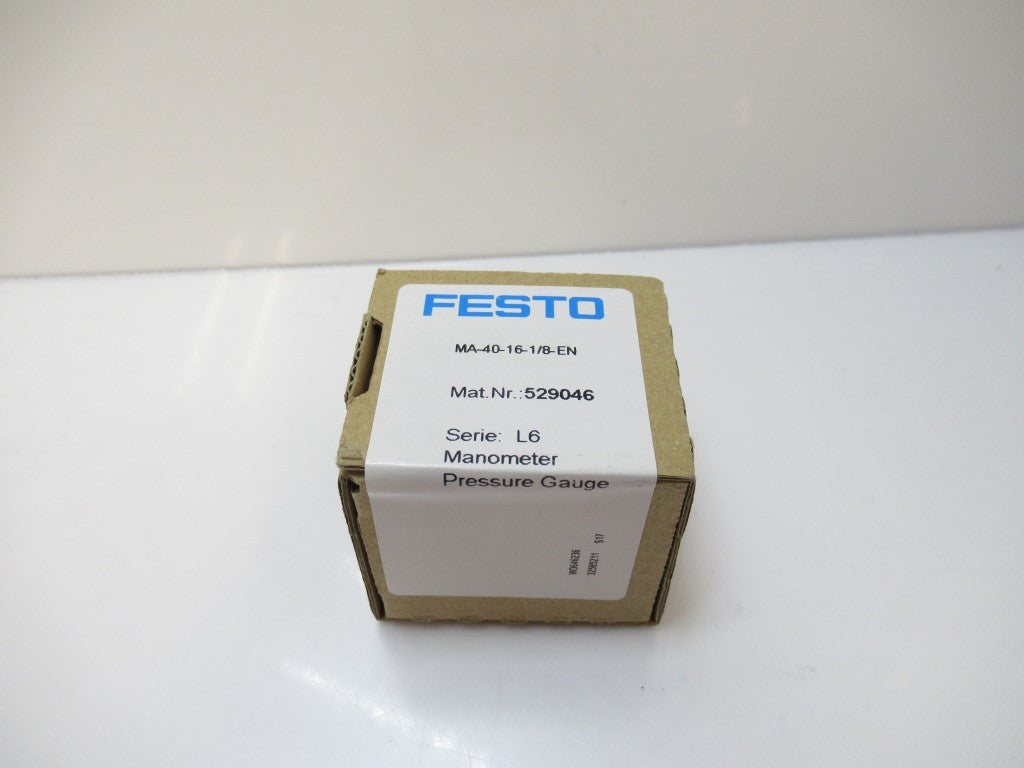

(New In Box)

Description

  • Display Range: 0 bar ... 16 bar
  • Type Code: MA
  • Symbol: 00991463
  • Conforms To Standard: En 837-1
  • Pressure Gauge Nominal Size: 40
  • Explosion Prevention And Protection: Observe The Information On The Certificate; Zone 1 (Atex), Zone 2 (Atex), Zone 21 (Atex), Zone 22 (Atex)
  • Structural Design: Bourdon Tube Pressure Gauge
  • Type Of Mounting: Line Installation
  • Operating Medium: Inert Gas, Neutral Liquids
  • Operating Pressure: 0 MPa ... 1.6 MPa
  • Operating Pressure: 0 bar ... 16 bar
  • Operating Pressure: 0 psi ... 232 Psi
  • Intermittent Load Factor: 0.66
  • Measurement Accuracy Class: 2.5
  • Degree Of Protection: IP43
  • Temperature Of Medium: -20 °C ... 60 °C
  • Ambient Temperature: -20 °C ... 60 °C
  • Note On Materials: RoHS-Compliant
  • Connection Position: Centered On Rear Side
  • Pneumatic Connection: R1/8
  • Materials In Contact With The Media: Brass
  • Material Of Screwed Trunnion: Brass
  • Housing Material: ABS
  • Inspection Window Material: PS
  • Housing Colour: Black
  • Product Weight: 60 g
  • Information On Operating And Pilot Media: No Acetylene, No Oxygen
