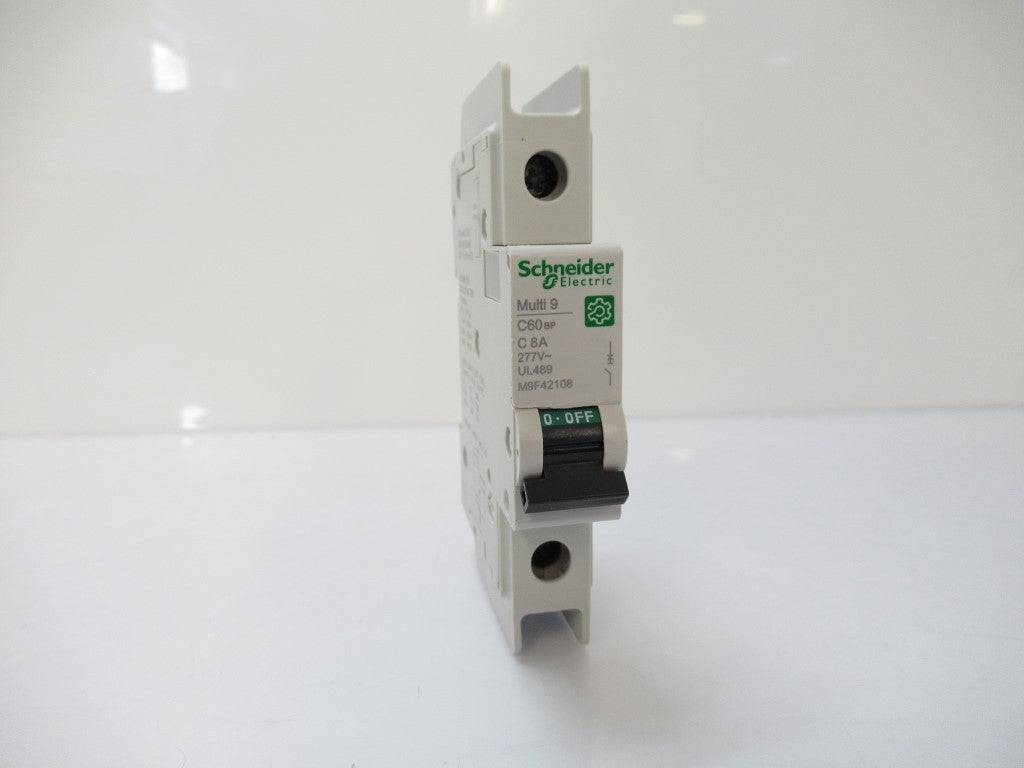

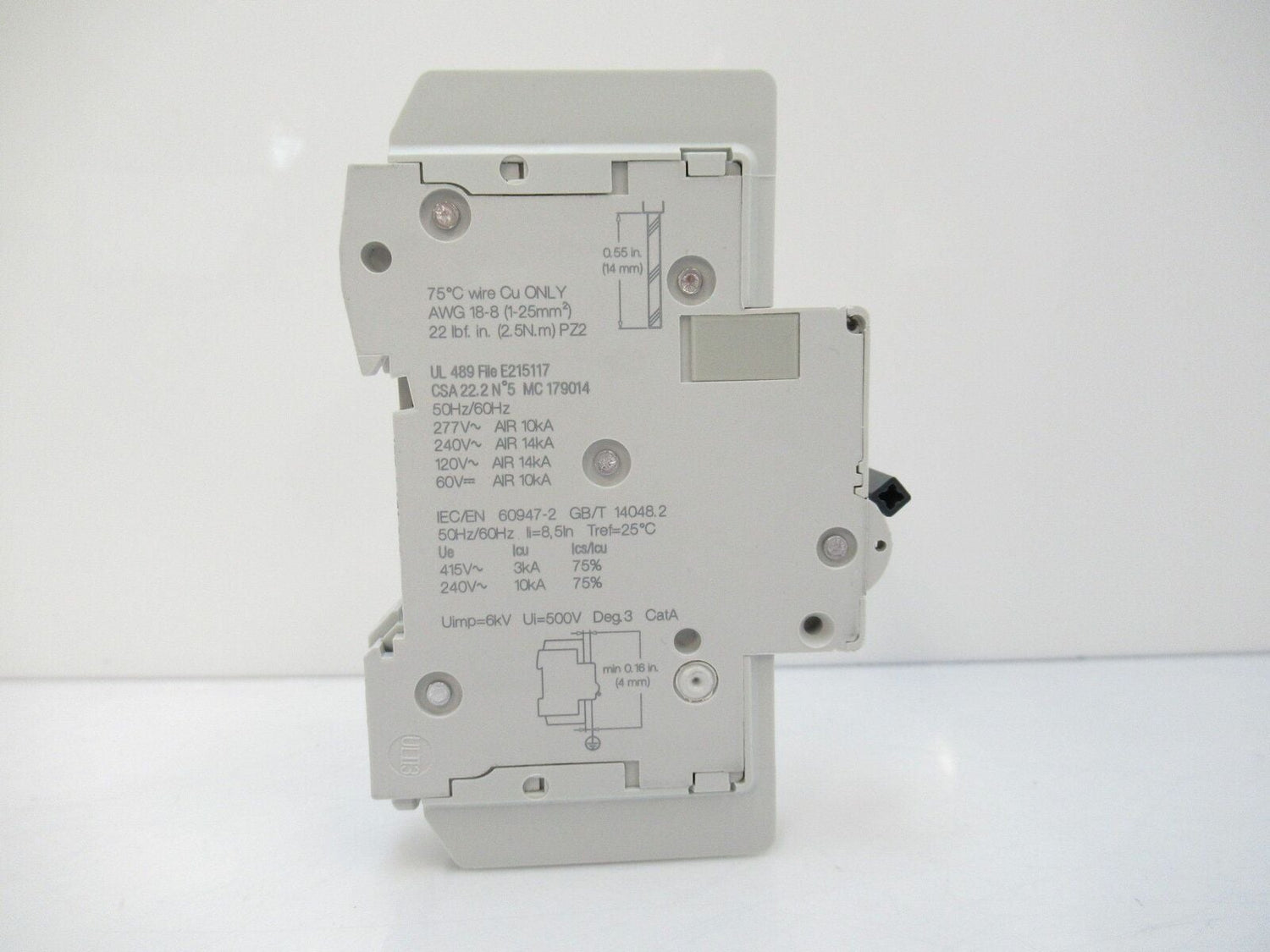

Schneider M9F42108 Miniature Circuit-Breaker Multi 9, 8 A, 1-Pole, Sold By Unit

SKU BRE-1603-E
Original price $14.63 USD - Original price $14.63 USD
Original price
$14.63 USD
$14.63 USD - $14.63 USD
Current price $14.63 USD
Availability:
6 in stock, ready to be shipped

Delivery Option

Ups Express next day air or standard shipping is available at the checkout !

Request a quote

Industrial Automation Parts is Not Authorized Distributor of this product. Manufacturer's Warranty & Support DO NOT apply. Our IAP warranty of 3 month is applicable.

Upgrade your electrical system with the Schneider M9F42108 Miniature Circuit-Breaker Multi 9. This 1-pole unit has a capacity of 8 A and is sold by unit for easy installation. Trust in its reliable performance and protect your circuits with confidence.

Product Information

Sold By Unit

  • Range: Multi 9
  • Product Name: Multi 9 C60
  • Product Or Component Type: Miniature Circuit-Breaker
  • Device Short Name: C60BP
  • Device Application: Distribution
  • Poles Description: 1P
  • Number Of Protected Poles: 1
  • [In] Rated Current: 8 A At 25 °c Conforming To EN/IEC 60947-2
  • Network Type: DC, AC
  • Trip Unit Technology: Thermal-Magnetic
  • Curve Code: C
  • UPC: 3606481169617
  • Product Name: M9F42108
  • Type: Miniature circuit breaker (MCB)
  • Series: Multi9 C60BP
  • Configuration: 1P (1 protected pole)
  • Rated Current: 8A
  • Tripping Curve: C
  • Short Circuit Breaking Capacity:
    • EN/IEC 60947-2 Standard: 3kA at 415VAC
    • UL489 Standard: 14kA at 240VAC
  • Compliance:
    • Industrial Standard: EN/IEC 60898-1
    • Residential Standard: EN/IEC 60947-2
  • Protection Features:
    • Short circuit protection
    • Earth leakage protection
    • Overload protection
  • Application:
    • Designed for original equipment manufacturers (OEM) and control panel builders
  • Endurance:
    • Electrical: Up to 10,000 cycles
    • Mechanical: Up to 20,000 cycles
  • Operational Voltage:
    • Ue: 240VAC
    • Ui (Insulation Voltage): 500VAC
  • Impulse Withstand Voltage: 6kV
  • Mounting: Clipped on a DIN rail (2 pitches of 9mm width)
  • Degree of Protection: IP20 (as per IEC/EN 60529) on its terminals
  • Operating Temperature: -30°C to 70°C
  • Storage Temperature: -40°C to 80°C
  • Colour: Light grey (RAL7035)
  • Dimensions: (W) 18mm x (H) 103mm x (D) 72mm

This MCB provides enhanced protection, safeguarding both people and equipment from electrical threats. It’s suitable for various applications, including distribution boards and control panels.
