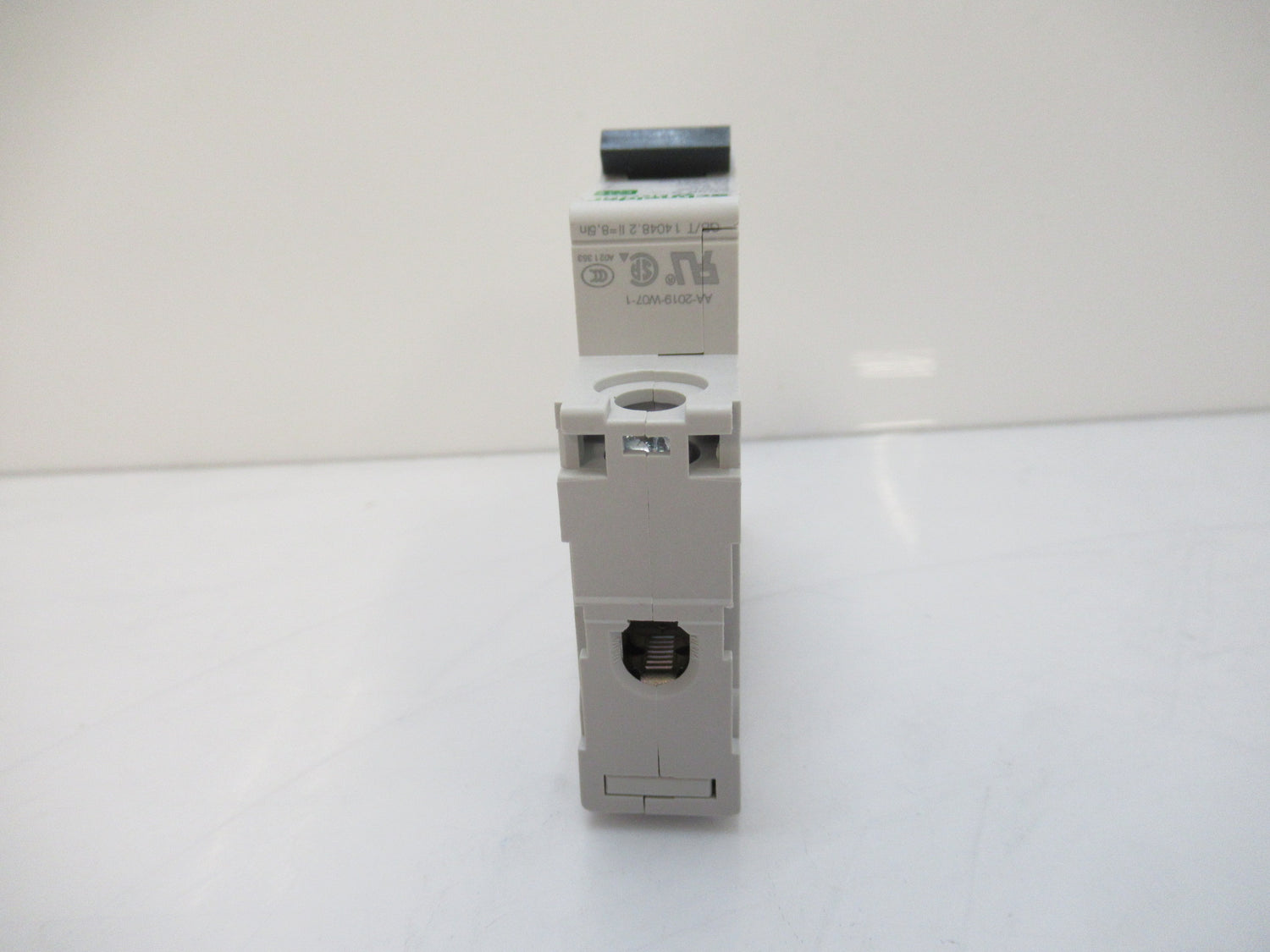

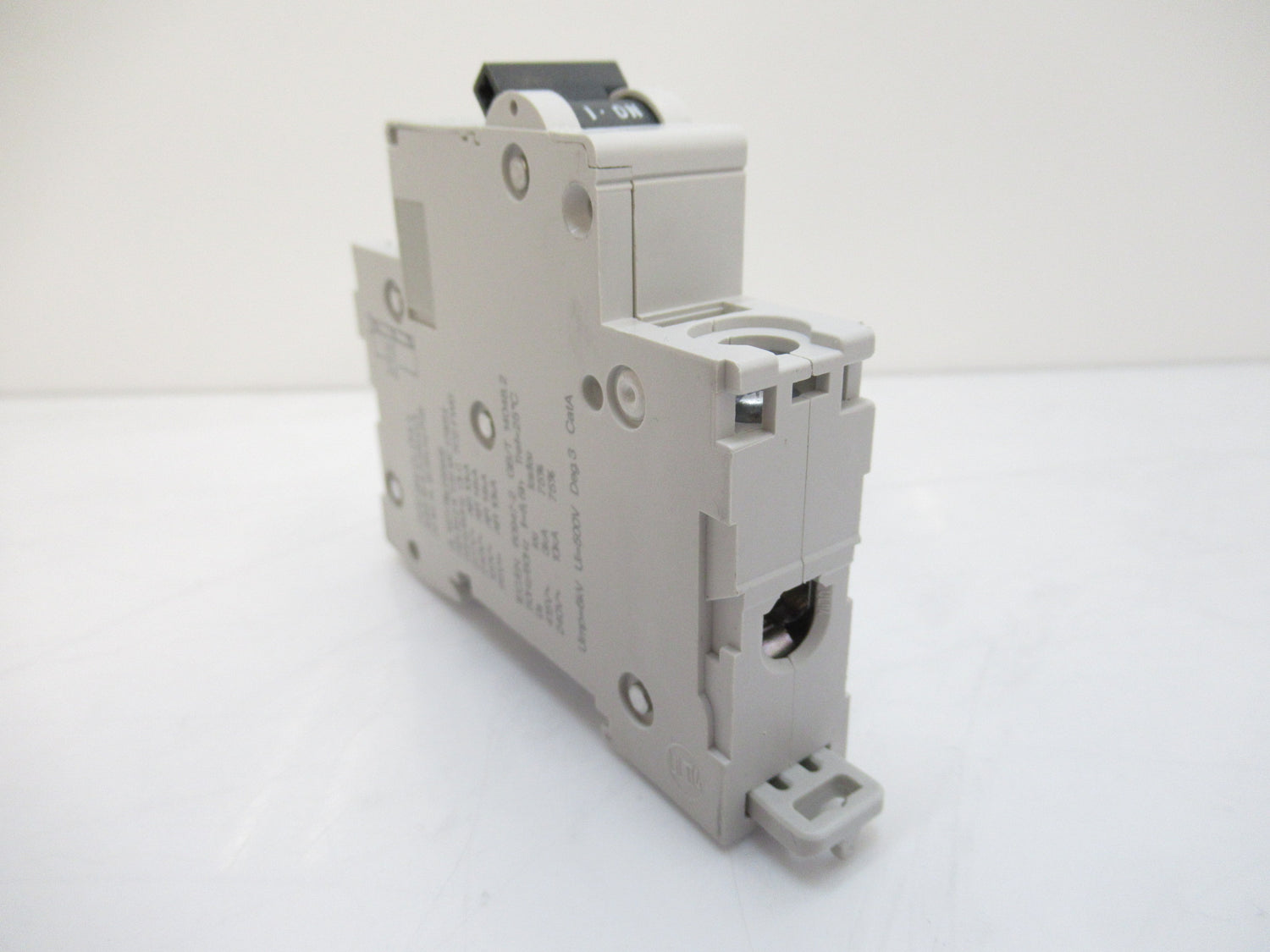

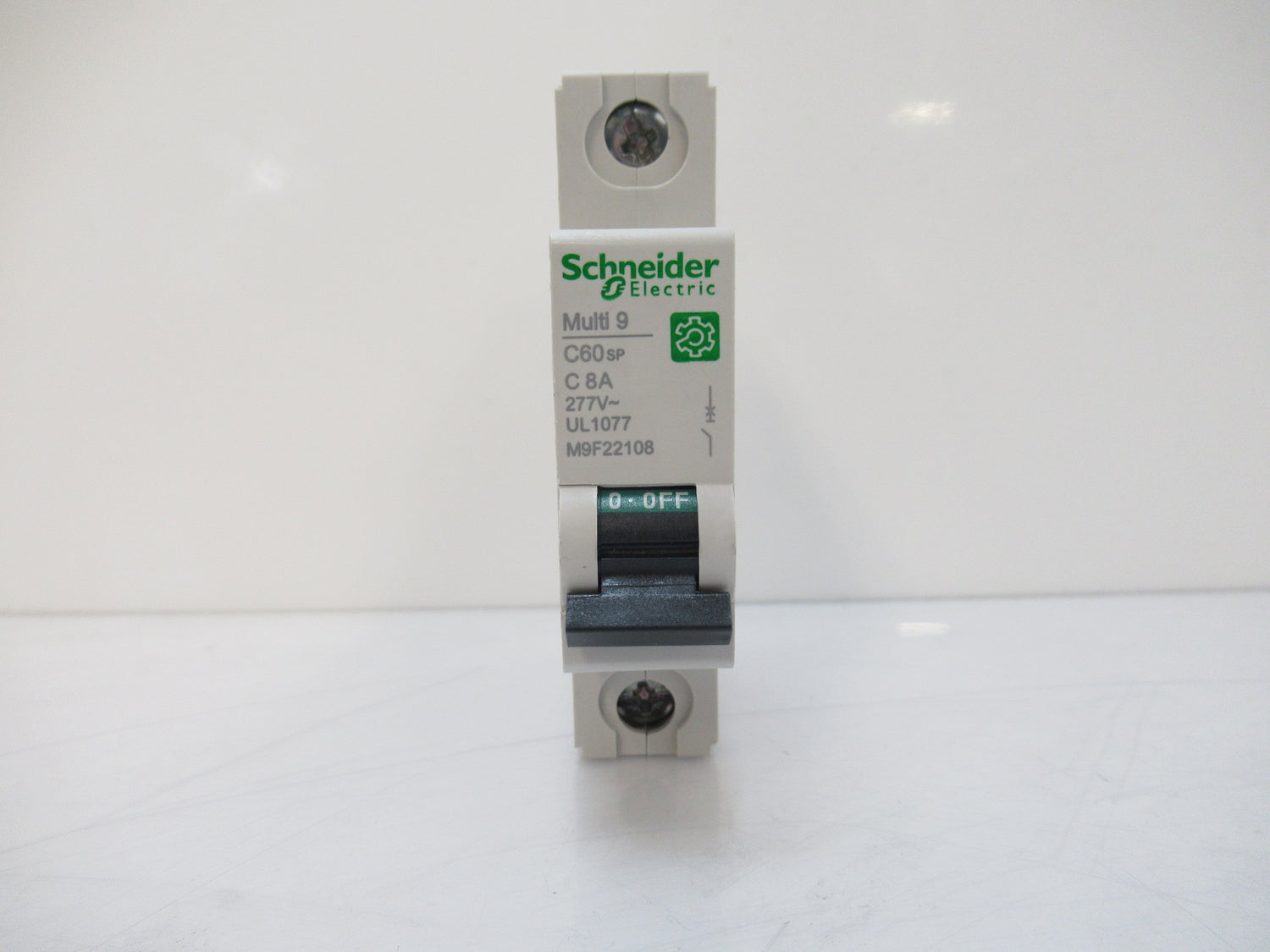

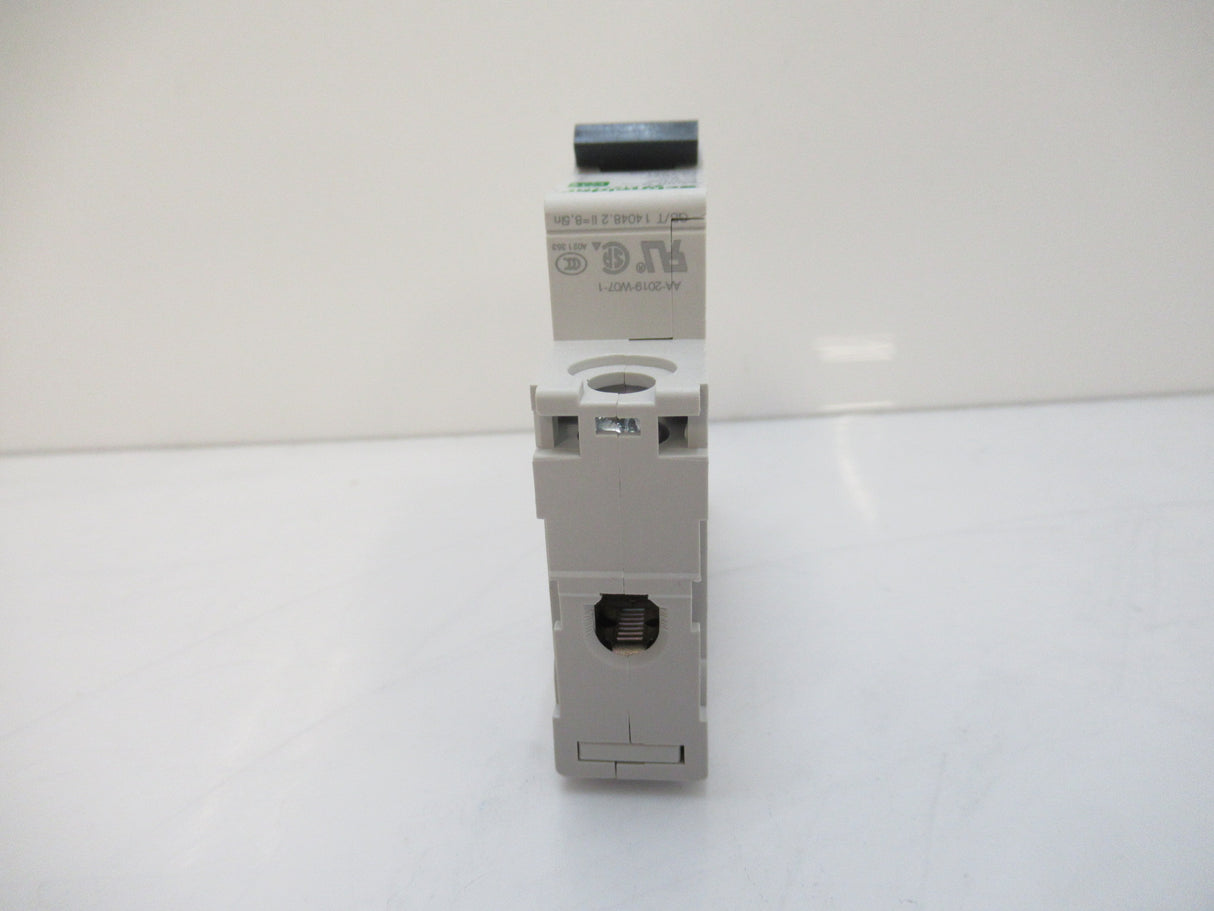

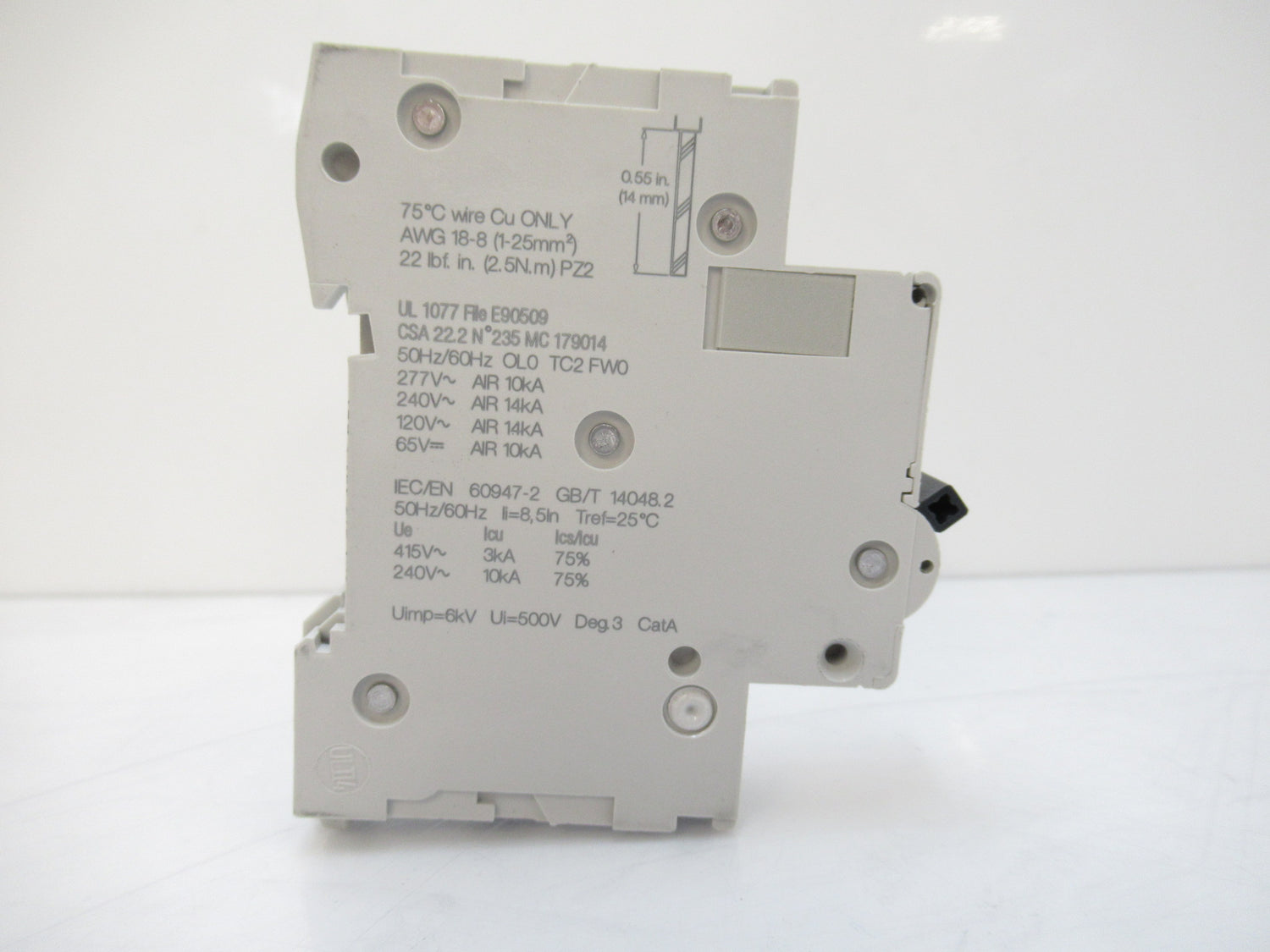

M9F22108 Schneider Electric Multi 9 Miniature Circuit-Breaker C Curve

by Multi 9
Sold out
$25.69 USD
FACTORY SUPPLY BRAND NEW
SKU BRE-1779-E
UPC: 3606481168214
Only 0 left!
-
+

This product is in shipment and will be arriving shortly. Enter your email below to be notified of its arrival.

M9F22108

Multi 9 Miniature Circuit-Breaker C Curve

Multi 9 - C60SP - MCB - 1P - 8 A - C Curve - 277 V - 10 kA - UL 1077

Main
range: Multi 9
product name: Multi 9 C60
product or component type: Miniature circuit-breaker
device short name: C60SP
device application: Distribution
poles description: 1P
number of protected poles: 1
[In] rated current: 8 A at 25 °C conforming to EN/IEC 60947-2
network type: DC, AC
trip unit technology: Thermal-magnetic
curve code: C
breaking capacity:
10 kA AIR at 277 V AC conforming to UL 1077
14 kA AIR at 240 V AC conforming to UL 1077
14 kA AIR at 120 V AC conforming to UL 1077
10 kA AIR at 65 V DC conforming to UL 1077
10 kA AIR at 277 V AC conforming to CSA C22.2 No 235
14 kA AIR at 240 V AC conforming to CSA C22.2 No 235
14 kA AIR at 120 V AC conforming to CSA C22.2 No 235
10 kA AIR at 65 V DC conforming to CSA C22.2 No 235
3 kA Icu at 415 V AC conforming to EN/IEC 60947-2
10 kA Icu at 240 V AC conforming to EN/IEC 60947-2
20 kA Icu at 60 V DC conforming to EN/IEC 60947-2
3 kA Icu at 415 V AC conforming to GB 14048.2
10 kA Icu at 240 V AC conforming to GB 14048.2
20 kA Icu at 60 V DC conforming to GB 14048.2
suitability for isolation: Yes conforming to EN/IEC 60947-2
standards:
EN/IEC 60947-2
GB 14048.2
UL 1077
CSA C22.2 No 235
product certifications: IEC, CCC, UR, CSA

Complementary
[Ue] rated operational voltage:
240 V AC 50/60 Hz
415 V AC 50/60 Hz
60 V DC
magnetic tripping limit:
8.5 x In +/- 20 % AC
12 x In +/- 20 % DC
[Ics] rated service breaking capacity:
2.25 kA 75 % conforming to EN/IEC 60947-2 - 415 V AC
7.5 kA 75 % conforming to EN/IEC 60947-2 - 240 V AC
20 kA 100 % conforming to EN/IEC 60947-2 - 60 V DC
2.25 kA 75 % conforming to GB 14048.2 - 415 V AC
7.5 kA 75 % conforming to GB 14048.2 - 240 V AC
20 kA 100 % conforming to GB 14048.2 - 60 V DC
[Ui] rated insulation voltage: 500 V AC conforming to EN/IEC 60947-2
[Uimp] rated impulse withstand voltage: 6 kV conforming to EN/IEC 60947-2
contact position indicator: Yes
control type: Toggle
local signalling: ON/OFF indication
mounting mode: Clip-on
mounting support: DIN rail
9 mm pitches: 2
height: 81 mm
width: 18 mm
depth: 72 mm
colour:Grey
mechanical durability: 20000 cycles
electrical durability: 10000 cycles
provision for padlocking: Padlockable
connections - terminals:
Tunnel type terminal (top or bottom)1…25 mm² (AWG 18...AWG 8) - rigid
Tunnel type terminal (top or bottom)1…16 mm² (AWG 18...AWG 8) - flexible with ferrule
Tunnel type terminal (top or bottom)1…16 mm² (AWG 18...AWG 8) - flexible
wire stripping length: 14 mm for top or bottom connection
tightening torque: 2.5 N.m top or bottom
earth-leakage protection: Without
