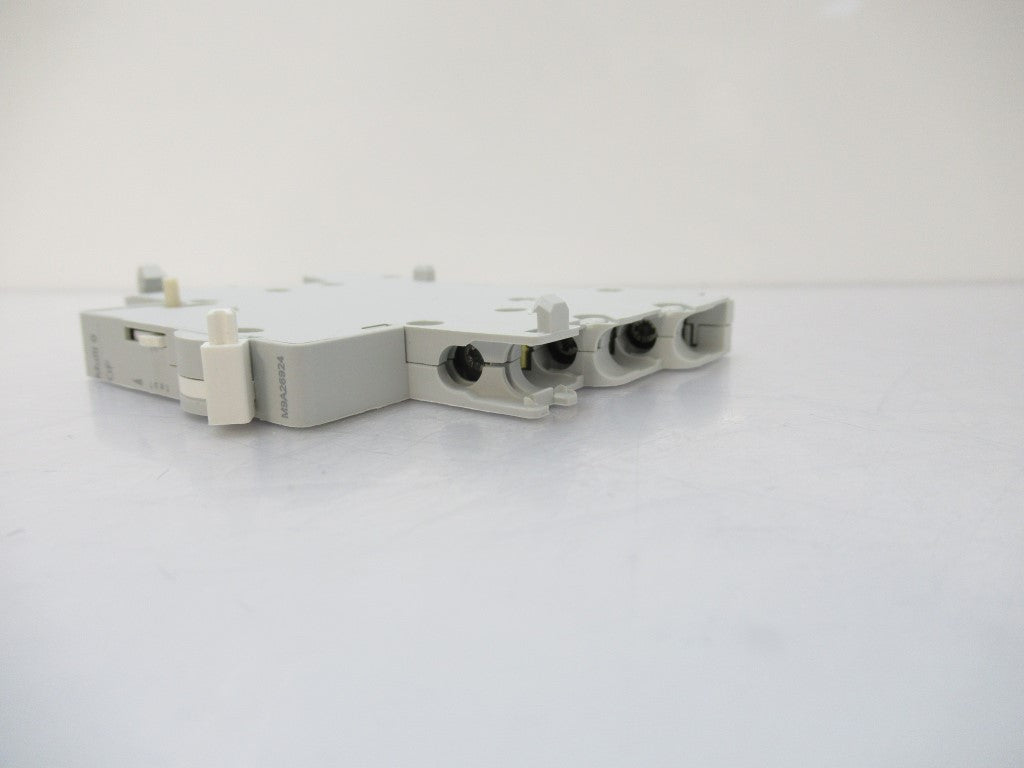

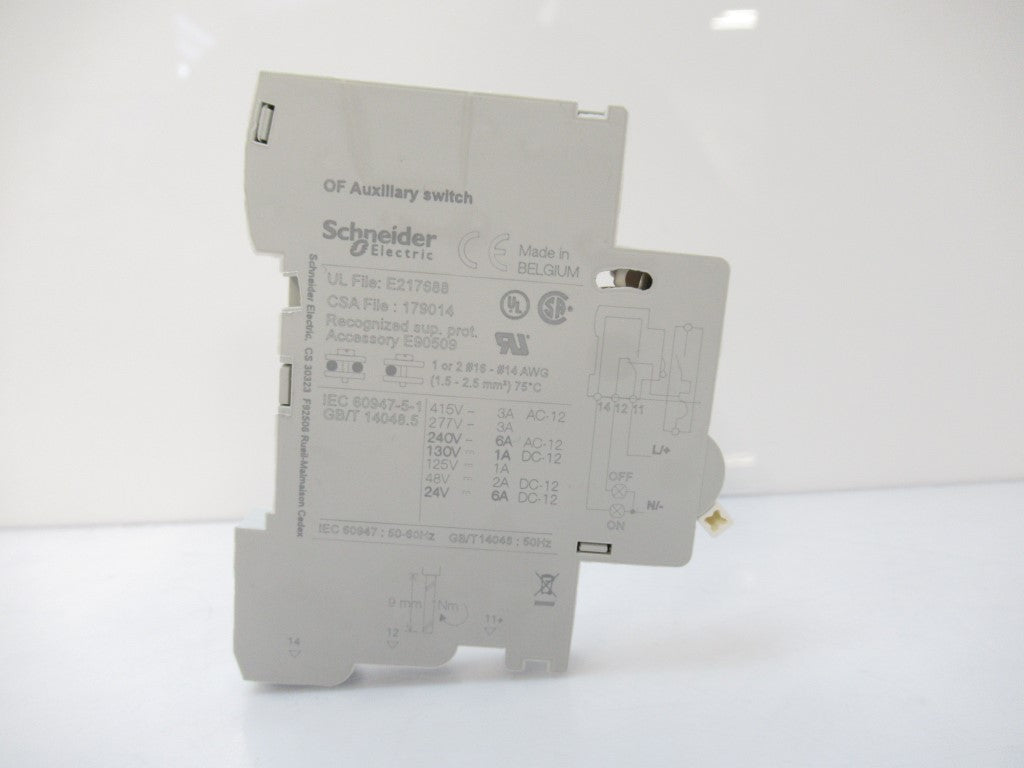

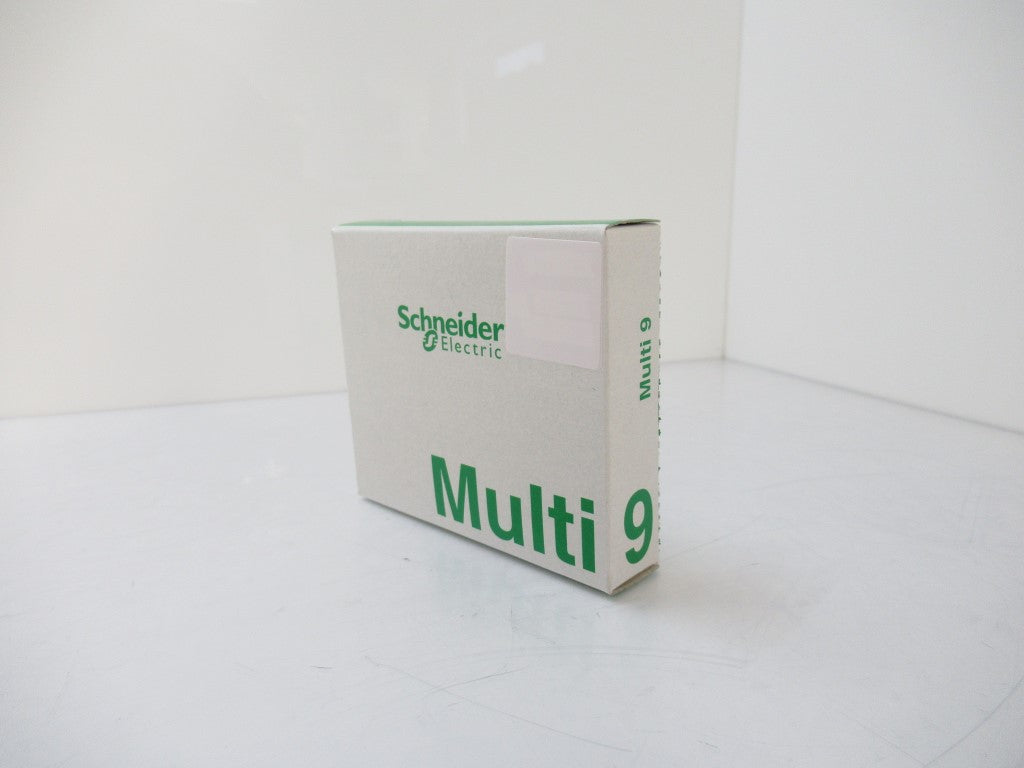

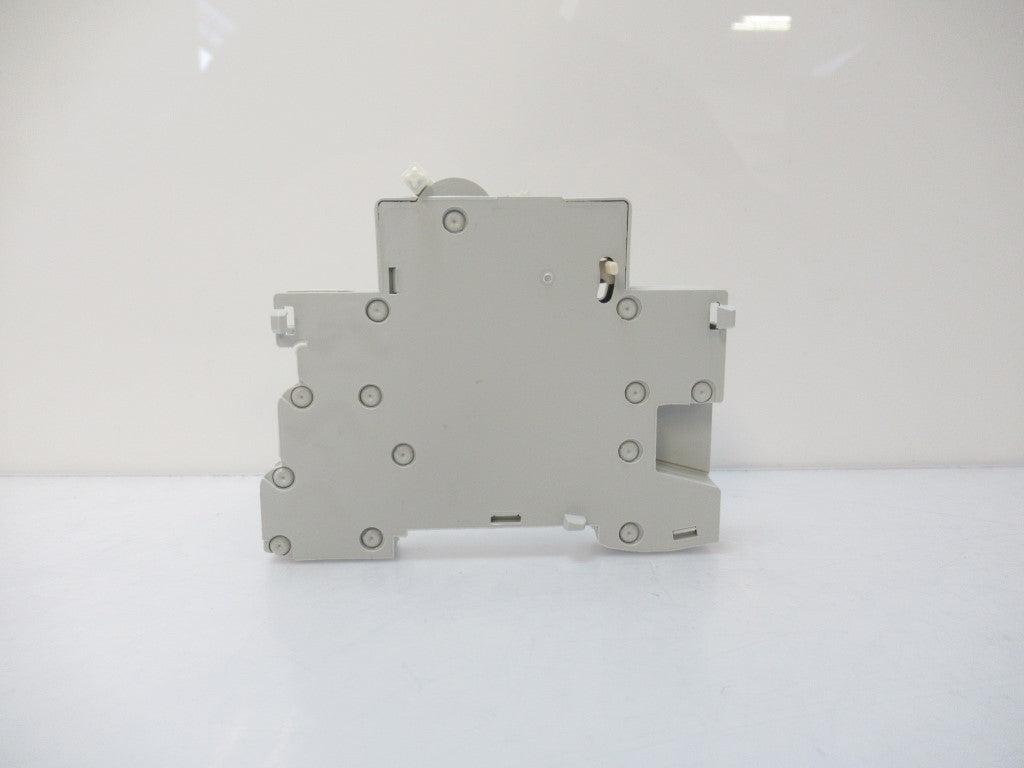

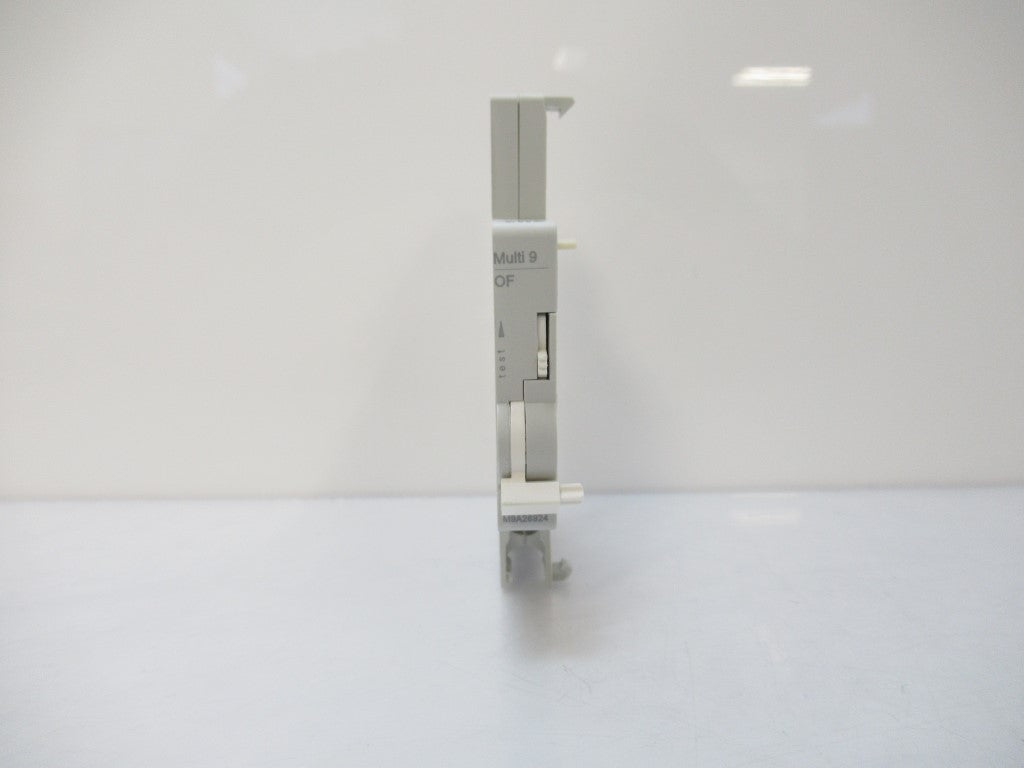

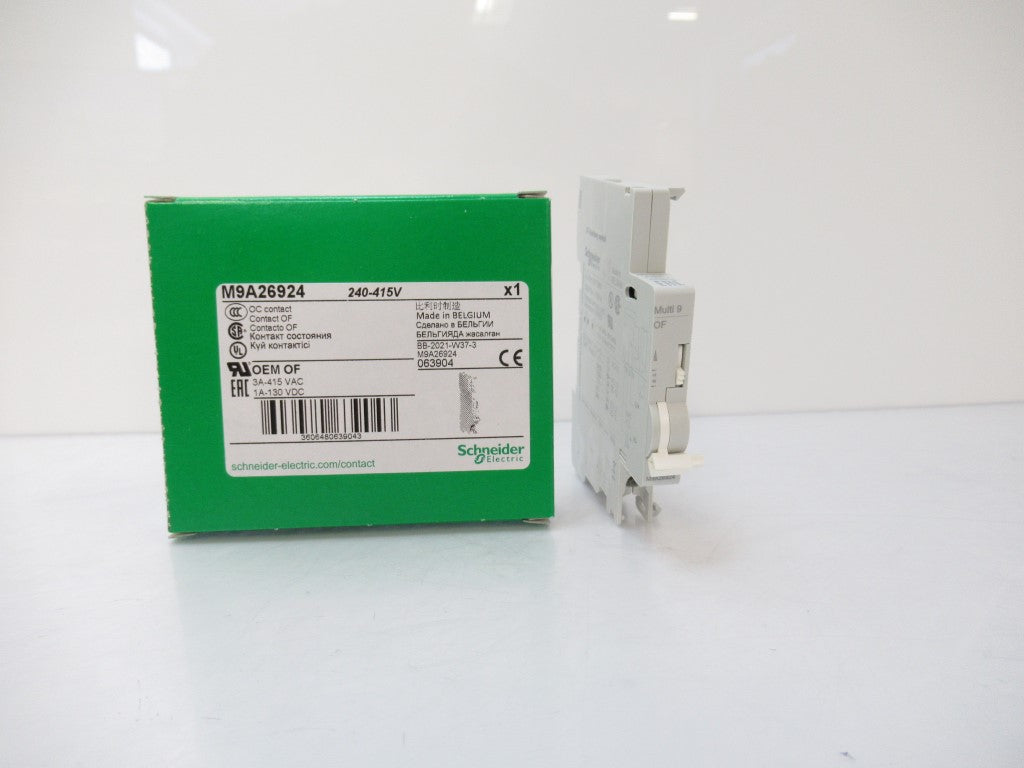

Schneider Electric M9A26924 Multi 9 OC Contact 240V AC / 24V DC

Name: Schneider Electric M9A26924 Multi 9 OC Contact 240V AC / 24V DC
Brand: SCHNEIDER ELECTRIC
SKU: BRE-1540-E
Price: 18.0 USD
Availability: InStock

SKU BRE-1540-E

$18.00 USD - $18.00 USD

$18.00 USD

$18.00 USD - $18.00 USD

$18.00 USD

Availability:

7 in stock, ready to be shipped

Standard shipping

Estimated delivery time, 7-10 days

Specifications

Description

Product Information

Sold By Unit

Range of product	Multi 9
Product or component type	OC contact
Device short name	OF
Signal contacts composition	1 C/O
[In] Rated current	3 A: 415 V AC - 50/60 Hz 6 A: <= 240 V AC - 50/60 Hz
[Uc] Control circuit voltage	240...415 V AC 50/60 Hz 24...130 V DC
9 mm pitches	1
Range compatibility	Multi 9 C60 C60BPR Multi 9 C60H-DC C60H-DC Multi 9 C60 C60SP Multi 9 C60 C60BP
[Ui] Rated insulation voltage	500 V
[Uimp] Rated impulse Withstand voltage	4 kV
Mounting mode	Fixed
Mounting support	DIN rail
Height	85 mm
Width	9 mm
Depth	73.5 mm
Net weight	0.03 kg
Connections - Terminals	Clamp terminal (bottom) 1 cable(s) 2.5 mm² (AWG 14) - rigid Clamp terminal (bottom) 2 cable(s) 1.5 mm² (AWG 16) - rigid
Wire stripping length	9 mm for bottom connection
Tightening torque	1 N.m bottom
