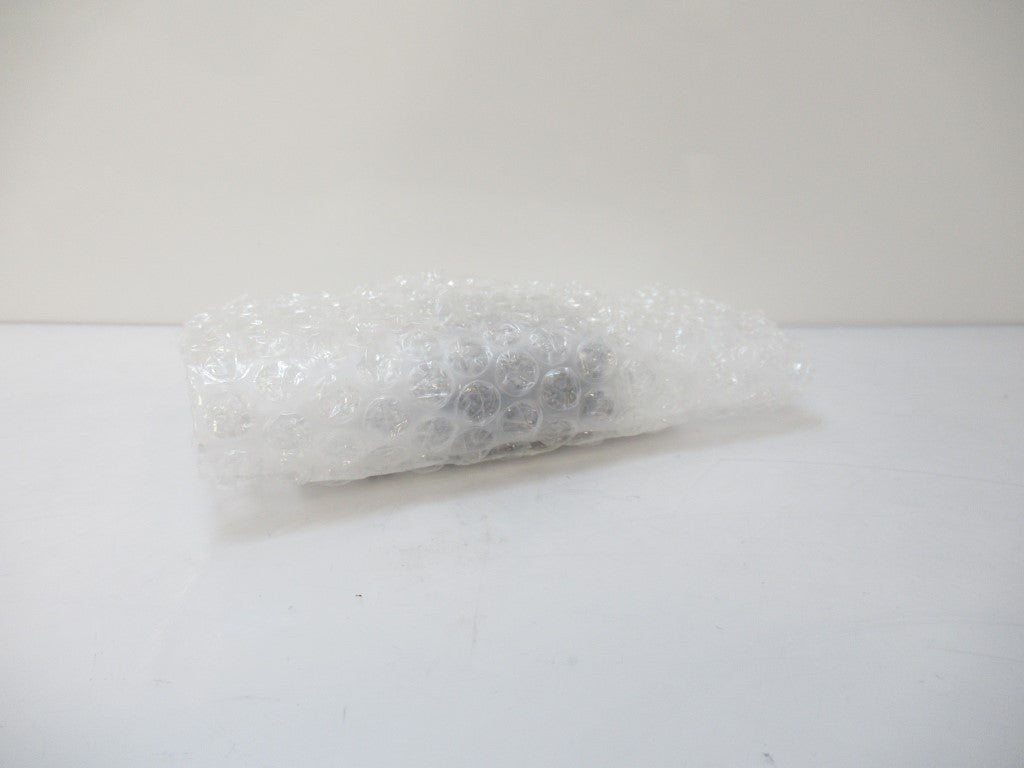

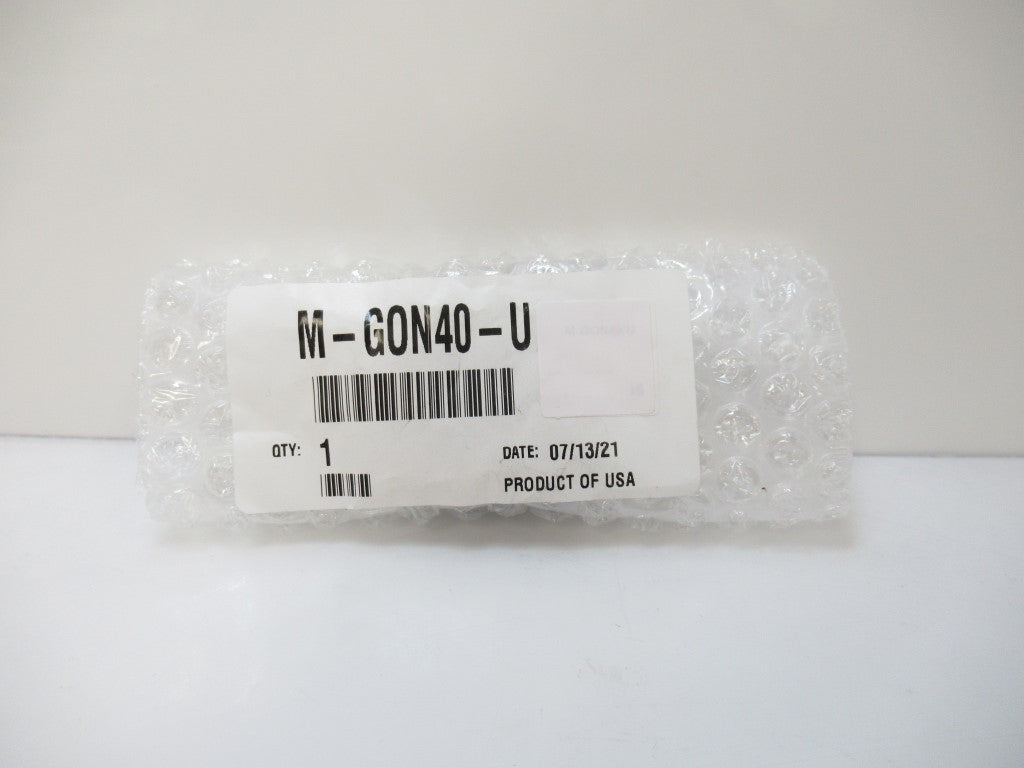

M-GON40-U Newport Goniometric Stage, Upper, ±5°, 40 X 40 X 20 MM

SKU SPEC-3096-E
Sold out
Original price $330.00 USD - Original price $330.00 USD
Original price
$330.00 USD
$330.00 USD - $330.00 USD
Current price $330.00 USD
Availability:
Out of stock
Pre Order

Delivery Option

Ups Express next day air or standard shipping is available at the checkout !

Specifications
Request a quote
by NEWPORT

Industrial Automation Parts is Not Authorized Distributor of this product. Manufacturer's Warranty & Support DO NOT apply. Our IAP warranty of 3 month is applicable.

Product Information

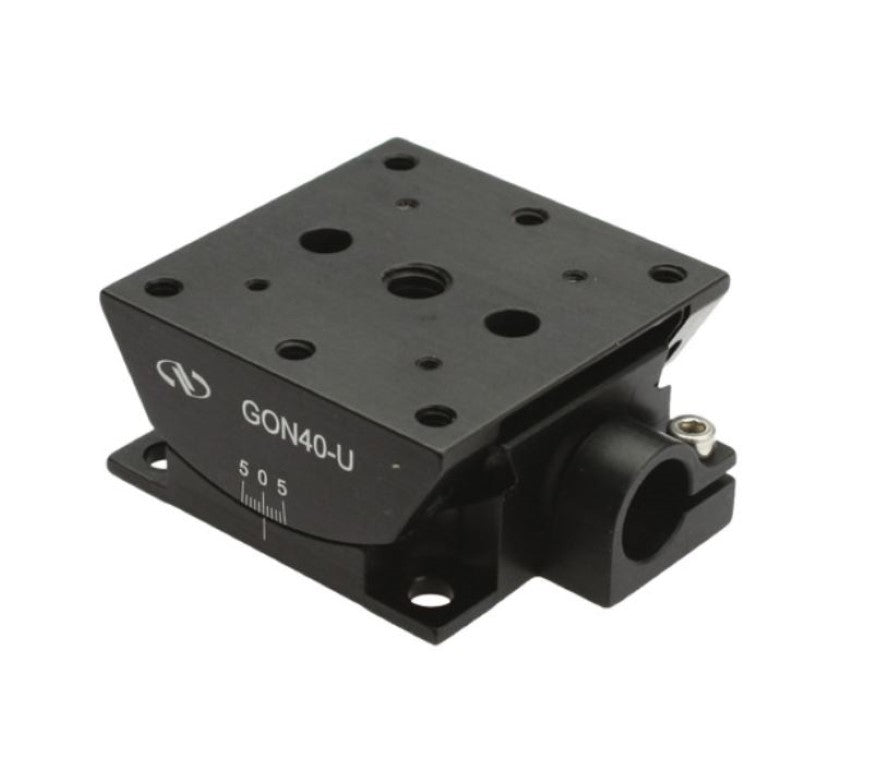

The Upper Metric Goniometric Stage Rotates An Object About An Axis Unobstructed By The Stage Itself, Located Over The Center Of The Top Platform. Gon Series Goniometric Rotation Stages Use An Actuator-Driven Precision Dovetail Slide And Are Spring-Loaded To Reduce The Backlash Commonly Found In Similar Worm-Gear-Driven Stages. The Spring-Loaded Design Has The Additional Advantage Of Interchangeable.

  • Stage Type: Upper Goniometric
  • Angular Range: -5 to +5°
  • Load Capacity: 22 N
  • Platform Size: 40 x 40 mm
  • Height: 20 mm
  • Rotation Axis Height: 15 mm
  • Graduations: 1°
  • Thread Type: M2, M3, And M6
  • Weight: 0.154 lbs
