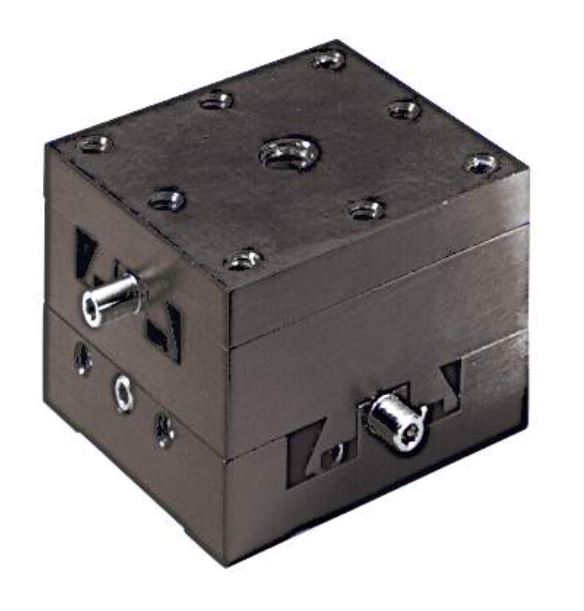

M-DS40-XY Newport, XY Linear Stage, Compact, Dovetail, 14mm

by NEWPORT
$348.57 USD
FACTORY SUPPLY BRAND NEW
SKU SPEC-3095-E
UPC: M-DS40-XY
Only 1 left!
-
+

This product is in shipment and will be arriving shortly. Enter your email below to be notified of its arrival.

M-DS40-XY MDS40XY

Newport

XY Linear Stage, Compact, Dovetail, 14 mm, 40 X 40 X 30 mm

New In Bag

Technical Specs

  • Axes of Travel: X, Y
  • Maximum Stage Travel: 14 mm
  • Thread Type: M3 and M6
  • Load Capacity: 67 N
  • Material: Aluminum
  • Bearings: Dovetail Slide
  • Drive Location: Center drive
  • Platform Size: 40 x 40 mm
  • Sensitivity: 1 µm
  • Weight: 111 g

Overview

The M-DS40-XY Compact Metric Dovetail Linear Stage is preferred for small 14 mm XY travel applications where set, lock, and forget is required. It is much less susceptible to shock and vibration than bearing stages. This DS series dovetail stage incorporates precision preloaded dovetail slides with an 80 TPI drive screw for precision positioning, hex head adjustment for tamper resistance, and an integral locking mechanism for high stability. The compact 40 x 40 x 30 mm size and critical features of this stage makes it ideal for OEM applications. The modularity allows reconfiguration for research applications.
