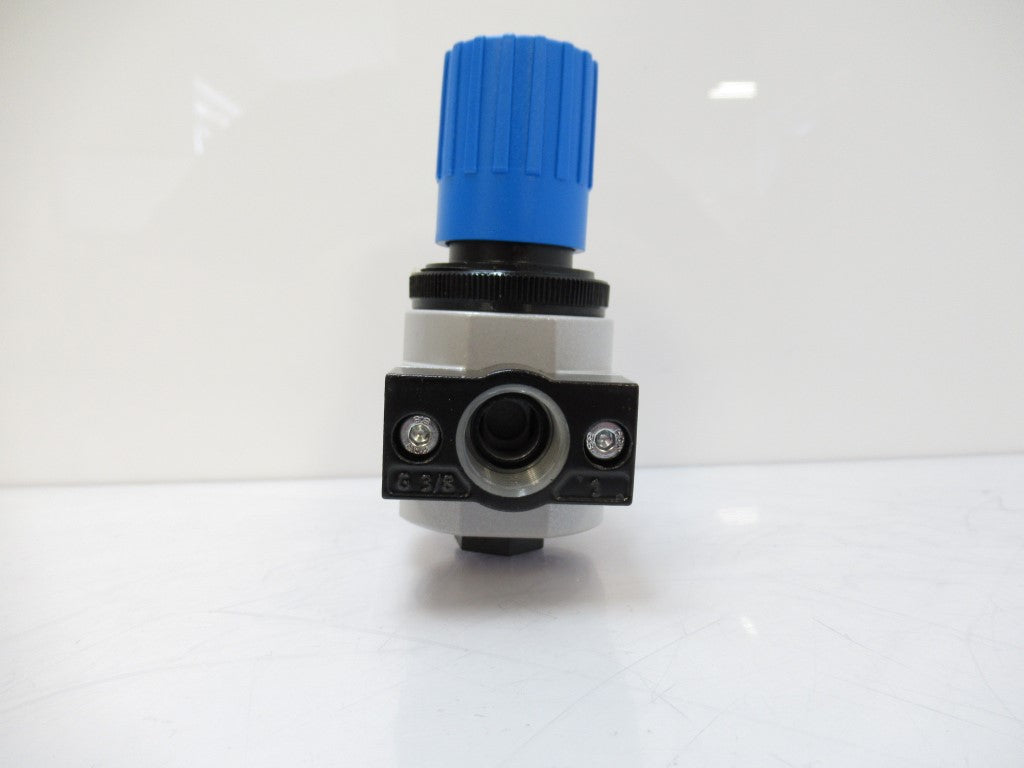

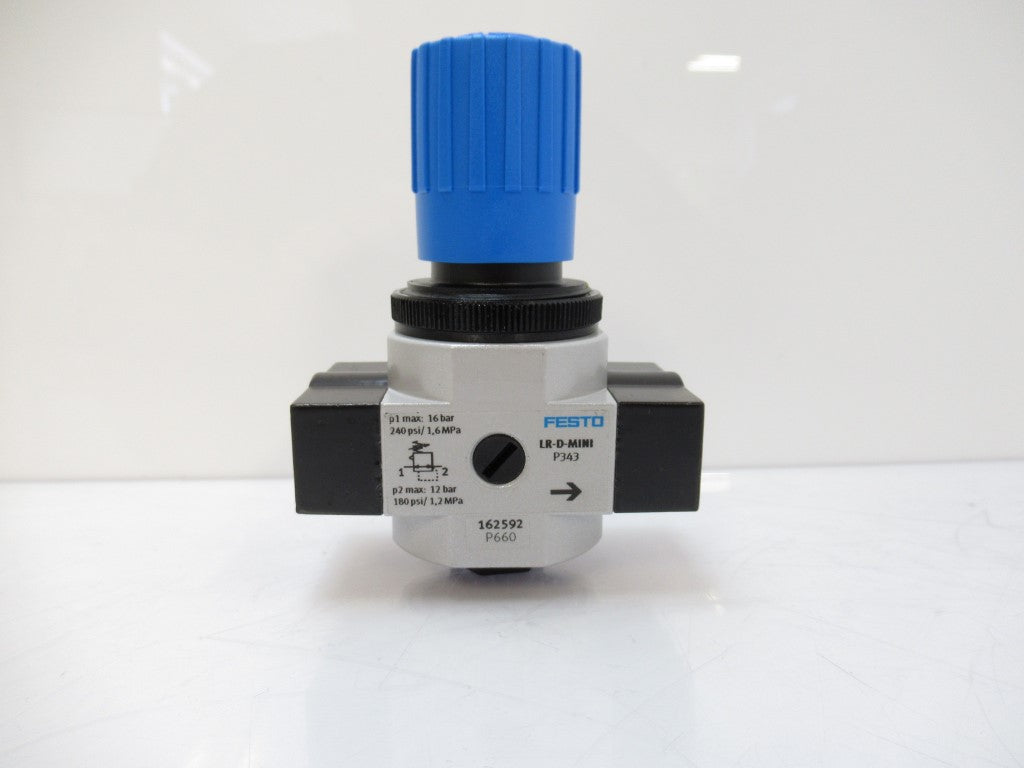

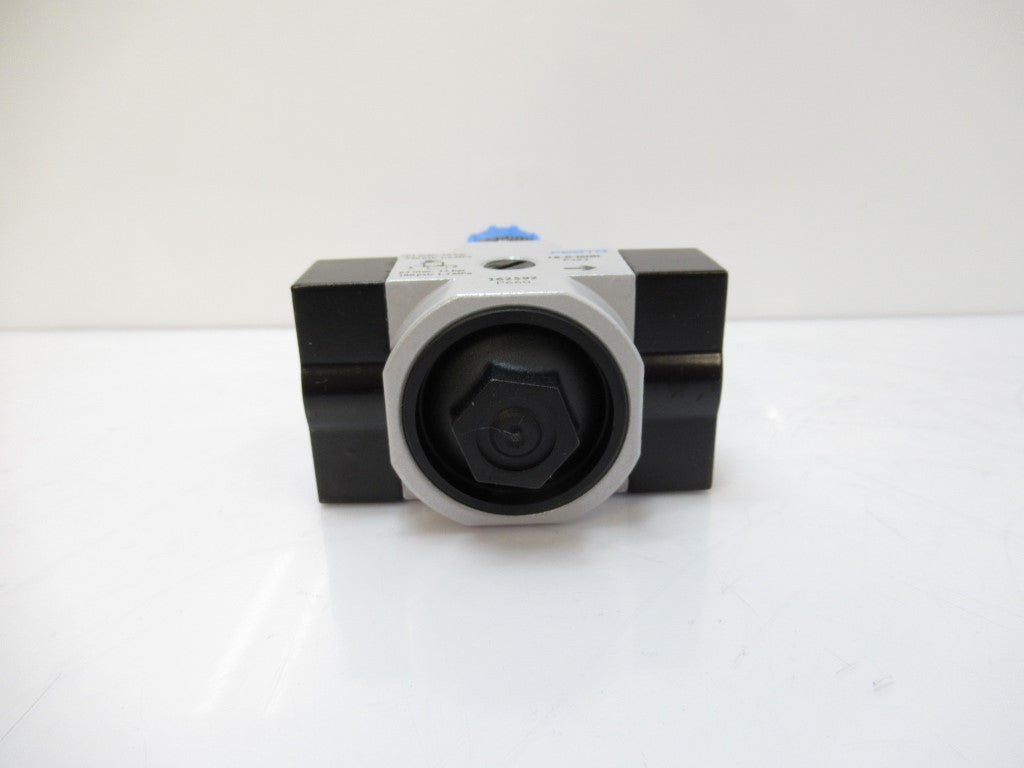

LR-3/8-D-O-MINI 162592 Festo Pressure Regulator

Product Information

LR38DOMINI

• Series: D

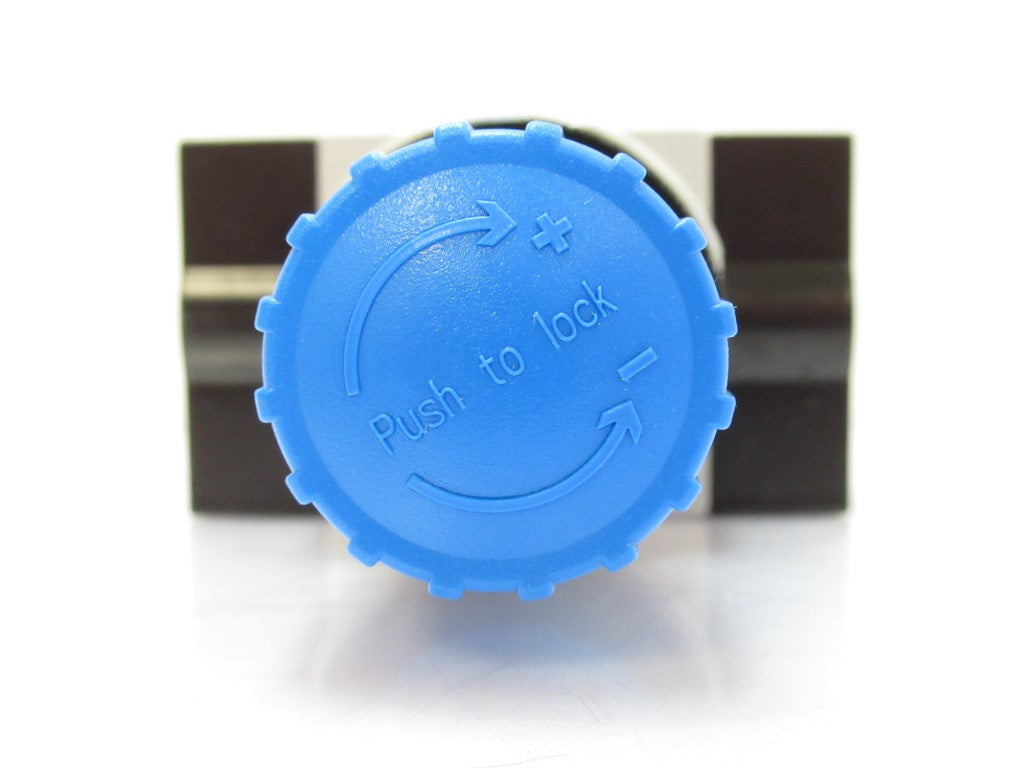

• Actuator lock: Rotary knob with detent
• Mounting position: Any
• Structural design: Directly controlled diaphragm regulator
• Controller function: Outlet pressure constant With primary pressure compensation With secondary exhausting
• Symbol: 00991540
• Operating pressure: 1 bar ... 16 bar
• Pressure regulation range: 0.5 bar ... 12 bar
• Max. pressure hysteresis: 0.2 bar
• Standard nominal flow rate: 1700 l/min
• Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
• Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
• Corrosion resistance class (CRC): 2 - Moderate corrosion stress
• LABS (PWIS) conformity: VDMA24364-B1/B2-L
• Air quality class at the output: Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
• Temperature of medium: -10 °C ... 60 °C
• Ambient temperature: -10 °C ... 60 °C
• Product weight: 300 g
• Type of mounting: Front panel mounting Line installation With accessories
• Pneumatic connection 1: G3/8
• Pneumatic connection 2: G3/8
• Note on materials: RoHS-compliant
• Material of sub-base: Die-cast zinc
• Seals material: NBR
• Housing material: Die-cast zinc
