159582 LFR-3/8-D-MIDI LFR38DMIDI 8003639 Festo Filter Regulator

159582 LFR-3/8-D-MIDI LFR38DMIDI

8003639 PAGN-40-16-G14 PAGN4016G14

Festo

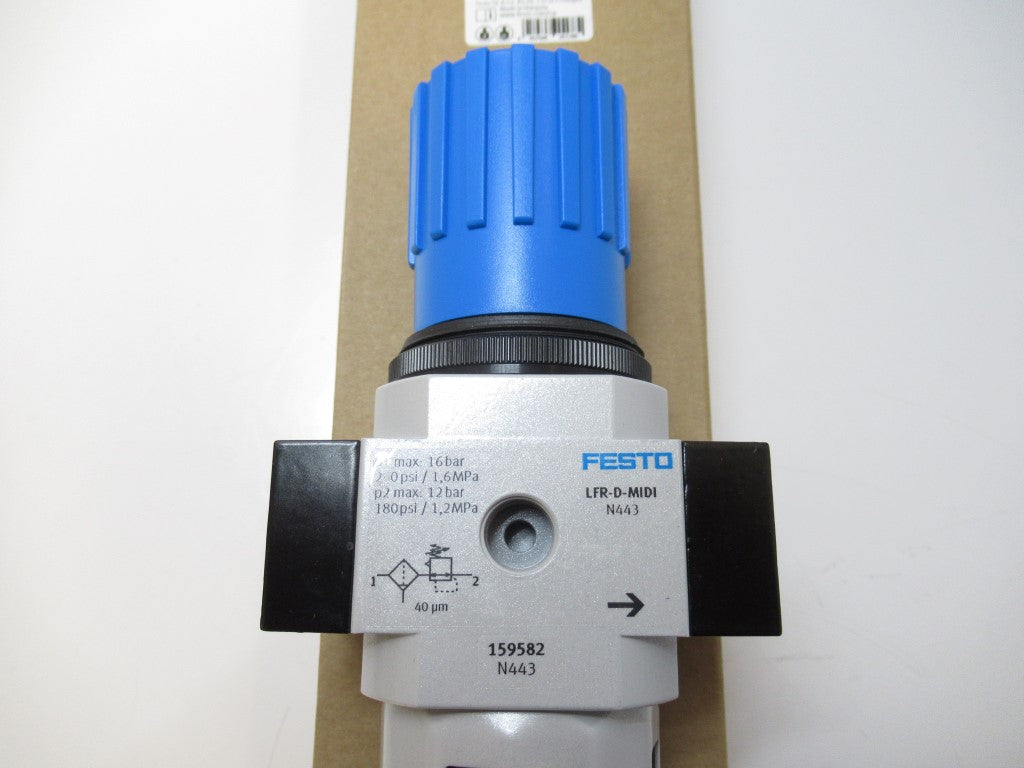

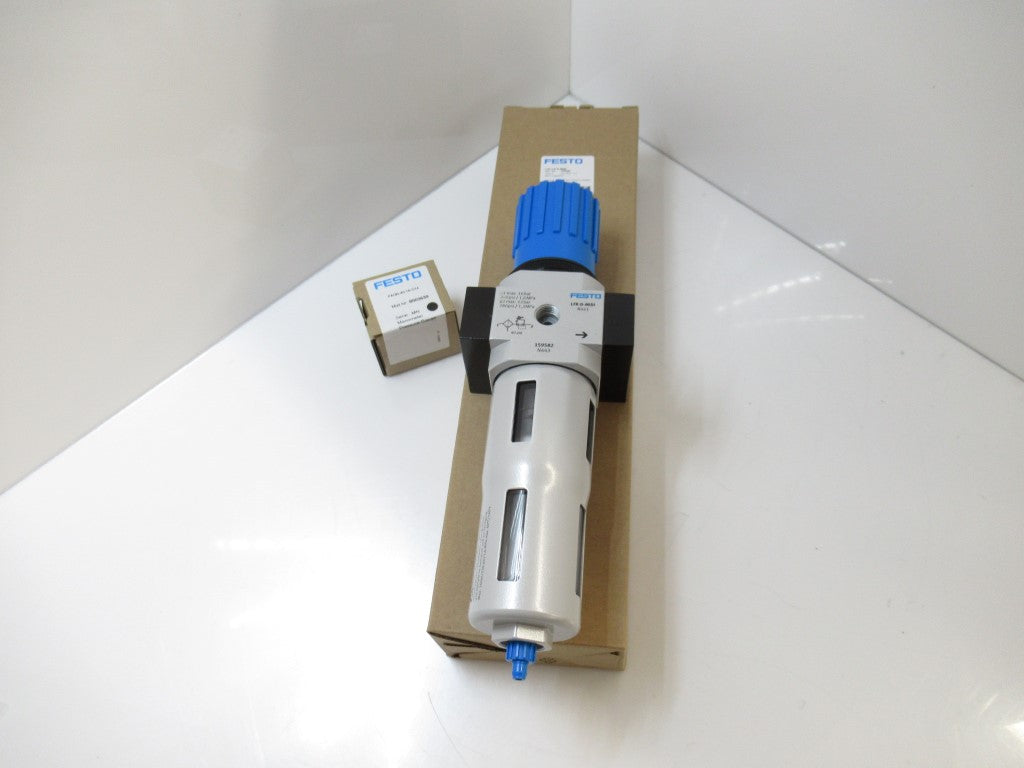

Filter Regulator With Manometer

(New In Box)

Description

• Size: Midi
• Type Code: LFR
• Series: D
• Actuator Lock: Rotary Knob With Detent
• Mounting Position: Vertical +/- 5°
• Grade Of Filtration: 40 mm
• Condensate Drain: Manually Rotating
• Design: Filter Regulator With Pressure Gauge
• Max. Condensate Volume: 43 ml
• Bowl Guard: Metal Bowl Guard
• Symbol: 00991585
• Pressure Gauge: With Pressure Gauge
• Operating Pressure: 1 bar ... 16 bar
• Pressure Regulation Range: 0.5 bar ... 12 bar
• Max. Pressure Hysteresis: 0.2 bar
• Standard Nominal Flow Rate: 3100 L/Min
• Operating Medium: Compressed Air As Per ISO 8573-1:2010 [-:9:-] Inert Gas
• Information On Operating And Pilot Media: Operation With Oil Lubrication Possible (Required For Further Use)
• Corrosion Resistance Class (CRC): 2 - Moderate Corrosion Stress
• Storage Temperature: -10 °c ... 60 °C
• Air Quality Class At The Output: Compressed Air As Per ISO 8573-1:2010 [7:8:4] Inert Gas
• Temperature Of Medium: -10 °c ... 60 °C
• Ambient Temperature: -10 °c ... 60 °C
• Product Weight: 920 G (2,028)
• Pneumatic Connection 1: G3/8
• Pneumatic Connection 2: G3/8
• Note On Materials: RoHS-Compliant
• Housing Material: Die-Cast Zinc
• Material Of Bowl: PC
