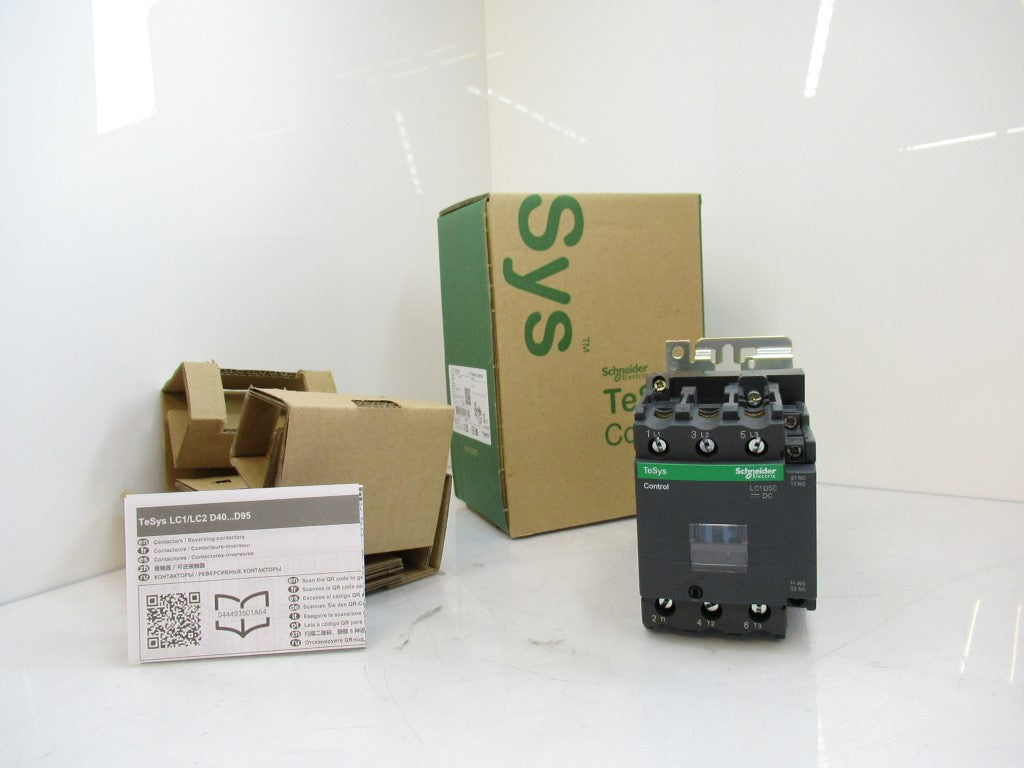

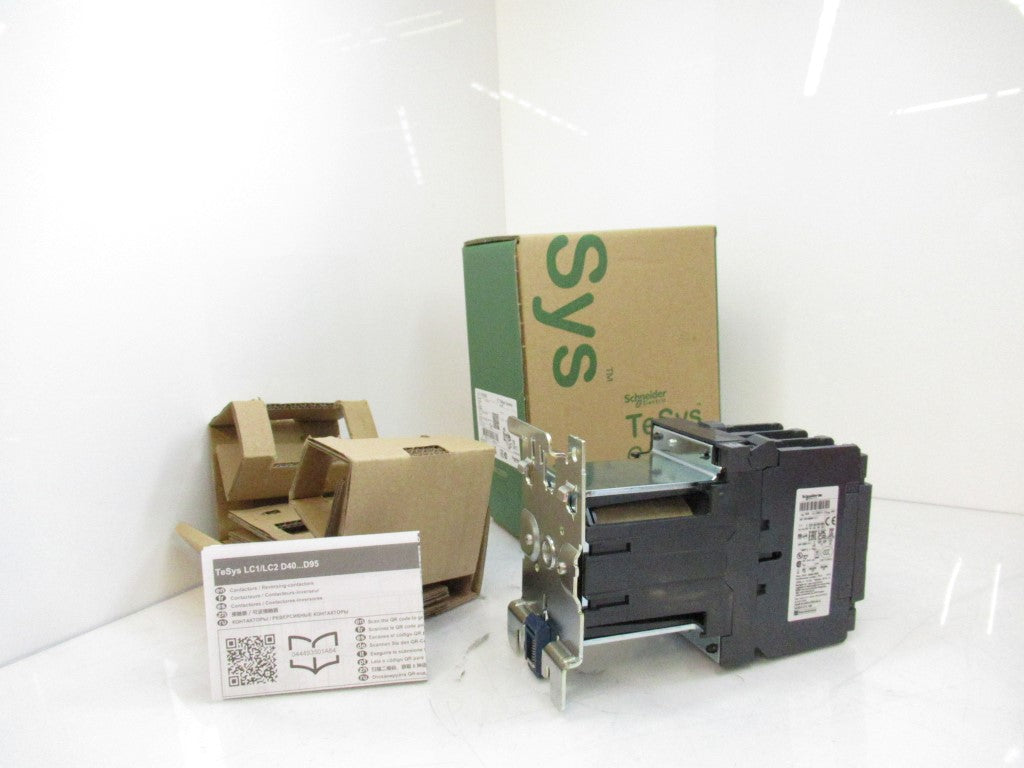

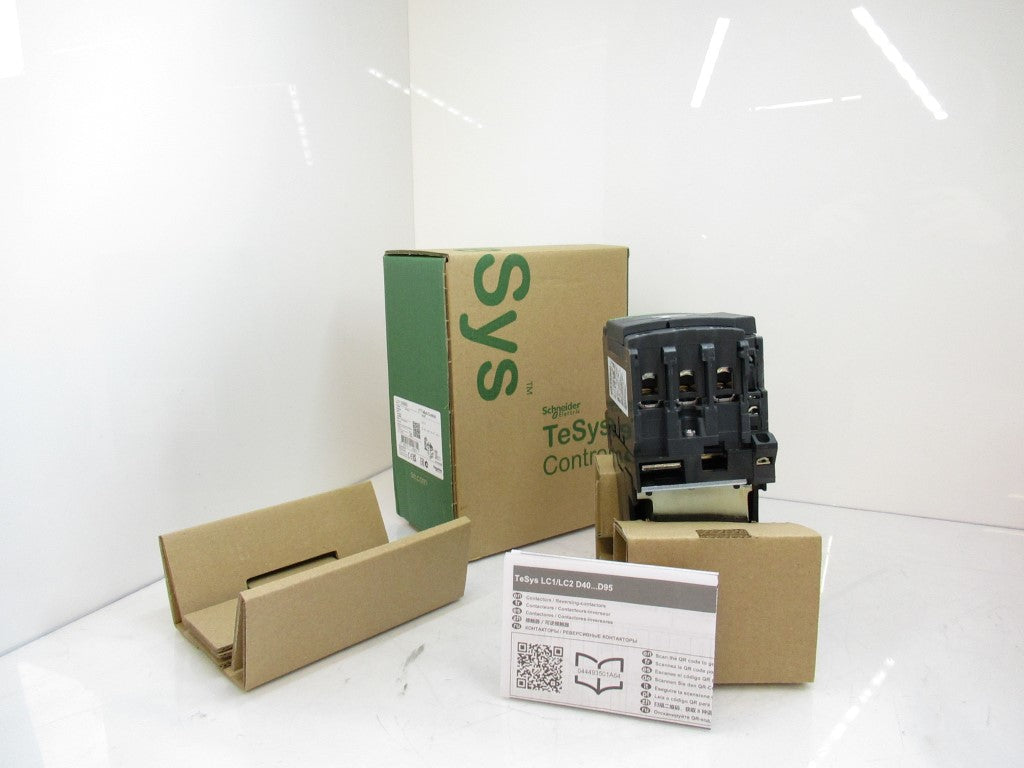

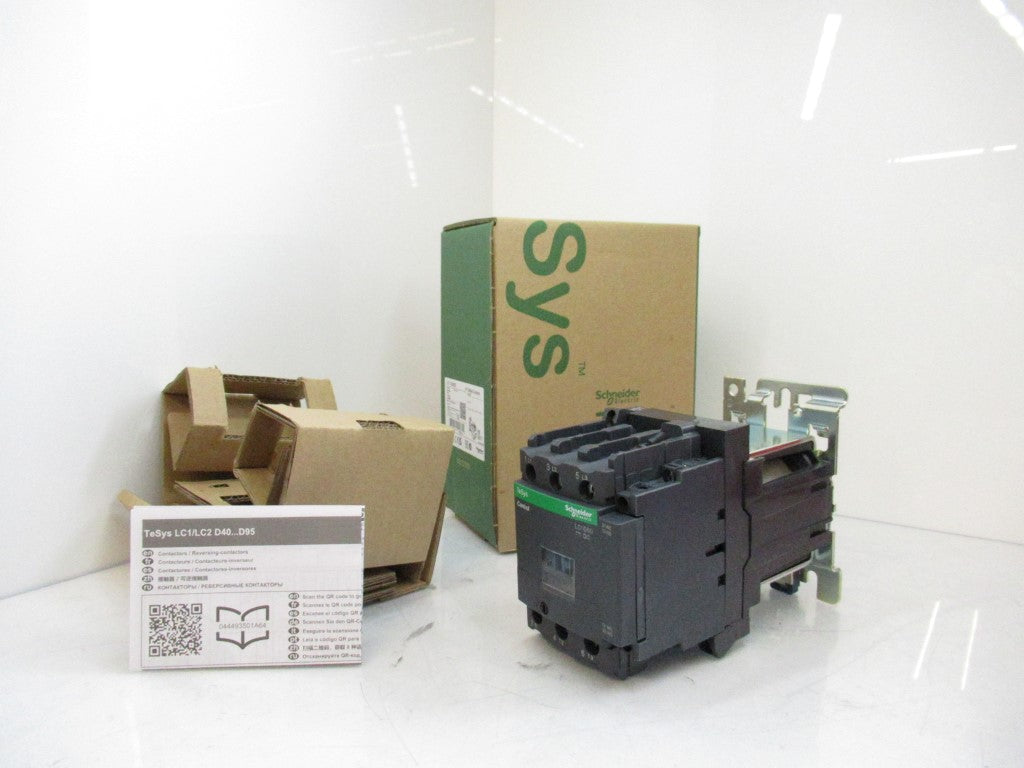

Schneider Electric Telemecanique TeSys Deca LC1D50BD Contactor, 24V...
Country Of Origin: Czech Republic
Description:
- Product Type: TeSys Deca Contactor
- Device: LC1D
- Application: Resistive load
- Utilisation Categories:
- AC-2
- AC-4
- AC-3
- AC-3e
- Poles: 3P
- Rated Operational Voltage: ≤ 690 V AC, 25-400 Hz
- Rated Operational Current:
- 80 A (AC-1)
- 50 A (AC-3e)
- 50 A (AC-3)
- Control Circuit Voltage: 24 V DC
- Motor Power:
- Up to 33 kW at various voltages and frequencies
- Up to 40 hp for 3-phase motors
- Compatibility: LC1D
- Pole Contact: 3 NO
- Protective Cover: Yes

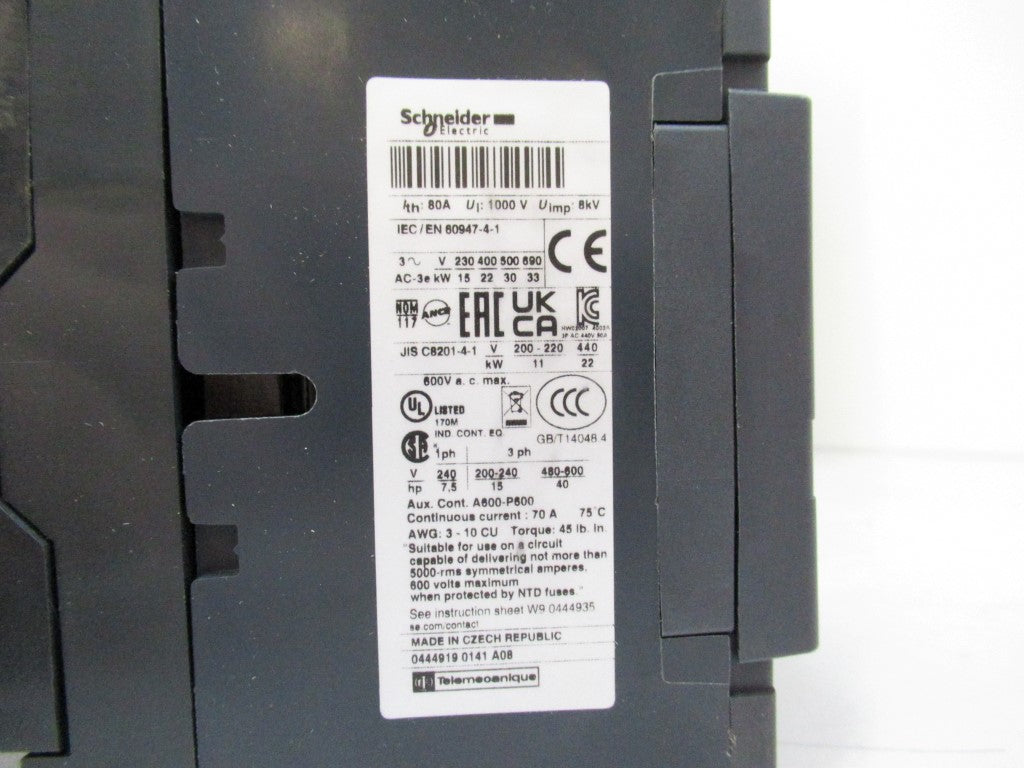

- Thermal Current: 80 A (power), 10 A (control)
- Rated Making Capacity: 900 A at 440 V DC
- Breaking Capacity: 900 A at 440 V AC
- Associated Fuse Rating: 100 A gG (power), 10 A gG (control)
- Power Dissipation: 9.6 W (AC-1), 3.7 W (AC-3e), 3.7 W (AC-3)
- Rated Insulation Voltage: 600 V UL/CSA (control), 690 V IEC (power)
- Overvoltage Category: III
- Impulse Withstand Voltage: 8 kV
- Safety Reliability Level: B10d = 20,000,000 cycles
- Mechanical Durability: 10,000,000 cycles
- Control Circuit Type: DC wide range
- Coil Technology: Built-in bidirectional peak limiting diode suppressor
- Control Circuit Voltage Limits: 0.75-1.25 Uc
- Inrush Power: 19 W
- Hold-in Power Consumption: 7.4 W
- Rated Operational Power: Up to 96 W
- Operating Time: 50 ms (closing), 20 ms (opening)
- Time Constant: 34 ms
- Maximum Operating Rate: 3600 cyc/h
-
