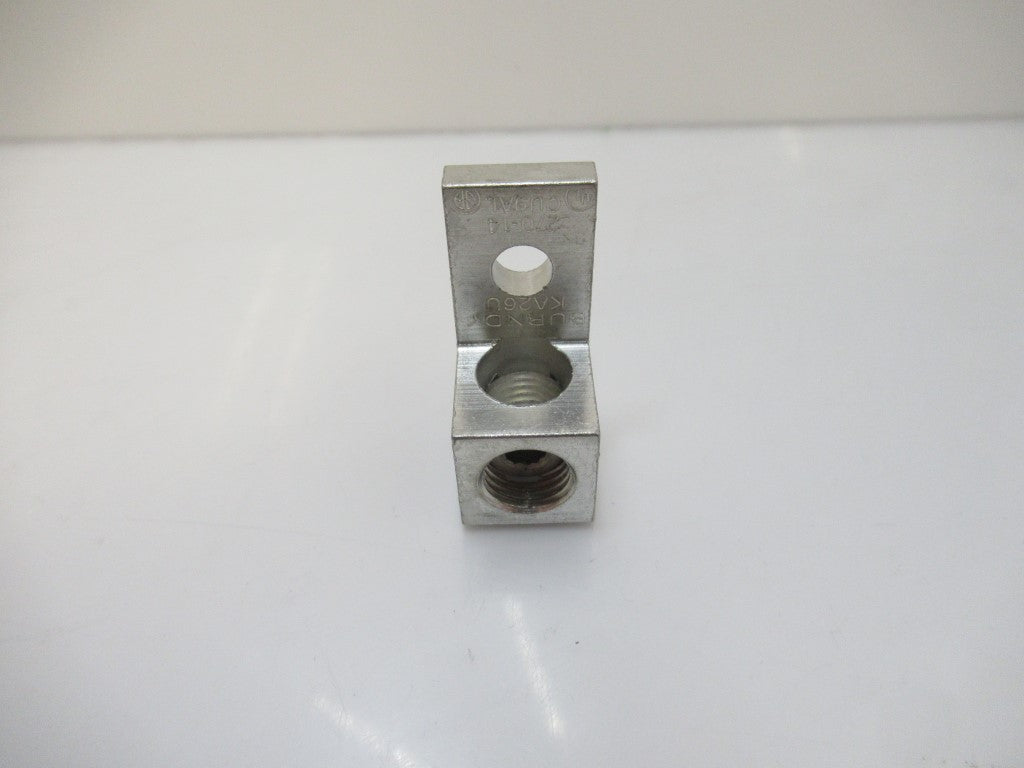

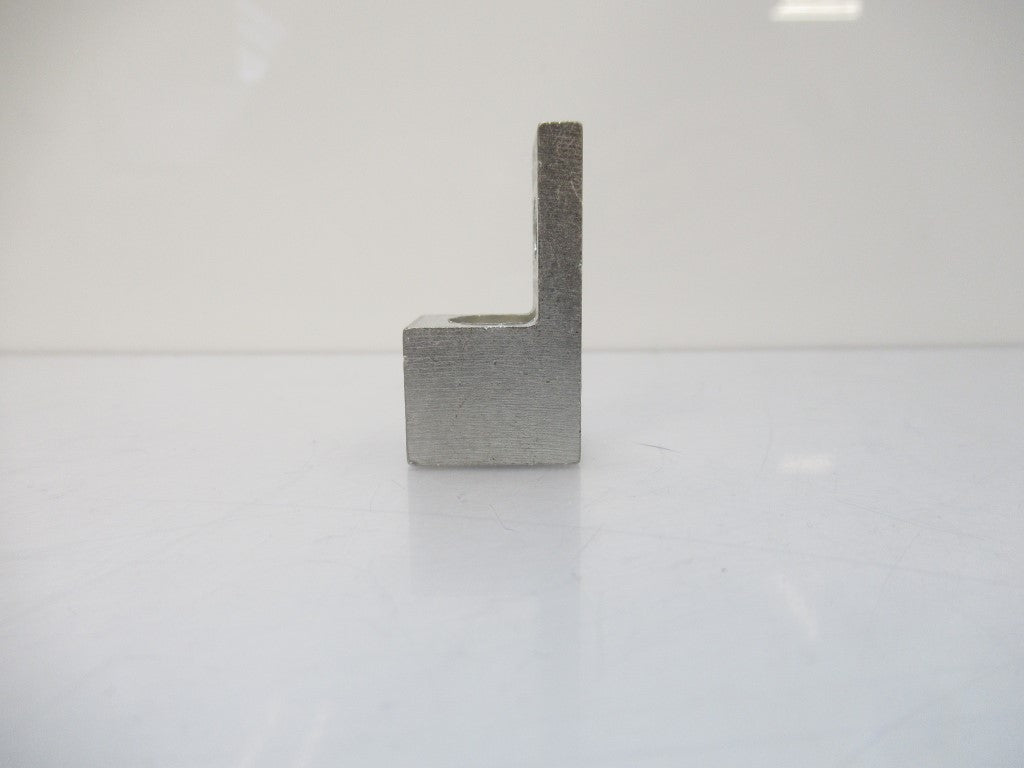

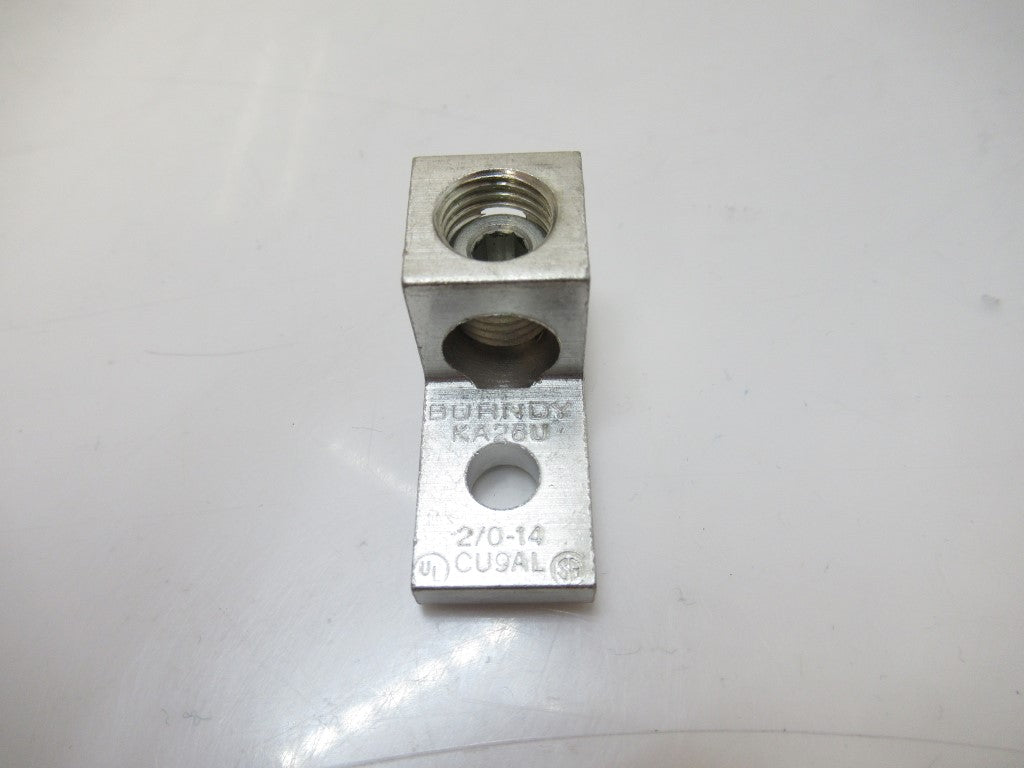

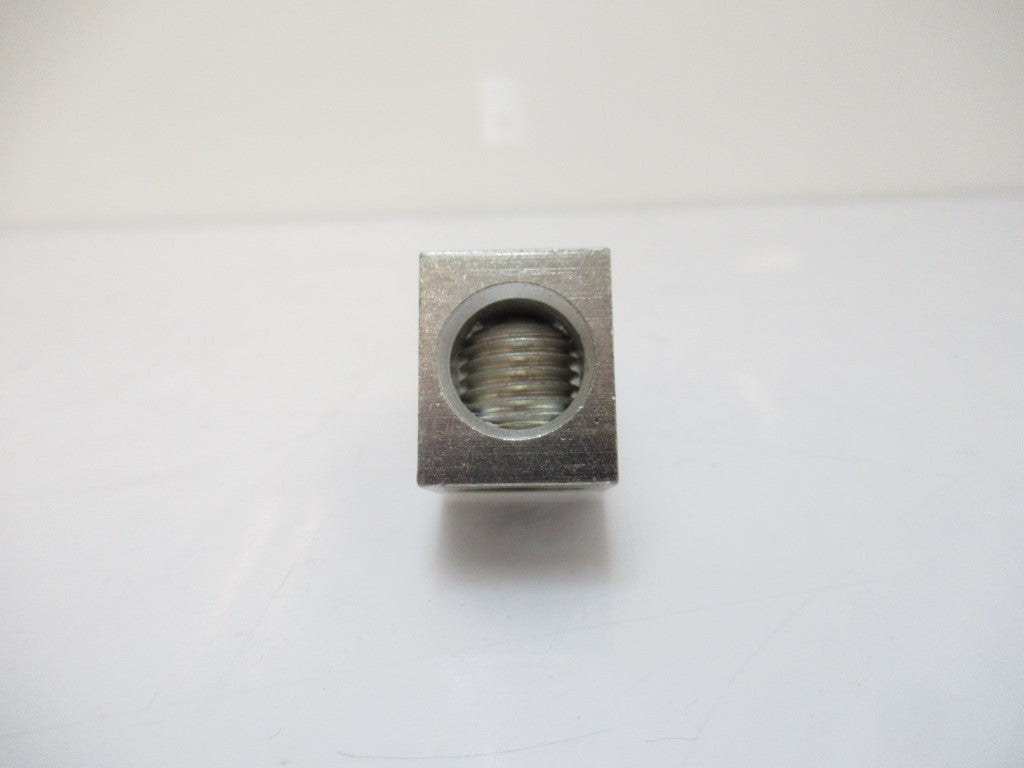

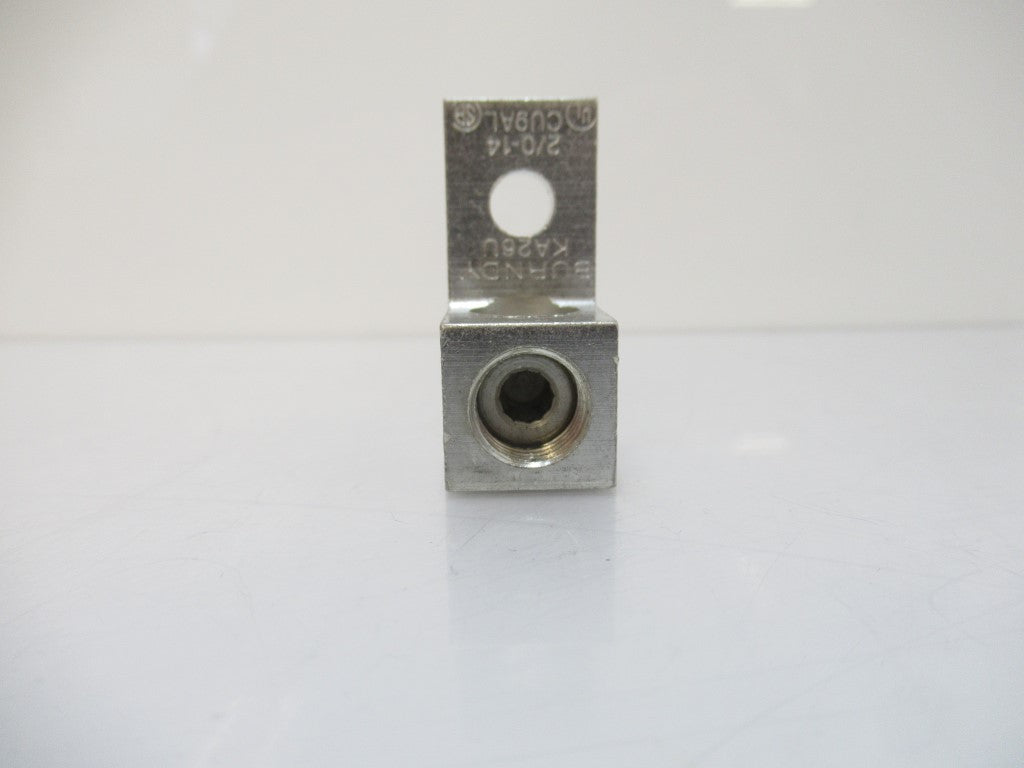

Burndy KA26U Aluminum Universal Terminal, 6-2/0 AWG - 1/4"

SKU FAS-0181-E
Sold out
Original price $1.94 USD - Original price $1.94 USD
Original price
$1.94 USD
$1.94 USD - $1.94 USD
Current price $1.94 USD
Availability:
Out of stock
Pre Order

Delivery Option

Ups Express next day air or standard shipping is available at the checkout !

Specifications
Request a quote
by BURNDY

Industrial Automation Parts is Not Authorized Distributor of this product. Manufacturer's Warranty & Support DO NOT apply. Our IAP warranty of 3 month is applicable.

Product Information

Sold By Unit

Application For Aluminum And Copper Conductors
Connector Type Terminal
EU RoHS Indicator Yes
Installation Torque Recommended in-lb 120 LBS/in
Material Aluminum
Material - Hardware Aluminum
Physical Attribute - Number of Holes 1
Physical Attribute - Number of Screws 1
Physical Attribute - Screw Type Allen
Plated Y
Plating Type Tin
Sub Brand UNIVERSAL TERM
Temperature Rating 194
Type Bolted Lugs & Terminals
UPC 781810370100
Dimension - Bolt Hole Size 0.25 in
Dimension - D 0.81 in
Dimension - Height fraction 4/5 in
Dimension - Height 0.80 in
Dimension - Hole Size 0.27 in
Dimension - Hole Size 7 mm
Dimension - L Length Overall 37 mm
Dimension - Length Overall 1.47 in
Dimension - N 0.45 in
Dimension - Pad Width 0.64 in
Dimension - Stud Size 1/4
Dimension - Width fraction 63/100 in
Dimension - Width 0.63 in
Dimension - Width 16 mm
Conductor - AL Str Size 14;4;3;2;1;1/0;2/0
Conductor - AL Str Size Range 14-2/0
Conductor - Copper Str Size 14;5;4;3;2;1;1/0;2/0
Conductor - Copper Str Size Range 14-2/0
Conductor - Nominal Diameter 0.184, 0.184, 0.206, 0.232, 0.232, 0.260, 0.260, 0.292, 0.320, 0.328, 0.360, 0.368, 0.390, 0.414, 0.438
Conductor Type
  • CU C Str-Size
  • AL C Str-Size
Number Of Conductors 1
Certification - UL Listed Direct Burial No
Industry Standard(s) UL 486A-486B
Standards - Industry Standards Met UL 486A-486B
Standards - RoHS Compliance Status EX
UL Listed Yes
