K0006.1501106X20 5720K31 Clamping Handle With Threaded Stud M6 x 1 mm

SKU BRKT-0145-E
Original price $17.53 USD - Original price $17.53 USD
Original price
$17.53 USD
$17.53 USD - $17.53 USD
Current price $17.53 USD
Availability:
12 in stock, ready to be shipped

Delivery Option

Ups Express next day air or standard shipping is available at the checkout !

Specifications
Request a quote
by KIPP

Industrial Automation Parts is Not Authorized Distributor of this product. Manufacturer's Warranty & Support DO NOT apply. Our IAP warranty of 3 month is applicable.

K0006.1501106X20 K00061501106X20

5720K31

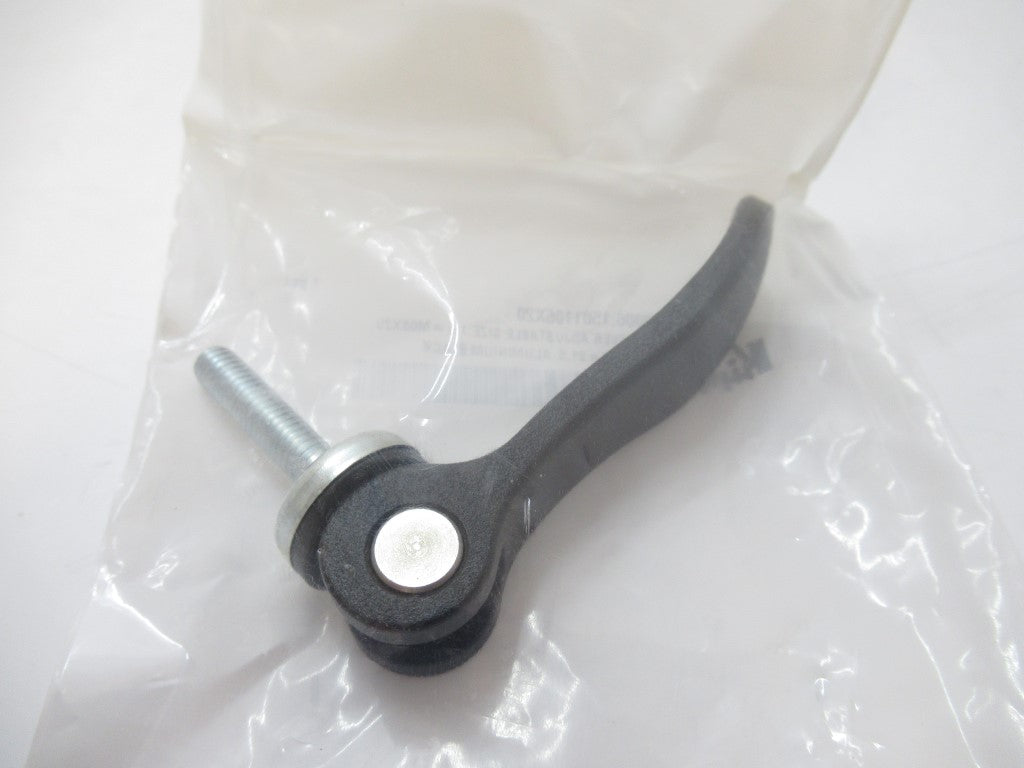

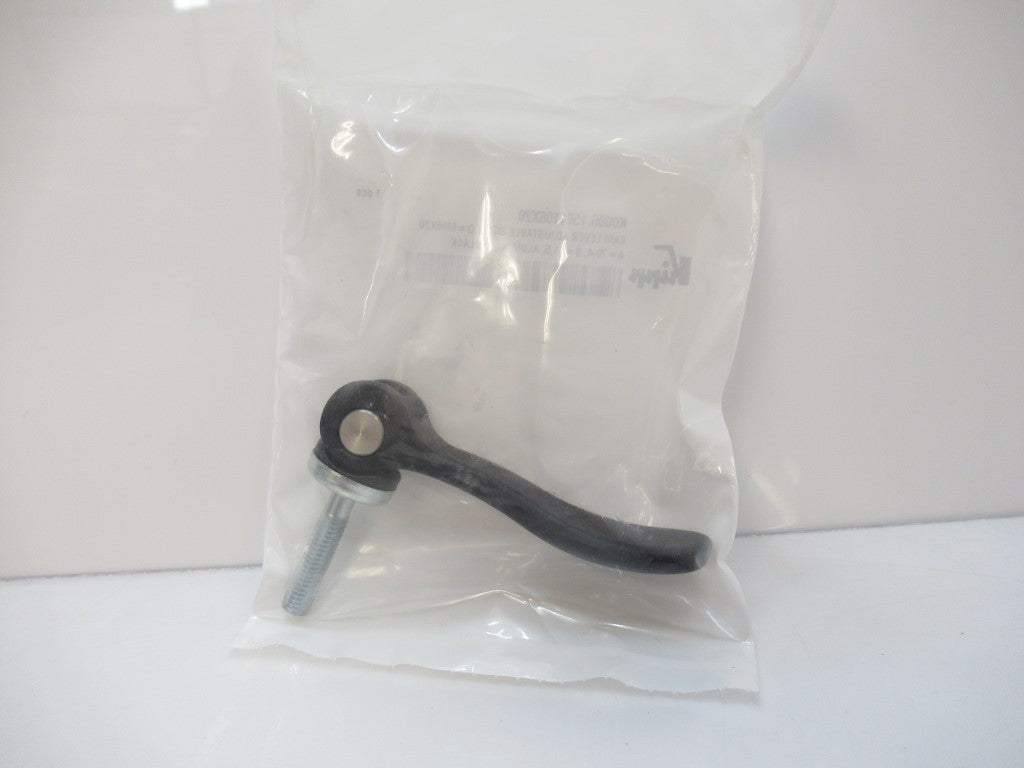

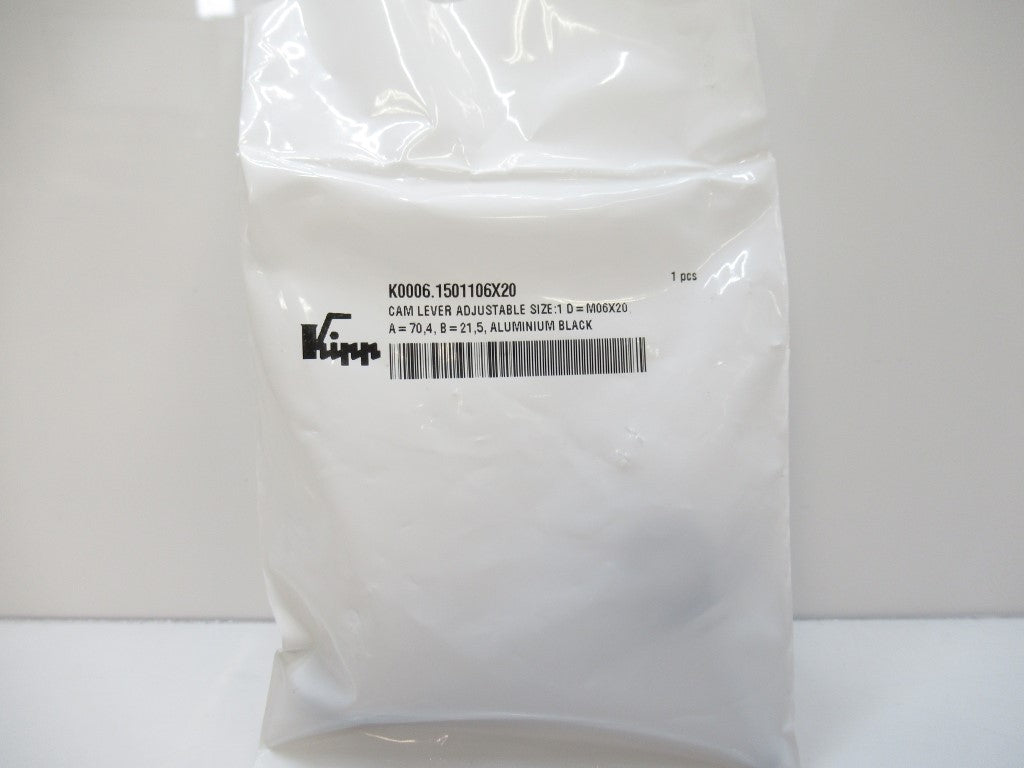

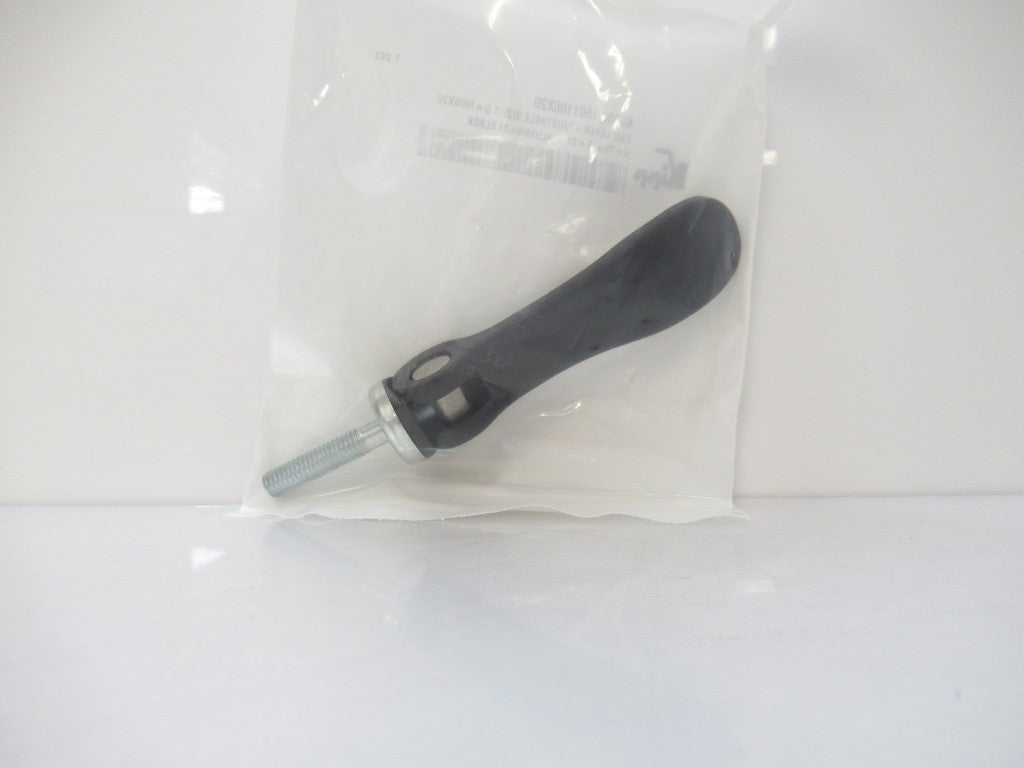

Clamping Handle With Threaded Stud, M6 x 1mm, 20mm Long Thread

(New In Bag)

Description

  • Handle Style: Cam
  • Mount Type: Threaded Stud
  • System of Measurement: Metric

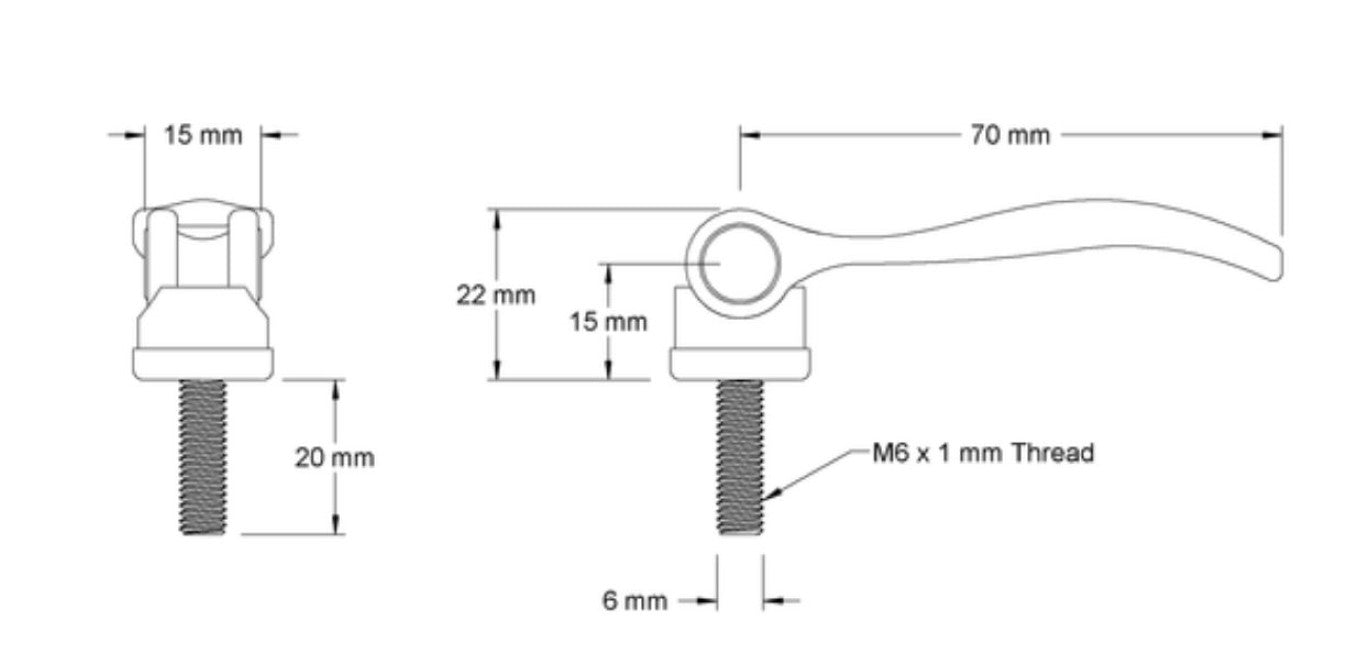

  • Thread Size: M6, Pitch; 1 mm, Length; 20mm
  • Clamping Distance: 1.19mm
  • Handle: Length; 70mm, Width; 15mm
  • Center Height: 15mm
  • Clamped Height: 22mm
  • Maximum Clamping Force: 875 lbs.
  • Handle Material: Powder-Coated Aluminum
  • Handle Color: Black
  • Stud Material: Steel
  • Washer Material: Steel
  • Thrust Washer Material: Plastic
  • RoHS: RoHS 3 (2015/863/EU) Compliant
  • REACH: REACH (EC 1907/2006) (01/16/2020, 205 SVHC) Compliant
  • DFARS: Specialty Metals COTS-Exempt
