JPQNBB8-9 JPQNBB89 Misumi Large Head Locating Pin - Spherical Tip, New

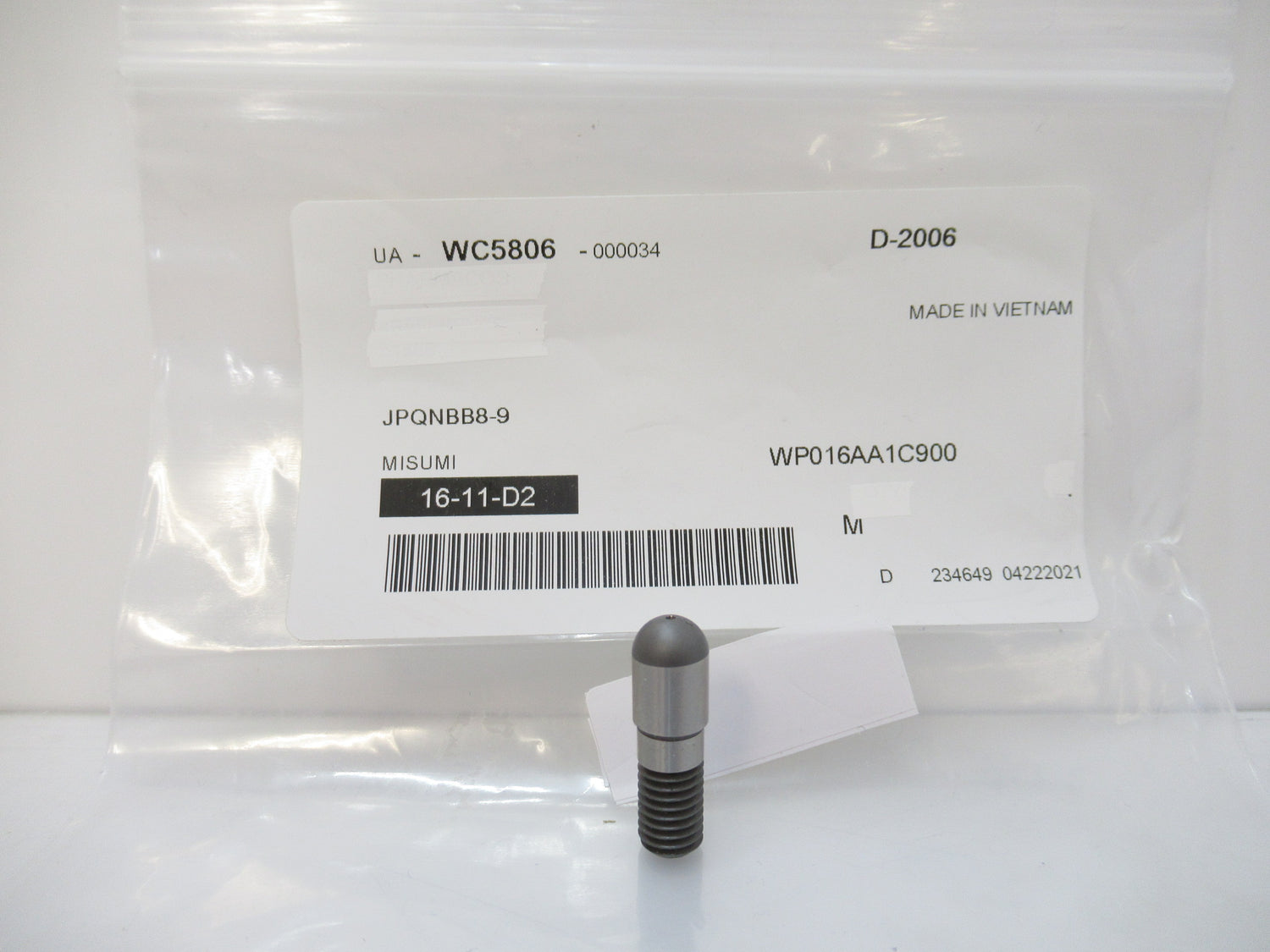

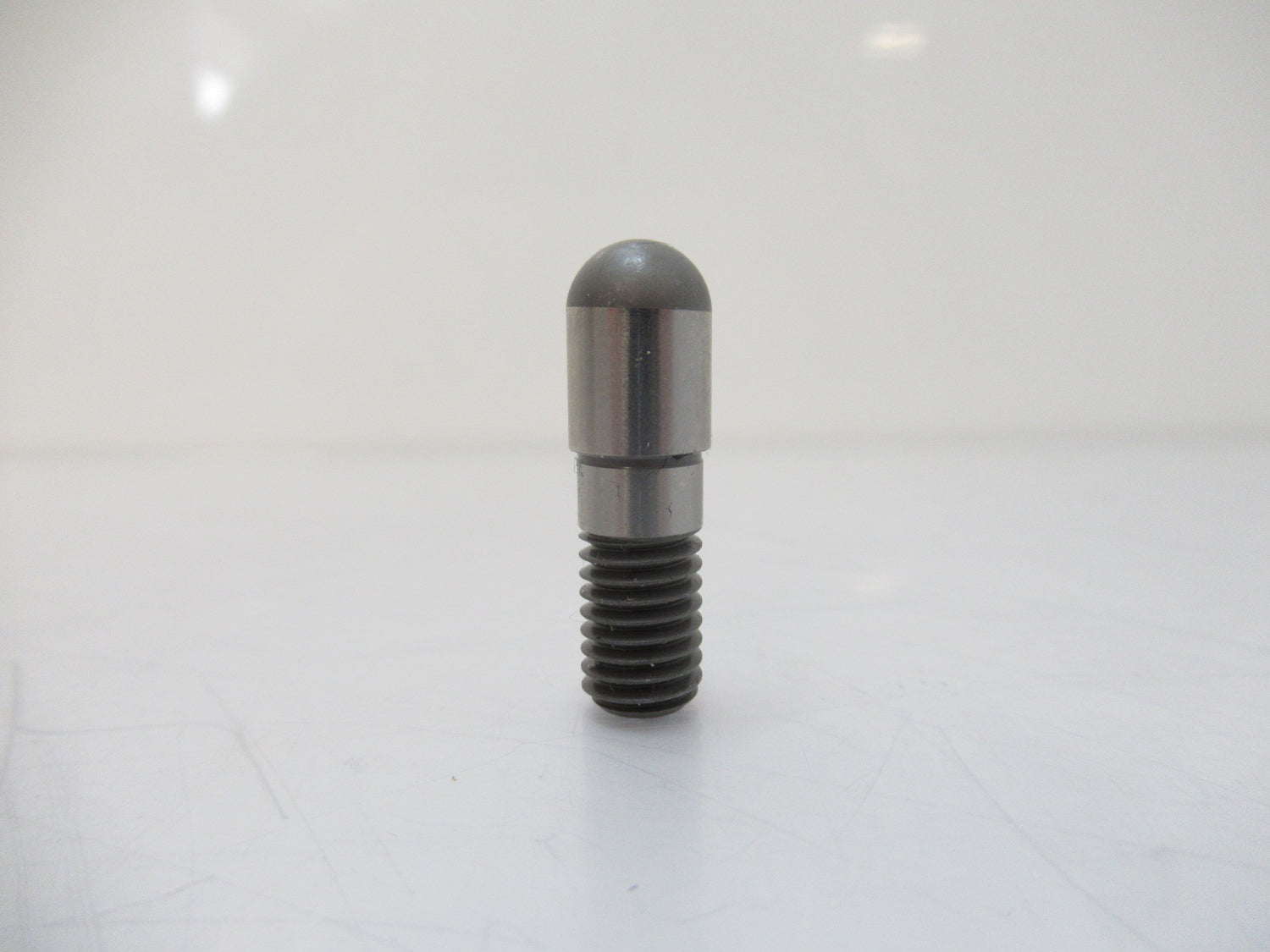

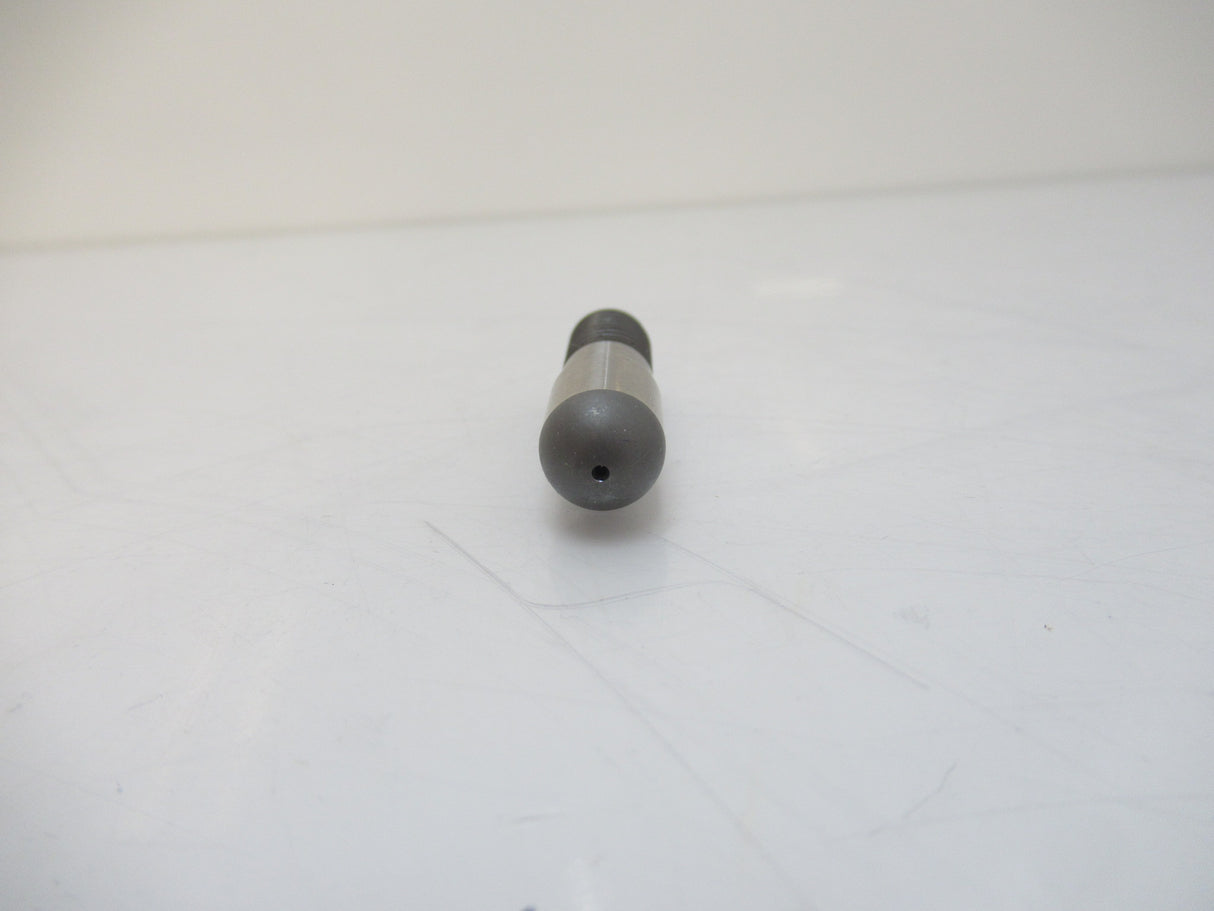

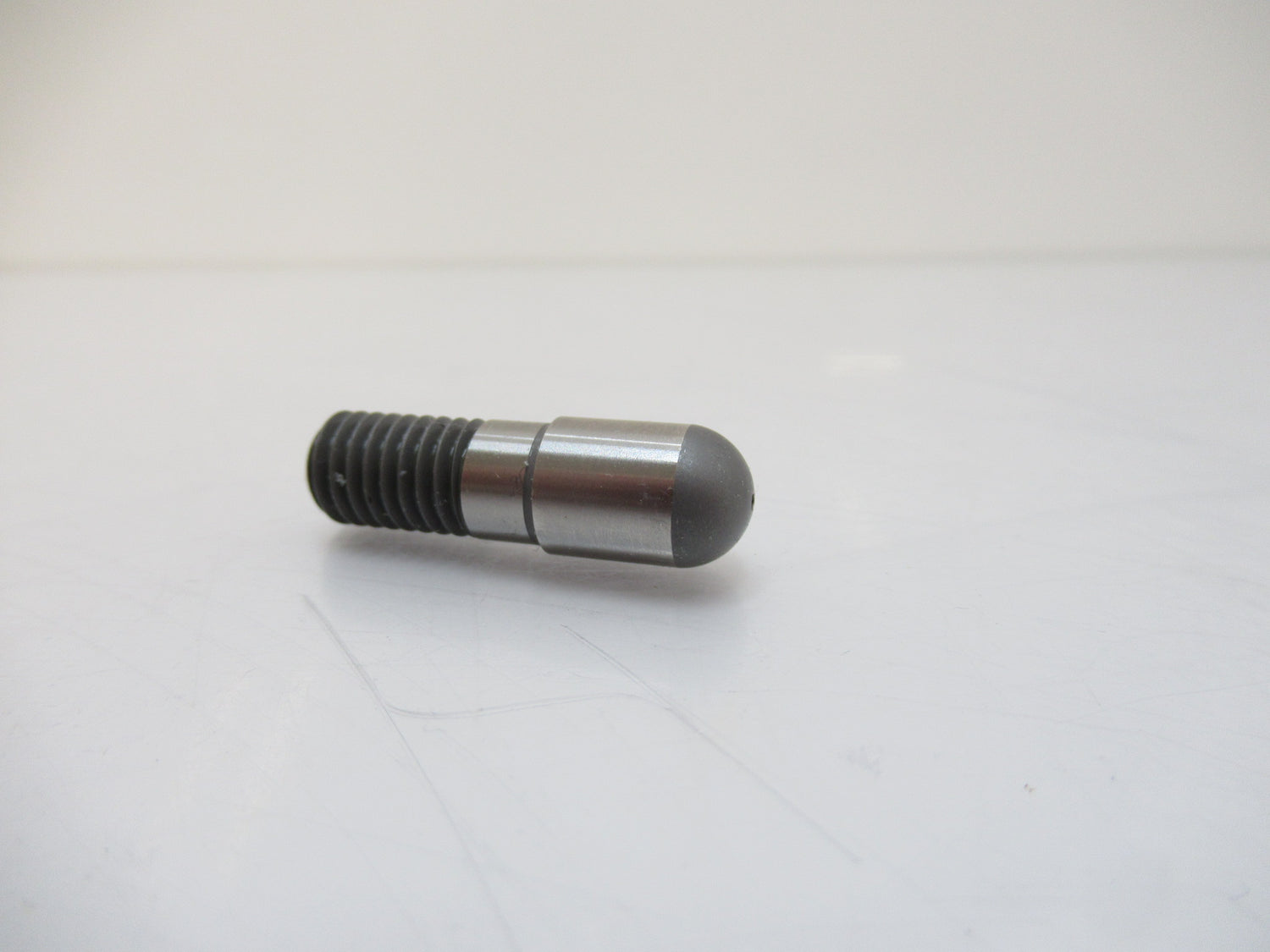

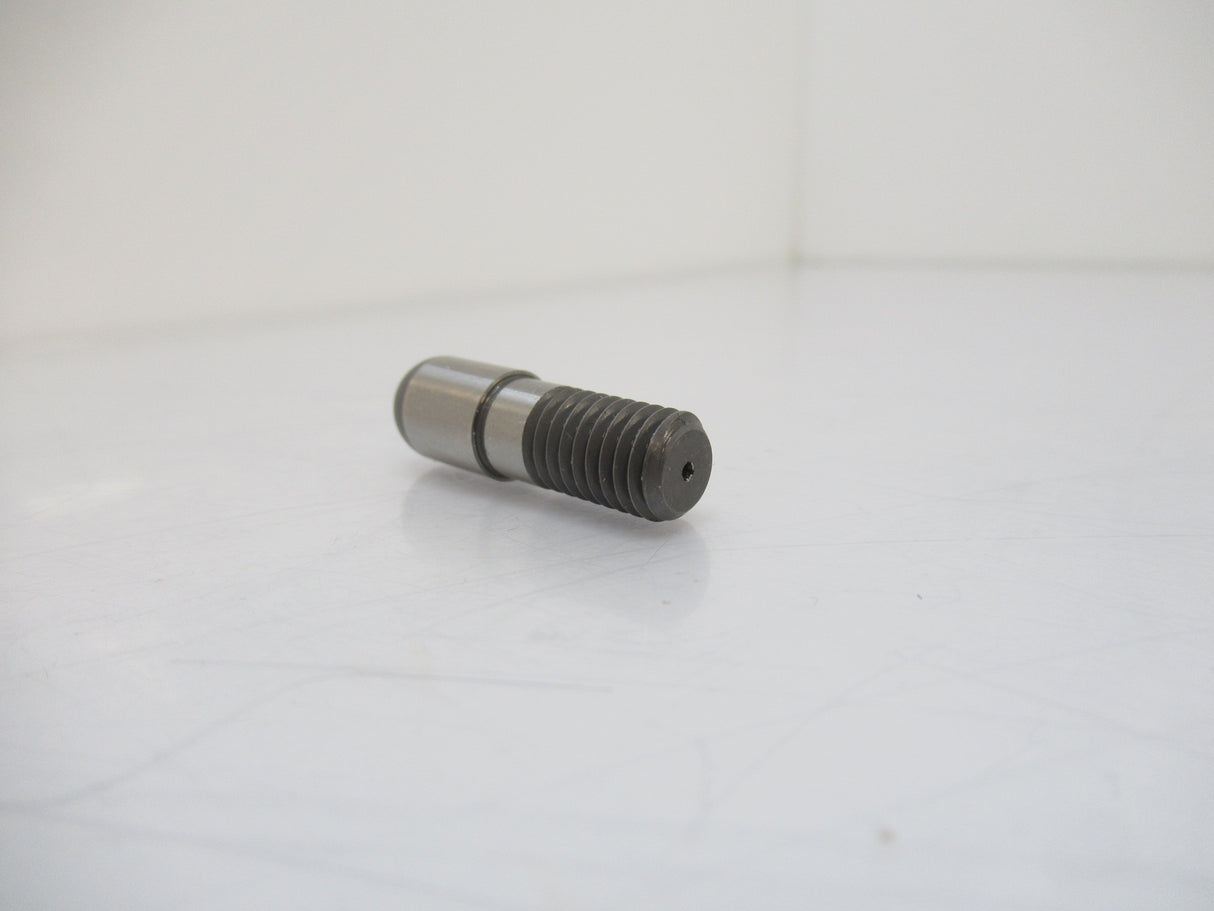

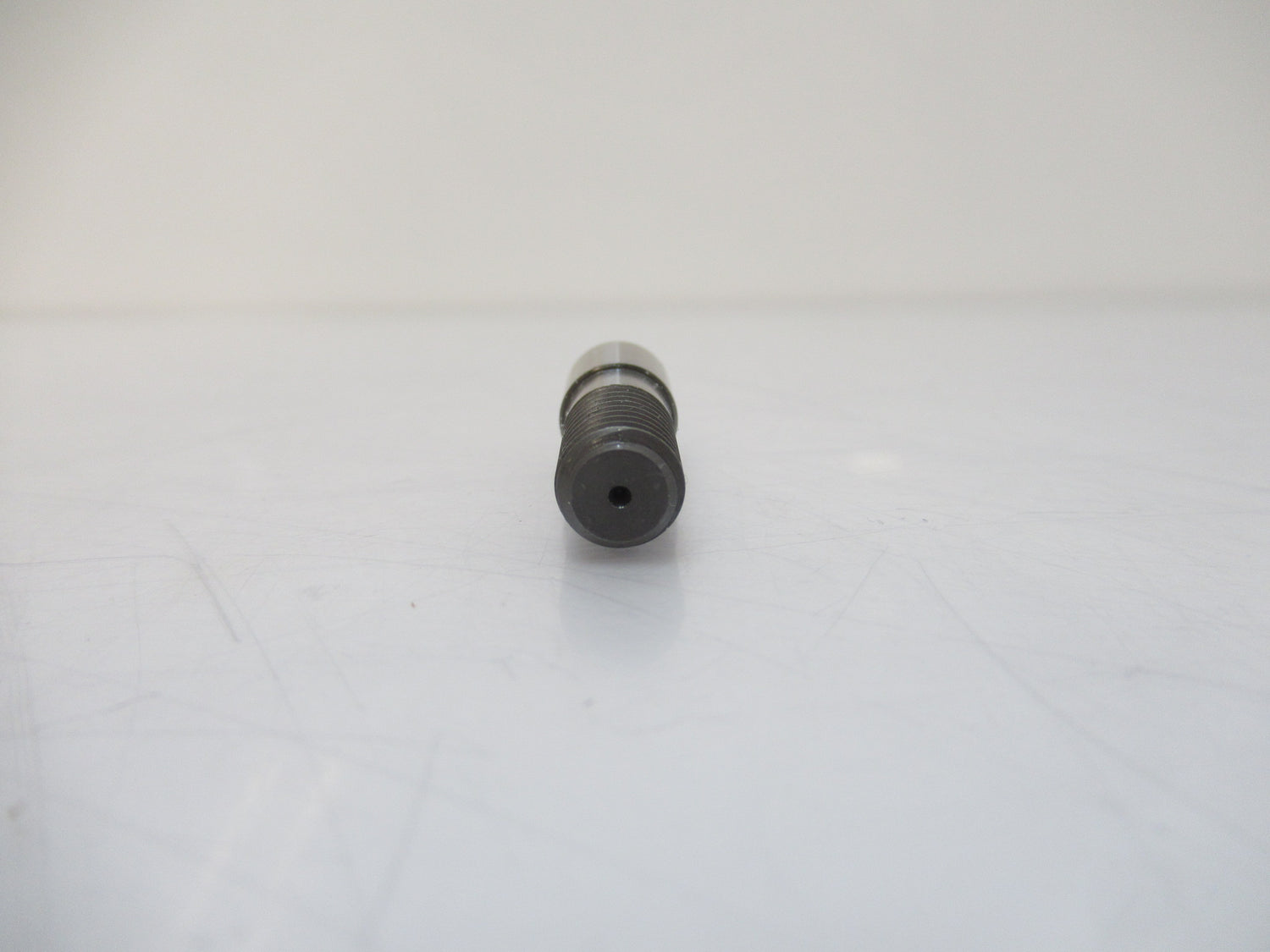

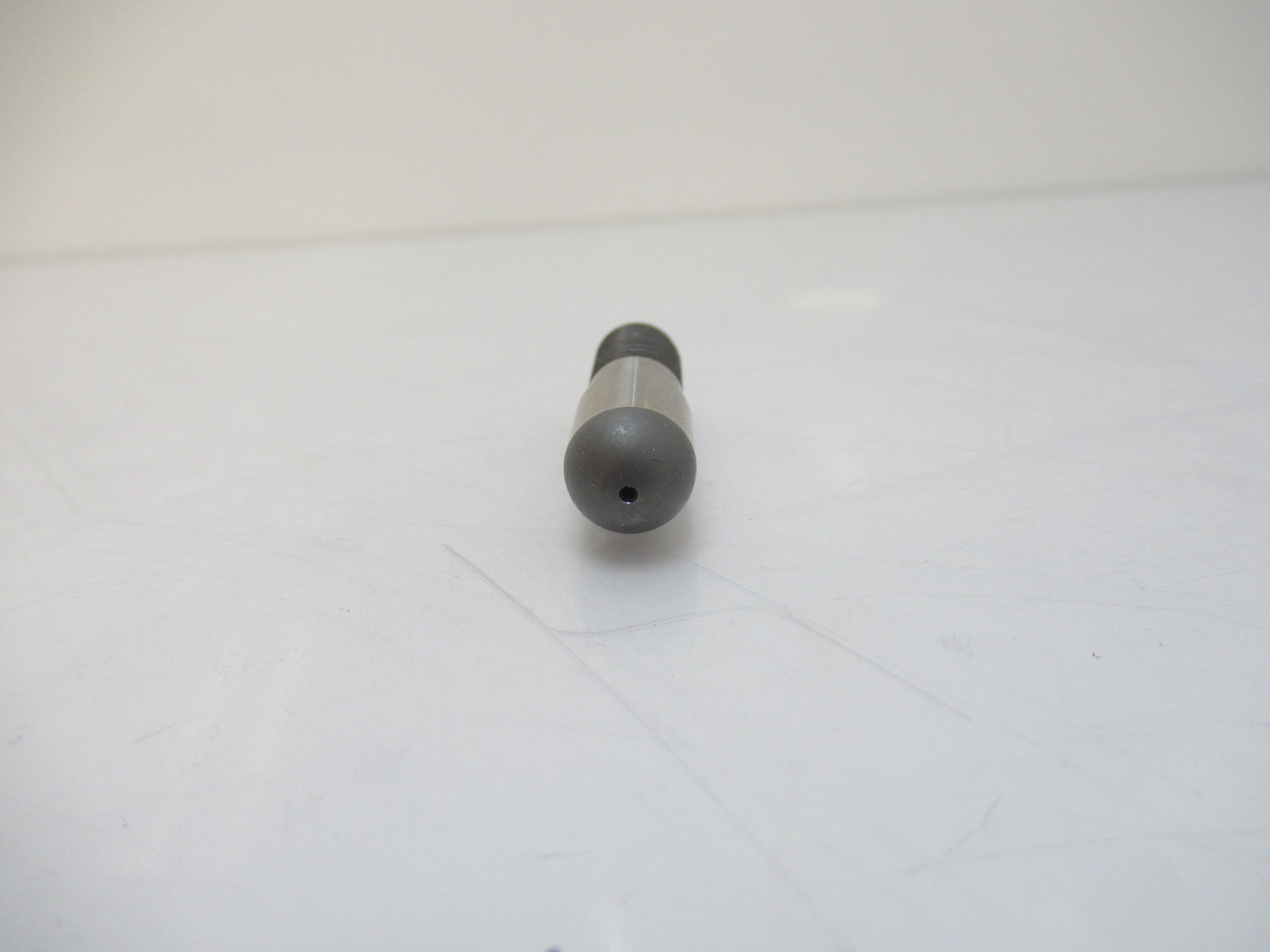

JPQNBB8-9 Misumi Large Head Locating Pin - Spherical Tip

by MISUMI
$13.74 USD
FACTORY SUPPLY BRAND NEW
SKU QUIN-2312-E
UPC: DOES NOT APPLY
Only 8 left!
-
+

This product is in shipment and will be arriving shortly. Enter your email below to be notified of its arrival.

JPQNBB8-9 JPQNBB89

Misumi

Large Head Locating Pin - Spherical Tip, Threaded Shank, P/L/B/ML Configurable

Sold By Unit, New

Specifications

  • Basic Shape: Large Head
  • Head Shape: Round
  • Head Tip Shape: Spherical Surface
  • Drive: No
  • Shank Style: Male thread
  • Material: [Steel] O1 Tool Steel
  • Heat Treatment: Hardened
  • Surface Finish: [None] No
  • Positioning Side Outer Diameter P(mm): 9
  • Tolerance of Positioning Side Outer Diameter: 0/-0.01
  • Mounted Side Outer Diameter D(mm): 8
  • Shank Dia. Tolerance: g6
