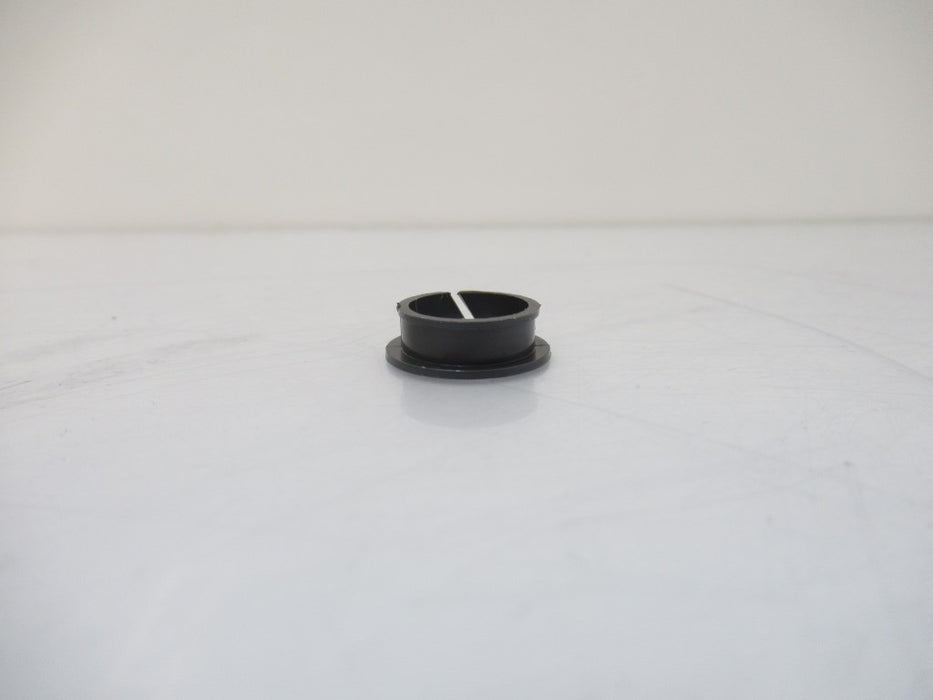

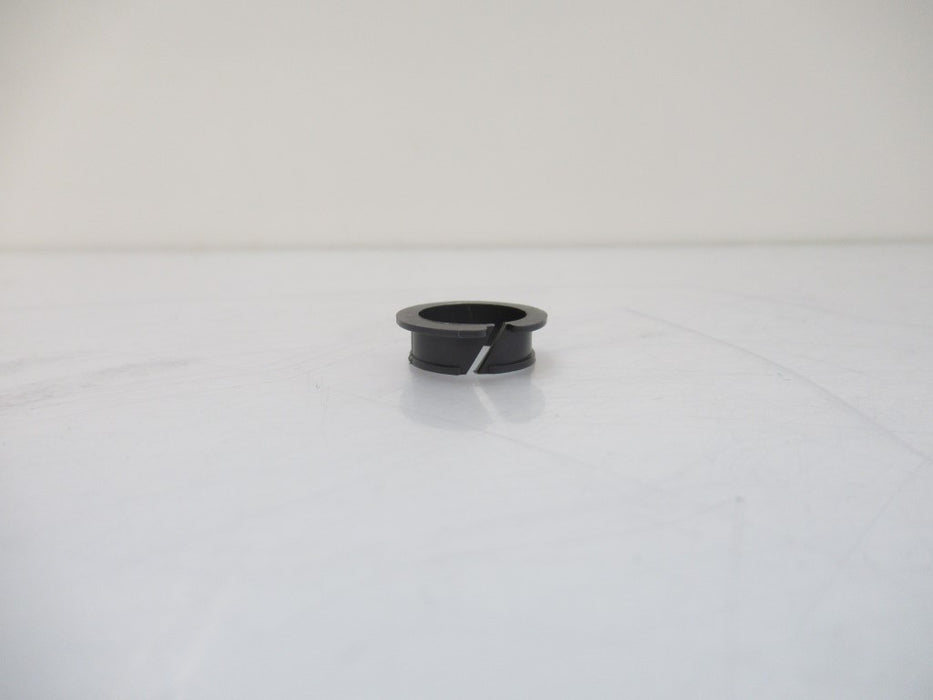

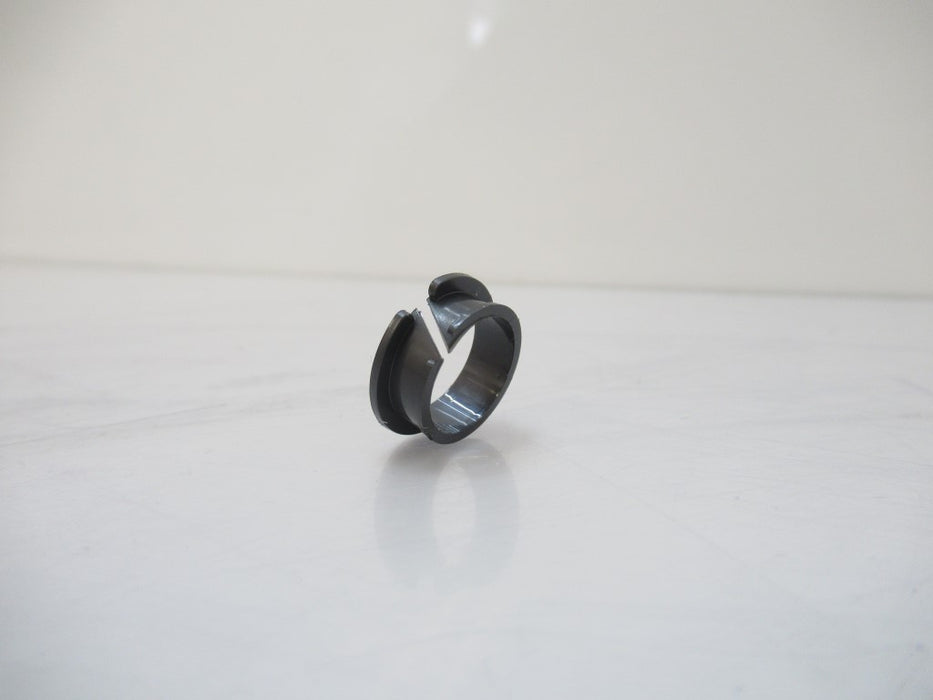

Igus MCM-12-035 Iglide M250, Double Flange Bearing
MCM-12-035 MCM12035
Igus
Iglide M250, Double Flange Bearing, MCM
Description:
Iglide clip bearings are designed specifically for fitting shafts through sheet metal. For this reason, the bearings have flanges located on both ends. The bearings are secured in the sheet metal plate on both sides after fitting.
Sold By Unit

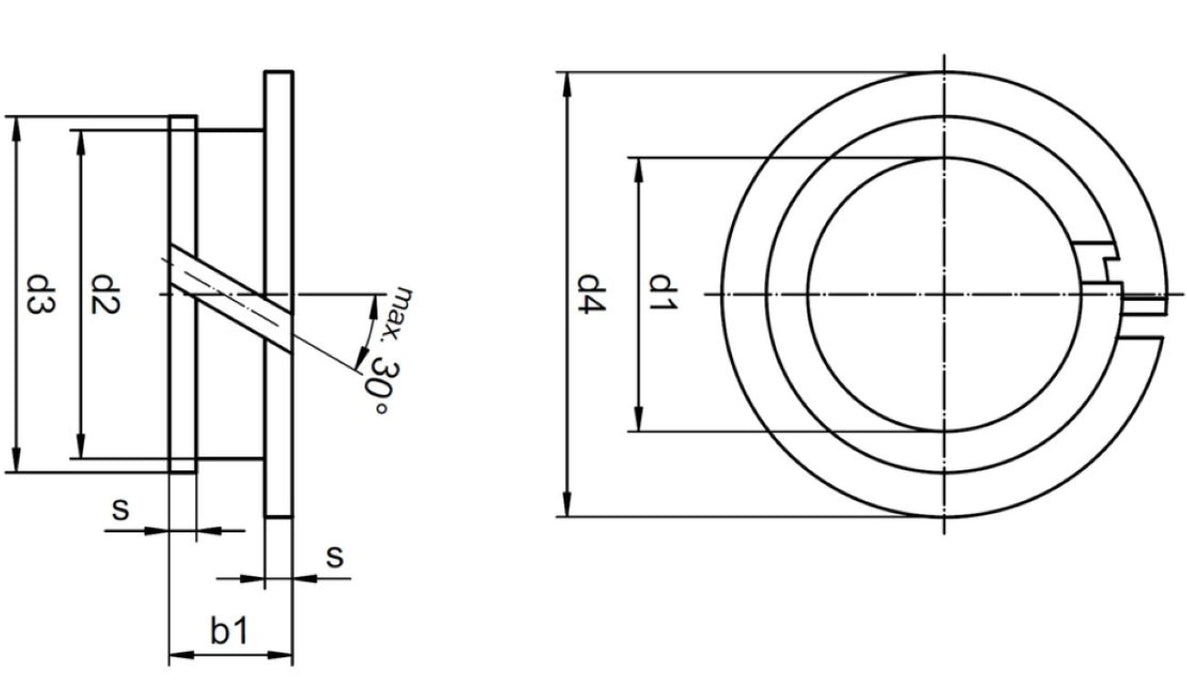

Dimensions
|
Ø d1 |
12.0 mm |
|
Ø d2 |
13.60 mm |
|
Flange diameter d3 |
14.4 mm |
|
Ø d4 |
17.0 mm |
|
b1 |
5.1 mm |
|
Thickness s |
0.8 mm |
Production and installation tolerances
|
d1-Tolerance bearing |
+0.050 +0.160 mm, D11 |
|
Housing bore tolerance |
H13 |
|
b1-Tolerance |
+0.20 mm |
|
s-Tolerance |
-0.10 mm |
General properties
|
Material |
iglide® M250 |
|
Density |
1.14 g/cm3 |
|
Color |
anthracite |
|
Max. moisture absorption (at 23 °C/73 °F, 50% r.h.) |
1.4 Wt.-%, test method DIN 53495 |
|
Max. water absorption |
7.6 Wt.-% |
|
Coefficient of sliding friction, dynamic, against steel |
0.18 - 0.40 μ |
|
pv value, max. (dry) |
3,400 psi ⋅ fpm |
|
Radioactive radiation max. |
1 ⋅ 104 Gy |
