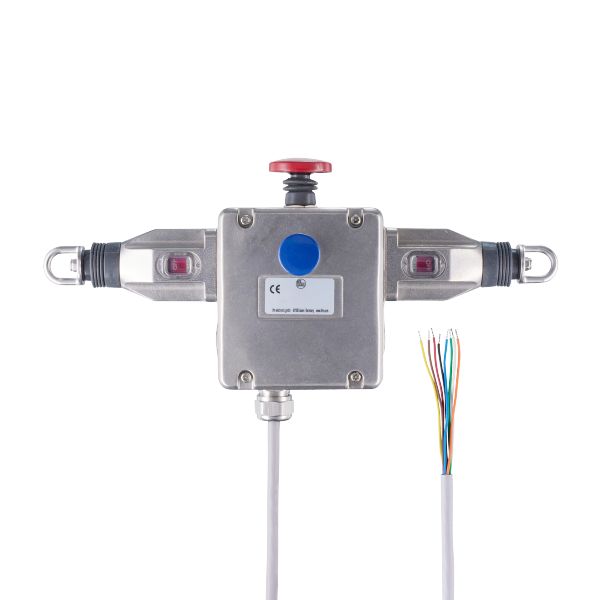

Ifm ZB0074 Safety Rope Emergency Stop Switch
Country Of Origin:
| Application | zone 21 hazardous area; zone 22 hazardous area; food industry |
|---|
| Operating voltage [V] | 250 AC/DC |
|---|---|
| Rated insulation voltage [V] | 500 |
| Electrical design | snap-action contact; thermal current: 10 A | ||||
|---|---|---|---|---|---|
| Output function |
|
||||
| Contact rating | 2,5 A | ||||
| Short-circuit protection | no |
| Ambient temperature [°C] | -25...60 |
|---|---|
| Protection | IP 67; IP 69K |
| Shock resistance |
|
||
|---|---|---|---|
| Vibration resistance |
|
| Weight [g] | 3447.2 | ||
|---|---|---|---|
| Material | housing: stainless steel (1.4401 / 316) | ||
| Information on service life |
|
||
| Mounting orientation | any | ||
| Rope span | 125 m; (per side) | ||
| Activation force [N] | < 125; (tension force: 130 N) |
| Required protection | 10 A; fast acting |
|---|
| Remarks |
|
||
|---|---|---|---|
| Pack quantity | 1 pcs. |
| Connection | Cable: 3 m; Cable gland (stainless steel) |
|---|
