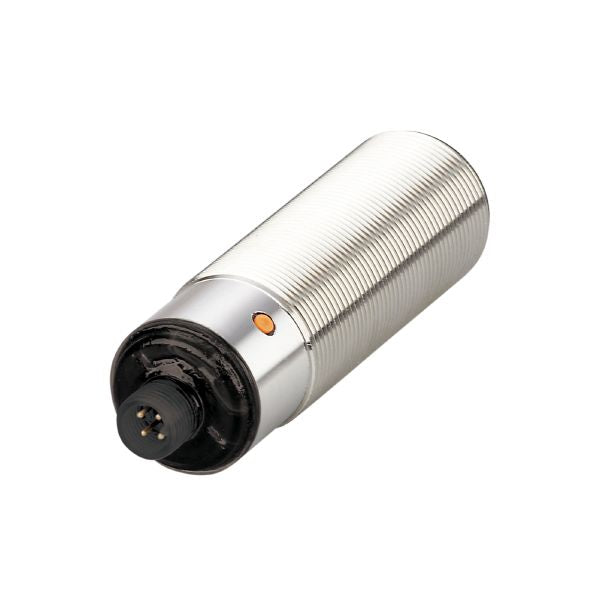

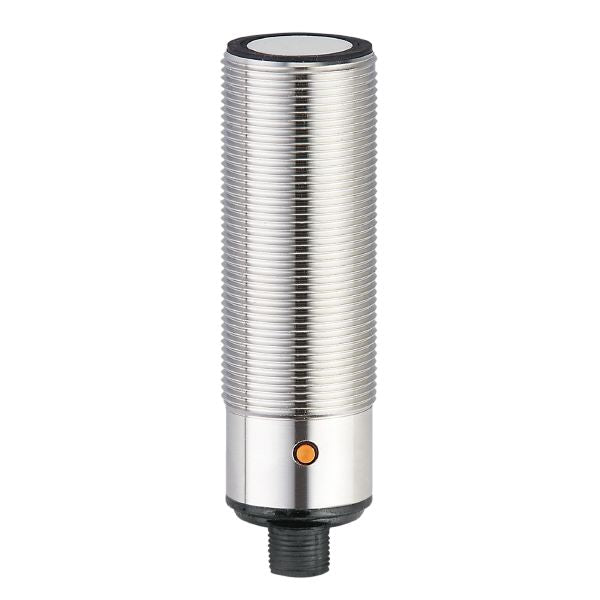

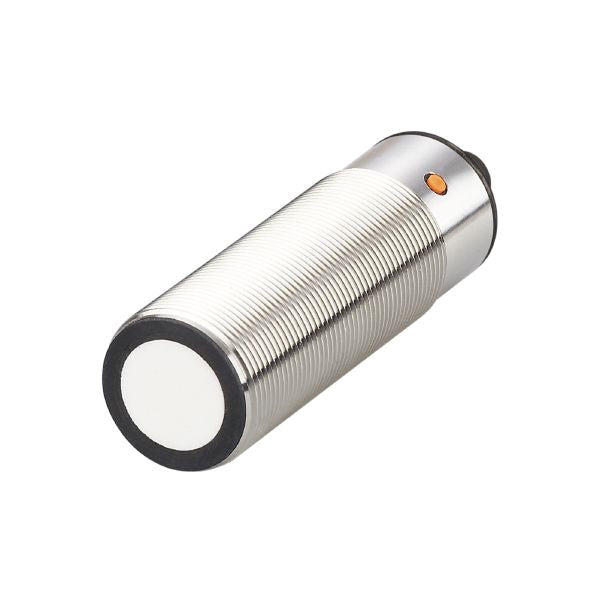

Ifm UIT500 Ultrasonic Sensor
Country Of Origin:
| Electrical design | PNP |
|---|---|
| Output function | normally open / closed; (configurable) |
| Sensing range [mm] | 250...3500; (Target: 200 x 200 mm) |
| Communication interface | IO-Link |
| Housing | Threaded type |
| Dimensions [mm] | M30 x 1.5 / L = 103 |
| Operating voltage [V] | 10...30 DC |
|---|---|
| Current consumption [mA] | < 30 |
| Protection class | III |
| Reverse polarity protection | yes |
| Power-on delay time [s] | < 0.3 |
| Converter frequency [kHz] | 112 |
| Number of inputs and outputs | Number of digital outputs: 2 |
|---|
| Total number of outputs | 2 |
|---|---|
| Electrical design | PNP |
| Number of digital outputs | 2 |
| Output function | normally open / closed; (configurable) |
| Max. voltage drop switching output DC [V] | 2.2 |
| Permanent current rating of switching output DC [mA] | 100 |
| Switching frequency DC [Hz] | 1 |
| Short-circuit protection | yes |
| Overload protection | yes |
| Sensing range [mm] | 250...3500; (Target: 200 x 200 mm) |
|---|---|
| Blind zone [mm] | 250 |
| Angle of aperture cylindrical [°] | 12; (±2) |
| Max. deviation from the 90° angle sensor/object [°] | ± 4 |
| Temperature compensation | yes |
|---|---|
| Hysteresis [%] | < 3 |
| Switch-point drift [%] | -5...5 |
| Repeatability | 1 % |
| Resolution [mm] | 3 |
| Notes on the accuracy / deviation | The indicated values are reached after a warm-up time of min. 20 minutes |
| Parameter setting options | hysteresis / window; second switch point; Switch-on and switch-off delay; switch-on operations; Teach function; light-on/dark-on mode |
|---|
| Communication interface | IO-Link | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Transmission type | COM2 (38,4 kBaud) | ||||||||
| IO-Link revision | 1.1 | ||||||||
| SDCI standard | IEC 61131-9 | ||||||||
| Profiles | Smart Sensor: Device Identification; Multi-channel, two setpoint switching sensor, type 0 Generic Profiled Sensor; Process Data Variable; Device Diagnosis; Teach Channel | ||||||||
| SIO mode | yes | ||||||||
| Required master port class | A | ||||||||
| Min. process cycle time [ms] | 3.2 | ||||||||
| IO-Link process data (cyclical) |
|
||||||||
| IO-Link functions (acyclical) | application specific tag; operating hours counter | ||||||||
| Supported DeviceIDs |
|
||||||||
| Note |
|
| Ambient temperature [°C] | -20...70 |
|---|---|
| Storage temperature [°C] | -30...80 |
| Protection | IP 67 |
| EMC |
|
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Vibration resistance |
|
||||||||||
| Shock resistance |
|
||||||||||
| MTTF [years] | 120 | ||||||||||
| UL approval |
|
| Weight [g] | 225.5 |
|---|---|
| Housing | Threaded type |
| Dimensions [mm] | M30 x 1.5 / L = 103 |
| Thread designation | M30 x 1.5 |
| Material | stainless steel (1.4404 / 316L); PA; epoxy glass ceramics |
