Ifm TT3291 Temperature Probe Sensor
Ifm TT3291 Temperature Probe Sensor is backordered and will ship as soon as it is back in stock.
As a Canadian company, please note that any product made in China and imported into the United States will be subject to a 30% tariff, which must be paid separately upon delivery. Please refer to our Shipping Policy for full details.
🚚 We Ship Worldwide! Get your order delivered anywhere.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Tariffs And Fees
Tariffs And Fees
Items made in China and imported in the United States will be hit with a 30% fee upon arrival. Extra Fees Might Apply.
Items made in Canada and imported in the United States will be hit with a 35% fee upon arrival. Extra Fees Might Apply.
Items lacking a specified Country of Origin will be classified as originating from China by customs, resulting in a 30% import tax upon delivery in the U.S. Extra Fees Might Apply.
Subscribe to our newsletter
Sign up for exclusive offers.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.

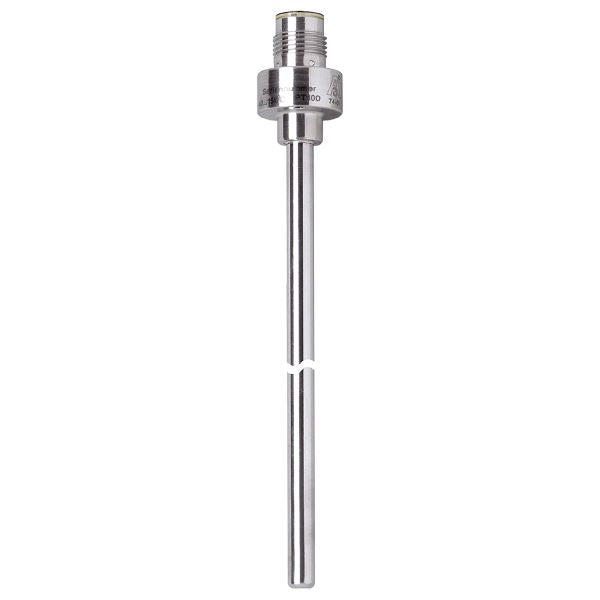

Ifm TT3291 Temperature Probe Sensor
Country Of Origin:
| Measuring range |
|
||
|---|---|---|---|
| Process connection | Ø 6 mm | ||
| Installation length EL [mm] | 350 |
| System | gold-plated contacts |
|---|---|
| Measuring element | 1 x Pt 100; (to DIN EN 60751, class A) |
| Application | hygienic systems |
| Media | liquids and gases |
| Pressure rating [bar] | 160 |
| Minimum installation depth [mm] | 15 |
| Protection class | III |
|---|
| Probe length L [mm] | 350 | ||
|---|---|---|---|
| Measuring range |
|
| Accuracy [K] | ± (0,15 K + 0,002 x|t|) |
|---|
| Dynamic response T05 / T09 [s] | 1 / 3; (according to DIN EN 60751) |
|---|
| Ambient temperature [°C] | -25...80 |
|---|---|
| Storage temperature [°C] | -40...100 |
| Protection | IP 68; IP 69K |
| Shock resistance |
|
||
|---|---|---|---|
| Vibration resistance |
|
||
| MTTF [years] | 22831 |
| Weight [g] | 63 |
|---|---|
| Dimensions [mm] | Ø 6 |
| Material | stainless steel (1.4404 / 316L) |
| Materials (wetted parts) | stainless steel (1.4404 / 316L) electropolished |
| Process connection | Ø 6 mm |
| Surface characteristics Ra/Rz of the wetted parts | Ra: < 0.8 |
| Probe diameter [mm] | 6 |
| Installation length EL [mm] | 350 |
| Remarks |
|
||
|---|---|---|---|
| Pack quantity | 1 pcs. |
| Connection | Connector: 1 x M12; coding: A; Contacts: gold-plated |
|---|
