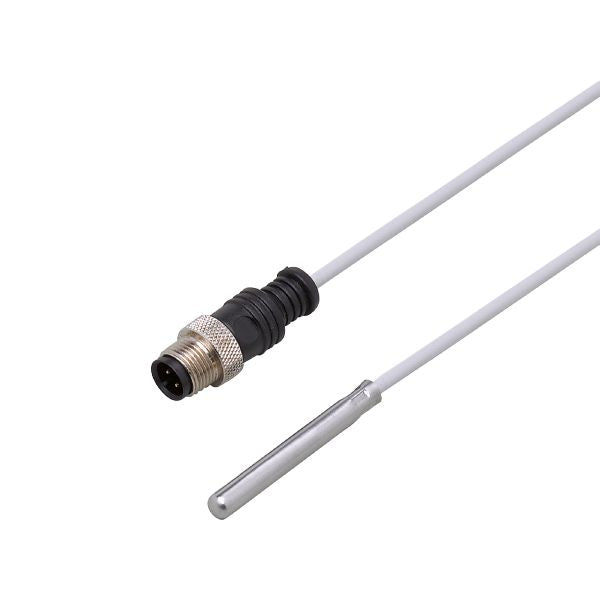

Ifm TS9256 Temperature Cable Sensor With Process Connection
Country Of Origin:
| Measuring range |
|
||
|---|---|---|---|
| Process connection | Ø 6 mm | ||
| Installation length EL [mm] | 50 |
| Measuring element | 1 x Pt 1000; (to DIN EN 60751, class A) |
|---|---|
| Media | liquids and gases |
| Minimum installation depth [mm] | 15 |
| Protection class | III |
|---|
| Probe length L [mm] | 50 | ||
|---|---|---|---|
| Measuring range |
|
||
| Note on measuring range |
|
| Accuracy [K] | ± (0,15 K + 0,002 x|t|) |
|---|
| Dynamic response T05 / T09 [s] | 11 / 37; (according to DIN EN 60751) |
|---|
| Protection | IP 67 |
|---|
| MTTF [years] | 11415.5 |
|---|
| Weight [g] | 26.4 |
|---|---|
| Dimensions [mm] | Ø 6 |
| Material | stainless steel (1.4571/316Ti ); PFA/PTFE |
| Materials (wetted parts) | stainless steel (1.4571/316Ti ) |
| Process connection | Ø 6 mm |
| Probe diameter [mm] | 6 |
| Installation length EL [mm] | 50 |
| Remarks |
|
|
|---|---|---|
| Pack quantity | 1 pcs. |
| Connection | Cable: 0.15 m, PTFE |
|---|---|
| Connection | Connector: 1 x M12; coding: A |
