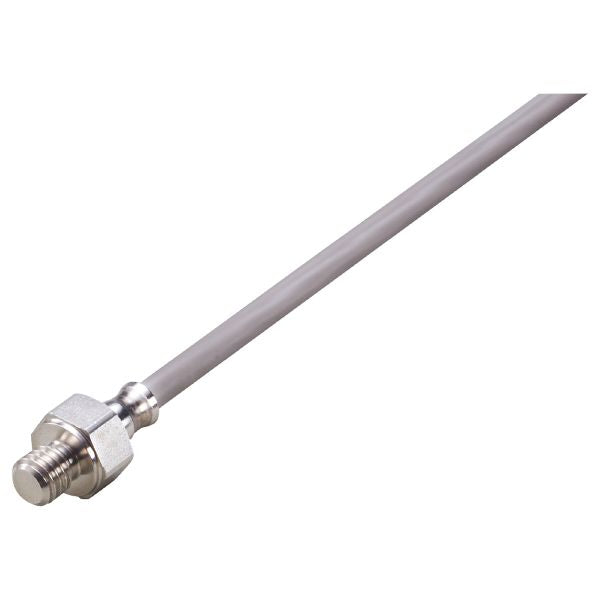

Ifm TS285A Temperature Cable Sensor With Screw-In Sensor
Country Of Origin:
| Measuring range |
|
||
|---|---|---|---|
| Process connection | threaded connection M8 external thread |
| Measuring element | 1 x Pt 100; (to DIN EN 60751, class A; operating current max. 10 mA) |
|---|---|
| Installation | Contact sensor for solid bodies |
| Operating voltage [V] | < 6 DC |
|---|---|
| Insulation rating [V] | 2500; (Insulation between sensor housing and internal) |
| Protection class | III |
| Measuring range |
|
||
|---|---|---|---|
| Note on measuring range |
|
| Accuracy [K] | ± (0,15 K + 0,002 x|t|) |
|---|
| Dynamic response T05 / T09 [s] | 8 / 20; (for water (70 °C; 0,04 m/s)) |
|---|
| Protection | IP 67 |
|---|
| ATEX marking |
|
|---|---|
|
|
|
| MTTF [years] | 14269.4 |
| Weight [g] | 111.05 |
|---|---|
| Housing | screw-in sensor |
| Dimensions [mm] | M8 |
| Thread designation | M8 |
| Material | stainless steel (1.4404 / 316L) |
| Process connection | threaded connection M8 external thread |
| Pack quantity | 1 pcs. |
|---|
| Connection | Cable: 2 m, silicone; 4 x 0.34 mm² |
|---|
