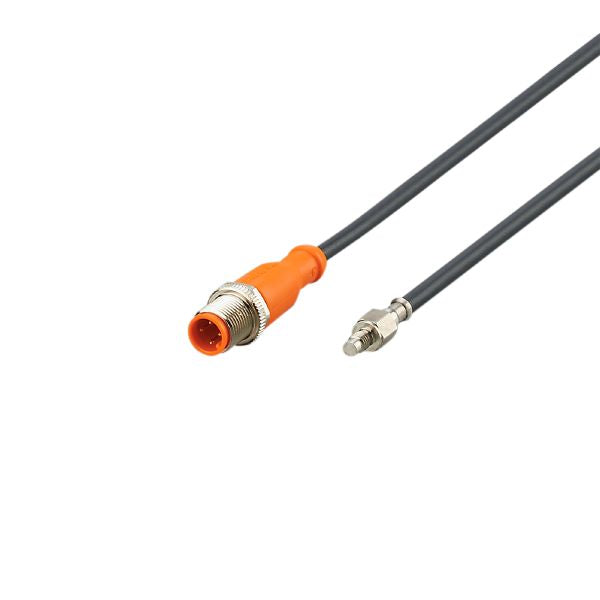

Ifm TS2789 Temperature Cable Sensor With Screw-In Sensor
Country Of Origin:
| Measuring range |
|
||
|---|---|---|---|
| Process connection | threaded connection M5 external thread |
| System | gold-plated contacts |
|---|---|
| Measuring element | 1 x Pt 100; (to DIN EN 60751, class A) |
| Installation | Contact sensor for solid bodies |
| Protection class | III |
|---|
| Measuring range |
|
|---|
| Accuracy [K] | ± (0,15 K + 0,002 x|t|) |
|---|
| Dynamic response T05 / T09 [s] | 3 / 8; (according to DIN EN 60751) |
|---|
| Protection | IP 67 |
|---|
| Shock resistance |
|
||
|---|---|---|---|
| Vibration resistance |
|
||
| MTTF [years] | 11415.5 |
| Weight [g] | 80.95 |
|---|---|
| Housing | screw-in sensor |
| Dimensions [mm] | M5 / L = 26 |
| Thread designation | M5 |
| Material | stainless steel (1.4404 / 316L) |
| Tightening torque [Nm] | 1.5 |
| Process connection | threaded connection M5 external thread |
| Pack quantity | 1 pcs. |
|---|
| Connection | Cable: 2 m, PUR |
|---|---|
| Connection | Connector: 1 x M12; coding: A; Contacts: gold-plated |
