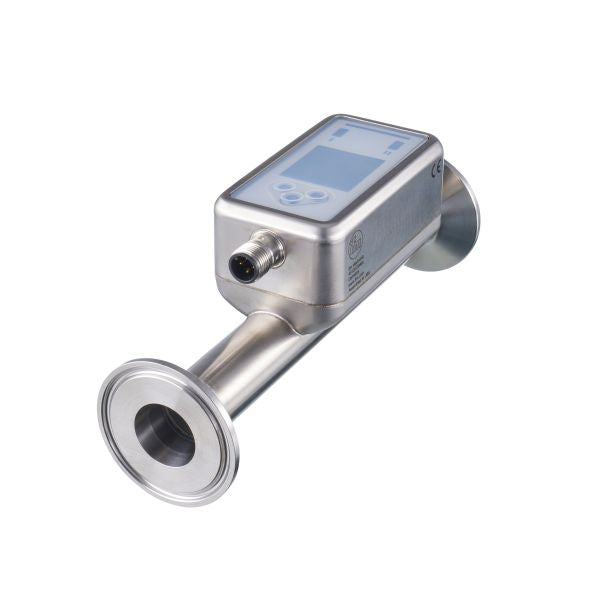

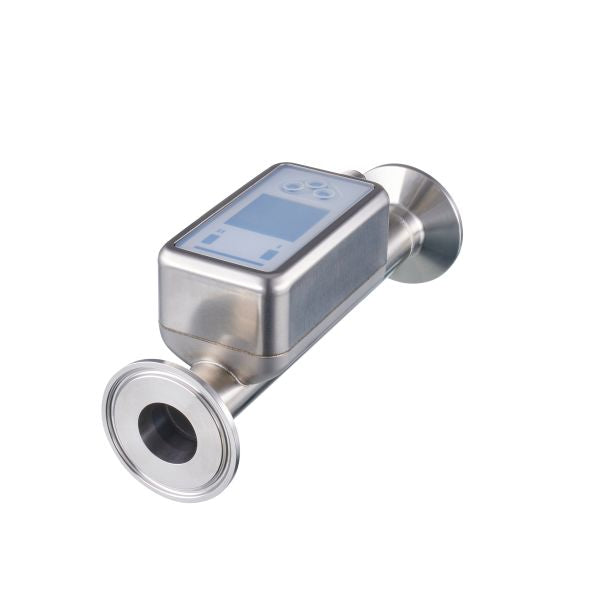

Ifm SUH200 Ultrasonic Flow Meter
Country Of Origin:
| Measuring range |
|
||||
|---|---|---|---|---|---|
| Process connection | Clamp 1" DIN 32676 series C |
| System | gold-plated contacts | ||
|---|---|---|---|
| Media | ultra-pure water; water; water-based media | ||
| Note on media |
|
||
| Medium temperature [°C] | -20...100 | ||
| Min. bursting pressure |
|
||
| Pressure rating |
|
||
| Vacuum resistance [mbar] | -1000 |
| Operating voltage [V] | 18...32 DC; (to SELV/PELV) |
|---|---|
| Current consumption [mA] | < 75 |
| Protection class | III |
| Reverse polarity protection | yes |
| Power-on delay time [s] | 5 |
| Measuring principle | ultrasonic |
| Total number of inputs and outputs | 2 |
|---|
| Inputs |
|
|---|
| Total number of outputs | 2 | ||||
|---|---|---|---|---|---|
| Output signal |
|
||||
| Electrical design | PNP/NPN | ||||
| Short-circuit protection | yes | ||||
| Type of short-circuit protection | yes (non-latching) | ||||
| Overload protection | yes |
| Number of analog outputs | 1 |
|---|---|
| Analog current output [mA] | 4...20 |
| Max. load [Ω] | 500 |
| Number of digital outputs | 2 |
|---|---|
| Output function | normally open / closed; (configurable) |
| Max. voltage drop switching output DC [V] | 2 |
| Permanent current rating of switching output DC [mA] | 100 |
| Switching frequency DC [Hz] | 0...10000 |
| Measuring range |
|
||||
|---|---|---|---|---|---|
| Display range |
|
||||
| Resolution |
|
||||
| Set point SP |
|
||||
| Reset point rP |
|
||||
| Analog start point ASP |
|
||||
| Analog end point AEP |
|
||||
| Low flow cut-off LFC |
|
||||
| Frequency end point, FEP |
|
||||
| Frequency at the end point FRP [Hz] | 1...10000 |
| Pulse length [s] | 0.002...2 |
|---|---|
| Pulse value | 0.1...99990000 I |
| Measuring range [°C] | -20...100 |
|---|---|
| Display range [°C] | -44...124 |
| Resolution [°C] | 0.1 |
| Set point SP [°C] | -19.6...100 |
| Reset point rP [°C] | -20...99.6 |
| Analog start point [°C] | -20...76 |
| Analog end point [°C] | 4...100 |
