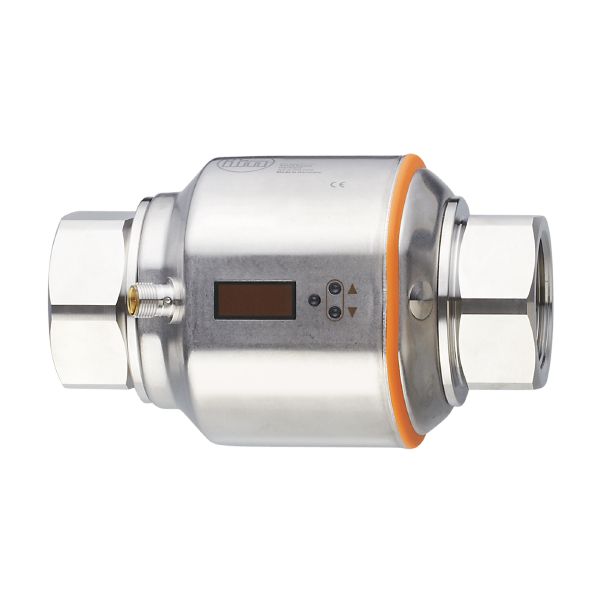

Ifm SM9601 Magnetic-Inductive Flow Meter
Country Of Origin:
| Number of inputs and outputs | Number of digital outputs: 2; Number of analog outputs: 1 | ||
|---|---|---|---|
| Measuring range |
|
||
| Process connection | threaded connection 1 1/2" NPT DN40 |
| System | gold-plated contacts | ||
|---|---|---|---|
| Application | Totalizer function; empty pipe detection; for industrial applications | ||
| Media | Conductive liquids; water; water-based media | ||
| Note on media |
|
||
| Medium temperature [°F] | 14...194 | ||
| Pressure rating [bar] | 16 | ||
| MAWP (for applications according to CRN) [bar] | 16 |
| Operating voltage [V] | 18...32 DC; (to SELV/PELV) |
|---|---|
| Current consumption [mA] | < 150 |
| Protection class | III |
| Reverse polarity protection | yes |
| Power-on delay time [s] | 5 |
| Number of inputs and outputs | Number of digital outputs: 2; Number of analog outputs: 1 |
|---|
| Inputs | counter reset |
|---|
| Total number of outputs | 2 |
|---|---|
| Output signal | switching signal; analog signal; pulse signal; frequency signal; IO-Link; (configurable) |
| Electrical design | PNP/NPN |
| Number of digital outputs | 2 |
| Output function | normally open / closed; (configurable) |
| Max. voltage drop switching output DC [V] | 2 |
| Permanent current rating of switching output DC [mA] | 250; (per output) |
| Number of analog outputs | 1 |
| Analog current output [mA] | 4...20; (scalable) |
| Max. load [Ω] | 500 |
| Analog voltage output [V] | 0...10; (scalable) |
| Min. load resistance [Ω] | 2000 |
| Pulse output | flow rate meter |
| Short-circuit protection | yes |
| Type of short-circuit protection | yes (non-latching) |
| Overload protection | yes |
| Frequency of the output [Hz] | 0.1...10000 |
| Measuring range |
|
||
|---|---|---|---|
| Display range |
|
||
| Resolution |
|
||
| Set point SP |
|
||
| Reset point rP |
|
||
| Analog start point ASP |
|
||
| Analog end point AEP |
|
||
| Low flow cut-off LFC |
|
||
| In steps of |
|
||
| Measuring dynamics | 1:60 |
| Pulse value | 0.02...80 E06 gal |
|---|---|
| In steps of | 0.02 gal |
| Pulse length [s] | 0,016...2 |
| Measuring range [°F] | -4...176 |
|---|---|
| Display range [°F] | -40...212 |
| Resolution [°F] | 0.5 |
| Set point SP [°F] | -2...176 |
| Reset point rP [°F] | -3...175 |
| Analog start point [°F] | -4...140 |
| Analog end point [°F] | 32...176 |
| In steps of [°F] | 0.5 |
| Accuracy (in the measuring range) | ± (0,8 % MW + 0,5 % MEW) |
|---|---|
| Repeatability | ± 0,2% MEW |
| Temperature drift | ± 0,0185 °F / K |
|---|---|
| Accuracy [K] | ± 1 (77 °F; Q > 4 gpm) |
