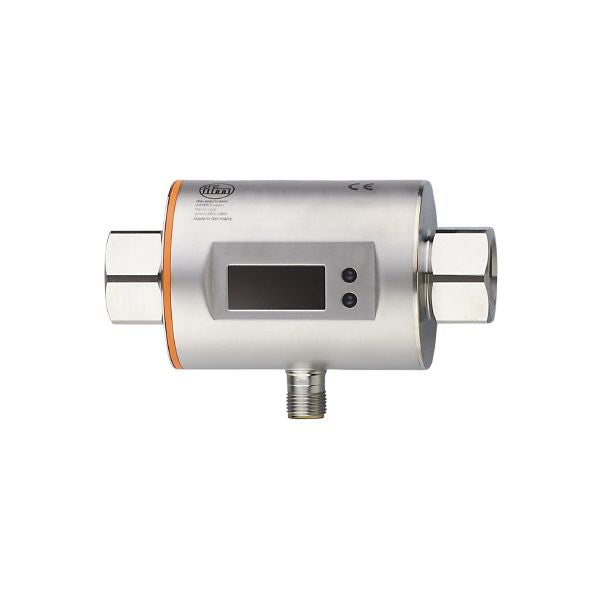

Ifm SM6604 Magnetic-Inductive Flow Meter
Country Of Origin:
| Number of inputs and outputs | Number of analog outputs: 2 | ||
|---|---|---|---|
| Measuring range |
|
||
| Process connection | threaded connection 1/2" NPT DN15 |
| System | gold-plated contacts | ||
|---|---|---|---|
| Application | for industrial applications | ||
| Media | Conductive liquids; water; water-based media | ||
| Note on media |
|
||
| Medium temperature [°C] | -10...70 | ||
| Pressure rating [bar] | 16 | ||
| Pressure rating [MPa] | 1.6 | ||
| MAWP (for applications according to CRN) [bar] | 17.7 |
| Operating voltage [V] | 20...30 DC; (to SELV/PELV) |
|---|---|
| Current consumption [mA] | 120; (24 V) |
| Protection class | III |
| Reverse polarity protection | yes |
| Power-on delay time [s] | 5 |
| Number of inputs and outputs | Number of analog outputs: 2 |
|---|
| Total number of outputs | 2 |
|---|---|
| Output signal | analog signal |
| Number of analog outputs | 2 |
| Analog current output [mA] | 4...20; (scalable) |
| Max. load [Ω] | 500 |
| Overload protection | yes |
| Measuring range |
|
||
|---|---|---|---|
| Display range |
|
||
| Resolution |
|
||
| Analog start point ASP |
|
||
| Analog end point AEP |
|
||
| In steps of |
|
| Measuring range [°C] | -20...80 |
|---|---|
| Resolution [°C] | 0.2 |
| Analog start point [°C] | -20...60 |
| Analog end point [°C] | 0...80 |
| In steps of [°C] | 0.2 |
| Accuracy (in the measuring range) | ± (2 % MW + 0,5 % MEW) |
|---|---|
| Repeatability | ± 0,2% MEW |
| Accuracy [K] | ± 2,5 (Q > 1 l/min) |
|---|
| Response time [s] | 0.15; (dAP = 0, T19) |
|---|---|
| Damping process value dAP [s] | 0...3 |
| Dynamic response T05 / T09 [s] | T09 = 20 (Q > 1 l/min) |
|---|
| Ambient temperature [°C] | -10...60 |
|---|---|
| Storage temperature [°C] | -25...80 |
| Protection | IP 67 |
| EMC |
|
||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CPA approval |
|
||||||||||||
| Shock resistance |
|
||||||||||||
| Vibration resistance |
|
||||||||||||
| MTTF [years] | 175 | ||||||||||||
| Pressure equipment directive | sound engineering practice; can be used for group 2 fluids; group 1 fluids on request |
| Weight [g] | 523.15 |
|---|---|
| Material | stainless steel (1.4404 / 316L); PBT-GF20; PC; FKM; TPE |
| Materials (wetted parts) | stainless steel (1.4404 / 316L); PEEK; FKM |
| Process connection | threaded connection 1/2" NPT DN15 |
