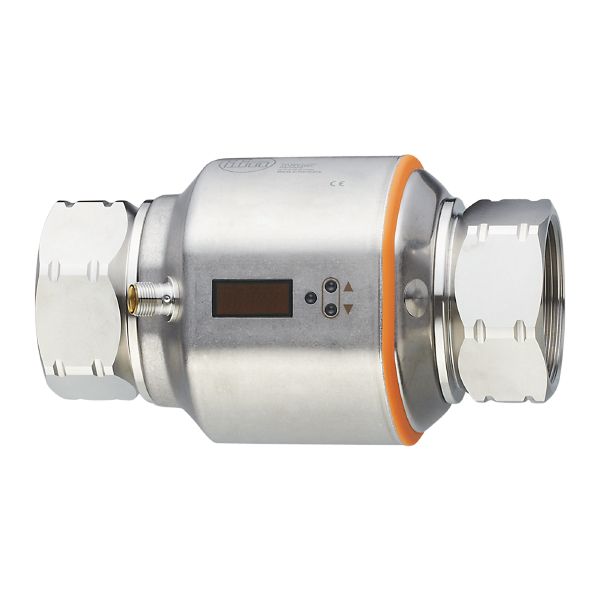

Ifm SM2404 Magnetic-Inductive Flow Meter
Country Of Origin:
| Number of inputs and outputs | Number of analog outputs: 2 | ||||
|---|---|---|---|---|---|
| Measuring range |
|
||||
| Process connection | threaded connection Rc 2 Internal thread DN50 |
| System | gold-plated contacts | ||
|---|---|---|---|
| Application | empty pipe detection; for industrial applications | ||
| Media | Conductive liquids; water; water-based media | ||
| Note on media |
|
||
| Medium temperature |
|
||
| Pressure rating [bar] | 16 | ||
| Pressure rating [MPa] | 1.6 | ||
| Pressure rating [psi] | 232 |
| Operating voltage [V] | 18...32 DC; (to SELV/PELV) |
|---|---|
| Current consumption [mA] | < 150 |
| Protection class | III |
| Reverse polarity protection | yes |
| Power-on delay time [s] | 5 |
| Number of inputs and outputs | Number of analog outputs: 2 |
|---|
| Total number of outputs | 2 |
|---|---|
| Output signal | analog signal |
| Number of analog outputs | 2 |
| Analog current output [mA] | 4...20; (≤ 22 mA; scalable) |
| Max. load [Ω] | 500 |
| Measuring range |
|
||||
|---|---|---|---|---|---|
| Display range |
|
||||
| Resolution |
|
||||
| Analog start point ASP |
|
||||
| Analog end point AEP |
|
||||
| Low flow cut-off LFC |
|
||||
| In steps of |
|
||||
| Measuring dynamics | 1:120 |
| Measuring range |
|
||
|---|---|---|---|
| Display range |
|
||
| Resolution |
|
||
| Analog start point |
|
||
| Analog end point |
|
||
| In steps of |
|
| Accuracy (in the measuring range) | ± (0,8 % MW + 0,5 % MEW) |
|---|---|
| Repeatability | ± 0,2% MEW |
| Temperature drift | ± 0,0333 °C / K; ± 0,0599 °F / K |
|---|---|
| Accuracy [K] | ± 1 (25 °C; Q > 15 l/min) / ± 1 (77 °F; Q > 4 gpm) |
| Response time [s] | 0.35; (dAP = 0) |
|---|---|
| Damping process value dAP [s] | 0...5 |
| Dynamic response T05 / T09 [s] | T09 = 3 (Q > 15 l/min) / T09 = 3 (Q > 4 gpm) |
|---|
| Parameter setting options | display can be deactivated; Display unit; empty pipe detection |
|---|
| Ambient temperature |
|
||
|---|---|---|---|
| Storage temperature |
|
