Ifm | SKU: IF-SBG234-E | Barcode: DOES NOT APPLY

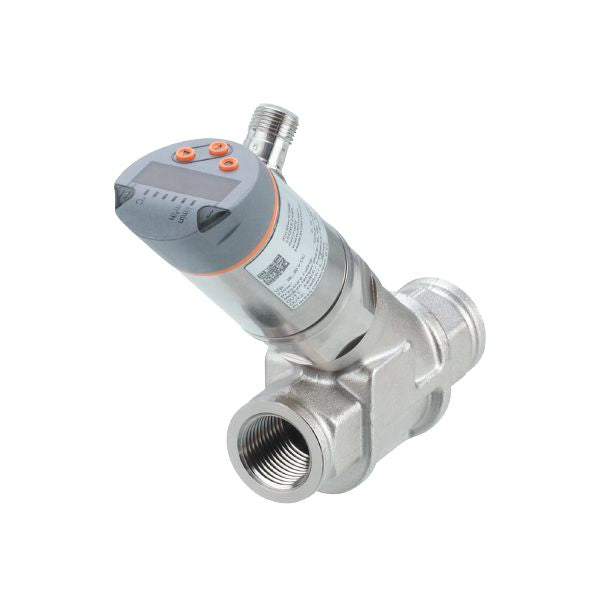

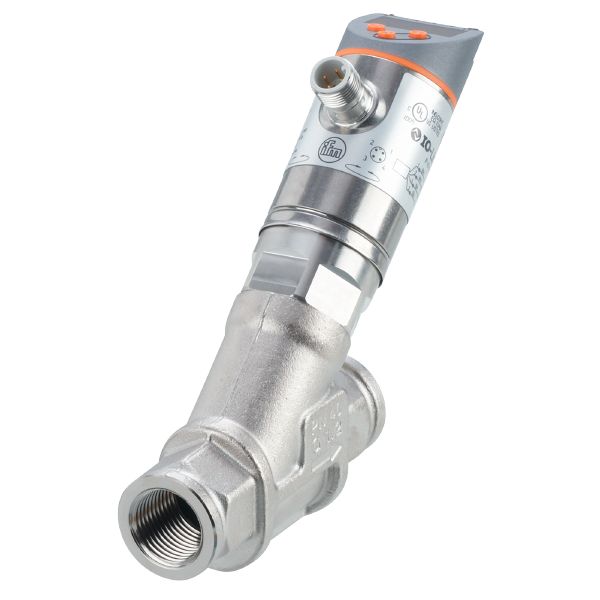

Ifm SBG234 Flow Meter With Fast Response And Display

Name: Ifm SBG234 Flow Meter With Fast Response And Display
Availability: BackOrder

$420.00 USD

Shipping calculated at checkout.

Ifm SBG234 Flow Meter With Fast Response And Display is backordered and will ship as soon as it is back in stock.

Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.

Delivery And Shipping

Both Standard and Express shipping options are available at checkout.

Subscribe to our newsletter

Product characteristics

Number of inputs and outputs

Number of digital outputs: 2; Number of analog outputs: 1

Measuring range

1...50 l/min

0.06...3 m³/h

Process connection

threaded connection G 1/2

Application

System

gold-plated contacts

Application

for industrial applications

Media

Liquids; water; glycol solutions; Coolants

Note on media

oil 1 with viscosity: 10 mm²/s (40 °C)

oil 2 with viscosity: 46 mm²/s (40 °C)

Medium temperature [°C]

-10...100

Min. bursting pressure [bar]

160

Pressure rating [bar]

Pressure rating [MPa]

MAWP (for applications according to CRN) [bar]

Electrical data

Operating voltage [V]	18...30 DC; (to SELV/PELV)
Current consumption [mA]	< 50
Protection class	III
Reverse polarity protection	yes
Power-on delay time [s]	< 3

Inputs / outputs

Number of inputs and outputs	Number of digital outputs: 2; Number of analog outputs: 1

Outputs

Total number of outputs	2
Output signal	switching signal; analog signal; frequency signal; IO-Link; (configurable)
Number of digital outputs	2
Output function	normally open / closed; (configurable)
Max. voltage drop switching output DC [V]	2
Permanent current rating of switching output DC [mA]	150; (per output 2 x 200 (...60 °C); 2 x 250 (...40 °C))
Switching cycles (mechanical)	10 million
Number of analog outputs	1
Analog current output [mA]	4...20
Max. load [Ω]	500
Short-circuit protection	yes
Overload protection	yes
Frequency of the output [Hz]	0...10000

Measuring/setting range

Measuring range

1...50 l/min

0.06...3 m³/h

Display range

0...60 l/min

0...3.6 m³/h

Resolution

0.5 l/min

0.01 m³/h

Set point SP

0.5...50 l/min

0.02...3 m³/h

Reset point rP

0...49.5 l/min

0...2.98 m³/h

Frequency end point, FEP

3.5...50 l/min

0.2...3 m³/h

In steps of

0.5 l/min

0.01 m³/h

Frequency at the end point FRP [Hz]

10...10000

Measuring dynamics

1:50

Temperature monitoring

Measuring range [°C]	-10...100
Display range [°C]	-32...122
Resolution [°C]	1
Set point SP [°C]	-9...100
Reset point rP [°C]	-10...99
In steps of [°C]	1
Frequency start point, FSP [°C]	-10...78
Frequency end point, FEP [°C]	12...100
Frequency at the end point FRP [Hz]	10...10000

Accuracy / deviations

Flow monitoring

Accuracy (in the measuring range)	± (4 % MW + 1 % MEW); (Q > 1 l/min; medium and operating temperature: +22 °C ± 4K)
Repeatability	± 1 % MEW

Temperature monitoring

Temperature drift	0,029 °C / K
Accuracy [K]	3 K (25°C; Q > 1 l/min)

Reaction times

Flow monitoring

Response time [s]	0.01
Damping process value dAP [s]	0...5
Damping for the analog output dAA [s]	0...5

Temperature monitoring

Dynamic response T05 / T09 [s]	T09 = 120 (Q > 1 l/min)

Software / programming

Parameter setting options	hysteresis / window; normally open / closed; switching logic; current/frequency output; medium selection; damping for the switching output / analog output; display can be rotated and switched off; standard unit of measurement; process value color

Interfaces

Communication interface	IO-Link<
